Air-Operated, Fluid Pressure Regulator

GG 248090

REGULATOR, PRESSURE, FLUID, AIR-OPER.

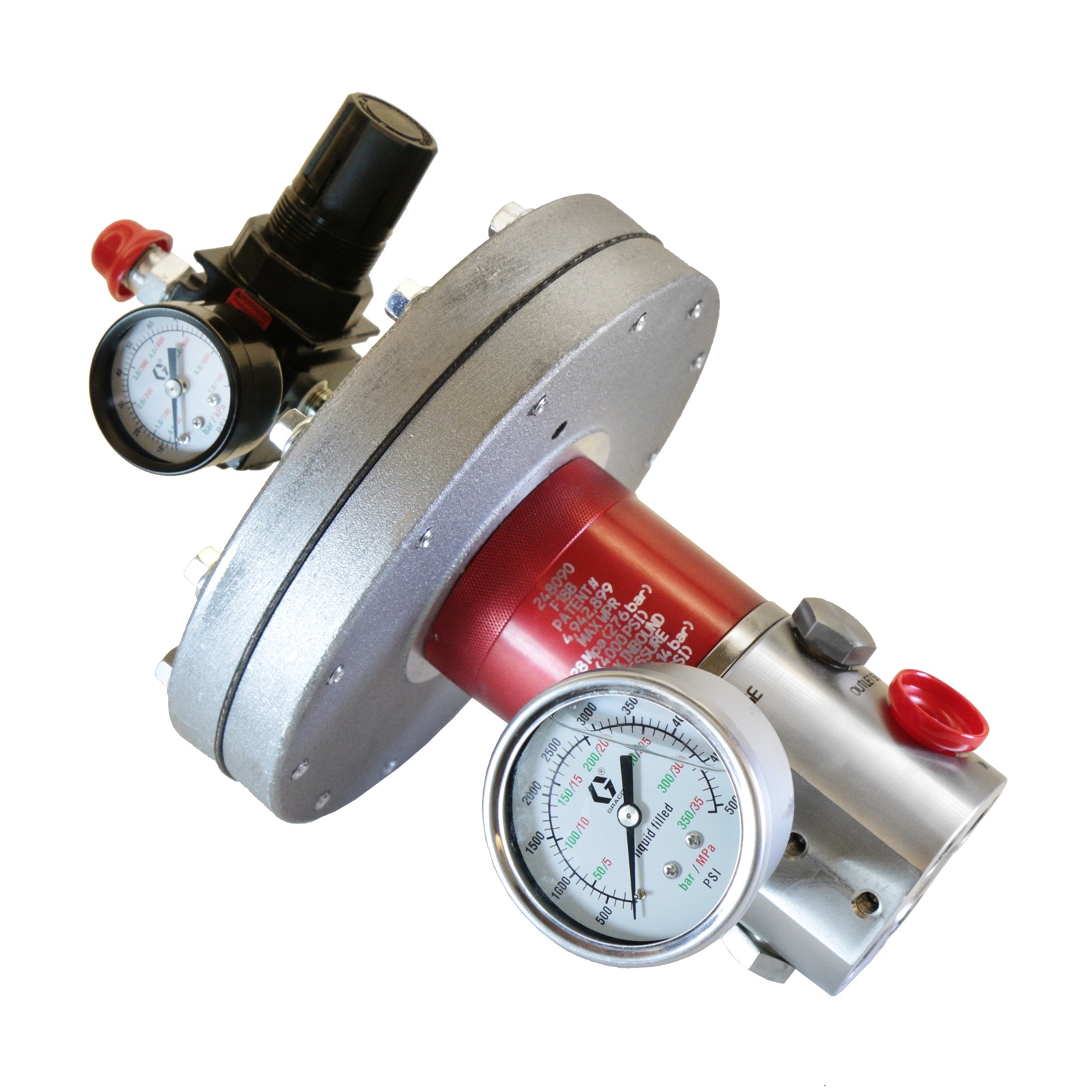

Graco 248090 Air-Operated Fluid Pressure Regulator

For a balanced fluid system, pressure control is essential. Graco provides a wide selection of fluid pressure regulators to keep your system functioning more productively by providing rugged, precise pressure regulation.

• Compatible with catalyst and waterborne materials
• Manual or air-operated
• Tungsten and carbide materials to resist wear
• Compact and lightweight – perfect for spray packages

• Actuation Type: Air

• Application: Bonding, Sealing, Gasketing, Encapsulation, Thermal Management, Molding, Spray, Fluid Transfer, Unloading, Underfill, Infusion, Metering, Regulating

• Compatible Material: Waterborne

• Flow Control Type: Regulation

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Inlet Size (cm): 1.27
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 2
• Maximum Flow Rate (L/min): 7.57

• Maximum Regulated Pressure (bar): 276
• Maximum Regulated Pressure (kPa): 27600
• Maximum Regulated Pressure (MPa): 28
• Maximum Regulated Pressure (psi): 4000

• Maximum Viscosity (cP): 15000

• Maximum Working Pressure (bar): 414
• Maximum Working Pressure (kPa): 41400
• Maximum Working Pressure (MPa): 41
• Maximum Working Pressure (psi): 6000

• Minimum Regulated Pressure (bar): 34
• Minimum Regulated Pressure (kPa): 3400
• Minimum Regulated Pressure (MPa): 3.4
• Minimum Regulated Pressure (psi): 500

• Outlet Size (cm): 1.27
• Outlet Size (in): 1/2
• Outlet Size (mm): 12.7
• Outlet Thread Type: NPT
