H.P. Fluid Back Pressure Regulator, 3400 Max psi, 1300-3000 Psi Pressure Range

GG 234269

REGULATOR, PRESS, P200-RM, NPT

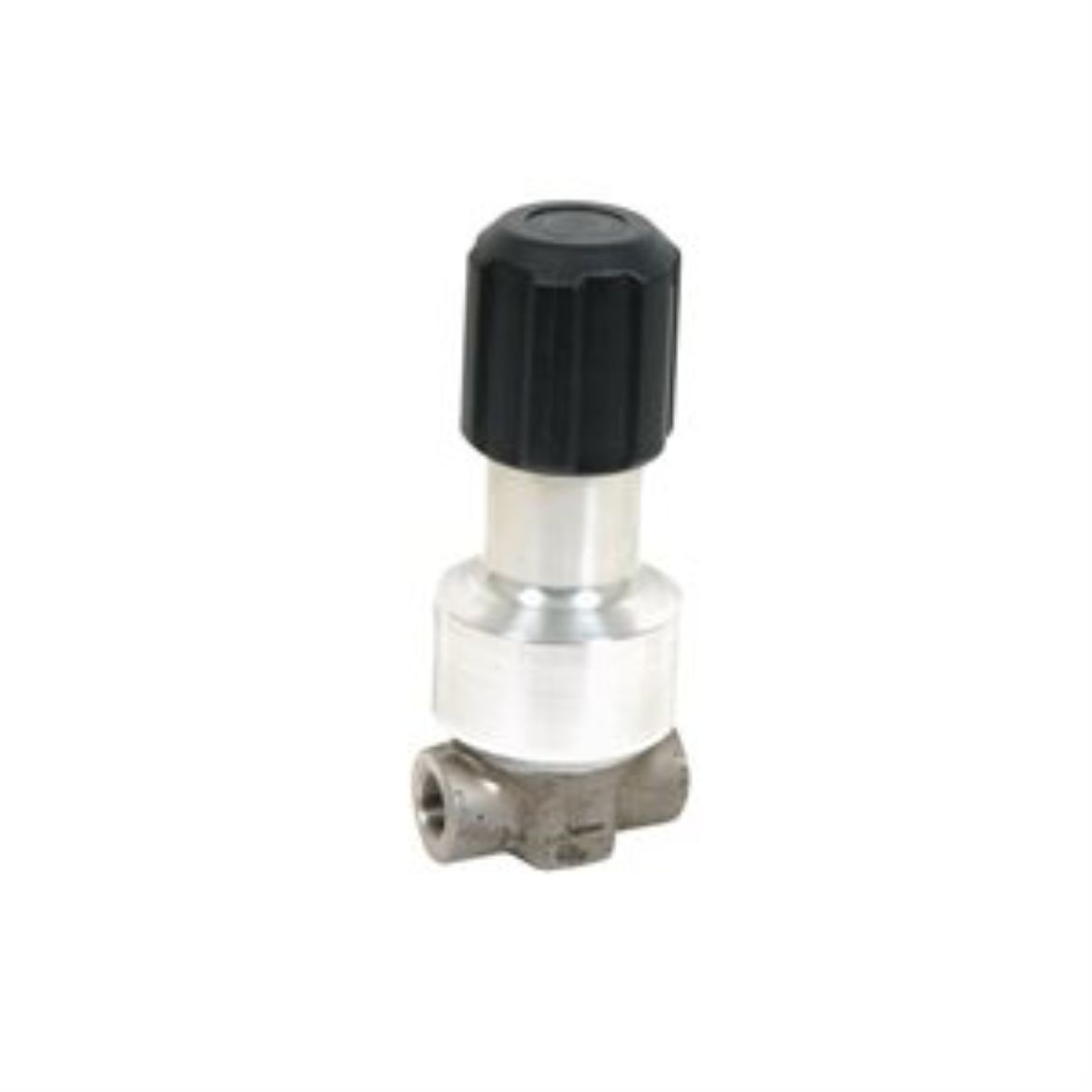

Graco 234269 High Pressure Fluid Back Pressure Regulator, 3400 Max psi, 1300-3000 psi Pressure Range, 13.1 GPM, SST, Spring Type, 3/8(f) x 3/8(f)

• Tungsten and carbide materials ensure low wear and long life
• Plated carbon steel housing is compatible with solvent-borne materials
• Laser-marked indication lines for easy pressure adjustment and process control

• Actuation Type: Spring

• Includes: Regulator Only
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 13.1
• Maximum Flow Rate (L/min): 49.59

• Maximum Regulated Pressure (bar): 200
• Maximum Regulated Pressure (kPa): 20000
• Maximum Regulated Pressure (MPa): 20.7
• Maximum Regulated Pressure (psi): 3000

• Maximum Working Pressure (bar): 235
• Maximum Working Pressure (kPa): 23500
• Maximum Working Pressure (MPa): 23.5
• Maximum Working Pressure (psi): 3400

• Minimum Regulated Pressure (bar): 90
• Minimum Regulated Pressure (kPa): 9000
• Minimum Regulated Pressure (MPa): 9
• Minimum Regulated Pressure (psi): 1300

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
