GG 234261
REGULATOR, PRESS, P20-RM DN1, NPT

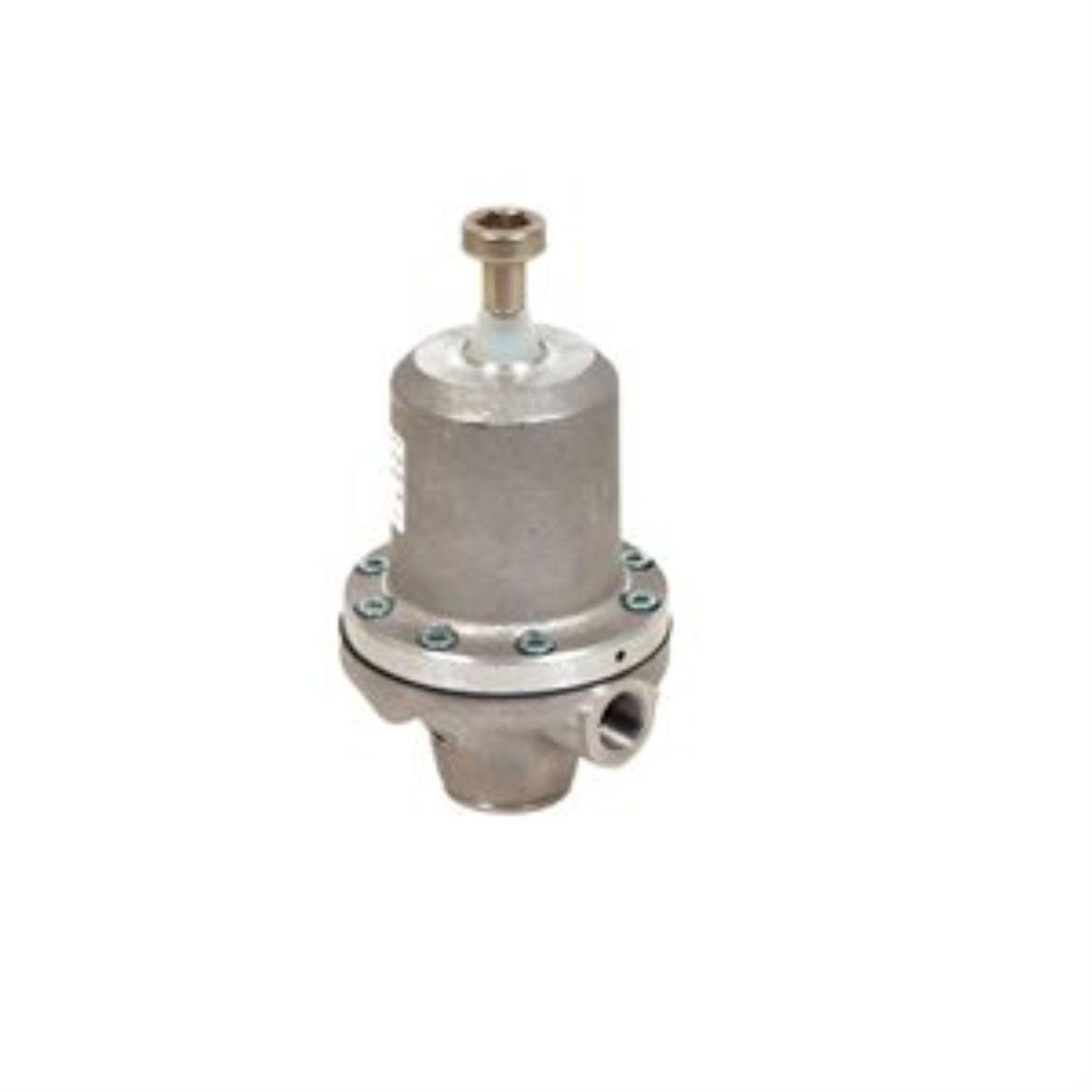

Graco 234261 Low Back Pressure Fluid Regulator, 290 Max psi, 15-290 psi Range, 5.7 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f), 1/8 in BSPP Port
Limits the supply pressure to a set value by opening an outlet and guiding back excess material when the predetermined pressure has been achieved. Used in circulating systems.
- Gauge Port Size (cm): 0.3175
- Gauge Port Size (in): 1/8
- Gauge Port Size (mm): 3.175
- Includes: Regulator Only
- Inlet Size (cm): 2.54
- Inlet Size (in): 1
- Inlet Size (mm): 25.4
- Maximum Flow Rate (GPM): 5.7
- Maximum Flow Rate (L/min): 21.7
- Maximum Regulated Pressure (bar): 20
- Maximum Regulated Pressure (kPa): 2000
- Maximum Regulated Pressure (psi): 290
- Maximum Working Pressure (bar): 20
- Maximum Working Pressure (kPa): 2000
- Maximum Working Pressure (psi): 290
- Minimum Regulated Pressure (bar): 2
- Minimum Regulated Pressure (kPa): 200
- Minimum Regulated Pressure (MPa): 0.2
- Minimum Regulated Pressure (psi): 29
- Outlet Size (cm): 2.54
- Outlet Size (in): 1
- Outlet Size (mm): 25.4
