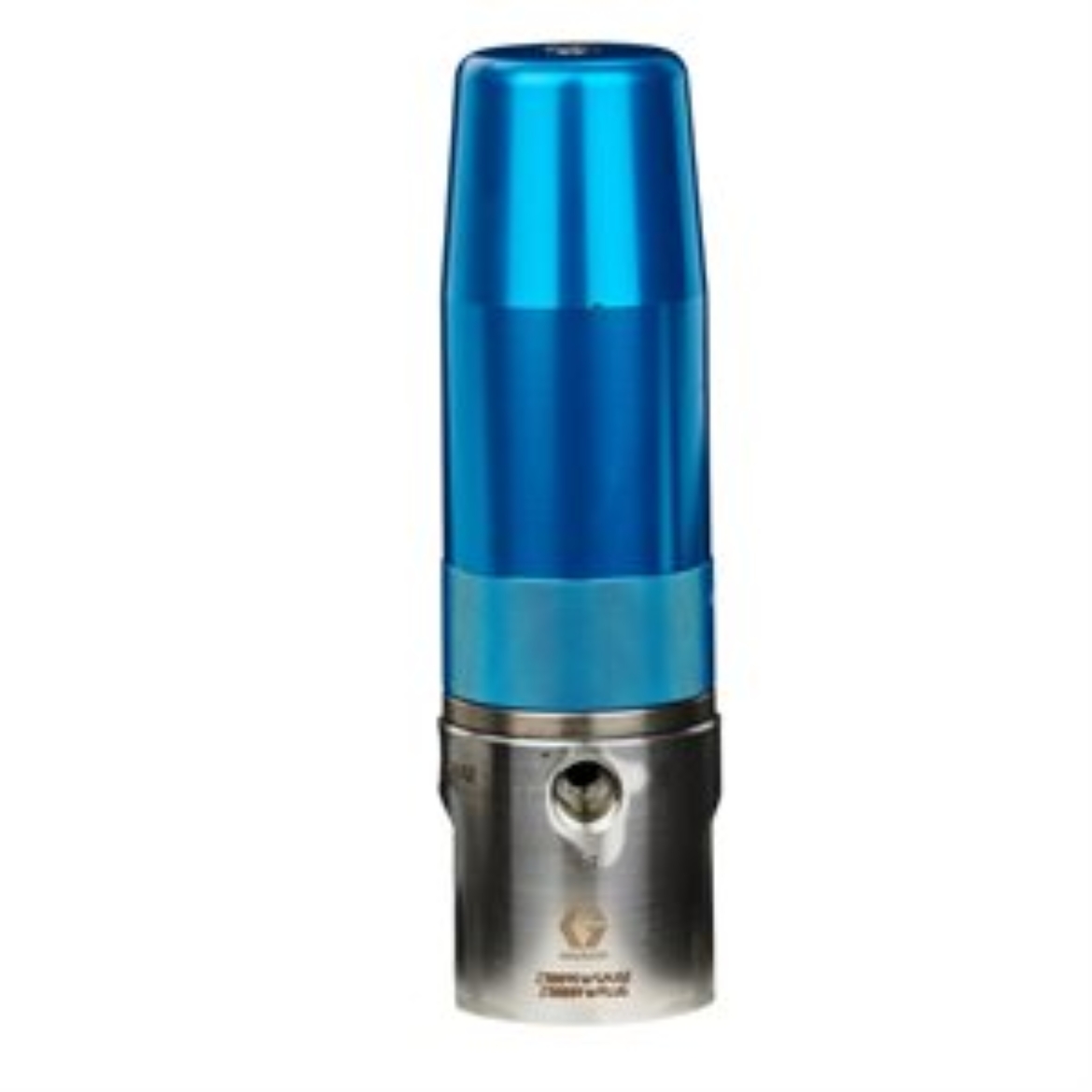

D/S Regulator, 3/8in, SS, 3000-5000 psi

GG 238892

REGULATOR, PRESSURE, FLUID

Graco 238892 Corrosion Resistant High Fluid Pressure Regulator, 3000-5000 psi Range, 1.0 gpm, SST, Spring, 3/8(f) x 3/8(f), 1/4(f) Port, with gauge

• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Tungsten and carbide materials ensure low wear and long life
• Valve cartridge for quick cleaning and replacement – reduce downtime

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.8

• Maximum Regulated Pressure (bar): 345
• Maximum Regulated Pressure (kPa): 34500
• Maximum Regulated Pressure (MPa): 34
• Maximum Regulated Pressure (psi): 5000

• Maximum Viscosity (cP): 15000

• Maximum Working Pressure (bar): 414
• Maximum Working Pressure (kPa): 41400
• Maximum Working Pressure (MPa): 41
• Maximum Working Pressure (psi): 6000

• Minimum Regulated Pressure (bar): 207
• Minimum Regulated Pressure (kPa): 20700
• Minimum Regulated Pressure (MPa): 21
• Minimum Regulated Pressure (psi): 3000

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
