Regulator, Press, P100-Rm, NPT

GG 234268

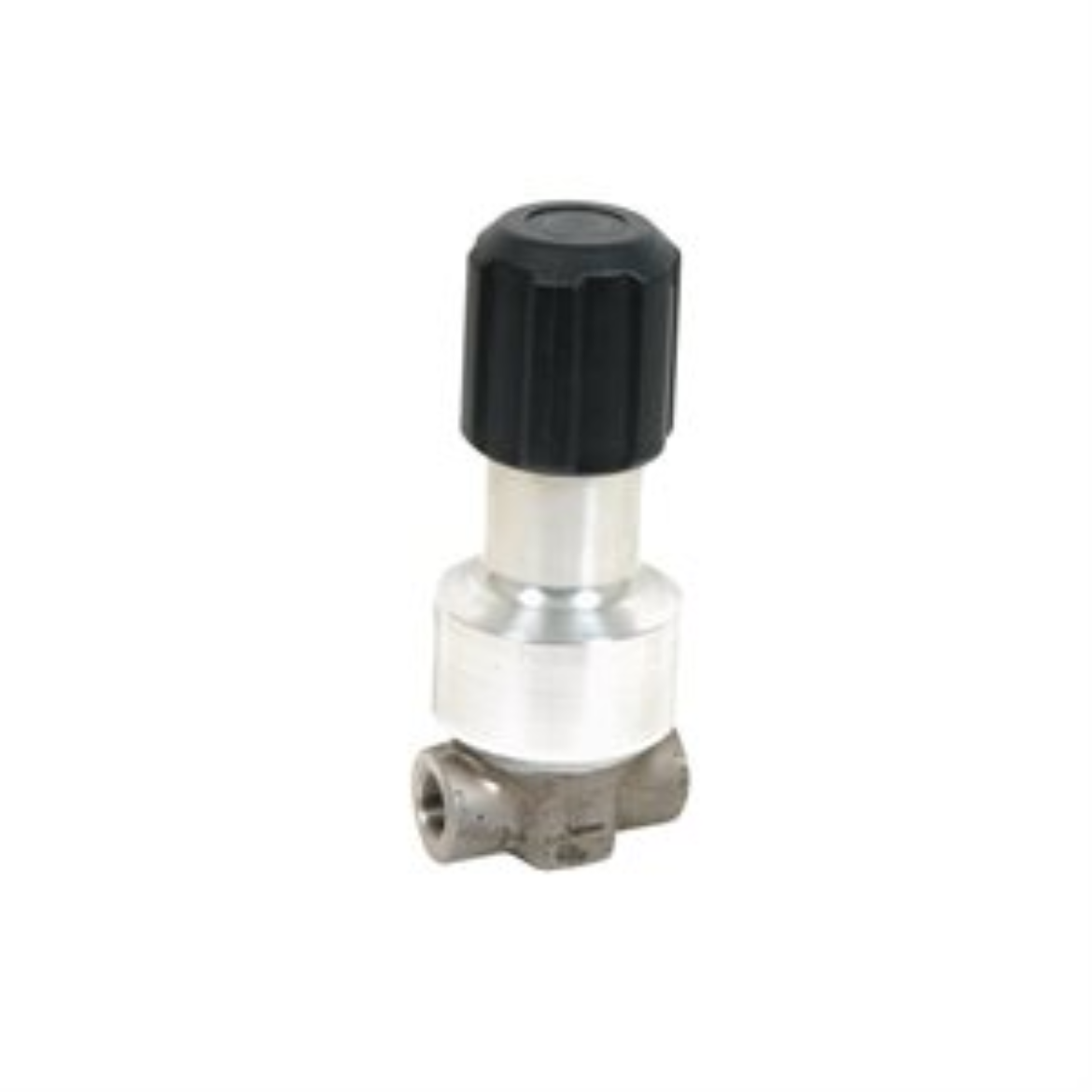

REGULATOR, PRESS, P100-RM, NPT

Graco 234268 High Pressure Fluid Back Pressure Regulator, 2500 Max psi, 600-1500 psi Pressure Range, 10.2 GPM, SST, Spring Type, 3/8(f) x 3/8(f)

• Tungsten and carbide materials ensure low wear and long life
• Plated carbon steel housing is compatible with solvent-borne materials
• Laser-marked indication lines for easy pressure adjustment and process control

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: BSPP

• Includes: Regulator Only
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 10.2
• Maximum Flow Rate (L/min): 38.6

• Maximum Regulated Pressure (bar): 100
• Maximum Regulated Pressure (kPa): 10000
• Maximum Regulated Pressure (psi): 1500

• Maximum Working Pressure (bar): 170
• Maximum Working Pressure (kPa): 17000
• Maximum Working Pressure (psi): 2500

• Minimum Regulated Pressure (bar): 40
• Minimum Regulated Pressure (kPa): 4000
• Minimum Regulated Pressure (MPa): 4
• Minimum Regulated Pressure (psi): 600

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
