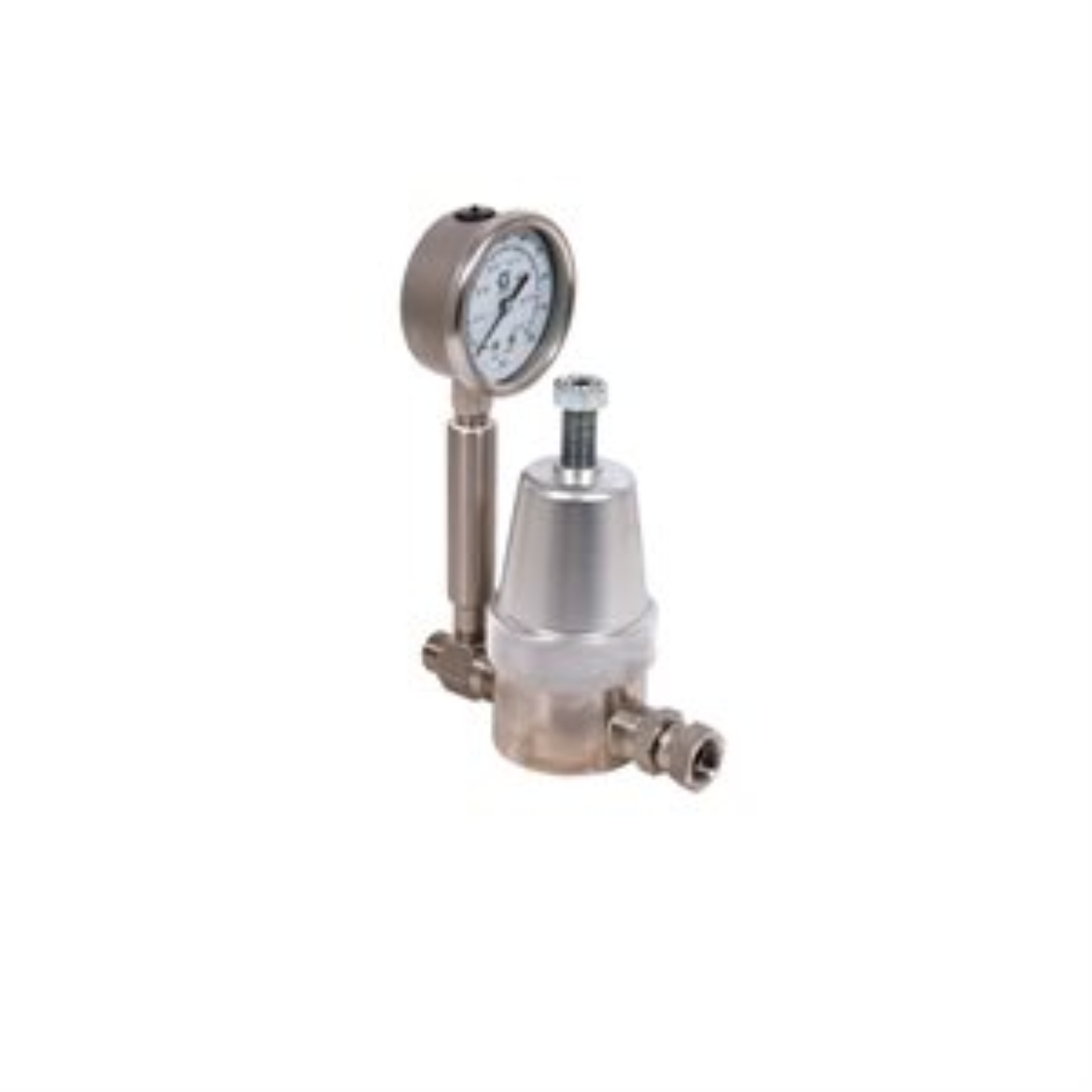

B/P Regulator,1/2in,SS,5-180 psi

GG 237503

REGULATOR, BACK PRESSURE

Graco 237503 Back Pressure Regulator, Bare, Low Pressure, 180 Max psi, SST, Manual, 3/8 npt(f) inlet x 1/2 npt(f) outlet

237503 is the back pressure regulator only. Part number 236770 includes the gauge, tube, inlet adapter and outlet swivel union. Graco back pressure regulators maintain the system pressure, regardless of flow demand

• Compact and lightweight design saves space and reduces payload for small circulation systems
• Tungsten and carbide materials ensure low wear and long life
• PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness

• Compatible Material: Catalyst, Waterborne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 4.3
• Maximum Flow Rate (L/min): 16.28

• Maximum Regulated Pressure (bar): 12.4
• Maximum Regulated Pressure (kPa): 1240
• Maximum Regulated Pressure (psi): 180

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (psi): 300

• Minimum Regulated Pressure (bar): 0.3
• Minimum Regulated Pressure (kPa): 30
• Minimum Regulated Pressure (MPa): 0.03
• Minimum Regulated Pressure (psi): 5

• Outlet Size (cm): 1.27
• Outlet Size (in): 1/2
• Outlet Size (mm): 12.7
• Outlet Thread Type: NPT
