Impacts

IR 2934-A703

IR 2934-TK3

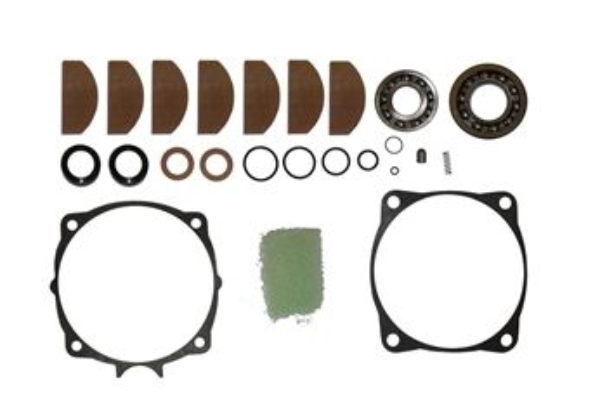

Tune-up Kit for Ingersoll Rand 2934 Series Impact Wrench

• For Use With: 2934A2
• For Use With: 2934B2
• For Use With: 2934B9
• For Use With: 2934P2

IR W5133

3/8" 20V Cordless Impact Wrench, 550 ft-lb Torque, Friction Ring Retainer, Pistol, Bare Tool

Description: The Ingersoll Rand W5133 impact wrench enhances the features you demanded: increased durability with stronger internal parts, and increased access with its tapered front end. This next generation compact impact wrench packs 365 ft.-lbs. of MAX torque in a cordless compact unit that weighs only 5.3 lbs. (with a BL2022 battery). Tested by real technicians, ready to tackle real work.

Features And Benefits:

• Power: The brushless motor and impact mechanism are finely tuned to unleash a high power-to-weight ratio, with 550 ft.-lbs. of nut busting torque and 365 ft.-lbs. of MAX torque at 5.3 lbs (with BL2022 battery). The all-metal drivetrain and hammer mechanism are designed to provide technicians the power they need without adding extra weight to the tool and increases safety-release trigger.
• Control: With 4 power modes (MAX Power, Half Power, Wrench Tight, and Hand Tight), you can adjust a dial instead of changing tools to deliver the right amount of torque when you need it and eliminate rework. From brake calipers to valve covers and everything in between, there's no need to switch tools. The variable-speed switch with electronic brake provides MAX control of the tool.
• Durable: Protected by a chemical-resistant composite housing and a patented steel-reinforced frame, the W5133 is built to withstand repeated drops onto concrete and exposure to shop fluids. The IQV spark-free brushless technology and sealed, enhanced, lubricated reinforced bushing provide a longer-life motor you can rely on.
• Access: 6.5" tip-to-tail ergonomic design and lightweight build, the W5133 can easily access tight spaces, giving you access no matter where your work may be hiding. A built-in 360 degree LED light ring with task light mode and 4 dimmable settings casts a wide beam to give you excellent visibility with no shadows.
• Tapered hammer case / Front End
• Compatible with IQV 20 Series Battery System

Product Application and Uses:

Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include brake calipers, valve covers, cylinder head cover removal, brake repairs, shock replacement, industrial and Mro.

• Includes: Bare tool only, batteries and charger sold separately or with other kits.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Blows per Min: 3300
• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/8
• Drive Type: Square
• Duty Rating: General Duty

• Forward Torque setting 1 (ft-lb): 2.2-8.9
• Forward Torque setting 1 (in-lb): 27-106
• Forward Torque setting 1 (nm): 3-12
• Forward Torque setting 2 (ft-lb): 9.6-24
• Forward Torque setting 2 (in-lb): 115-292
• Forward Torque setting 2 (nm): 13-33
• Forward Torque setting 3 (ft-lb): 240
• Forward Torque setting 3 (in-lb): 2876
• Forward Torque setting 3 (nm): 325
• Forward Torque setting 4 (ft-lb): 339
• Forward Torque setting 4 (in-lb): 4071
• Forward Torque setting 4 (nm): 460
• Free Speed Sound Pressure/Power Db(A): 85

• Hammer Case: Steel-lined Aluminum
• Head Width (in): 2.3
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Ball and Cam

• Lumens: 32
• Max Bolt Diameter (in): 7/16
• Max Free Speed (rpm): 2100
• Max Torque (ft-lb): 369
• Ma

SX STP10S7B12

IR 1702-638

IR 1702-K425

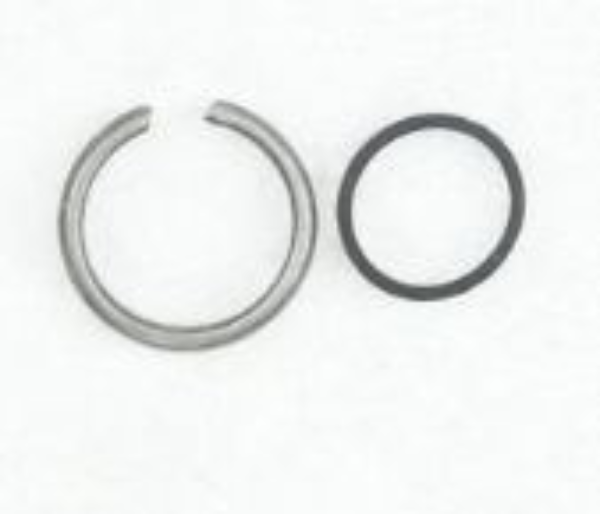

Socket Retainer Kit Replacement Part, 3/8" Square Drive

• For Use With: IQV20-K201
• For Use With: W5133
• For Use With: W5133-AUNZ
• For Use With: W5133-K12
• For Use With: W5133-K22
• For Use With: W5133-K22-CN
• For Use With: W5133-K22-EU
• For Use With: W5133-K22-KR

IR 1702SB-311

Silencer for Ingersoll Rand 1702 Series Impact Wrench

IR 211

3/8" Air Impact Wrench, 150 ft-lb Torque, Friction Ring Retainer, Inline

Description: The 211 Straight Impact Wrench is extremely efficient. Tested just for you, this wrench doesn't stall and you can rely on it from beginning to end.

Features And Benefits:

• Power: The ball and cam mechanism delivers a high output of power. Coupled with its vane motor and power regulator, you'll be speeding through your work in no time.
• Access: Thanks to its straight grip and overall design, this impact wrench is great for use in hard-to-reach spaces.
• Great for Vehicle Repair: The square socket retaining ring makes this an ideal impact wrench for projects where you'll be switching sockets frequently.
• Durability: This impact wrench's steel hammer case provides you with increased durability for heavy-duty projects. No matter how hard you work, this wrench can handle it.
• 1-year warranty

Product Application and Uses:

Designed to remove and install threaded fasteners. Optimized for the vehicle repair industry, body shops, and MRO

• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 11
• Air Consumption @ Load (l/min): 10
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 2.5
• Average Air Consumption (l/min): 71

• Blows per Min: 1500

• Color: Silver
• Configuration/Handle Type: Straight
• Drive Size (in): 3/8
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 98.4 / 105.6

• Hammer Case: Steel
• Handle Material: Composite
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Ball and Cam
• Impacting Sound Pressure/Power Db(A): 94.6 / 105.6

• Max Bolt Diameter (in): 0.375
• Max Free Speed (rpm): 13000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 150
• Max Torque (in-lb): 1797
• Max Torque (nm): 203
• Min Hose Size (in): 3/8
• Motor: Non-Biased

• Number of Power Settings: 5
• Power Source: Air Powered
• Product Length (in): 6.6

• Product Width (in): 2
• Product Height (in): 3.6
• Product Weight (lb): 2.4
• Recommended Forward Torque Range (ft-lb): 20-125
• Recommended Forward Torque Range (in-lb): 239-1505
• Recommended Forward Torque Range (nm): 27-170
• Recommended Reverse Torque (ft-lb): 20-125
• Recommended Reverse Torque (nm): 27-170
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 5.9
• Warranty: 1-year

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 1702-A727
• Parts: 211-TK2

• Parts: 5020-716

IR 2115-D93

Trigger Assembly for Ingersoll Rand 2115 and 2125 Series Impact Wrench

IR 2115QXPA

3/8" Air Impact Wrench, Quiet, 300 ft-lb Torque, Friction Ring Retainer, Pistol

Description: The Ingersoll Rand 2115QXPA Series Impact Wench was built on the hardworking and respected foundation laid by the 2115TiMAX. The results are light, quiet and powerful, an impact wrench that delivers an incredible level of performance and power at a cost that won't punish your wallet. The 2115QXPA 3/8" Impact Wrench is the finely tuned and finely crafted impact wrench you need to tackle the toughest jobs.

Features And Benefits:

• POWER: Punish the toughest bolts with 300 ft-lbs of max reverse torque. All powered by Ingersoll Rand's finely tuned motor and twin-hammer impact mechanism.
• WEIGHT: At only 2.5 lbs, the 2115QXPA is as light as it is powerful so your hand tires less, letting you get more work done.
• SOUND REDUCTION: Ingersoll Rand's Quiet Technology reduces the sound of the tool. Sparing your ears without sacrificing a single ounce of power.
• RELIABILITY: Backed by a one-year warranty and rigorously tested, every component, mechanism and function of the 2115QXPA has been pushed to the limits to ensure it performs well in the face of the toughest jobs
• PRICE: Deliver an incredible level of performance and power at a cost that won't punish your wallet.

Product Application and Uses:

General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 17
• Air Consumption @ Load (l/min): 481
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 4
• Average Air Consumption (l/min): 113

• Blows per Min: 1500

• Color: Black
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/8
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Aluminum with Hard-coating
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 89.7 / 100.7

• Hammer Case: Steel-lined Aluminum
• Handle Material: Composite
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 93.2 / 104.2

• Max Bolt Diameter (in): 7/16
• Max Free Speed (rpm): 15000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 300
• Max Torque (in-lb): 3602
• Max Torque (nm): 407
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 4
• Power Source: Air Powered
• Product Length (in): 5.95

• Product Width (in): 2.19
• Product Height (in): 6.74
• Product Weight (lb): 2.5
• Quiet Tool: Yes
• Recommended Forward Torque Range (ft-lb): 250
• Recommended Forward Torque Range (in-lb): 3000
• Recommended Forward Torque Range (nm): 339
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.1
• Side to Center Distance (mm): 28

• Special Features: Quiet Tool
• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 7
• Vibration Level (m/s2): 7.8
• Warranty: 1-year

• Accessories: SK3H8N
• Accessories: SK3M8N

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2112-A626
• Part

IR 2131P-B40

IR 2135-K703

IR 2141-D565

IR 2175MAX

1" Air Impact Wrench, 2000 ft-lb Torque, Friction Ring-Thru-hole Retainer, Pistol

Description: The 2175MAX 1" Pistol Grip Impact Wrench - engineered to make quick work of big bolting jobs and semi, bus and heavy equipment tires. This tool has been made lighter, pushed harder and worked longer to make sure it can handle repeated demands without sacrificing power. Every time you need extreme torque, this lightweight boss can get the job done.

Features And Benefits:

• POWER: A solid steel impact mechanism and robust motor deliver extreme torque that delivers 2,000 ft- lbs of torque.
• DURABILITY: The steel core and chemical resistant housing are made to last even in the harshest working conditions.
• LIGHTWEIGHT: Weighs under 20 lbs.
• 360 degree adjustable handle: The side handle rotates fully around the tool as the job demands.
• Swivel hose connection: Keeps cords from getting tangled so you can move freely around the garage.

Product Application and Uses:

Heavy Duty Fastening On Trucks, Buses Or Other Large Vehicles

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 56.7
• Air Consumption @ Load (l/min): 1606
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 14.2
• Average Air Consumption (l/min): 402

• Blows per Min: 740

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Aluminum with Steel Wear Plate
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 103.6 / 114.6

• Hammer Case: Steel
• Handle Material: Composite
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 101.5 / 112.5

• Max Bolt Diameter (in): 1-1/4
• Max Free Speed (rpm): 4500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 2002
• Max Torque (in-lb): 24030
• Max Torque (nm): 2715
• Min Hose Size (in): 3/4
• Motor: Reverse Bias

• Number of Power Settings: 3
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 111.2
• Product Length (in): 10

• Product Width (in): 15
• Product Height (in): 6.5
• Product Weight (lb): 17.97
• Recommended Forward Torque Range (ft-lb): 1903
• Recommended Forward Torque Range (in-lb): 22835
• Recommended Forward Torque Range (nm): 2580
• Retainer Type: Friction Ring and Thru-hole

• Side to Center Distance (in): 7.5
• Side to Center Distance (mm): 191

• Special Features: 2-year Max warranty
• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 7
• Vibration Level (m/s2): 11.8
• Warranty: 2-year

• Accessories: SK8H9TN
• Accessories: TB3

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2175MAX-TK1
• Parts: 2850-A626

IR 2707P1

1/2" Air Impact Wrench, 450 ft-lb Torque, Pin Retainer, Pistol

Description: The 2700 Series impact wrench is built strong with a twin hammer impact mechanism, smooth trigger actuation and an easy-to-hold pistol grip. This wrench's vane motor delivers high torque output, while the power regulator allows for increased control.

Features And Benefits:

• Reliability: Every feature of the 2700 Series has been put to the test to ensure it delivers the right power when you pull the trigger.
• Durability: The 2700 Series is especially tough and long-lasting. This impact wrench's steel hammer case provides you with increased durability for heavy-duty projects.
• 1-year warranty.

Product Application and Uses:

Applications include tire changing, engine repair, engine component installation and removal, body work installation and removal, farm implement assembly and repair, auto repair and maintenance, and truck repair.

• Actuation/Throttle Type/Switch Type: Trigger
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 26
• Average Air Consumption (l/min): 736

• Blows per Min: 1300

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Heavy Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 93.0 / 104.0

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 93 / 104

• Max Bolt Diameter (in): 0.625
• Max Free Speed (rpm): 7500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 450
• Max Torque (in-lb): 5400
• Max Torque (nm): 610
• Min Hose Size (in): 3/8
• Motor: Non-Biased

• Number of Power Settings: 6
• Power Source: Air Powered
• Product Length (in): 7.4

• Product Width (in): 2.8
• Product Height (in): 7.85
• Product Weight (lb): 6
• Recommended Forward Torque Range (ft-lb): 40-275
• Recommended Forward Torque Range (in-lb): 478-3301
• Recommended Forward Torque Range (nm): 54-373
• Retainer Type: Pin Detent

• Side to Center Distance (in): 1.4
• Side to Center Distance (mm): 36

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 8.7
• Warranty: 1-year

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2707-TK2
• Parts: 402-302

• Parts: 402-303
• Parts: 404-50A
• Parts: 405-159
• Parts: 705-93

IR 2920P-A93

Trigger for Ingersoll Rand 261, 271 Impact Wrench

• For Use With: 261
• For Use With: 261-3
• For Use With: 261-6
• For Use With: 271

IR 2940B2

1" Air Impact Wrench, Industrial Duty, 1600 ft-lb Torque, Thru-hole Retainer, D-handle Inside Trigger

Description: Find the top impact tools in the industry. The 2940 Series from Ingersoll Rand has over 100 years of legacy behind it.

Features And Benefits:

• 2,000 ft.-lbs. of maximum torque
• Cast iron hammer case and metal housing that will withstand harsh conditions and repeated drops
• Finely Tuned twin hammer impact mechanism delivers more balanced blows that reduces vibration and increases durability
• Bronze end-plate that increases durability and is corrosion resistant
• Pressure-fed mechanism lubrication
• Reverse Bias Motor and Integral muffler

Product Application and Uses:

Heavy Industry, Oil&Gas, Foundry

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard

• Blows per Min: 850

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Industrial Duty

• End Plates: Bronze
• Exhaust Location: Bottom

• Hammer Case: Steel
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer

• Max Bolt Diameter (in): 1-3/8
• Max Free Speed (rpm): 5000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1601
• Max Torque (in-lb): 19206
• Max Torque (nm): 2170
• Min Hose Size (in): 3/4
• Motor: Non-Biased

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 10.2

• Product Width (in): 22.1
• Product Height (in): 6.5
• Product Weight (lb): 22
• Recommended Forward Torque Range (ft-lb): 1003-1601
• Recommended Forward Torque Range (in-lb): 12037-19206
• Recommended Forward Torque Range (nm): 1360 - 2170
• Recommended Reverse Torque (ft-lb): 1003-1601
• Recommended Reverse Torque (nm): 1360-2170
• Retainer Type: Thru-hole

• Side to Center Distance (in): 11.1
• Side to Center Distance (mm): 282

• Sound Pressure/Power Db(A): 94.8 / 105.8
• Standards/Certifications: CE, Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 17.8
• Vibration Uncertainy K* (m/s2): 3.4
• Warranty: 1-year

• Accessories: SK8H9TN

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2940-A703
• Parts: 2940-TK3

IR 3940-105

IR 3940-A92

IR 3940P-TK1

IR 3955-TK1

IR 834-51-5

IR W8171

3/4" 20V Cordless Impact Wrench Bare Tool, 2000 ft-lb Torque, Friction Ring Thru-hole, Pistol

Description: Meet the crown jewel of Ingersoll Rand's cordless portfolio. Behind the 2,000 ft-lbs of torque in Ingersoll Rand's IQV20 W8000 Series cordless impact wrenches are best-in-class features that help you work with speed, power, and control. Whether you're removing nuts from a wheel hub or assembling an appliance with tight tolerances, when you put your tools down at the end of the day, you'll know your impact wrench operated at peak performance- and you got the job done right. Also available in the W8171-K2 kit which includes (2) BL2022 5.0Ah Batteries and 20V battery charger.

Features And Benefits:

• Power: With over 2,000 ft-lbs of breakaway torque, they're the most powerful pistol grip cordless impact wrenches on the market.
• Safety: Remove hoses & trip hazards to keep operators & technicians safe without sacrificing power.
• IQV Power Control System includes 4 forward modes: MAX Power, MID, Wrench, Snug and full power reverse.
• Brushless Motor: A powerful brushless motor helps remove stubborn fasteners up to 33% faster than our leading competitor.
• Shadowless Light: A patented 360° ring light around the anvil completely eliminates shadows around fasteners, making your work easier to see.
• Variable Speed Trigger: Lets you apply the speed you need.
• Durable: Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids.
• Productivity: Tackle a full day's worth of work with 99 bolts per charge . Reduce set up time of jobs up to 15% compared to air tools. No waiting on air for roadside applications.
• IPX6 rated for tough environmental conditions.
• IQV20 Compatible: All Ingersoll Rand cordless impact wrenches are compatible with the IQV20 battery platform.
• Also available in the W8171-K2 kit which includes (2) BL2022 5.0Ah Batteries and 20V battery charger.

Product Application and Uses:

High nut busting torque previously limited to pneumatic tools, requiring compressors for mobile applications. Typical uses include: mobile repair for heavy equipment, heavy vehicle repair (buses, agriculture, etc), and industrial MRO (rail car, oil & gas, power generation).

• Includes: Bare tool only, batteries and charger sold separately or with other kits.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Blows per Min: 1900
• Bolts per Charge (on and Off): 99
• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Industrial Duty

• Forward Torque setting 1 (ft-lb): 18
• Forward Torque setting 1 (in-lb): 221
• Forward Torque setting 1 (nm): 25
• Forward Torque setting 2 (ft-lb): 181
• Forward Torque setting 2 (in-lb): 2168
• Forward Torque setting 2 (nm): 245
• Forward Torque setting 3 (ft-lb): 450
• Forward Torque setting 3 (in-lb): 5400
• Forward Torque setting 3 (nm): 610
• Forward Torque setting 4 (ft-lb): 1302
• Forward Torque setting 4 (in-lb): 15622
• Forward Torque setting 4 (nm): 1765

• Hammer Case: Steel-lined Aluminum
• Housing Material: Impact and chemical-resistant composite housing
• Impact Mechanism: Ball and Cam

• Lumens: 38
• Max Bolt Diameter (in): 1-1/4
• Max Free Speed (rpm): 1350
• Max Torque (ft-lb): 2000
• Max Torque (in-lb): 23986
• Max Torque (nm): 2710
• Motor:

PAN EYFNA1CRT

SX IW38TBP-3P
