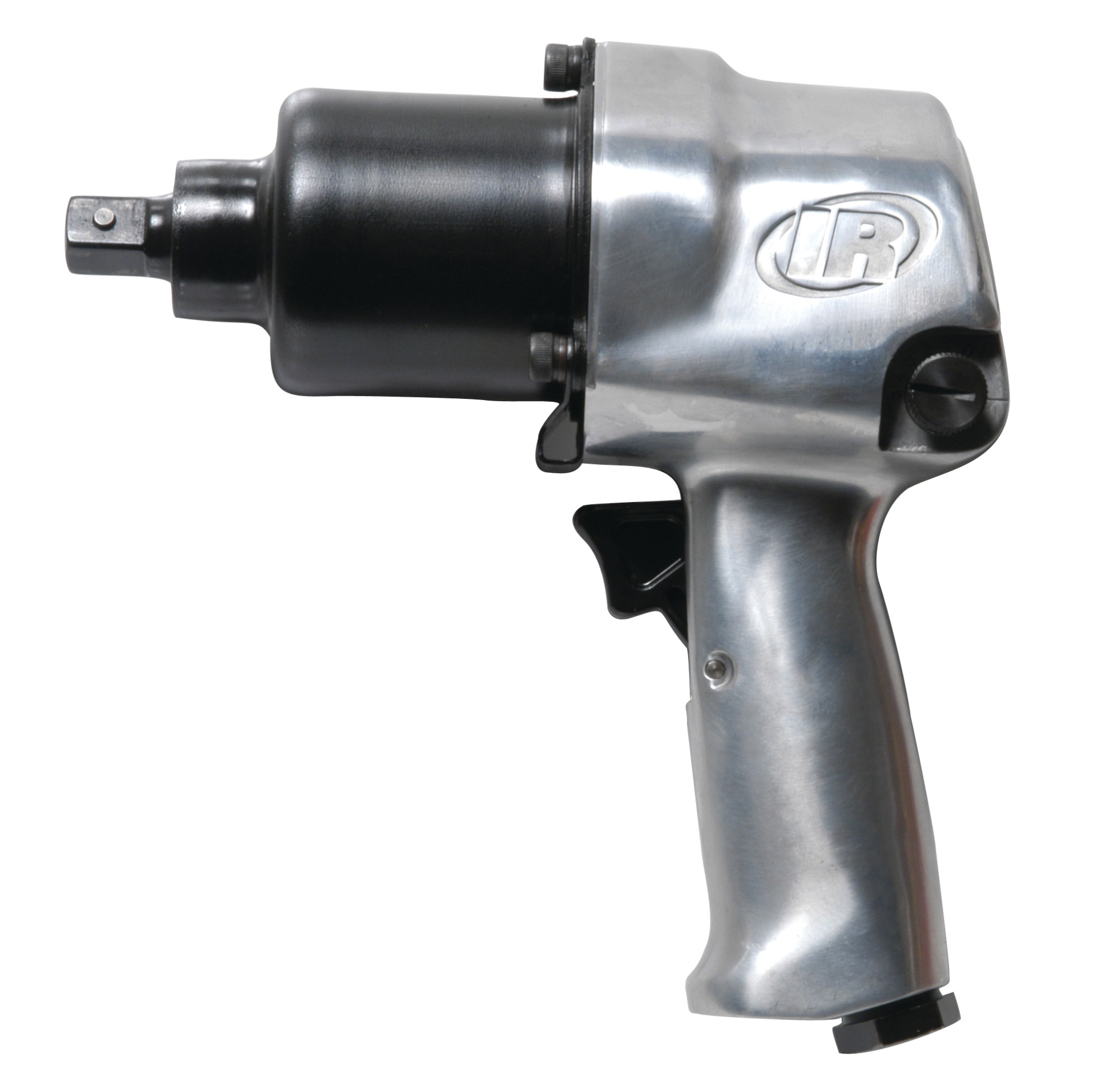

Impactool (2707A1)

IR 2707P1

1/2" Air Impact Wrench, 450 ft-lb Torque, Pin Retainer, Pistol

Description: The 2700 Series impact wrench is built strong with a twin hammer impact mechanism, smooth trigger actuation and an easy-to-hold pistol grip. This wrench's vane motor delivers high torque output, while the power regulator allows for increased control.

Features And Benefits:

• Reliability: Every feature of the 2700 Series has been put to the test to ensure it delivers the right power when you pull the trigger.
• Durability: The 2700 Series is especially tough and long-lasting. This impact wrench's steel hammer case provides you with increased durability for heavy-duty projects.
• 1-year warranty.

Product Application and Uses:

Applications include tire changing, engine repair, engine component installation and removal, body work installation and removal, farm implement assembly and repair, auto repair and maintenance, and truck repair.

• Actuation/Throttle Type/Switch Type: Trigger
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 26
• Average Air Consumption (l/min): 736

• Blows per Min: 1300

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Heavy Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 93.0 / 104.0

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 93 / 104

• Max Bolt Diameter (in): 0.625
• Max Free Speed (rpm): 7500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 450
• Max Torque (in-lb): 5400
• Max Torque (nm): 610
• Min Hose Size (in): 3/8
• Motor: Non-Biased

• Number of Power Settings: 6
• Power Source: Air Powered
• Product Length (in): 7.4

• Product Width (in): 2.8
• Product Height (in): 7.85
• Product Weight (lb): 6
• Recommended Forward Torque Range (ft-lb): 40-275
• Recommended Forward Torque Range (in-lb): 478-3301
• Recommended Forward Torque Range (nm): 54-373
• Retainer Type: Pin Detent

• Side to Center Distance (in): 1.4
• Side to Center Distance (mm): 36

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 8.7
• Warranty: 1-year

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2707-TK2
• Parts: 402-302

• Parts: 402-303
• Parts: 404-50A
• Parts: 405-159
• Parts: 705-93
