Impacts

IR 2115-THK2

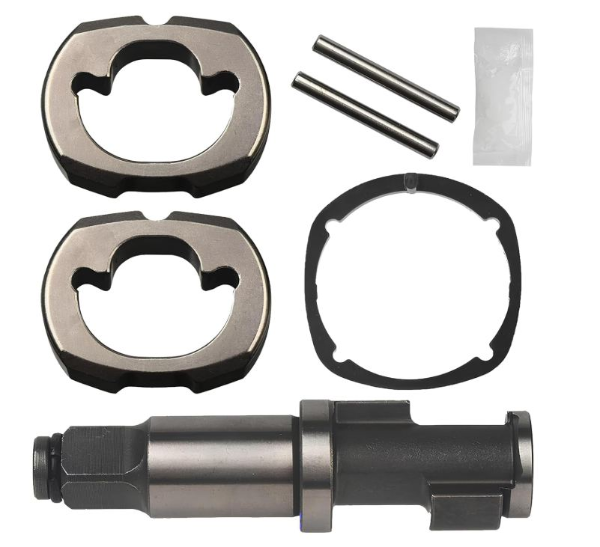

Hammer Mechanism Kit Service Part for Ingersoll Rand 215TiMAX Series Impact Wrench

• Includes: Hammer frame, Hammer (2), Hammer pin (2)

• For Use With: 2125PTIMAX

IR 2145-K425

Socket Retainer Kit for Ingersoll Rand W7172 Impact Wrench

• For Use With: W7172
• For Use With: W7172-K22
• For Use With: W7172-K22B-EU

IR 216B-724

IR 2235Q-311

Exhaust Silencer for Ingersoll Rand 2235Q Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 2235Q " Quiet" Impact wrenches.

• For Use With: 2235QPTIMAX
• For Use With: 2235QTIMAX
• For Use With: 2235QTIMAX-G
• For Use With: 2235QTIMAX-2

IR 2705P1

1/2" Air Impact Wrench, Heavy Duty, 600 ft-lb Torque, Pin Retainer, Pistol

Description: The 2700 Series impact wrench is built strong with a twin hammer impact mechanism, smooth trigger actuation and an easy-to-hold pistol grip. This wrench's vane motor delivers high torque output, while the power regulator allows for increased control.

Features And Benefits:

• Durability: Steel hammer case and metal housing increases the ability to withstand drops or harsh conditions.
• Power and Performance: Finely tuned twin hammer impact mechanism and power regulator

Product Application and Uses:

Heavy Industry, Oil&Gas, Foundry

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 4.2
• Air Consumption @ Load (l/min): 119
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard

• Blows per Min: 1200

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Heavy Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 99.0 / 110.0

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer

• Max Bolt Diameter (in): 9/16
• Max Free Speed (rpm): 8500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 600
• Max Torque (in-lb): 7196
• Max Torque (nm): 813
• Min Hose Size (in): 3/8
• Motor: Non-Biased

• Number of Power Settings: 6
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 106.5
• Product Length (in): 7.3

• Product Width (in): 2.81
• Product Height (in): 7.7
• Product Weight (lb): 5.63
• Recommended Forward Torque Range (ft-lb): 40-200
• Recommended Forward Torque Range (in-lb): 478-2399
• Recommended Forward Torque Range (nm): 54-271
• Retainer Type: Pin Detent

• Side to Center Distance (in): 1.4
• Side to Center Distance (mm): 36

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 6.5
• Warranty: 1-year

• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessories: S64H34L-PS1
• Accessories: S64H78L-PS1
• Accessories: S64M17L-PS1
• Accessories: S64M18L-PS1
• Accessories: S64M21L-PS1
• Accessories: S64M22L-PS1
• Accessories: S64M24L-PS1
• Accessories: S64M26L-PS1
• Accessories: SK4H13N
• Accessories: SK4M14LN

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2705-TK3
• Parts: 402-302

• Parts: 402-303
• Parts: 404-50A
• Parts: 405-159
• Parts: 705-93

IR 2850MAX-6

1" Air Impact Wrench, 6" Ext Anvil, 2100 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-handle Inside Trigger

Description: The 2850MAX 1" D-handle 6 inch extended anvil Impact Wrench, our fiercest 1" wrench, engineered to make quick work of big jobs like semi, bus and tractor tires. This tool has been made lighter, pushed harder and worked longer to make sure it can handle repeated demands without sacrificing power. Every time you need extreme torque, this lightweight boss can get the job done.

Features And Benefits:

• Solid steel impact mechanism: Deliver 2,100 ft- lbs of torque
• Chemical resistant housing & steel core: Stands up to drops and harsh work environments
• Lightweight: Weighs under 20 lbs. and is 25% lighter than the industry's leading 1" wrench.
• 360° adjustable handle: The side handle rotates fully around the tool as the job demands
• Swivel hose connection: Keeps cords from getting tangled so you can move freely around the garage
• 6" anvil extension: Increases accessibility in hard to reach places

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Consumption @ Load (cfm): 56
• Air Consumption @ Load (l/min): 1587
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: 6" Extended
• Average Air Consumption (cfm): 14
• Average Air Consumption (l/min): 397

• Blows per Min: 770

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Aluminum with Steel Wear Plate
• Exhaust Location: Top
• Free Speed Sound Pressure/Power Db(A): 105.0 / 116.0

• Hammer Case: Steel
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 96.7 / 107.7

• Max Bolt Diameter (in): 1-1/4
• Max Free Speed (rpm): 5500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 2102
• Max Torque (in-lb): 25225
• Max Torque (nm): 2850
• Min Hose Size (in): 3/4
• Motor: Reverse Bias

• Number of Power Settings: 3
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 97.2
• Product Length (in): 19.1

• Product Width (in): 9.5
• Product Height (in): 6.5
• Product Weight (lb): 21.58
• Recommended Forward Torque Range (ft-lb): 2002
• Recommended Forward Torque Range (in-lb): 24030
• Recommended Forward Torque Range (nm): 2715
• Retainer Type: Friction Ring and Thru-hole

• Side to Center Distance (in): 4.8
• Side to Center Distance (mm): 122

• Special Features: 2-year Max warranty
• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 7
• Vibration Level (m/s2): 10.3
• Warranty: 2-year

• Accessories: SK8H9TN
• Accessories: TB3

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2850-A626-6
• Parts: 2850MAX-TK1

IR 2934-283

Housing Cover Gasket for Ingersoll Rand 290, 293, 280 Series Impact Wrench

IR 2934-36

Hammer Case Gasket for Ingersoll Rand 290, 280 Series Impact Wrench

IR 2934-42-6

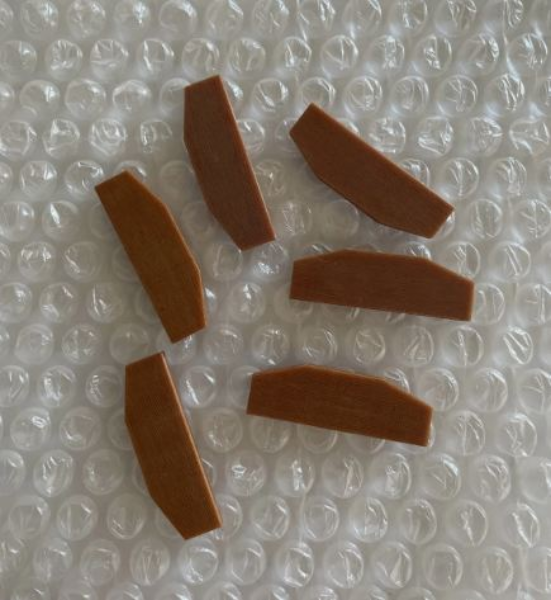

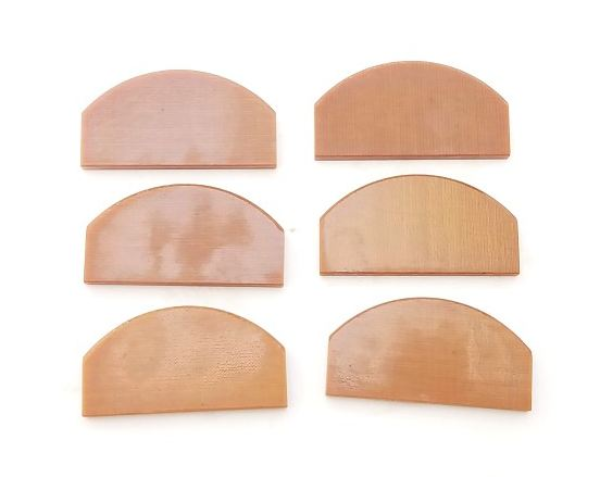

Vane Pack (set of 6) Service Part for Ingersoll Rand Impact Wrenches

• For Use With: 280
• For Use With: 280-6
• For Use With: 280-EU
• For Use With: 280-S-6
• For Use With: 2934B2
• For Use With: 2934B9
• For Use With: 2934P2

IR W5350

1/2" 20V Cordless Angle Impact Wrench, 190 ft-lb Torque, Friction Ring Retainer, Bare Tool, Inline

Description: The 20V W5350 Impact Wrench's right angle design and reactionless torque will spare your knuckles while getting those hard-to-reach jobs done. Also available in the W5350-K12 (1) battery or W5350-K22 (2) battery kit.

Features And Benefits:

• 180 ft-lbs. of reactionless torque and great power-to-weight ratio, you'll be able to work quickly and efficiently without having to over-exert yourself.
• From 0-1,900 rpm just like your favorite impact wrench, the W5330 flies through bolts with the variable speed trigger for more control.
• Durable steel-lined aluminum hammer case is designed to be strong and lightweight, while protecting interior components of this cordless impact wrench.
• Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids.
• Ergonomic handle and comfort grip offers the same reach as a ratchet.
• Conveniently located forward/ reverse switch for maximum control.
• Fully serviceable head for extended tool life, save on parts and replacement tool costs by removing a few quick screws for better accessibility.
• Patented Inline battery design can go places other impact wrenches only dream of- spaces that used to be reserved for a traditional ratchet or your bare hands.
• Compatible with all IQV 20 batteries.
• Available in the W5350-K12 (1) battery kit or W5350-K22 (2) Kit which also includes a charger and carrying case.

• Includes: Bare tool only, batteries and charger sold separately or with other kits.
• Actuation/Throttle Type/Switch Type: Trigger

• Blows per Min: 3000 (BL2022)
• Blows per Min: 3000 (BL2012)
• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Drive Size (in): 1/2
• Drive Type: Square

• Free Speed Sound Pressure/Power Db(A): 85

• Hammer Case: Aluminum
• Handle Material: Nylon
• Housing Material: Impact and chemical-resistant composite housing

• Max Free Speed (rpm): 1900
• Max Torque (ft-lb): 181
• Max Torque (in-lb): 2168
• Max Torque (nm): 245

• Number of Batteries Required: 1
• Power Source: Battery Powered

• Recommended Forward Torque Range (ft-lb): 181
• Recommended Forward Torque Range (in-lb): 2168
• Recommended Forward Torque Range (nm): 245
• Retainer Type: Friction Ring

• Sound Pressure/Power Db(A): 85 / 96
• Speed Setting: Variable Speed

• Vibration Level (m/s2): 10
• Vibration Uncertainy K* (m/s2): 6.3
• Voltage DC: 20
• Warranty: 3-year tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: No Wireless Functionality

• Accessories: BL2012
• Accessories: W5330-BOOT

• Complete Tool Kits: W5350-K12

SX 5093C

FP AC-1059-VXL-P

FP AC-1178-VXL-P

IR 1702P1

3/8" Air Impact Wrench, 125 ft-lb Torque, Pin Retainer, Pistol

Description: The 1702 Series Impact Wrench's steel hammer case and metal housing ensure a tough, durable tool that'll help you breeze through any job without having to worry about your tools giving up.

Features And Benefits:

• Power: With a jumbo hammer impact mechanism and power regulation, the 1702 Series is powerful and easy to control.
• Reliable: No matter how often you use it, the 1702 Series Impact Wrench will deliver the same high-quality output every time. Comes with a 1-year warranty.

Product Application and Uses:

These air impact wrenches are designed to remove and install threaded fasteners.

• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 15
• Air Consumption @ Load (l/min): 425
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard

• Blows per Min: 1500

• Color: Black
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/8
• Drive Type: Square
• Duty Rating: General Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 96.0 / 107.0

• Hammer Case: Steel
• Handle Material: Composite
• Housing Material: Aluminum core with composite sleeve
• Impact Mechanism: Jumbo Hammer
• Impacting Sound Pressure/Power Db(A): 92.2 / 103.2

• Max Bolt Diameter (in): 0.4375
• Max Free Speed (rpm): 10000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 125
• Max Torque (in-lb): 1496
• Max Torque (nm): 169
• Min Hose Size (in): 5/16
• Motor: Non-Biased

• Number of Power Settings: 6
• Power Source: Air Powered
• Product Length (in): 6

• Product Width (in): 2.7
• Product Height (in): 6.3
• Product Weight (lb): 2.75
• Recommended Forward Torque Range (ft-lb): 20-100
• Recommended Forward Torque Range (in-lb): 239-1204
• Recommended Forward Torque Range (nm): 27-136
• Retainer Type: Pin Detent

• Side to Center Distance (in): 1.35
• Side to Center Distance (mm): 34

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 2.7
• Warranty: 1-year

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 1702P-TK2
• Parts: 1901-365

• Parts: 401-42A-6

IR 2015-K93

IR 2125QTIMAX

1/2 inch Air Impact Wrench, Quiet, 330 ft-lb Torque, Titanium Hammercase, Friction Ring Retainer, Pistol

Description: Made with durable materials and featuring a number of different anvil configurations, this 2115TiMAX Series are a tools you can count on. Ingersoll Rand's patented Quiet Tool Technology reduces the sound of the tool, sparing your ears without sacrificing a single ounce of power.

Features And Benefits:

• Durable: With a titanium hammer case and composite housing, this wrench can withstand anything, including repeated drops and harsh environments.
• Patented Quiet Technology: Ingersoll Rand's patented Quiet Tool Technology reduces sound levels without compromising best-in-class power.
• Easier access to grease fitting - for quicker maintenance and less downtime.
• Enhanced socket retention.
• 7-vane Motor delivers added power with less weight.
• Finely tuned twin hammer impact mechanism and motor deliver more torque, durability, and efficiency.
• Feather-touch trigger provides maximum control of this air impact wrench.
• Anodized end plate for enhanced durability.
• Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction.
• Patented one-hand forward/reverse control for easy operation.
• Optimized air flow for maximized performance when using this pneumatic impact wrench.
• 2-year warranty.

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Inlet: 1/4 inch NPT
• Air Pressure (psi): 90
• Anvil Length: Standard

• Blows per Min: 1500

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Aluminum with Hard-coating
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 89.7 / 100.7

• Hammer Case: Titanium
• Housing Material: Composite
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 93.2 / 104.2

• Max Bolt Diameter (in): 7/16
• Max Free Speed (rpm): 15000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 330
• Max Torque (in-lb): 3956
• Max Torque (nm): 447
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 4
• Power Source: Air Powered
• Product Length (in): 6.1

• Product Width (in): 2.2
• Product Height (in): 6.7
• Product Weight (lb): 2.51
• Quiet Tool: Yes
• Recommended Forward Torque Range (ft-lb): 280
• Recommended Forward Torque Range (in-lb): 3363
• Recommended Forward Torque Range (nm): 380
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.1
• Side to Center Distance (mm): 28

• Special Features: Quiet Tool, Titanium hammercase, 2-year Max warranty
• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 7
• Vibration Level (m/s2): 7.5
• Warranty: 2-year

• Accessories: 2115M-BOOT
• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessories: S64H34L-PS1
• Accessories: S64H78L-PS1
• Accessor

IR 2135PTI-THK1

Hammer Kit Service Part for Ingersoll Rand 2135PQXPA Impact Wrench

• For Use With: 2135PQXPA
• For Use With: 2135PTIMAX
• For Use With: 2135PTIMAX-A
• For Use With: 2135PTIMAX-AP

IR 2145-641

IR 216B-302

IR 216B-A40

IR 2175-K303

IR 2850MAX

1" Air Impact Wrench, 2100 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-handle Inside Trigger

Description: The 2850MAX 1" D-handle Impact Wrench, our fiercest 1" wrench, engineered to make quick work of big jobs like semi, bus and tractor tires. This tool has been made lighter, pushed harder and worked longer to make sure it can handle repeated demands without sacrificing power. Every time you need extreme torque, this lightweight boss can get the job done.

Features And Benefits:

• Solid steel impact mechanism: Deliver 2,100 ft.-lbs. of torque.
• Chemical resistant housing & steel core: Stands up to drops and harsh work environments.
• Lightweight: Weighs under 20 lbs. and is 25% lighter than the industry's leading 1" wrench.
• 360° adjustable handle: The side handle rotates fully around the tool as the job demands.
• Swivel hose connection: Keeps cords from getting tangled so you can move freely around the garage.

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Consumption @ Load (cfm): 56
• Air Consumption @ Load (l/min): 1587
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 14
• Average Air Consumption (l/min): 397

• Blows per Min: 770

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Aluminum with Steel Wear Plate
• Exhaust Location: Top
• Free Speed Sound Pressure/Power Db(A): 105.0 / 116.0

• Hammer Case: Steel
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 96.7 / 107.7

• Max Bolt Diameter (in): 1-1/4
• Max Free Speed (rpm): 5500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 2102
• Max Torque (in-lb): 25225
• Max Torque (nm): 2850
• Min Hose Size (in): 3/4
• Motor: Reverse Bias

• Number of Power Settings: 3
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 108.2
• Product Length (in): 13.1

• Product Width (in): 6.5
• Product Height (in): 9
• Product Weight (lb): 19.43
• Recommended Forward Torque Range (ft-lb): 2002
• Recommended Forward Torque Range (in-lb): 24030
• Recommended Forward Torque Range (nm): 2715
• Retainer Type: Friction Ring and Thru-hole

• Side to Center Distance (in): 3.3
• Side to Center Distance (mm): 84

• Special Features: 2-Year Max warranty
• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 7
• Vibration Level (m/s2): 12.6
• Warranty: 2-year

• Accessories: SK8H9TN
• Accessories: SK8M4LN
• Accessories: TB3

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2850-A626
• Parts: 2850MAX-TK1

IR 2905P-198

IR 2906P-42-6

IR 2908-303
