Impacts

IR 295A-A565

IR 3940-302

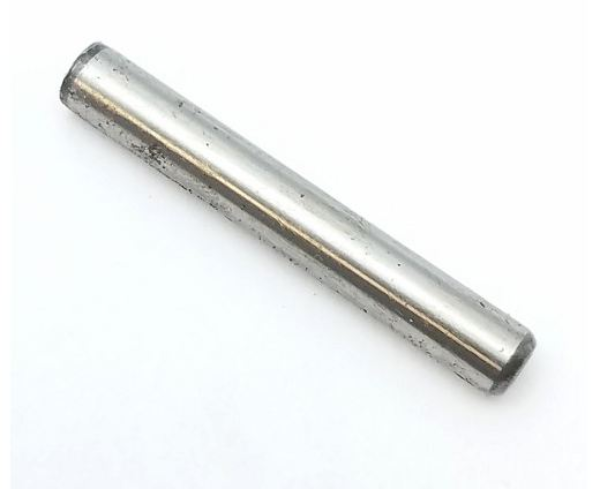

Throttle Valve Plunger Service Part for Ingersoll Rand Power Tools

IR 3940B2TI

1" Air Impact Wrench, Super Duty, 2750 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Inside Trigger

Description: With a titanium hammer case, bronze end plates and torque up to 2750 ft-lbs, the 3900 Series are the premier industrial grade impacts in the industry.

Features And Benefits:

• Power: High torque output of 2750 ft-lbs and 800 blows per minute.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Reverse bias motor to help remove the most stubborn bolts.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler
• Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding

Product Application and Uses:

Heavy Industry, Oil&Gas, Foundry

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 64
• Average Air Consumption (l/min): 1812

• Blows per Min: 800

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Bronze
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 103.4 / 114.4

• Hammer Case: Titanium
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 100.6 / 111.6

• Max Bolt Diameter (in): 1-3/8
• Max Free Speed (rpm): 6000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 2750
• Max Torque (in-lb): 33004
• Max Torque (nm): 3729
• Min Hose Size (in): 3/4
• Motor: Reverse Bias

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 117.9
• Product Length (in): 13.5

• Product Weight (lb): 21.2
• Quiet Tool: No
• Recommended Forward Torque Range (ft-lb): 500-1800
• Recommended Forward Torque Range (in-lb): 6001-21596
• Recommended Forward Torque Range (nm): 678-2440
• Retainer Type: Thru-hole

• Special Features: Titanium hammercase
• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 7
• Vibration Level (m/s2): 13.1
• Vibration Uncertainy K* (m/s2): 1.6
• Warranty: 1-year

• Accessories: SK8H9TN

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2940-726
• Parts: 3934-123

• Parts: 3940-TK1

IR 3942-TK1

Tune-up Kit for Ingersoll Rand 3942 Series Air Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 3942A1Ti, 3942A2Ti, 3942B1Ti, 3942B2Ti, 3942b2TiEX impact wrenches

• Includes: Roll Pin, Throttle Valve Spring, Valve Face, Tray, Air Strainer Screen, (2) O-Rings, Handle Gasket, Thrust Bearing, Vane Pack, Hammer Thrust Bearing, Cylinder Gasket Retainer, Gasket, Reverse Lock Plunger, Throttle Valve Sprint, Silencer, Hammer Case Gasket, 3/8" Steel Ball, Ball Plunger Spring

• For Use With: 3942B2TI
• For Use With: 3942B2TIEX

IR 7500-64

IR ILA578A1-695

MPT MP-1241P-ST

MPT MP-212-PT

MPT MP-2144QR

PAN EY75A7X

U UT8365C

FP AC-1320

IR 1702-A703A

IR 1702B-B166

IR 1712B/1712P-TK3

IR 1720P-231

IR 2015MAX

3/8" Air Impact Wrench, 180 ft-lb Torque, Friction Ring Retainer, Right Angle

Description: This revolutionary product is unlike any other on the market today. The Hammerhead Low Profile impact wrench offers the power and speed of an impact with the reach of a ratchet. The combination of MAX power, MAX control, and MAX access now allows you to use an Ingersoll Rand impact wrench for virtually any application. Say goodbye to awkward extensions and swivel sockets, and watch your productivity soar as you conquer tasks in minutes that once took you hours.

Features And Benefits:

• Max Power: With 180 ft-lbs of max torque and 9000 rpm, this tool offers more than twice the power of the leading competitor's ratchet.
• Max Control: A feather-touch trigger, two-position forward power regulator and conveniently located forward / reverse ring provide precise control.
• Max Access: A head height of under 2" and reactionless torque allow you to safely use this powerful tool in tight spaces.
• Feather touch trigger, 2-position forward power regulator, forward/reverse ring
• Compact design, with head height under 2 inches, makes operation and access easier in tight spots so you can perform even the most detailed work with this air impact wrench.
• Ergonomically sound rear exhaust system.
• Offers the same reach as a ratchet.
• Optimized for the vehicle repair industry, body shops, and MRO.
• 1-year warranty.

Product Application and Uses:

Designed to remove and install threaded fasteners. Optimized for the vehicle repair industry, body shops, and MRO

• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 19
• Air Consumption @ Load (l/min): 538
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard

• Blows per Min: 2100

• Color: Grey
• Configuration/Handle Type: Right Angle
• Drive Size (in): 3/8
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Aluminum with Hard-coating
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 94.1 / 105.1

• Hammer Case: Aluminum
• Handle Material: Composite
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Single Hammer
• Impacting Sound Pressure/Power Db(A): 96.6 / 107.6

• Max Bolt Diameter (in): 0.4375
• Max Free Speed (rpm): 9000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 180
• Max Torque (in-lb): 2160
• Max Torque (nm): 244
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 2
• Power Source: Air Powered
• Product Length (in): 13.1

• Product Width (in): 2.2
• Product Height (in): 3.1
• Product Weight (lb): 3.4
• Recommended Forward Torque Range (ft-lb): 45-140
• Recommended Forward Torque Range (in-lb): 540-1682
• Recommended Forward Torque Range (nm): 61-190
• Recommended Reverse Torque (ft-lb): 45-160
• Recommended Reverse Torque (nm): 61-217
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.1
• Side to Center Distance (mm): 28

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 17.4
• Warranty: 2-year

IR 2115-K75RD

Button Kit for Ingersoll Rand 2115 and 2125 Series Impact Wrench

• For Use With: 2115QTIMAX
• For Use With: 2115PTIMAX
• For Use With: 2125PTIMAX
• For Use With: 2125QTIMAX

IR 2115PTI-K425

Socket Retainer Kit for Ingersoll Rand 2115PTIMAX 3/8" Pin Drive

Product Application and Uses:

For use with Ingersoll Rand 2115PTIMAX 3/8" Pin Retainer Air Impact Wrench

• For Use With: 2115PTIMAX

IR 2131-TK2

Tune-up Kit for Ingersoll Rand 2131 Series Impact Wrench

IR 2135-A40

IR 2135QI-D727A

IR 2135QTI-A40

IR 2135QXPA

1/2" Air Impact Wrench, Quiet, 1100 ft-lb Torque, Friction Ring Retainer, Pistol

Description: The 2135QXPA Series Impact Wrench was built on the hardworking and respected foundation laid by the 2135TiMAX. The result is a light, quiet and powerful impact wrench that delivers an incredible level of performance and power at a cost that won't punish your wallet. The 2135QXPA is the finely tuned and finely crafted impact wrench you need to tackle the toughest jobs.

Features And Benefits:

• Impact Power: Punish the toughest bolts with 1100 ft.-lbs. of nut-busting torque powered by a finely tuned motor and twin-hammer impact mechanism.
• Lightweight: At only 4 lbs., the 2135QXPA is as light as it is powerful so your hand tires less, letting you get more work done.
• Patented Quiet Technology: Ingersoll Rand's patented Quiet Tool Technology reduces sound levels without compromising best-in-class power.

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 5
• Average Air Consumption (l/min): 142

• Blows per Min: 1250

• Color: Black
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: General Duty

• End Plates: Aluminum with Hard-coating
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 86.0 / 97.0

• Hammer Case: Aluminum
• Handle Material: Composite
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 90.7 / 101.7

• Max Bolt Diameter (in): 9/16
• Max Free Speed (rpm): 11000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 780
• Max Torque (in-lb): 9364
• Max Torque (nm): 1058
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 4
• Nut-busting/Breakaway Torque (ft-lb): 1100
• Nut-busting/Breakaway Torque (in-lb): 13196
• Nut-busting/Breakaway Torque (nm): 1491
• Power Source: Air Powered
• Product Length (in): 7.5

• Product Width (in): 2.7
• Product Height (in): 7.2
• Product Weight (lb): 4
• Quiet Tool: Yes
• Recommended Forward Torque Range (ft-lb): 700
• Recommended Forward Torque Range (in-lb): 8399
• Recommended Forward Torque Range (nm): 949
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.4
• Side to Center Distance (mm): 36

• Special Features: Quiet Tool
• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 7
• Vibration Level (m/s2): 13.3
• Warranty: 1-year

• Accessories: 2135M-BOOT
• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessories: S64H34L-PS1
• Accessories: S64H78L-PS1
• Accessories: S64M17L-PS1
• Accessories: S64M18L-PS1
• Accessories: S64M21L-PS1
• Accessories: S64M22L-PS1
• Accessories: S64M24L-PS1
• Accessories: S64M26L-PS1
• Accessories: SK4H13N

• Lubrication: 105-LBK1
• Lubrication: 10G
• L

IR 2141-K75

Button Kit for Ingersoll Rand 2141 Series Impact Wrench
