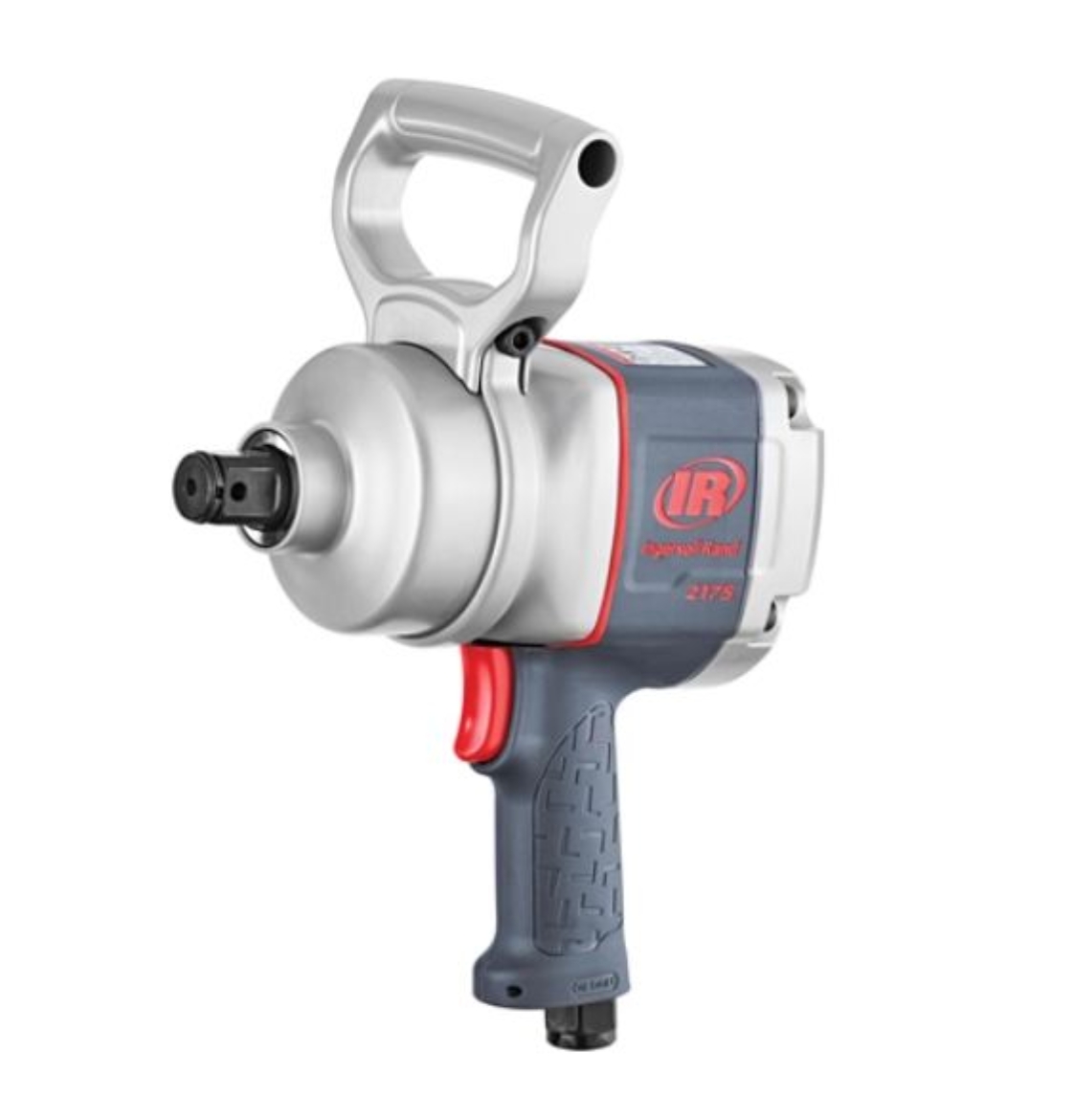

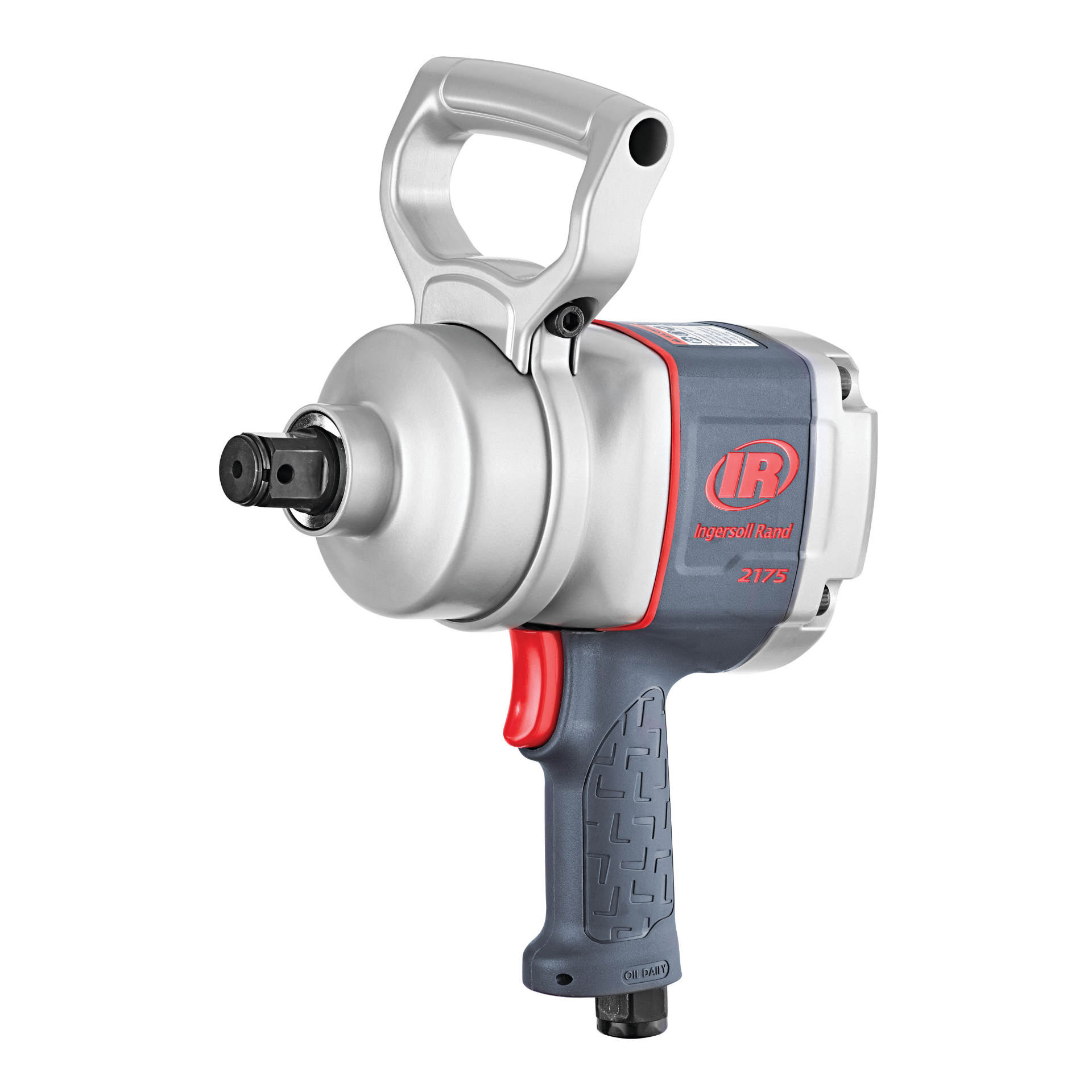

IR 2175MAX
1" Air Impact Wrench, 2000 ft-lb Torque, Friction Ring-Thru-hole Retainer, Pistol
The 2175MAX 1” Pistol Grip Impact Wrench - engineered to make quick work of big bolting jobs and semi, bus and heavy equipment tires. This tool has been made lighter, pushed harder and worked longer to make sure it can handle repeated demands without sacrificing power. Every time you need extreme torque, this lightweight boss can get the job done.
Features And Benefits
- POWER: A solid steel impact mechanism and robust motor deliver extreme torque that delivers 2,000 ft- lbs of torque.
- DURABILITY: The steel core and chemical resistant housing are made to last even in the harshest working conditions.
- LIGHTWEIGHT: Weighs under 20 lbs.
- 360° adjustable handle: The side handle rotates fully around the tool as the job demands.
- Swivel hose connection: Keeps cords from getting tangled so you can move freely around the garage.
Includes: Bare Tool
Product Application and Uses: Heavy Duty Fastening On Trucks, Buses Or Other Large Vehicles
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 56.7
Air Consumption @ Load (l/min): 1606
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 14.2
Average Air Consumption (l/min): 402
Blows per Min: 740
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Steel Wear Plate
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 103.6 / 114.6
Hammer Case: Steel
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 101.5 / 112.5
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 4500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 2002
Max Torque (in-lb): 24030
Max Torque (nm): 2715
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: 3
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 111.2
Product Length (in): 10
Product Width (in): 15
Product Height (in): 6.5
Product Weight (lb): 17.97
Recommended Forward Torque Range (ft-lb): 1903
Recommended Forward Torque Range (in-lb): 22835
Recommended Forward Torque Range (nm): 2580
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 7.5
Side to Center Distance (mm): 191
Special Features: 2-year Max warranty
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 11.8
Warranty: 2-year
