Impacts

IR 15QMAX

3/8" Air Impact Wrench, Quiet, Ultra Compact, 475 ft-lb Torque, Friction Ring Retainer, Pistol

Description: The 35MAX Ultra-Compact Impact Wrench is as versatile as it is reliable. With its twin hammer impact mechanism, aluminum hammer case and composite housing, this tool will deliver the power you need.

Features And Benefits:

• Access: Thanks to its small size and easy handling, the 35MAX Ultra-Compact Impact Wrench can be used in even the tightest of spaces.
• User Experience: The 35MAX Ultra-Compact Impact Wrench comes with improved operator comfort and safety, so you'll never have to worry while doing your job.
• Power-to-Weight: At 2.4 lbs., the 15QMAX is the lightest on the market and it still manages to produce 380 ft.-lbs. of max torque.
• Patented Quiet Technology: Ingersoll Rand's patented Quiet Tool Technology reduces sound levels without compromising best-in-class power performance.

Product Application and Uses:

Vehicle Maintence And Industrial Mro For Resctricted Areas

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 17
• Air Consumption @ Load (l/min): 481
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 4
• Average Air Consumption (l/min): 113

• Blows per Min: 1350

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/8
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Aluminum with Hard-coating
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 83.7 / 94.7

• Hammer Case: Aluminum
• Handle Material: Composite
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 89.7 / 100.7

• Max Bolt Diameter (in): 7/16
• Max Free Speed (rpm): 6000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 384
• Max Torque (in-lb): 4602
• Max Torque (nm): 520
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 3
• Nut-busting/Breakaway Torque (ft-lb): 475
• Nut-busting/Breakaway Torque (in-lb): 5700
• Nut-busting/Breakaway Torque (nm): 644
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 158.3
• Product Length (in): 4.6

• Product Width (in): 2.4
• Product Height (in): 7.1
• Product Weight (lb): 2.4
• Quiet Tool: Yes
• Recommended Forward Torque Range (ft-lb): 310
• Recommended Forward Torque Range (in-lb): 3717
• Recommended Forward Torque Range (nm): 420
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.2
• Side to Center Distance (mm): 30

• Special Features: Quiet, Ultra Compact
• Speed Setting: Variable Speed
• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Compact
• Vanes: 7
• Vibration Level (m/s2): 5.5
• Warranty: 2-year

• Accessories: SK3H8N
• Accessories: SK3M8N

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 15-A626
• Parts: 35-TK1

IR 212

3/8" Air Impact Wrench, Super Duty, 150 ft-lb Torque, Friction Ring Retainer, Pistol

Description: Whether you're working on vehicle repair or maintenance repair, the 212 Impact Wrench will help you through even the toughest of jobs.

Features And Benefits:

• Reliability: This wrench was built to ensure high quality output from its first day to its last.
• Durability: This steel hammer case and metal housing make the 212 Impact Wrench as durable as it is efficient. It can withstand repeated drops and harsh environments with ease.
• Access: With a pistol grip and ergonomic design, this wrench helps you access hard-to-reach spots every time.
• Power: The wrench's finely tuned vane motor pairs smoothly with the jumbo hammer impact mechanism on the 212 Impact Wrench for maximum power.

Product Application and Uses:

Vehicle Repair Or Maintenance Repair

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 11
• Air Consumption @ Load (l/min): 311
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 2.5
• Average Air Consumption (l/min): 71

• Blows per Min: 1500

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/8
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 96.0 / 107.0

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Jumbo Hammer
• Impacting Sound Pressure/Power Db(A): 92.2 / 103.2

• Max Bolt Diameter (in): 7/16
• Max Free Speed (rpm): 13000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 150
• Max Torque (in-lb): 1797
• Max Torque (nm): 203
• Min Hose Size (in): 3/8
• Motor: Non-Biased

• Number of Power Settings: 6
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 51.9
• Product Length (in): 6

• Product Width (in): 2.8
• Product Height (in): 6.5
• Product Weight (lb): 2.89
• Recommended Forward Torque Range (ft-lb): 20-125
• Recommended Forward Torque Range (in-lb): 239-1505
• Recommended Forward Torque Range (nm): 27-170
• Recommended Reverse Torque (ft-lb): 20-125
• Recommended Reverse Torque (nm): 27-170
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.4
• Side to Center Distance (mm): 36

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 6.5
• Warranty: 1-year

• Accessories: 212-BOOT

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 212-TK2
• Parts: 5020-716

IR 2125QTI-K425

Socket Retainer Kit for Ingersoll Rand Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand W5133, W5153, 2125QTIMAX, W7153, W7252, W7153 Impact Wrenches

• For Use With: IQV20-K201
• For Use With: W5133
• For Use With: W5153
• For Use With: W5153-K12
• For Use With: W5153-K22
• For Use With: W5153-K22-AUNZ
• For Use With: W5153-K22-CN
• For Use With: W5153-K22-EU
• For Use With: W5153-K22-JP
• For Use With: W5153-K22-KR
• For Use With: W5153-K22-SGHK
• For Use With: W5153-K22A-EU
• For Use With: W5153-K22B-EU
• For Use With: W7152
• For Use With: W7152-K12
• For Use With: W7152-K22
• For Use With: W7153
• For Use With: W7153-AP
• For Use With: W7153-K22
• For Use With: W7153-K22-CN
• For Use With: W7153-K22-IN

• For Use With: W7153-K22-JP
• For Use With: W7153-K22-KR
• For Use With: W7153-K22-SGHK
• For Use With: W7153-K22B-AN
• For Use With: W7153-K22B-EU
• For Use With: W7252
• For Use With: W7252-K22
• For Use With: W7252-K22B-EU
• For Use With: W7252-TL

IR 236

1/2 inch Air Impact Wrench, 450 ft-lb Torque, Friction Ring Retainer, Pistol

Description: If you work in vehicle repair, this impact wrench will see you through every job that walks in the door. The 236 1/2 inch is strong and reliable, with a power regulator that allows for increased control from start to finish.

Features And Benefits:

• RELIABILITY: The 236 1/2 inch Impact Wrench will put in overtime on your toughest projects. Each part is tested for quality, so you can be sure it'll deliver a high-performance output every time.
• POWER: This impact wrench comes with a finely tuned vane motor that pairs smoothly with the jumbo hammer impact mechanism on the 236 1/2 inch impact wrench for maximum power.
• WARRANTY: A one-year warranty comes standard on all 236 1/2 inch impact wrenches

Product Application and Uses:

Vehicle Repair Or Maintenance Repair

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 24
• Air Consumption @ Load (l/min): 680
• Air Inlet: 1/4 inch NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 4.3
• Average Air Consumption (l/min): 122

• Blows per Min: 1200

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: General Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 90.3 / 101.3

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Jumbo Hammer

• Max Bolt Diameter (in): 1/2
• Max Free Speed (rpm): 7400
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 450
• Max Torque (in-lb): 5400
• Max Torque (nm): 610
• Min Hose Size (in): 3/8
• Motor: Non-Biased

• Number of Power Settings: 2
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 84.9
• Product Length (in): 7

• Product Width (in): 2.6
• Product Height (in): 7.2
• Product Weight (lb): 5.3
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.3
• Side to Center Distance (mm): 33

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 12
• Warranty: 1-year

• Accessories: 236-BOOT
• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessories: S64H34L-PS1
• Accessories: S64H78L-PS1
• Accessories: S64M17L-PS1
• Accessories: S64M18L-PS1
• Accessories: S64M21L-PS1
• Accessories: S64M22L-PS1
• Accessories: S64M24L-PS1
• Accessories: S64M26L-PS1
• Accessories: SK4H13N

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 236-A626
• Parts: 236-TK1

IR 285B-6

1" Air Impact Wrench, 6" Ext Anvil, Heavy Duty, 1770 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-handle Inside Trigger

Description: The 285B combine exceptional power, control and durability. It delivers 1770 ft-lb of maximum torque @ 120 psi, with 5,250 rpm free speed and a high-efficiency, 6-vane motor. The swept-back 285B handle provides excellent maneuverability. The 285B 6-inch extended anvil makes changing tires and deeper fastening will be a breeze.

Features And Benefits:

• Power: The rocking dog's combination of high inertia and low BPM means this tool can deliver a powerful blow with little air, giving you all the power you want without having to overextend yourself.
• Professional Use: Designed for the professional with over 1770 ft.-lbs. of torque for the toughest applications.
• Reliability: Built with a steel hammer case and metal housing, this wrench can withstand repeated drops and harsh weather conditions.
• Durable and Resistant: Phenolic 6 vane motor resist harsh environments for less downtime on the job. A protective rubber boot shields the tool from exterior damage.
• Reach: With Multiple retention methods and a 6-inch extended anvil you access hard-to-reach spaces, while maintaining a strong connection to the socket.
• Control: Feather Touch trigger and 3 position power regulator in both forward and reverse. Ergonomic swept-back handle provides excellent maneuverability.
• Speed: The impact wrench has a free speed of 5,250 rpm.
• Optimized: Optimized for the vehicle repair industry, heavy trucks, tire lanes, and MRO. 1-year warranty.

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Actuation/Throttle Type/Switch Type: Feather-touch Trigger
• Air Consumption @ Load (cfm): 61
• Air Consumption @ Load (l/min): 1727
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 120
• Anvil Length: 6" Extended
• Average Air Consumption (cfm): 10
• Average Air Consumption (l/min): 283

• Blows per Min: 830

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Heavy Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom

• Hammer Case: Aluminum
• Housing Material: Aluminum core with composite sleeve
• Impact Mechanism: Rocking Dog

• Max Bolt Diameter (in): 1-1/4
• Max Free Speed (rpm): 5250
• Max Torque (ft-lb): 1770
• Max Torque (in-lb): 21242
• Max Torque (nm): 2400
• Min Hose Size (in): 3/4
• Motor: Non-Biased

• Number of Power Settings: 3
• Power Source: Air Powered
• Product Length (in): 20.43

• Product Width (in): 7.94
• Product Height (in): 7.18
• Product Weight (lb): 27.8
• Recommended Forward Torque Range (ft-lb): 120-1080
• Recommended Forward Torque Range (in-lb): 1443-12957
• Recommended Forward Torque Range (nm): 163-1464
• Retainer Type: Friction Ring and Thru-hole

• Side to Center Distance (in): 4.1
• Side to Center Distance (mm): 104

• Sound Pressure/Power Db(A): 107/118
• Speed Setting: Variable Speed
• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 13.3
• Vibration Uncertainy K*

IR W7172-K22

3/4" 20V Cordless Impact Wrench 2 Battery Kit, 1500 ft-lb Torque, Friction Ring-Thru-hole Retainer, Pistol

Features And Benefits:

• POWER: Powerful brushless motor and impact mechanism are finely tuned for best in class power-to-weight ratio. 1500 ft-lb nut-busting torque and 1000 ft-lb of MAX torque.
• CONTROL: Includes the IQV Power Control System with 4 modes: Full Power, Half Power, Wrench Tight, and Hand Tight. From axle nuts to oil pans, flange bolts to pre-torque joints there's no need to switch tools.
• ACCESS: 8.5" short tip-to-tail design and 360⁰ shadowless task light with 4 dimmable settings provides increased visibility and access.
• Robust and durable all-metal drivetrain and hammer mechanism optimized for maximum power and efficiency.
• Variable-speed switch (half and full power only) with electronic brake provides maximum control of the tool and increases safety—release trigger, drive stops spinning.
• Patented steel-reinforced nylon casing protects against aggressive fluids, chemicals and repeated drops
• Ideally used for removing or fastening cradle bolts, tire changing, fleet truck maintenance and in industrial and MRO settings.
• Weighs only 7.8 lbs (with BL2022 battery).
• 3-year warranty.
• Compatible with IQV 20 Series Battery System.

Product Application and Uses:

Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include tire changing, cradle bolts, fleet truck maintenance, industrial and MRO.

• Includes: W7172 3/4" Cordless Impact Wrench, (2) BL2022 5.0Ah Batteries, 20V Battery Charger, Bag
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Blows per Min: 2450 (BL2022)
• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: General Duty

• Forward Torque setting 1 (ft-lb): 3.7-10
• Forward Torque setting 1 (in-lb): 44-124
• Forward Torque setting 1 (nm): 5-14
• Forward Torque setting 2 (ft-lb): 37-111
• Forward Torque setting 2 (in-lb): 443-1328
• Forward Torque setting 2 (nm): 50-150
• Forward Torque setting 3 (ft-lb): 531
• Forward Torque setting 3 (in-lb): 6373
• Forward Torque setting 3 (nm): 720
• Forward Torque setting 4 (ft-lb): 1003
• Forward Torque setting 4 (in-lb): 12037
• Forward Torque setting 4 (nm): 1360

• Hammer Case: Steel-lined Aluminum
• Head Width (in): 2.7
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Ball and Cam

• Max Bolt Diameter (in): 3/4
• Max Free Speed (rpm): 1900
• Max Torque (ft-lb): 1003
• Max Torque (in-lb): 12037
• Max Torque (nm): 1360
• Motor: Brushless Motor

• Number of Batteries Required: 1
• Number of Power Settings: 4
• Nut-busting/Breakaway Torque (ft-lb): 1505
• Nut-busting/Breakaway Torque (in-lb): 18056
• Nut-busting/Breakaway Torque (nm): 2040
• Power Source: Battery Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 194.81
• Product Length (in): 8.5

• Product Width (in): 3.3
• Product Height (in): 9.1
• Product Height (in) (with Battery): 11.1
• Product Weight (lb): 6.1
• Product Weight (lb) (with Battery): 7.7
• Recommended Forward Torque Range (ft-lb

IR 2115Q-311

IR 2145Q-311

Exhaust silencer for Ingersoll Rand 2145 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 2145QIMAX, 2145QIMAX-3, 2145QIMAX-6, and 2155QIMAX Impacts

• For Use With: 2145QIMAX
• For Use With: 2145QIMAX-3
• For Use With: 2145QIMAX-6
• For Use With: 2155QIMAX

IR 2235-724

Hammer for Ingersoll Rand 2235 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 2235 Series Impact Wrench

• Includes: (2) Hammers

• For Use With: 2235QPTIMAX
• For Use With: 2235TIMAX-2
• For Use With: 2235QTIMAX
• For Use With: 2235QTIMAX-G
• For Use With: 2235TIMAX-G
• For Use With: 2235TIMAX
• For Use With: 2235QTIMAX-2
• For Use With: 2235TIMAX-R
• For Use With: 2235PTIMAX

IR 2850-K48

IR 2934-11

IR 2934-12

FP U AF-32C

IR 2115PTIMAX

3/8" Air Impact Wrench, 300 ft-lb Torque, Titanium Hammercase, Pin Retainer, Pistol

Description: The 2115TiMAX delivers best in class performance for a tool less than six inches long and weighing less than two and a half pounds. The minimal size of this tool will allow greater access to tight spaces, while the minimal weight will reduce operator fatigue...all while still delivering MAX performance.

Features And Benefits:

• Durable: With a titanium hammer case and composite housing, this wrench can withstand anything, including repeated drops and harsh environments. In fact, we provide a 2-year warranty to prove it.
• Versatile: This tool is so versatile, it can be used in just about any market.
• Reliable This wrench has been tested and is guaranteed to last. It'll deliver the same level of power every time.
• Easier access to grease fitting – for quicker maintenance and less downtime
• Enhanced socket retention
• 7-vane Motor delivers added power with less weight
• Finely tuned twin hammer impact mechanism and motor deliver more torque, durability, and efficiency
• Feather-touch trigger provides maximum control of this air impact wrench
• Anodized end plate for enhanced durability
• Pin anvil ensures positive socket retention
• Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction
• Patented one-hand forward/reverse control for easy operation
• Optimized air flow for maximized performance when using this pneumatic impact wrench

Product Application and Uses:

General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 17
• Air Consumption @ Load (l/min): 481
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 4
• Average Air Consumption (l/min): 113

• Blows per Min: 1500

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/8
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Aluminum with Hard-coating
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 89.7 / 100.7

• Hammer Case: Titanium
• Handle Material: Composite
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 93.2 / 104.2

• Max Bolt Diameter (in): 7/16
• Max Free Speed (rpm): 15000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 300
• Max Torque (in-lb): 3602
• Max Torque (nm): 407
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 4
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 120.9
• Product Length (in): 5.9

• Product Width (in): 2.2
• Product Height (in): 6.7
• Product Weight (lb): 2.48
• Recommended Forward Torque Range (ft-lb): 250
• Recommended Forward Torque Range (in-lb): 3000
• Recommended Forward Torque Range (nm): 339
• Retainer Type: Pin Detent

• Side to Center Distance (in): 1.1
• Side to Center Distance (mm): 28

• Special Features: Titanium hammercase, 2-year Max warranty
• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• T

IR 2131-638

IR 2146Q1MAX

3/4" Air Impact Wrench, Quiet, 2000 ft-lb Torque, Friction Ring-Thru-hole Retainer, Pistol

Description: The 2146MAX Series Impact Wrenches- including the 2146Q1MAX, is the most powerful 3/4" impact in its class. Available in 1′′ (2146Q2MAX) drive or extended anvil pistol grip configurations, these tools have been engineered with an innovative pressure gauge that ensures optimized air flow and pressure. These quiet impact wrenches help you maximize productivity across a range of jobs and tackle anything that comes your way. And because you can avoid operating below and above the recommended 90 PSI air pressure, your tool will last longer and perform more reliably. Work more and spend less, the 2146MAX Series helps you do what you do best.

Features And Benefits:

• Cold-forged twin hammer impact mechanism and motor deliver 2,000 ft-lbs of Nut Busting Torque, durability, and efficiency
• Steel hammer case stands up to drops and everyday abuse
• Patented one-hand forward/reverse and feather-touch trigger provides maximum control
• Ingersoll Rand's Quiet Technology reduces the sound of the tool, sparing your ears without sacrificing a single ounce of power
• Pressure gauge improves productivity and prolongs product life
• A lightweight, balanced, air impact wrench that weighs just 7.8 lbs
• Standard 3/4" drive size and length for access to confined bolt locations
• Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids
• Optimized for the vehicle repair industry, heavy trucks, tire lanes, fleet maintenance, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding and construction

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 36
• Air Consumption @ Load (l/min): 1090
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 14
• Average Air Consumption (l/min): 396

• Blows per Min: 1075

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 88.8 / 99.8

• Hammer Case: Steel
• Handle Material: Composite
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 94.3 /105.3

• Max Bolt Diameter (in): 1
• Max Free Speed (rpm): 5500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1453
• Max Torque (in-lb): 17436
• Max Torque (nm): 1970
• Min Hose Size (in): 1/2
• Motor: Reverse Bias

• Number of Power Settings: 4
• Nut-busting/Breakaway Torque (ft-lb): 2000
• Nut-busting/Breakaway Torque (in-lb): 24003
• Nut-busting/Breakaway Torque (nm): 2712
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 256.4
• Product Length (in): 8.47

• Product Width (in): 3.5
• Product Height (in): 8.19
• Product Weight (lb): 7.8
• Quiet Tool: Yes
• Recommended Forward Torque Range (ft-lb): 200-900
• Recommended Forward Torque R

IR 216B-739

IR 295A

1" Air Impact Wrench, 1475 ft-lb Torque, Friction Ring-Thru-hole Retainer, Pistol

Description: The 295A Series Impact Wrench combines exceptional power, control and durability is great for any garage. They deliver 1,770 ft-lb of maximum torque @ 120 psi, with 5,250 rpm free speed and a high-efficiency, 6-vane motor. The top-mounted dead handle provides great leverage for difficult underbody work.

Features And Benefits:

• Power: The rocking dog's combination of high inertia and low BPM means this tool can deliver a powerful blow with little air, giving you all the power you want without having to overextend yourself.
• Professional Use: Designed for the professional with over 1770 ft.-lbs. of torque for the toughest applications.
• Reliability: Built with a steel hammer case and metal housing, this wrench can withstand repeated drops and harsh weather conditions.
• Durable and Resistant: Phenolic 6 vane motor resist harsh environments for less downtime on the job.
• Control: Features top mounted dead handle, Feather Touch trigger and 3 position power regulator in both forward and reverse.
• Speed: The impact wrench has a free speed of 5,250 rpm.
• Optimized: Optimized for the vehicle repair industry, heavy trucks, tire lanes, and MRO. 1-year warranty.

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Actuation/Throttle Type/Switch Type: Feather-touch Trigger
• Air Consumption @ Load (cfm): 61
• Air Consumption @ Load (l/min): 1727
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 120
• Anvil Length: Standard
• Average Air Consumption (cfm): 10
• Average Air Consumption (l/min): 283

• Blows per Min: 830

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Heavy Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom

• Hammer Case: Aluminum
• Housing Material: Aluminum core with composite sleeve
• Impact Mechanism: Rocking Dog

• Max Bolt Diameter (in): 1-1/4
• Max Free Speed (rpm): 5250
• Max Torque (ft-lb): 1770
• Max Torque (in-lb): 21242
• Max Torque (nm): 2400
• Min Hose Size (in): 3/4
• Motor: Non-Biased

• Number of Power Settings: 3
• Power Source: Air Powered
• Product Length (in): 10.5

• Product Width (in): 8
• Product Height (in): 7.5
• Product Weight (lb): 22
• Recommended Forward Torque Range (ft-lb): 120-1080
• Recommended Forward Torque Range (in-lb): 1443-12957
• Recommended Forward Torque Range (nm): 163-1464
• Retainer Type: Friction Ring and Thru-hole

• Side to Center Distance (in): 4
• Side to Center Distance (mm): 102

• Sound Pressure/Power Db(A): 102.5/113.5
• Speed Setting: Variable Speed
• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 12.7
• Vibration Uncertainy K* (m/s2): 2.5
• Warranty: 1-year

• Accessories: 295-BOOT
• Accessories: SK8H9TN

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 285B-A726
• Parts: 295A-303

• Parts: 295A-50
• Parts:

IR 35-TK1

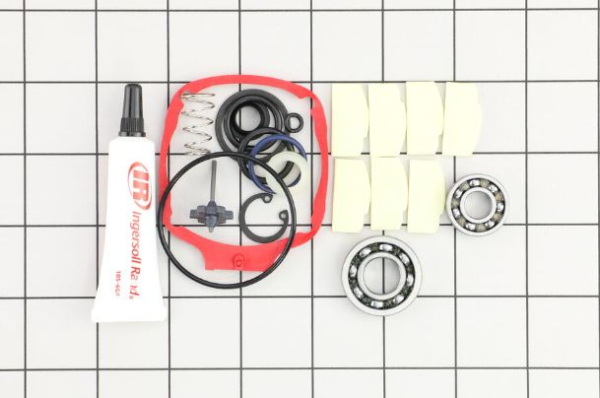

Tune-up Kit for Ingersoll Rand 35MAX, 15QMAX and 36QMAX Series Impact Wrenches

• Includes: O-rings, inlet parts kit, vane pack, bearings and gasket

• For Use With: 15QMAX
• For Use With: 36QMAX

IR 3940-364

IR 3940-638

IR W5153

1/2" 20V Cordless Impact Wrench, 550 ft-lb Torque, Friction Ring Retainer, Pistol, Bare Tool

Description: The Ingersoll Rand W5153 impact wrench enhances the features you demanded: increased durability with stronger internal parts, and increased access with its tapered front end. This next generation compact impact wrench packs 365 ft.-lbs. of MAX torque in a cordless compact unit that weighs only 5.3 lbs. (with a BL2022 battery). Tested by real technicians, ready to tackle real work.

Features And Benefits:

• POWER: The brushless motor and impact mechanism are finely tuned to unleash a high power-to-weight ratio, with 550 ft.-lbs. of nut busting torque and 365 ft.-lbs. of MAX torque at 5.3 lbs (with BL2022 battery). The all-metal drive train and hammer mechanism are designed to provide technicians the power they need without adding extra weight to the tool.
• CONTROL: With 4 power modes (MAX Power, Half Power, Wrench Tight, and Hand Tight), you can adjust a dial instead of changing tools to deliver the right amount of torque when you need it and eliminate rework. From brake calipers to valve covers and everything in between, there's no need to switch tools. The variable-speed switch with electronic brake provides MAX control of the tool.
• DURABLE: Protected by a chemical-resistant composite housing and a patented steel-reinforced frame, the W5153 is built to withstand repeated drops onto concrete and exposure to shop fluids. The IQV spark-free brushless technology and sealed, enhanced, lubricated reinforced bushing provide a longer-life motor you can rely on.
• ACCESS: Thanks to its 6.5" tip-to-tail compact ergonomic design and lightweight build, the W5133 can easily access tight spaces, giving you access no matter where your work may be hiding. A built-in 360 degree LED light ring with task light mode and 4 dimmable settings casts a wide beam to give you excellent visibility with no shadows.
• Tapered hammer case / Front End
• Compatible with IQV 20 Series Battery System

Product Application and Uses:

Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include brake calipers, valve covers, cylinder head cover removal, brake repairs, shock replacement, industrial and Mro.

• Includes: Bare tool only, batteries and charger sold separately or with other kits.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Blows per Min: 3300
• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: General Duty

• Forward Torque setting 1 (ft-lb): 2.2-8.9
• Forward Torque setting 1 (in-lb): 27-106
• Forward Torque setting 1 (nm): 3-12
• Forward Torque setting 2 (ft-lb): 9.6-24
• Forward Torque setting 2 (in-lb): 115-292
• Forward Torque setting 2 (nm): 13-33
• Forward Torque setting 3 (ft-lb): 240
• Forward Torque setting 3 (in-lb): 2876
• Forward Torque setting 3 (nm): 325
• Forward Torque setting 4 (ft-lb): 339
• Forward Torque setting 4 (in-lb): 4071
• Forward Torque setting 4 (nm): 460
• Free Speed Sound Pressure/Power Db(A): 85

• Hammer Case: Steel-lined Aluminum
• Head Width (in): 2.3
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Ball and Cam

• Lumens: 32
• Max Bolt Diameter (in): 1/2
• Max Free Speed (rpm): 2100
• Max Torque (ft-lb): 369
• Max Torque (in-lb

MPT MP-2660-UD

PAN EYFNA1C

IR 2025MAX

1/2" Angle Air Impact Wrench, 180 ft-lb Torque, Friction Ring Retainer

Description: This Right Angle Impact Wrench is lightweight, durable, and easy to use. Paired with its powerful vane motor and trigger actuation, this tool will quickly become your favorite on any job site.

Features And Benefits:

• Power: With a finely tuned vane motor and power regulation, you'll have full control of your tool while never having to settle for less power.
• Access: Thanks to this wrench's angle grip and composite housing, you'll be able to access any hard-to-reach spaces with ease.
• Fluctuation: The Right Angle Impact Wrench features a square socket retaining ring anvil, allowing it switch sockets with ease. Perfect for automotive repair work.
• Feather touch trigger, 2-position forward power regulator, forward/reverse ring
• Compact design, with head height under 2 inches, makes operation and access easier in tight spots so you can perform even the most detailed work with this air impact wrench
• Ergonomically sound rear exhaust system
• Offers the same reach as a ratchet
• 180 ft-lb max torque
• Free speed: 7,100 revolutions per minute
• Optimized for the vehicle repair industry, body shops, and MRO
• 1-year warranty

Product Application and Uses:

General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Feather-touch Trigger
• Air Consumption @ Load (cfm): 19
• Air Consumption @ Load (l/min): 538
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 3.5
• Average Air Consumption (l/min): 99

• Blows per Min: 2100

• Color: Grey
• Configuration/Handle Type: Right Angle
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Aluminum with Hard-coating
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 94.1 / 105.1

• Hammer Case: Aluminum
• Handle Material: Composite
• Impact Mechanism: Single Hammer
• Impacting Sound Pressure/Power Db(A): 96.6 / 107.6

• Max Bolt Diameter (in): 7/16
• Max Free Speed (rpm): 9000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 180
• Max Torque (in-lb): 2160
• Max Torque (nm): 244
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 2
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 52.9
• Product Length (in): 13.1

• Product Width (in): 2.2
• Product Height (in): 3.1
• Product Weight (lb): 3.4
• Recommended Forward Torque Range (ft-lb): 45-140
• Recommended Forward Torque Range (in-lb): 540-1682
• Recommended Forward Torque Range (nm): 61-190
• Recommended Reverse Torque (ft-lb): 45-160
• Recommended Reverse Torque (nm): 61-217
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.1
• Side to Center Distance (mm): 28

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 7
• Vibration Level (m/s2): 17.4
• Warranty: 1-year

• Accessories: 2015-BOOT
• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessori
