Impacts

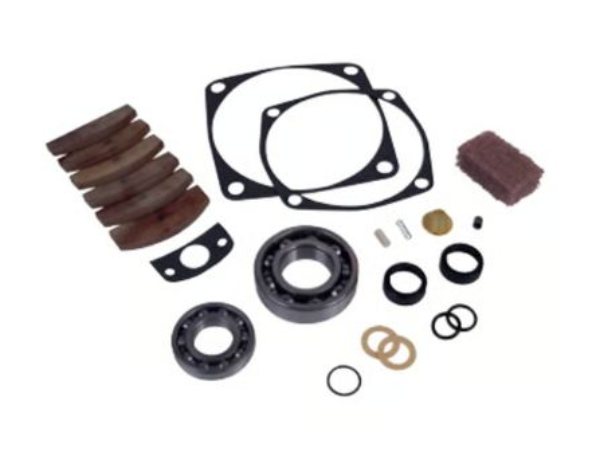

IR 3955-TK1

KIT

IR 845-565

Straight Inlet

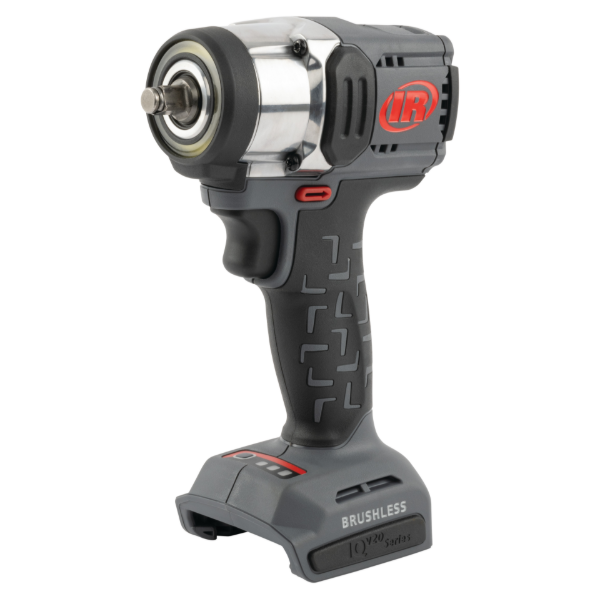

IR W3131

3/8" 20V Cordless Impact Wrench, 400 ft-lb Torque, Compact, Friction Ring Retainer, Pistol, Bare Tool

From the brand you trust for precise, high-performance fastening tools – Ingersoll Rand grows its IQV® 20 system with the W3131 20V 3/8” Impact Wrench. Its brushless motor delivers breakaway torque up to 400 ft-lbs. to quickly complete demanding applications. A compact form factor with 5.2” tip-to-tail length and weight under 2.3 lbs. provide excellent control and maneuverability in tight workspaces. With 3 speed modes and patented 360º LED light ring to fully eliminate shadows, the W3131 20V 3/8” Impact Wrench includes 3-year limited warranty and is compatible with all IQV® 20 batteries.

Features And Benefits

• PERFORMANCE: Powerful brushless motor delivers up to 400 ft-lbs of breakaway torque.
• COMPACT: Short 5.2” tip-to-tail Length enables working in enclosed spaces.
• VERSATILE: 3 speed modes with variable speed trigger to fine-tune for application.
• DURABLE: Impact-resistant design with comfortable over molded handle grip.
• LIGHT WEIGHT: Light 2.3 lbs. weight provides excellent control and maneuverability of tool.
• VISIBILITY: 360º shadowless LED light ring to fully eliminate shadows.
• COMPATIBLE: Cordless impact wrench works with all IQV® 20 batteries.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Cordless Impact Wrenches are designed to remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 4200 (BL2022)
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 89
Forward Torque setting 1 (in-lb): 1062
Forward Torque setting 1 (nm): 120
Forward Torque setting 2 (ft-lb): 148
Forward Torque setting 2 (in-lb): 1770
Forward Torque setting 2 (nm): 200
Forward Torque setting 3 (ft-lb): 300
Forward Torque setting 3 (in-lb): 3585
Forward Torque setting 3 (nm): 405
Hammer Case: Metal
Housing Material: Impact and chemical-resistant composite housing
Impact Mechanism: Ball and Cam
Lumens: 34
Max Free Speed (rpm): 2800
Max Torque (ft-lb): 300
Max Torque (in-lb): 3585
Max Torque (nm): 405
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 3
Nut-busting/Breakaway Torque (ft-lb): 402
Nut-busting/Breakaway Torque (in-lb): 4824
Nut-busting/Breakaway Torque (nm): 545
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 106.1 (BL2022)
Product Length (in): 5.2
Product Width (in): 2.56
Product Height (in): 8.31
Product Height (in) (with Battery): 10.2
Product Weight (lb): 2.26
Product Weight (lb) (with Battery): 3.19 (BL2012)
Product Weight (lb) (with Battery): 3.77 (BL2022)
Recommended Forward Torque Range (ft-lb): 300
Recommended Forward Torque Range (in-lb): 3585
Recommended Forward Torque Range (nm): 405
Retainer Type: Friction Ring
RPM Setting 1: 725
RPM Setting 2: 1600
Side to Center Distance (in): 1.28
Side to Center Distance (mm): 33
Sound Pressure/Power Db(A): 90 / 101
Speed Setting: Variable Speed
Standards/Certifications: UL/EN/IEC 62841-1, EN/IEC 62841-2-2
Tool Type: Mid-torque
Tool Type: Compact
Vibration Level (m/s2): 18.1
Vibration Uncertainy K* (m/s2): 5.8
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

Similar IR

• 15QMAX
• W5133
• 2115TIMAX

IR W8171

3/4" 20V Cordless Impact Wrench Bare Tool, 2000 ft-lb Torque, Friction Ring Thru-hole, Pistol

Meet the crown jewel of Ingersoll Rand’s cordless portfolio. Behind the 2,000 ft-lbs of torque in Ingersoll Rand’s IQV20™ W8000 Series cordless impact wrenches are best-in-class features that help you work with speed, power, and control. Whether you’re removing nuts from a wheel hub or assembling an appliance with tight tolerances, when you put your tools down at the end of the day, you’ll know your impact wrench operated at peak performance- and you got the job done right. Also available in the W8171-K2 kit which includes (2) BL2022 5.0Ah Batteries and 20V battery charger.

Features And Benefits

• Power: With over 2,000 ft-lbs of breakaway torque, they’re the most powerful pistol grip cordless impact wrenches on the market.
• Safety: Remove hoses & trip hazards to keep operators & technicians safe without sacrificing power.
• IQV® Power Control System includes 4 forward modes: MAX Power, MID, Wrench, Snug and full power reverse.
• Brushless Motor: A powerful brushless motor helps remove stubborn fasteners up to 33% faster than our leading competitor.
• Shadowless Light: A patented 360° ring light around the anvil completely eliminates shadows around fasteners, making your work easier to see.
• Variable Speed Trigger: Lets you apply the speed you need.
• Durable: Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids.
• Productivity: Tackle a full day’s worth of work with 99 bolts per charge . Reduce set up time of jobs up to 15% compared to air tools. No waiting on air for roadside applications.
• IPX6 rated for tough environmental conditions.
• IQV20 Compatible: All Ingersoll Rand cordless impact wrenches are compatible with the IQV20™ battery platform.
• Also available in the W8171-K2 kit which includes (2) BL2022 5.0Ah Batteries and 20V battery charger.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: High nut busting torque previously limited to pneumatic tools, requiring compressors for mobile applications. Typical uses include: mobile repair for heavy equipment, heavy vehicle repair (buses, agriculture, etc), and industrial MRO (rail car, oil & gas, power generation).
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 1900
Bolts per Charge (on and Off): 99
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Industrial Duty
Forward Torque setting 1 (ft-lb): 18
Forward Torque setting 1 (in-lb): 221
Forward Torque setting 1 (nm): 25
Forward Torque setting 2 (ft-lb): 181
Forward Torque setting 2 (in-lb): 2168
Forward Torque setting 2 (nm): 245
Forward Torque setting 3 (ft-lb): 450
Forward Torque setting 3 (in-lb): 5400
Forward Torque setting 3 (nm): 610
Forward Torque setting 4 (ft-lb): 1302
Forward Torque setting 4 (in-lb): 15622
Forward Torque setting 4 (nm): 1765
Hammer Case: Steel-lined Aluminum
Housing Material: Impact and chemical-resistant composite housing
Impact Mechanism: Ball and Cam
Lumens: 38
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 1350
Max Torque (ft-lb): 2000
Max Torque (in-lb): 23986
Max Torque (nm): 2710
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 2000
Nut-busting/Breakaway Torque (in-lb): 23986
Nut-busting/Breakaway Torque (nm): 2710
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 271
Product Length (in): 8.77
Product Width (in): 3.82
Product Height (in): 10
Product Height (in) (with Battery): 11.75
Product Weight (lb): 7.4
Product W

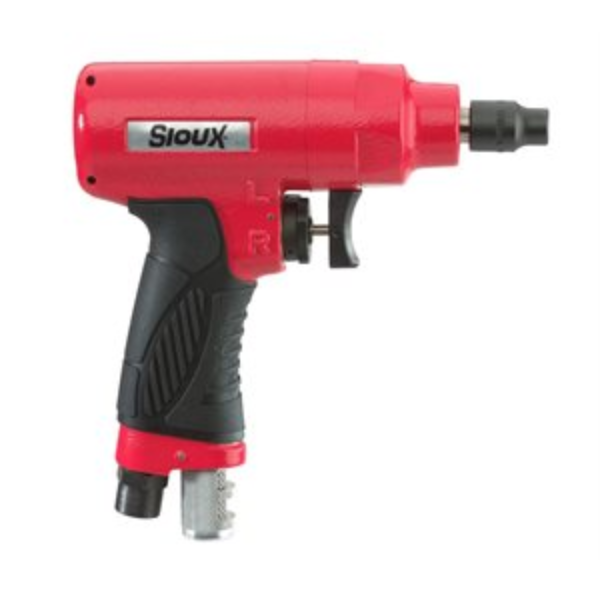

SX IW38TBP-3P

Impact Driver, 3/8 Sq. Dr.

IR 1702-638

SCREW

IR 2131P-B40

HOUSING

IR 216B-50

BLOCK, VALVE

IR 2175-D93RD

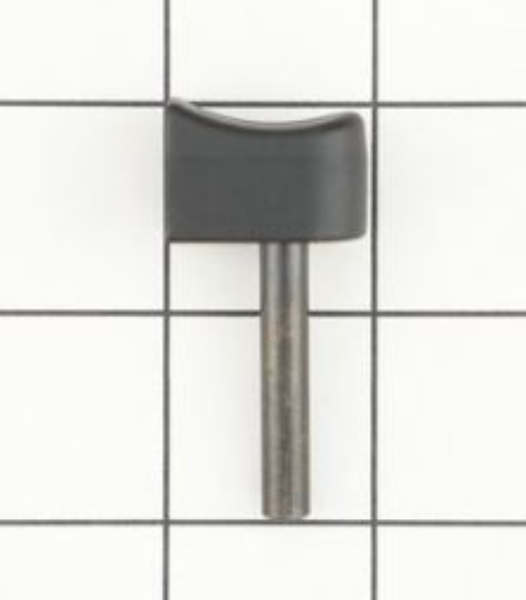

TRIGGER ASSEMBLY

SX STP10P3C32

Tapper Ss 300 Rpm, 1/4-5/16

IR 1702-724A

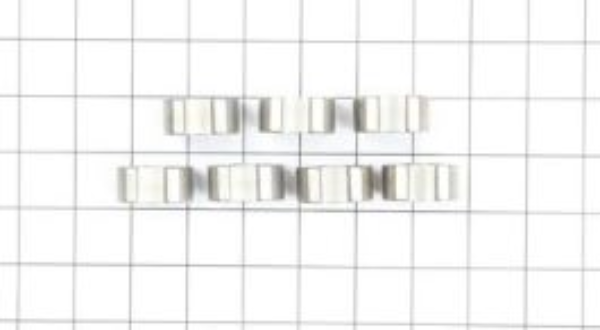

HAMMER (48951-6)

IR 1702SB-TK2

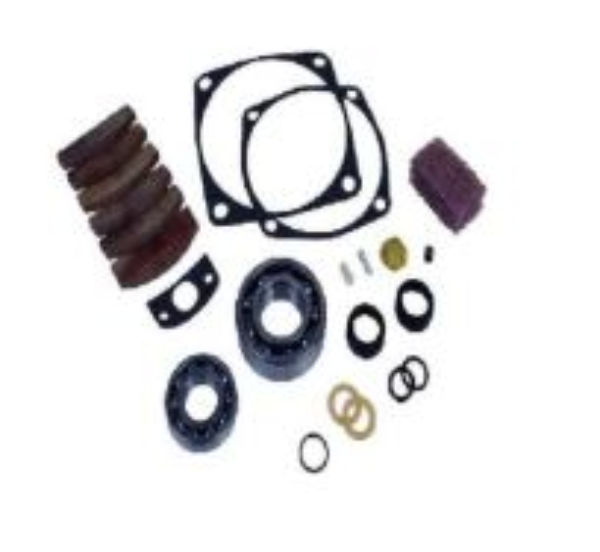

Tune-Up Kit for Ingersoll Rand Power Tools

For Use With

• 1702SB1

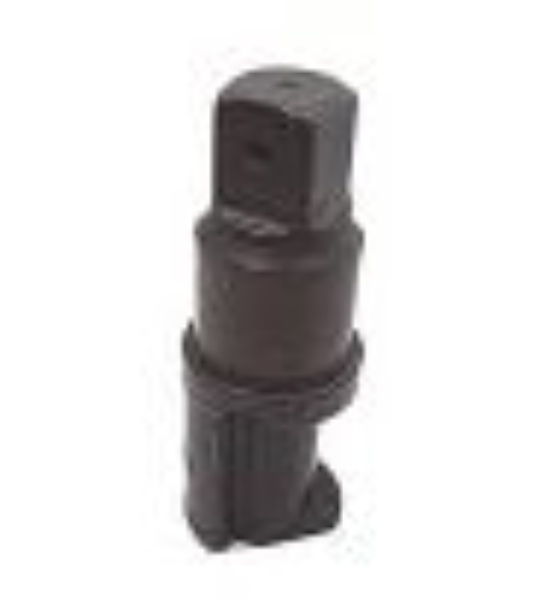

IR 1712-726

1in Square Drive Anvil

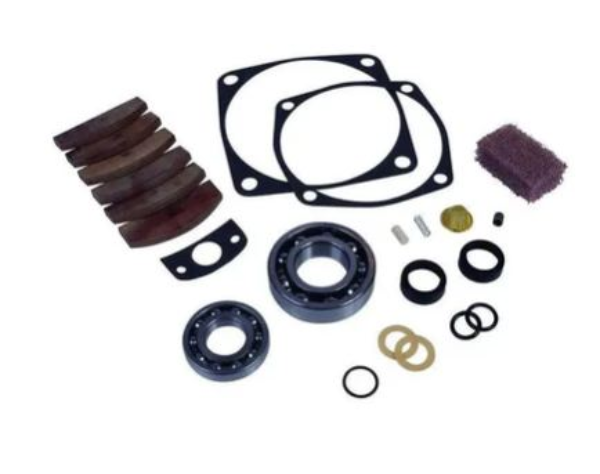

IR 212-TK2

Tune-up Kit for Ingersoll Rand 212 Series Impact Wrench

For Use With

• 212

IR 2131-322

Inlet Remover for Ingersoll Rand Impact Wrench

Product Application and Uses: For use with 2035 Series, 2115, 2125, 2131, 2135, 2141, 2145, 2155, 2350 Series Impact Wrench

IR 2135-53

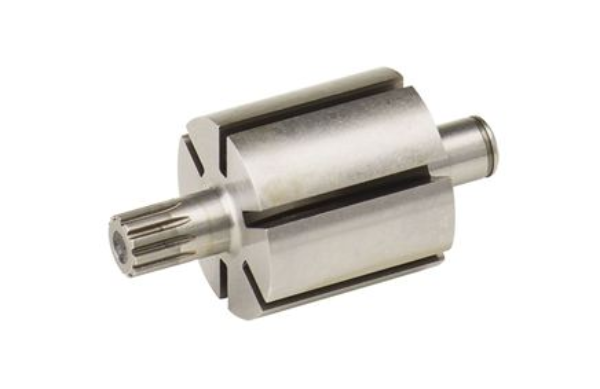

Rotor

IR 215-63

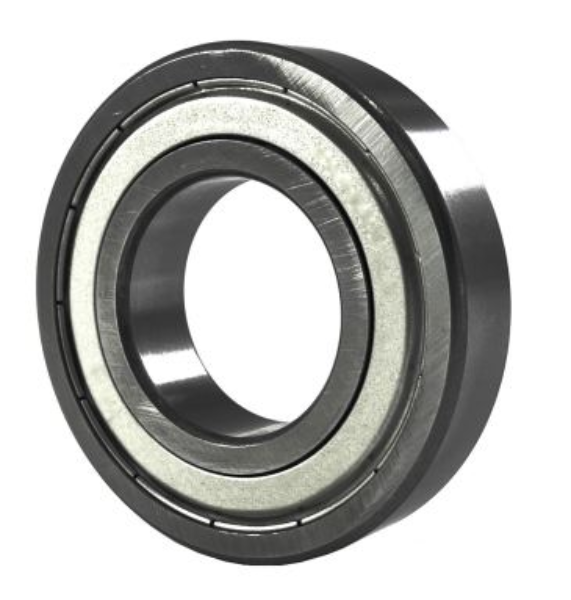

BEARING

IR 2161-51

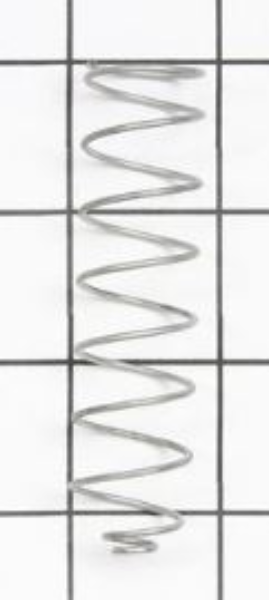

SPRING

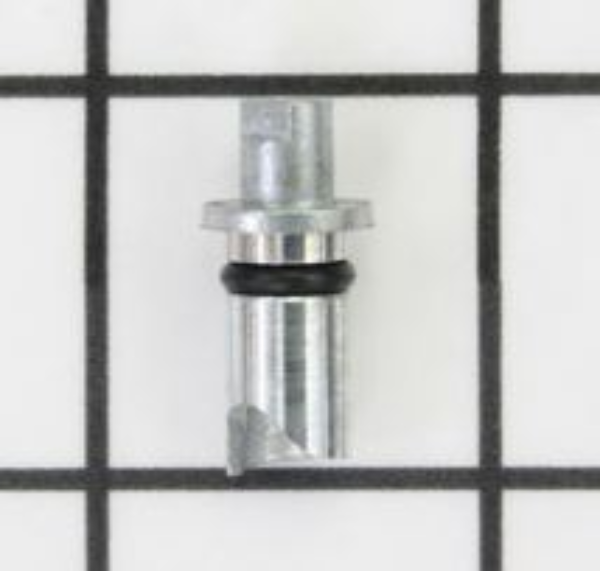

IR 216B-A249

ASSEMBLY, REGULATOR BODY

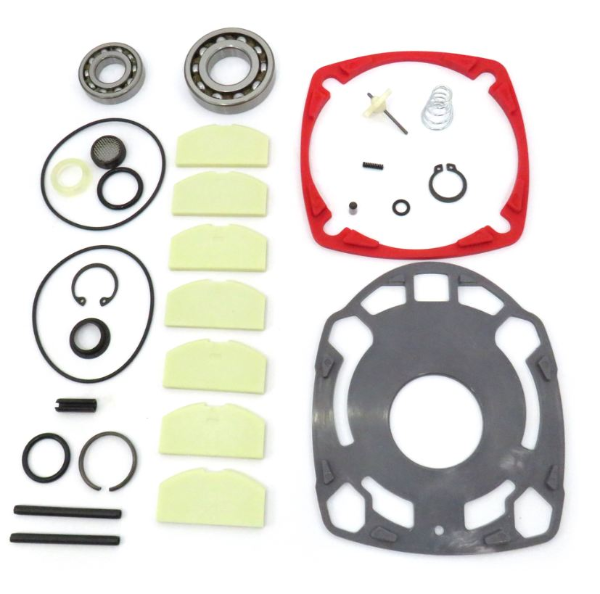

IR 2175MAX-TK1

Tune-up Kit for Ingersoll Rand 2175 Series Air Impact Wrench

Includes: inlet parts kit, O-rings, springs, dentent pin, gaskets, cylinder dowl, bearings and vane pack.

For Use With

• 2175MAX
• 2175MAX-6

IR 231H-A93

TRIGGER ASSEMBLY

IR 259-TK1

Tune-up Kit for Ingersoll Rand 259 Series Impact Wrench

For Use With

• 259
• 259G

IR 261-3

3/4" Air Impact Wrench, 3" Ext Anvil, Super Duty, 1100 ft-lb Torque, Friction Ring Retainer, Pistol

The 261 Series impact wrench is ideal for vehicle repair and heavy truck and machinery jobs where you’ll benefit from the square socket retaining ring and the power behind the vane motor. Trigger actuation and a power regulator let you complete projects with control and ease.

Features And Benefits

• Power: The 6 vane motor provides a high torque output for increased power.
• Jumbo Hammer Mechanism: The patented jumbo hammer is unaffected by air pressure changes and delivers 1100 ft-lbs. of max torque and a working torque of 200-900 ft-lbs.
• Lasting Performance: This power tool is equipped with a pressure-fed lube system which provides trouble-free, longer performance.
• Square Socket: The square socket retaining ring makes this an ideal impact wrench for projects where you need increased socket connection, like auto repair and heavy truck and machinery jobs.
• Handle Exhaust: Handle exhaust directs dust and dirt from being blow at you while working as it directs air away from the operator.
• Extended Reach: The 3-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.

Product Application and Uses: Applications include tire changing, engine repair, engine component installation and removal, body work installation and removal, farm implement assembly and repair, auto repair and maintenance, and truck repair.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 38
Air Consumption @ Load (l/min): 1076
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: 3" Extended
Average Air Consumption (cfm): 9.5
Average Air Consumption (l/min): 269
Blows per Min: 1000
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Super Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 100.3 / 111.3
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 98.4 / 109.4
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1100
Max Torque (in-lb): 13196
Max Torque (nm): 1491
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 11.8
Product Width (in): 3.76
Product Height (in): 10.3
Product Weight (lb): 13
Recommended Forward Torque Range (ft-lb): 200-600
Recommended Forward Torque Range (in-lb): 2399-7196
Recommended Forward Torque Range (nm): 271-813
Recommended Reverse Torque (ft-lb): 200-600
Recommended Reverse Torque (nm): 271-813
Retainer Type: Friction Ring
Side to Center Distance (in): 1.88
Side to Center Distance (mm): 48
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 10.4
Warranty: 1-year

Similar IR

• 259
• 2130-2

IR 261B-A727

Hammer Case for Ingersoll Rand 261, 271 Series Impact Wrench

For Use With

• 261
• 261-3
• 261-6
• 271

IR 280-TK2

Tune-up Kit for Ingersoll Rand 280 Series Impact Wrench

For Use With

• 280
• 280-6
• 280-EU
• 280-S-6
