IR W7172-K22
3/4" 20V Cordless Impact Wrench 2 Battery Kit, 1500 ft-lb Torque, Friction Ring-Thru-hole Retainer, Pistol
Features And Benefits:
- POWER: Powerful brushless motor and impact mechanism are finely tuned for best in class power-to-weight ratio. 1500 ft-lb nut-busting torque and 1000 ft-lb of MAX torque.
- CONTROL: Includes the IQV Power Control System with 4 modes: Full Power, Half Power, Wrench Tight, and Hand Tight. From axle nuts to oil pans, flange bolts to pre-torque joints there's no need to switch tools.
- ACCESS: 8.5" short tip-to-tail design and 360 degree shadowless task light with 4 dimmable settings provides increased visibility and access.
- Robust and durable all-metal drivetrain and hammer mechanism optimized for maximum power and efficiency.
- Variable-speed switch (half and full power only) with electronic brake provides maximum control of the tool and increases safety - release trigger, drive stops spinning.
- Patented steel-reinforced nylon casing protects against aggressive fluids, chemicals and repeated drops
- Ideally used for removing or fastening cradle bolts, tire changing, fleet truck maintenance and in industrial and MRO settings.
- Weighs only 7.8 lbs (with BL2022 battery).
- 3-year warranty.
- Compatible with IQV 20 Series Battery System.
Product Application and Uses:
Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include tire changing, cradle bolts, fleet truck maintenance, industrial and MRO.

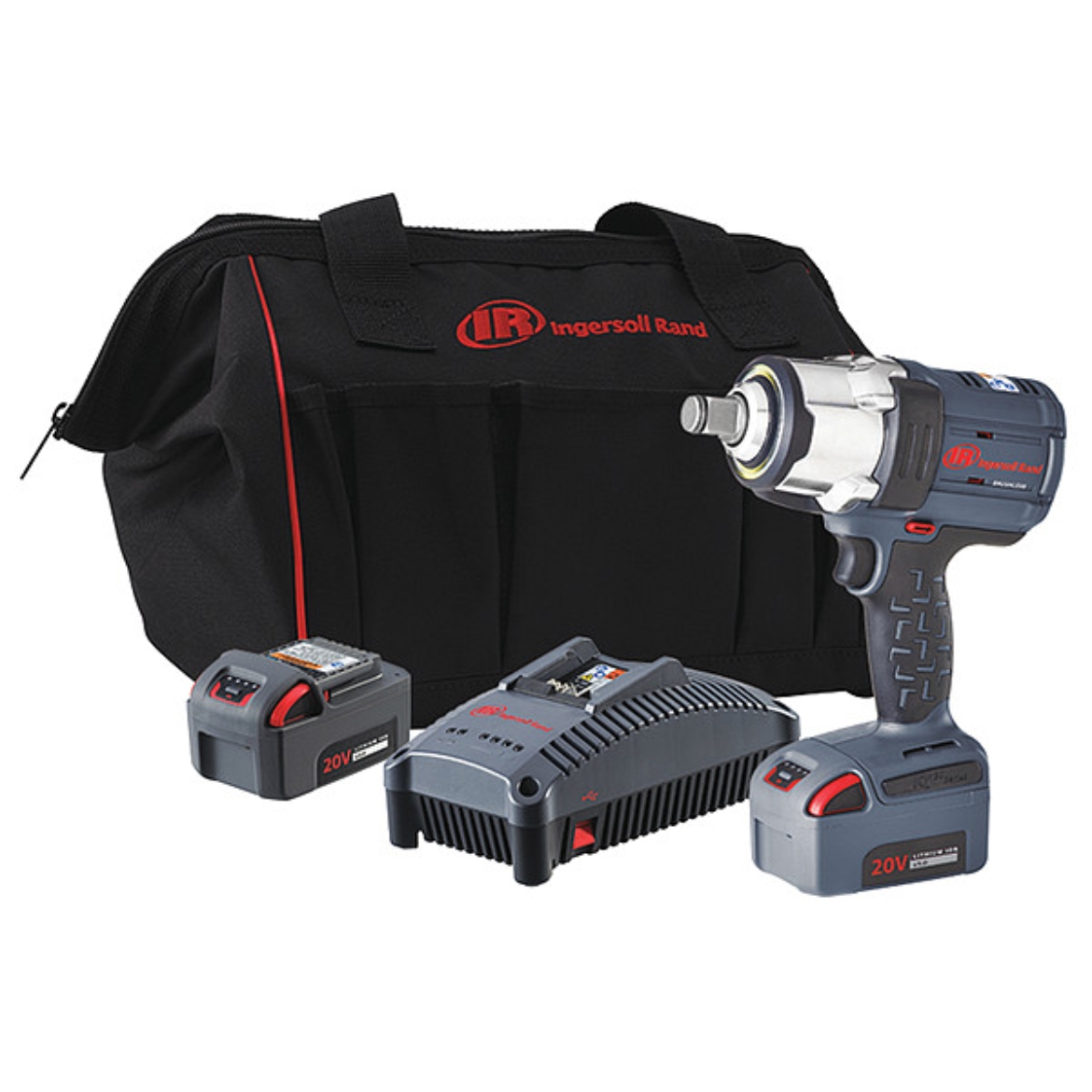

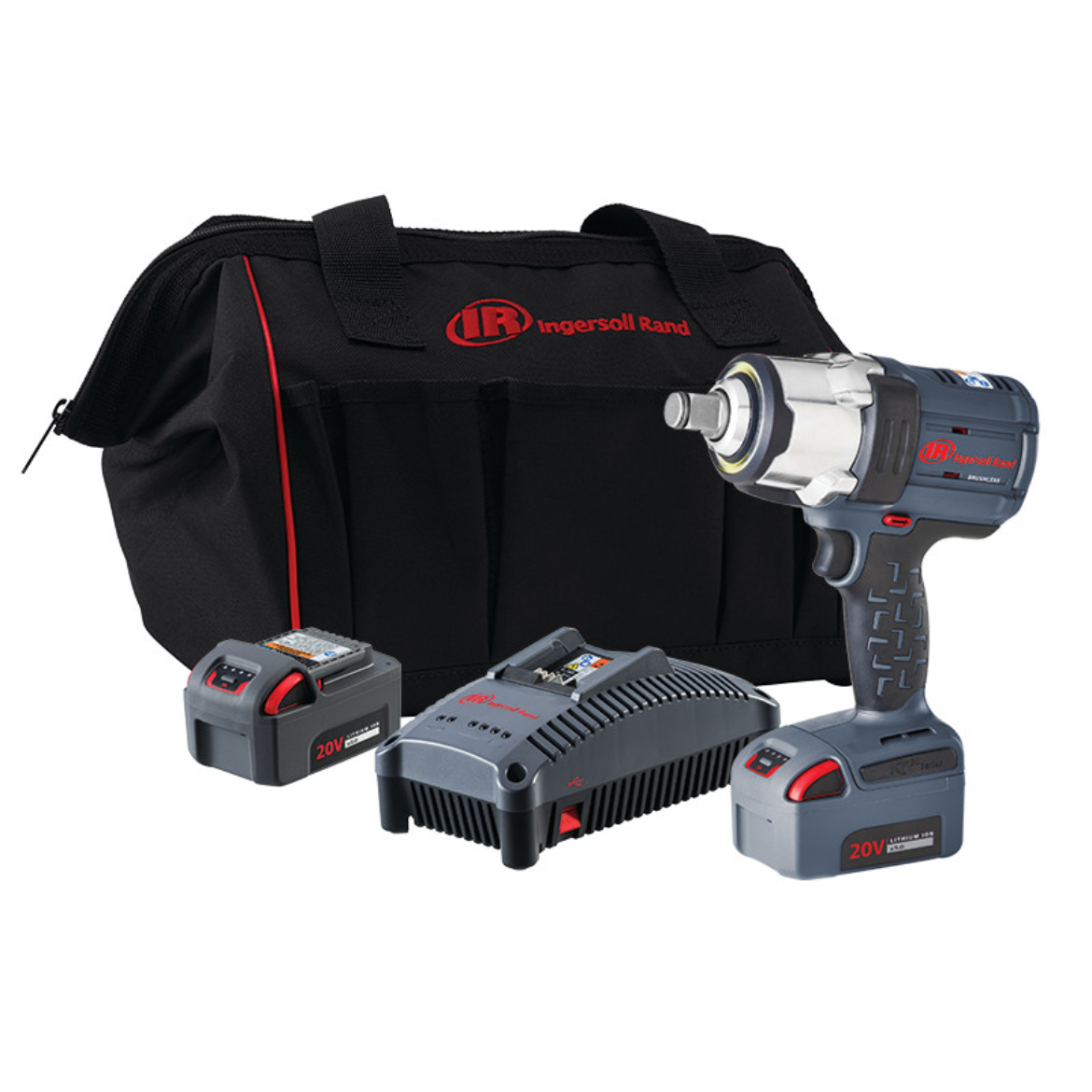

- Includes: W7172 3/4" Cordless Impact Wrench, (2) BL2022 5.0Ah Batteries, 20V Battery Charger, Bag
- Actuation/Throttle Type/Switch Type: Trigger
- Anvil Length: Standard
- Blows per Min: 2450 (BL2022)
- Built-in Light: Yes
- Color: Grey
- Configuration/Handle Type: Pistol Grip
- Drive Size (in): 3/4
- Drive Type: Square
- Duty Rating: General Duty
- Forward Torque setting 1 (ft-lb): 3.7-10
- Forward Torque setting 1 (in-lb): 44-124
- Forward Torque setting 1 (nm): 5-14
- Forward Torque setting 2 (ft-lb): 37-111
- Forward Torque setting 2 (in-lb): 443-1328
- Forward Torque setting 2 (nm): 50-150
- Forward Torque setting 3 (ft-lb): 531
- Forward Torque setting 3 (in-lb): 6373
- Forward Torque setting 3 (nm): 720
- Forward Torque setting 4 (ft-lb): 1003
- Forward Torque setting 4 (in-lb): 12037
- Forward Torque setting 4 (nm): 1360
- Hammer Case: Steel-lined Aluminum
- Head Width (in): 2.7
- Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
- Impact Mechanism: Ball and Cam
- Max Bolt Diameter (in): 3/4
- Max Free Speed (rpm): 1900
- Max Torque (ft-lb): 1003
- Max Torque (in-lb): 12037
- Max Torque (nm): 1360
- Motor: Brushless Motor
- Number of Batteries Required: 1
- Number of Power Settings: 4
- Nut-busting/Breakaway Torque (ft-lb): 1505
- Nut-busting/Breakaway Torque (in-lb): 18056
- Nut-busting/Breakaway Torque (nm): 2040
- Power Source: Battery Powered
- Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 194.81
- Product Length (in): 8.5
- Product Width (in): 3.3
- Product Height (in): 9.1
- Product Height (in) (with Battery): 11.1
- Product Weight (lb): 6.1
- Product Weight (lb) (with Battery): 7.7
- Recommended Forward Torque Range (f
