IR 15QMAX

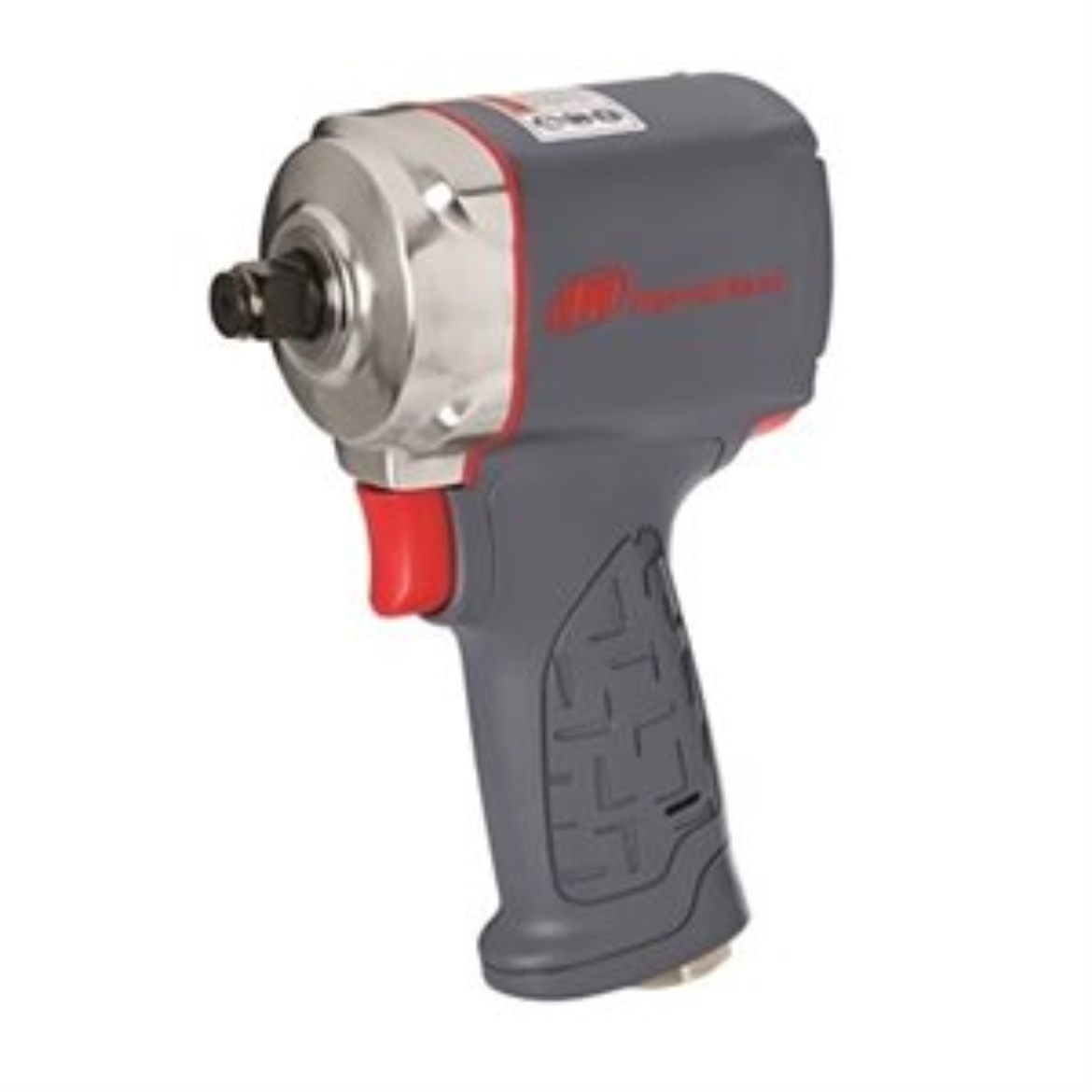

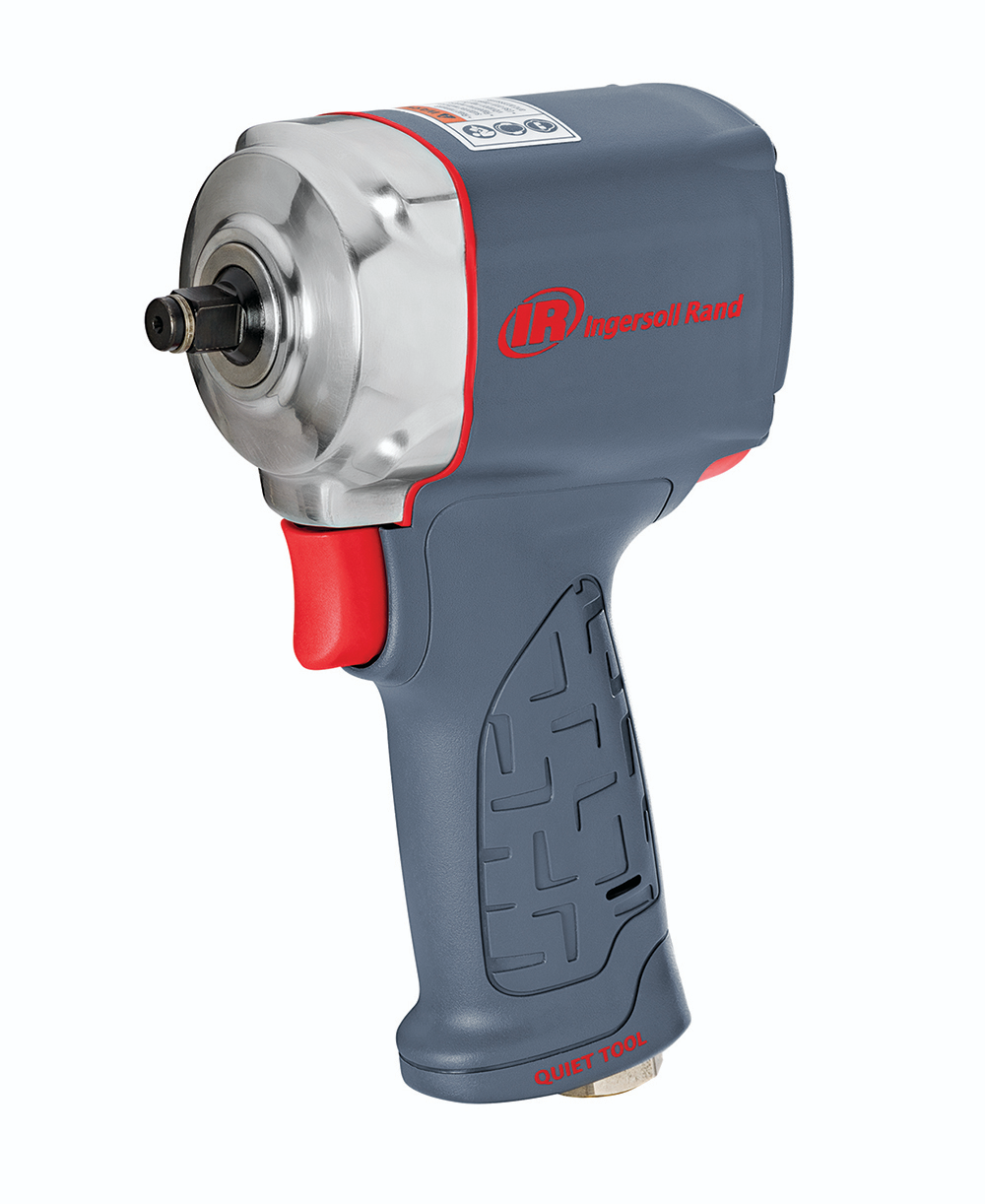

3/8" Air Impact Wrench, Quiet, Ultra Compact, 475 ft-lb Torque, Friction Ring Retainer, Pistol
The 35MAX Ultra-Compact Impact Wrench is as versatile as it is reliable. With its twin hammer impact mechanism, aluminum hammer case and composite housing, this tool will deliver the power you need.
Features And Benefits
- Access: Thanks to its small size and easy handling, the 35MAX Ultra-Compact Impact Wrench can be used in even the tightest of spaces.
- User Experience: The 35MAX Ultra-Compact Impact Wrench comes with improved operator comfort and safety, so you’ll never have to worry while doing your job.
- Power-to-Weight: At 2.4 lbs., the 15QMAX is the lightest on the market and it still manages to produce 380 ft.-lbs. of max torque.
- Patented Quiet Technology: Ingersoll Rand's patented Quiet Tool Technology reduces sound levels without compromising best-in-class power performance.
Includes: Bare Tool
Product Application and Uses: Vehicle Maintence And Industrial Mro For Resctricted Areas
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 17
Air Consumption @ Load (l/min): 481
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Blows per Min: 1350
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 83.7 / 94.7
Hammer Case: Aluminum
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 89.7 / 100.7
Max Bolt Diameter (in): 7/16
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 384
Max Torque (in-lb): 4602
Max Torque (nm): 520
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 3
Nut-busting/Breakaway Torque (ft-lb): 475
Nut-busting/Breakaway Torque (in-lb): 5700
Nut-busting/Breakaway Torque (nm): 644
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 158.3
Product Length (in): 4.6
Product Width (in): 2.4
Product Height (in): 7.1
Product Weight (lb): 2.4
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 310
Recommended Forward Torque Range (in-lb): 3717
Recommended Forward Torque Range (nm): 420
Retainer Type: Friction Ring
Side to Center Distance (in): 1.2
Side to Center Distance (mm): 30
Special Features: Quiet, Ultra Compact
Speed Setting: Variable Speed
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Compact
Vanes: 7
Vibration Level (m/s2): 5.5
Warranty: 2-year
