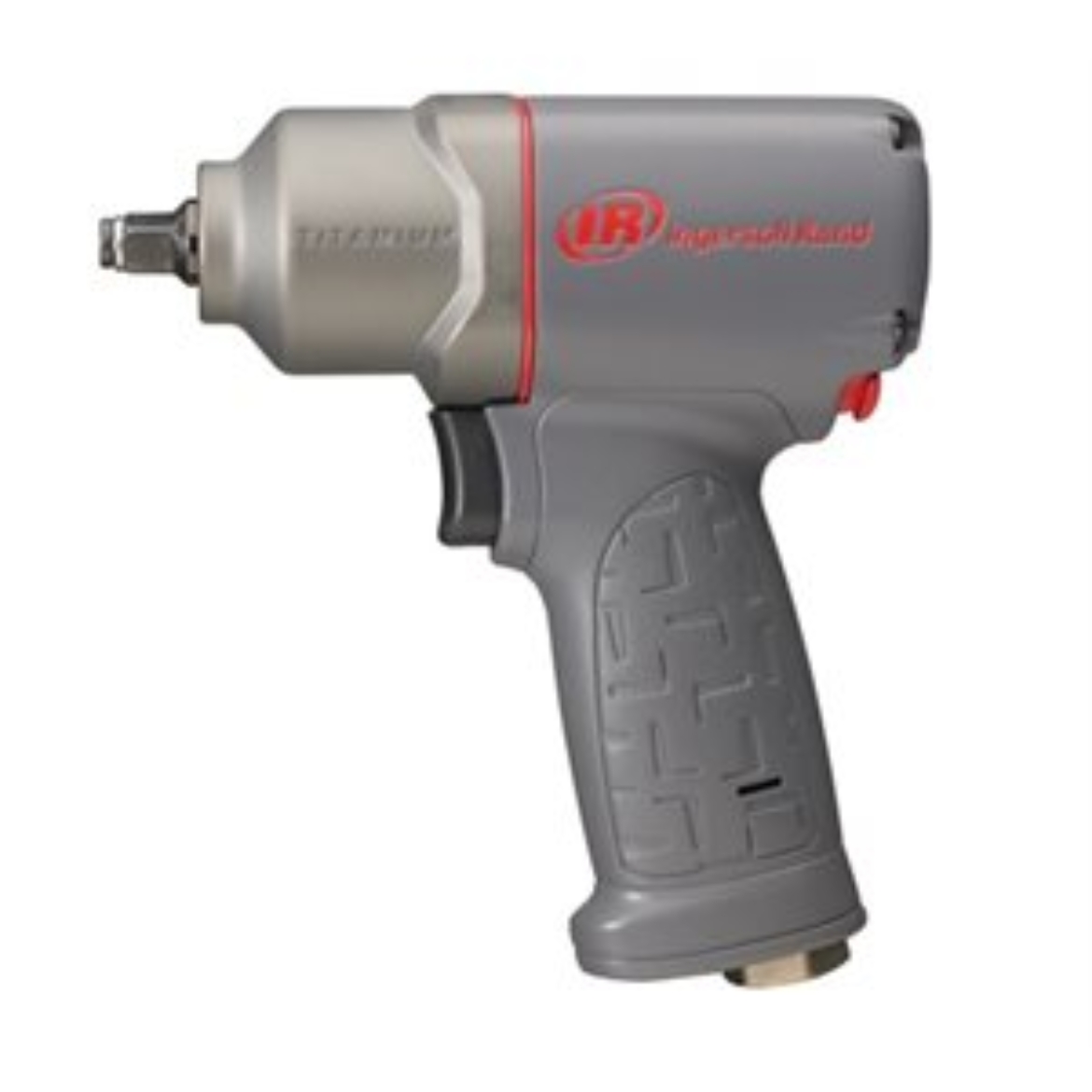

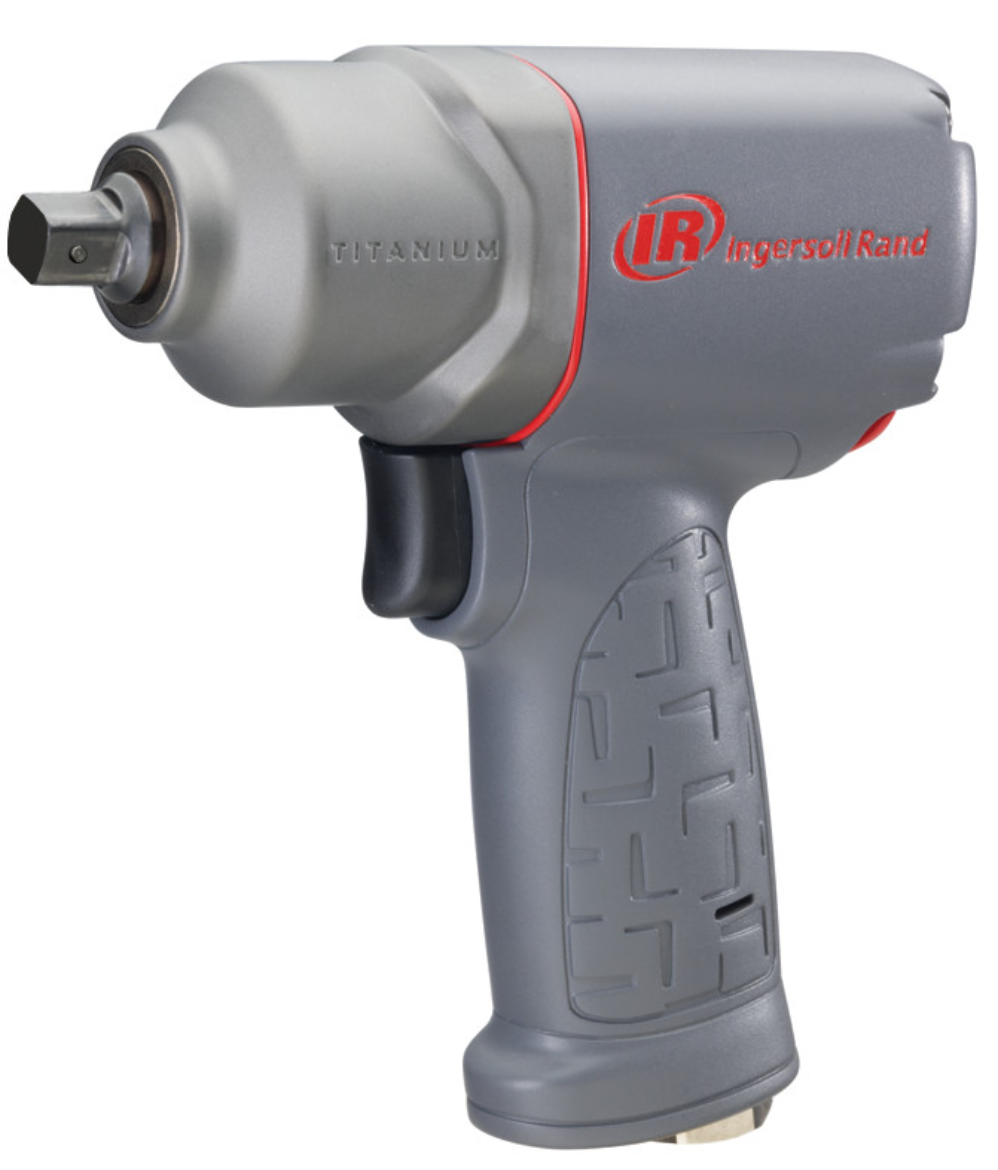

IR 2125PTIMAX
1/2" Air Impact Wrench, 332 ft-lb Torque, Titanium Hammercase, Pin Retainer, Pistol
Made with durable materials and featuring a number of different anvil configurations, this 2115TiMAX Series are a tools you can count on.
Features And Benefits
- Durable: With a titanium hammer case and composite housing, this wrench can withstand anything, including repeated drops and harsh environments.
- Versatile: This tool is so versatile, it can be used in just about any market.
- Easier access to grease fitting- for quicker maintenance and less downtime.
- Enhanced socket retention.
- 7-vane Motor delivers added power with less weight.
- Finely tuned twin hammer impact mechanism and motor deliver more torque, durability, and efficiency.
- Feather-touch trigger provides maximum control of this air impact wrench.
- Anodized end plate for enhanced durability.
- Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction.
- Patented one-hand forward/reverse control for easy operation.
- Optimized air flow for maximized performance when using this pneumatic impact wrench.
- 2-year warranty.
Product Application and Uses: Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 17
Air Consumption @ Load (l/min): 481
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Blows per Min: 1500
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 99.7 / 100.7
Hammer Case: Titanium
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 93.2 / 104.2
Max Bolt Diameter (in): 7/16
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 332
Max Torque (in-lb): 3983
Max Torque (nm): 450
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 4
Power Source: Air Powered
Product Length (in): 6.1
Product Width (in): 2.2
Product Height (in): 6.7
Product Weight (lb): 2.51
Recommended Forward Torque Range (ft-lb): 277
Recommended Forward Torque Range (in-lb): 3328
Recommended Forward Torque Range (nm): 376
Retainer Type: Pin Detent
Side to Center Distance (in): 1.1
Side to Center Distance (mm): 28
Special Features: Titanium Hammer case
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 7.5
Warranty: 2-year
