IR W5153-K22
1/2" 20V Cordless Impact Wrench 2 Battery Kit, 550 ft-lb Torque, Friction Ring Retainer, Pistol
Features And Benefits
- POWER: The brushless motor and impact mechanism are finely tuned to unleash a high power-to-weight ratio, with 550 ft.-lbs. of nut busting torque and 365 ft.-lbs. of MAX torque at 5.3 lbs (with BL2022 battery). The all-metal drivetrain and hammer mechanism are designed to provide technicians the power they need without adding extra weight to the tool.
- CONTROL: With 4 power modes (MAX Power, Half Power, Wrench Tight, and Hand Tight), you can adjust a dial instead of changing tools to deliver the right amount of torque when you need it and eliminate rework. From brake calipers to valve covers and everything in between, there’s no need to switch tools. The variable-speed switch with electronic brake provides MAX control of the tool.
- DURABLE: Protected by a chemical-resistant composite housing and a patented steel-reinforced frame, the W5153 is built to withstand repeated drops onto concrete and exposure to shop fluids. The IQV® spark-free brushless technology and sealed, enhanced, lubricated reinforced bushing provide a longer-life motor you can rely on.
- ACCESS: Thanks to its 6.5” tip-to-tail compact ergonomic design and lightweight build, the W5133 can easily access tight spaces, giving you access no matter where your work may be hiding. A built-in 360 degree LED light ring with task light mode and 4 dimmable settings casts a wide beam to give you excellent visibility with no shadows.
- Tapered hammer case / Front End
- Compatible with IQV® 20 Series Battery System

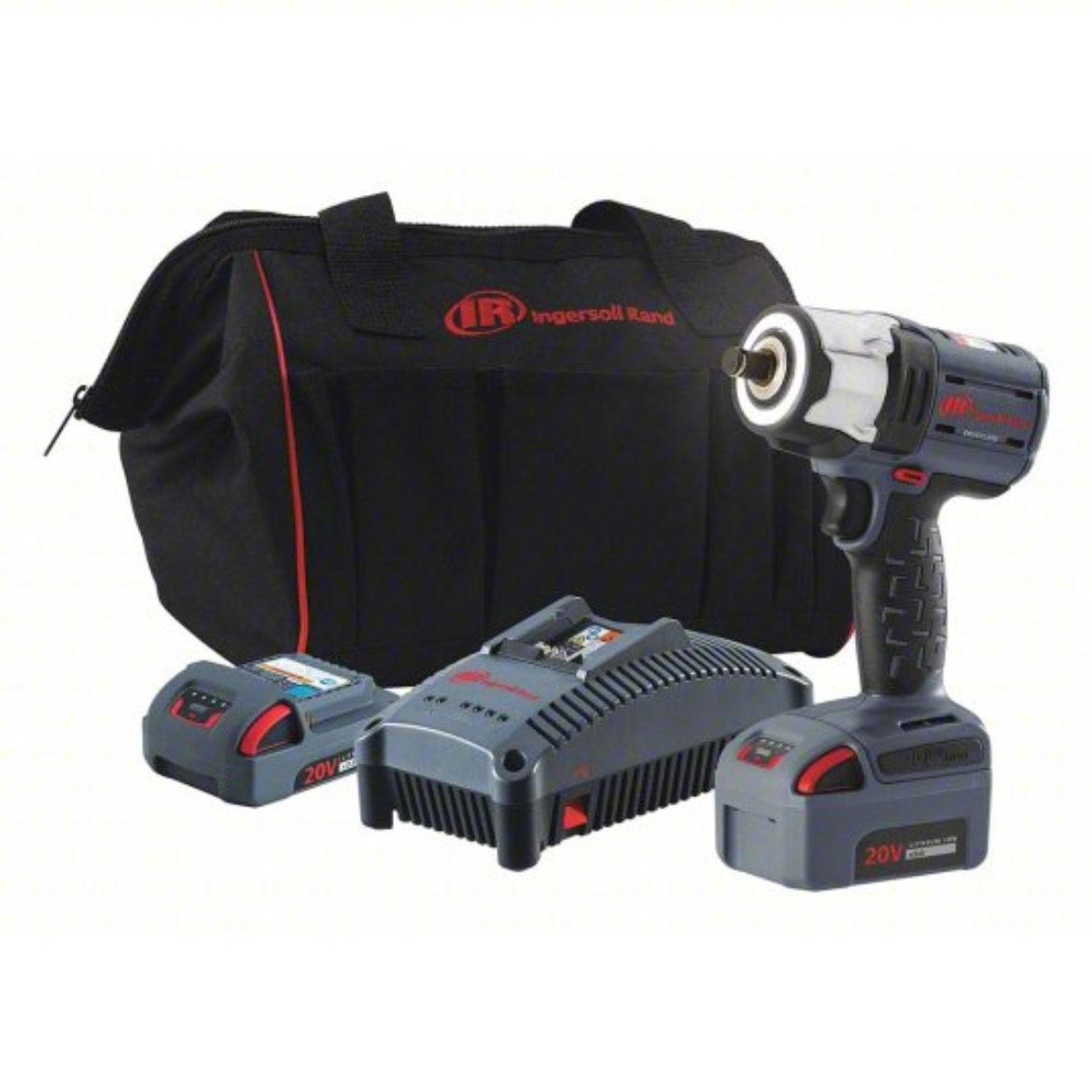

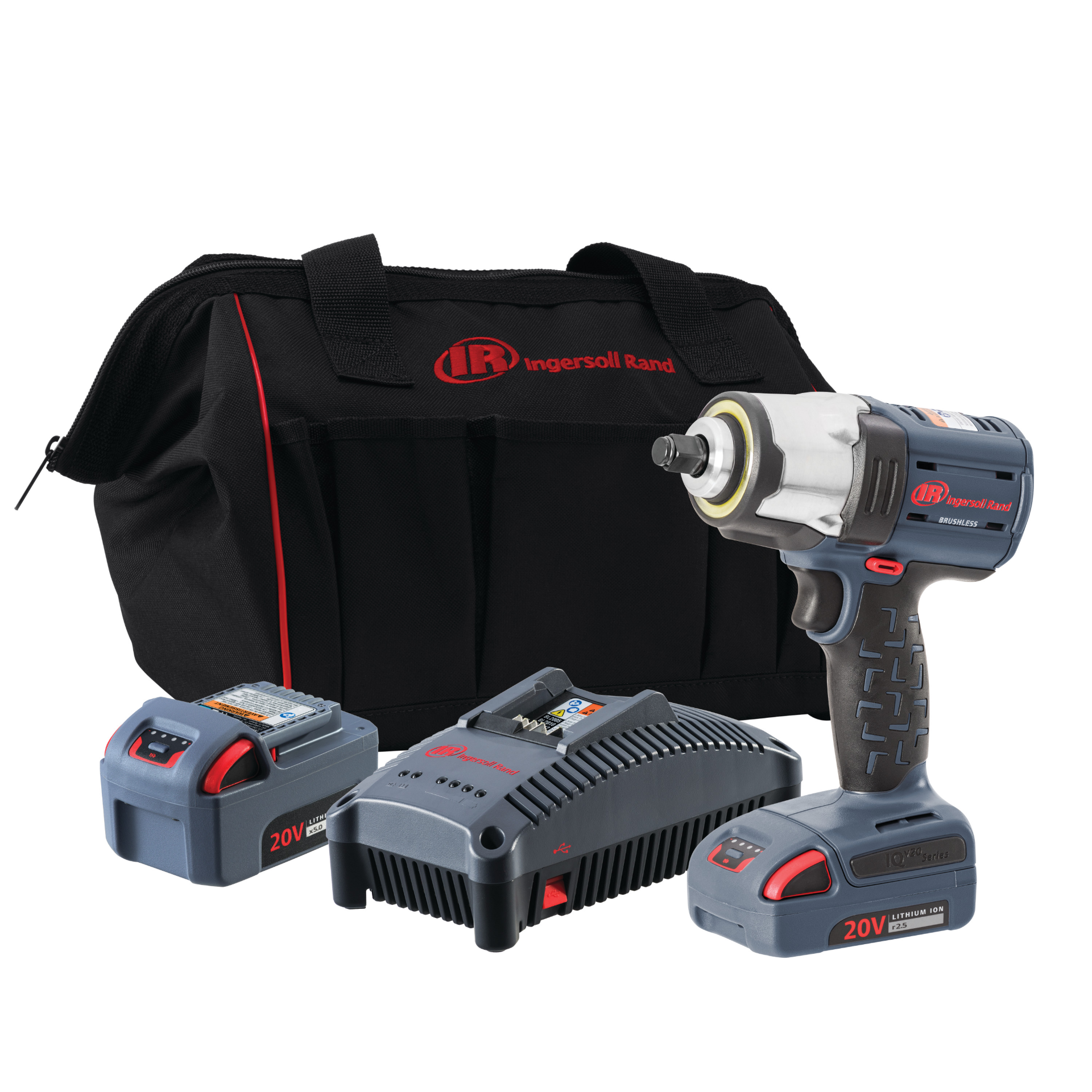

- Kit includes 1/2" Cordless Impact Wrench, (1) BL2022 5.0Ah battery, (1) BL2012 2.5Ah battery, 20V Battery Charger, Tool Bag
Includes: W5153 1/2" Cordless Impact Wrench, (1) BL2022 5.0Ah Battery, (1) BL2012 2.5Ah Battery, 20V Battery Charger, Tool Bag
Product Application and Uses: Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include brake calipers, valve covers, cylinder head cover removal, brake repairs, shock replacement, industrial and Mro.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 3300
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 2.2-8.9
Forward Torque setting 1 (in-lb): 27-106
Forward Torque setting 1 (nm): 3-12
Forward Torque setting 2 (ft-lb): 9.6-24
Forward Torque setting 2 (in-lb): 115-292
Forward Torque setting 2 (nm): 13-33
Forward Torque setting 3 (ft-lb): 240
Forward Torque setting 3 (in-lb): 2876
Forward Torque setting 3 (nm): 325
Forward Torque setting 4 (ft-lb): 339
Forward Torque setting 4 (in-lb): 4071
Forward Torque setting 4 (nm): 460
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.3
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Lumens: 32
Max Bolt Diameter (in): 1/2
Max Free Speed (rpm): 2100
Max Torque (ft-lb): 369
Max Torque (in-lb): 4425
Max Torque (nm): 500
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 549
Nut-busting/Breakaway Torque (in-lb): 6594
Nut-busting/Breakaway Torque (nm): 745
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 101.85
Product Length (in): 7.2
Product Width (in): 2.8
Product Height (in): 8.3
Product Height (in) (with Battery): 10.4
Product Weight (lb): 3.9
Product Weight (lb) (with Battery): 5.3
Recommended Forward Torque Range (ft-lb): 339
Recommended Forward Torque Range (in-lb): 4071
Recommended Forward Torque Range (nm): 460
Retainer Type: Frictio
