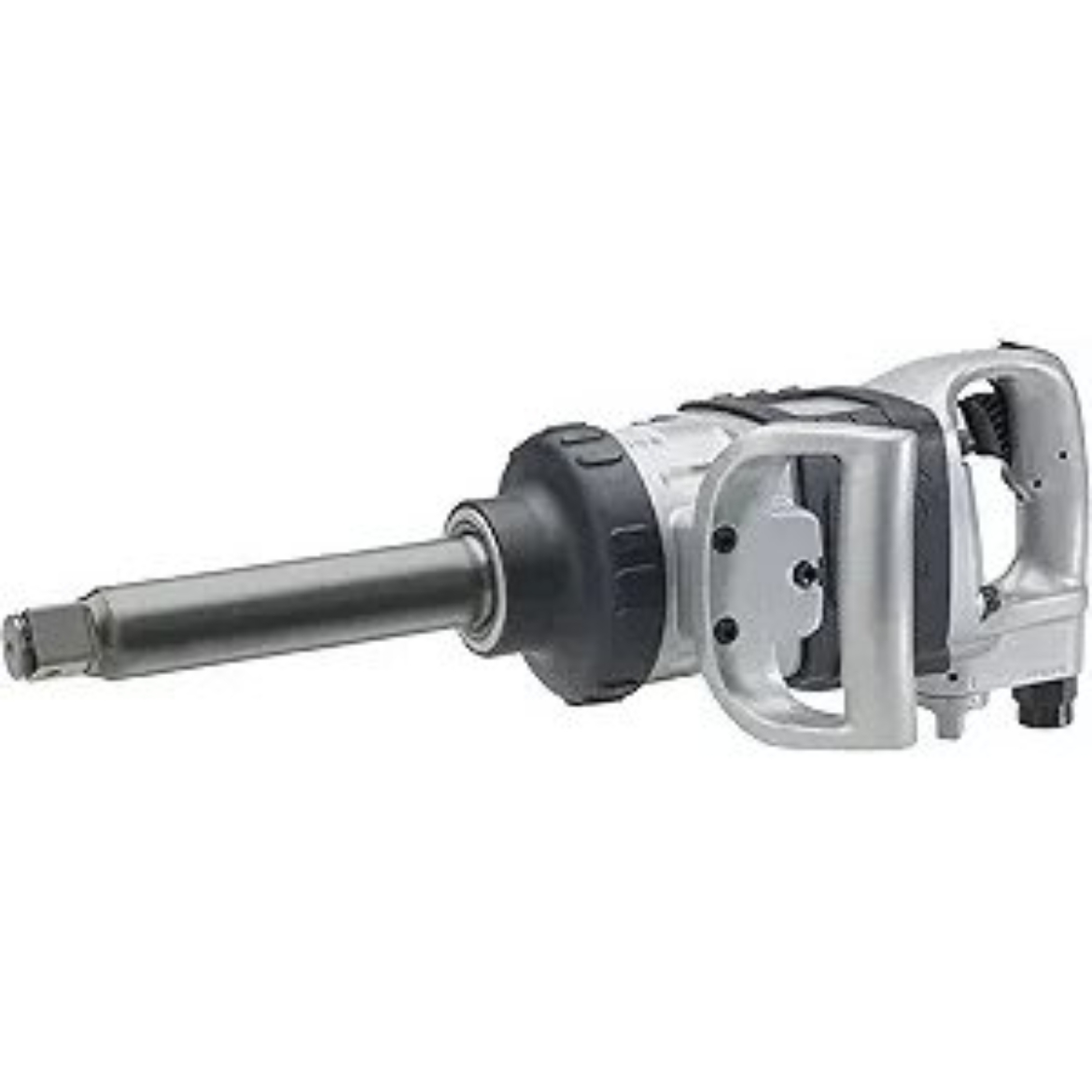

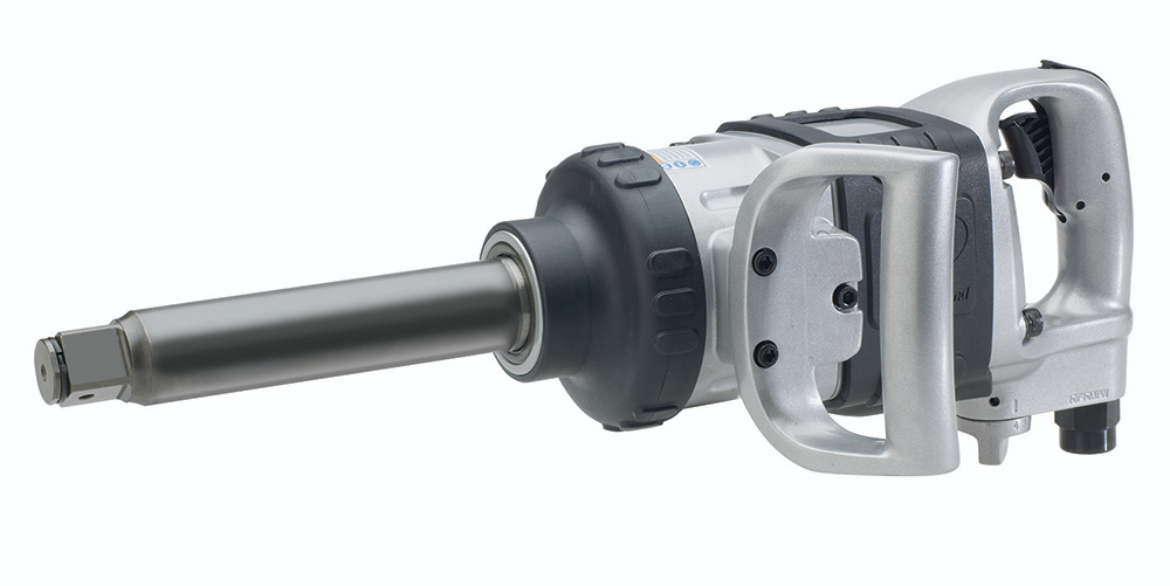

1in Cordless Impact Wrench with 6in Extended Anvil and 2 Handles

IR 285B-6

1" Air Impact Wrench, 6" Ext Anvil, Heavy Duty, 1770 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-handle Inside Trigger

Description: The 285B combine exceptional power, control and durability. It delivers 1770 ft-lb of maximum torque @ 120 psi, with 5,250 rpm free speed and a high-efficiency, 6-vane motor. The swept-back 285B handle provides excellent maneuverability. The 285B 6-inch extended anvil makes changing tires and deeper fastening will be a breeze.

Features And Benefits:

• Power: The rocking dog's combination of high inertia and low BPM means this tool can deliver a powerful blow with little air, giving you all the power you want without having to overextend yourself.
• Professional Use: Designed for the professional with over 1770 ft.-lbs. of torque for the toughest applications.
• Reliability: Built with a steel hammer case and metal housing, this wrench can withstand repeated drops and harsh weather conditions.
• Durable and Resistant: Phenolic 6 vane motor resist harsh environments for less downtime on the job. A protective rubber boot shields the tool from exterior damage.
• Reach: With Multiple retention methods and a 6-inch extended anvil you access hard-to-reach spaces, while maintaining a strong connection to the socket.
• Control: Feather Touch trigger and 3 position power regulator in both forward and reverse. Ergonomic swept-back handle provides excellent maneuverability.
• Speed: The impact wrench has a free speed of 5,250 rpm.
• Optimized: Optimized for the vehicle repair industry, heavy trucks, tire lanes, and MRO. 1-year warranty.

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Actuation/Throttle Type/Switch Type: Feather-touch Trigger
• Air Consumption @ Load (cfm): 61
• Air Consumption @ Load (l/min): 1727
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 120
• Anvil Length: 6" Extended
• Average Air Consumption (cfm): 10
• Average Air Consumption (l/min): 283

• Blows per Min: 830

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Heavy Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom

• Hammer Case: Aluminum
• Housing Material: Aluminum core with composite sleeve
• Impact Mechanism: Rocking Dog

• Max Bolt Diameter (in): 1-1/4
• Max Free Speed (rpm): 5250
• Max Torque (ft-lb): 1770
• Max Torque (in-lb): 21242
• Max Torque (nm): 2400
• Min Hose Size (in): 3/4
• Motor: Non-Biased

• Number of Power Settings: 3
• Power Source: Air Powered
• Product Length (in): 20.43

• Product Width (in): 7.94
• Product Height (in): 7.18
• Product Weight (lb): 27.8
• Recommended Forward Torque Range (ft-lb): 120-1080
• Recommended Forward Torque Range (in-lb): 1443-12957
• Recommended Forward Torque Range (nm): 163-1464
• Retainer Type: Friction Ring and Thru-hole

• Side to Center Distance (in): 4.1
• Side to Center Distance (mm): 104

• Sound Pressure/Power Db(A): 107/118
• Speed Setting: Variable Speed
• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 13.3
• Vibration Uncertainy K*
