1/2in Impact

IR 236

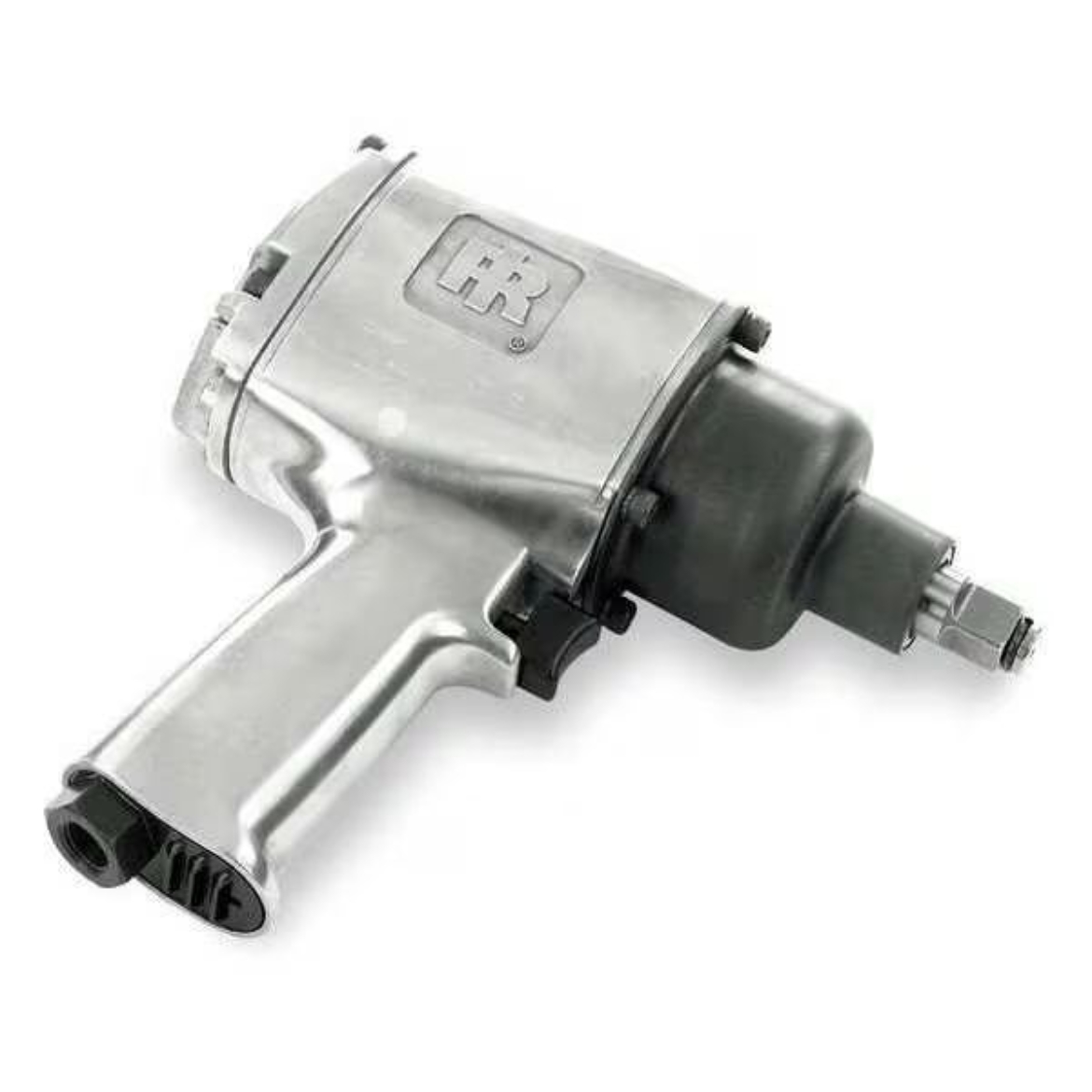

1/2 inch Air Impact Wrench, 450 ft-lb Torque, Friction Ring Retainer, Pistol

Description: If you work in vehicle repair, this impact wrench will see you through every job that walks in the door. The 236 1/2 inch is strong and reliable, with a power regulator that allows for increased control from start to finish.

Features And Benefits:

• RELIABILITY: The 236 1/2 inch Impact Wrench will put in overtime on your toughest projects. Each part is tested for quality, so you can be sure it'll deliver a high-performance output every time.
• POWER: This impact wrench comes with a finely tuned vane motor that pairs smoothly with the jumbo hammer impact mechanism on the 236 1/2 inch impact wrench for maximum power.
• WARRANTY: A one-year warranty comes standard on all 236 1/2 inch impact wrenches

Product Application and Uses:

Vehicle Repair Or Maintenance Repair

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 24
• Air Consumption @ Load (l/min): 680
• Air Inlet: 1/4 inch NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 4.3
• Average Air Consumption (l/min): 122

• Blows per Min: 1200

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: General Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 90.3 / 101.3

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Jumbo Hammer

• Max Bolt Diameter (in): 1/2
• Max Free Speed (rpm): 7400
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 450
• Max Torque (in-lb): 5400
• Max Torque (nm): 610
• Min Hose Size (in): 3/8
• Motor: Non-Biased

• Number of Power Settings: 2
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 84.9
• Product Length (in): 7

• Product Width (in): 2.6
• Product Height (in): 7.2
• Product Weight (lb): 5.3
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.3
• Side to Center Distance (mm): 33

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 12
• Warranty: 1-year

• Accessories: 236-BOOT
• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessories: S64H34L-PS1
• Accessories: S64H78L-PS1
• Accessories: S64M17L-PS1
• Accessories: S64M18L-PS1
• Accessories: S64M21L-PS1
• Accessories: S64M22L-PS1
• Accessories: S64M24L-PS1
• Accessories: S64M26L-PS1
• Accessories: SK4H13N

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 236-A626
• Parts: 236-TK1
