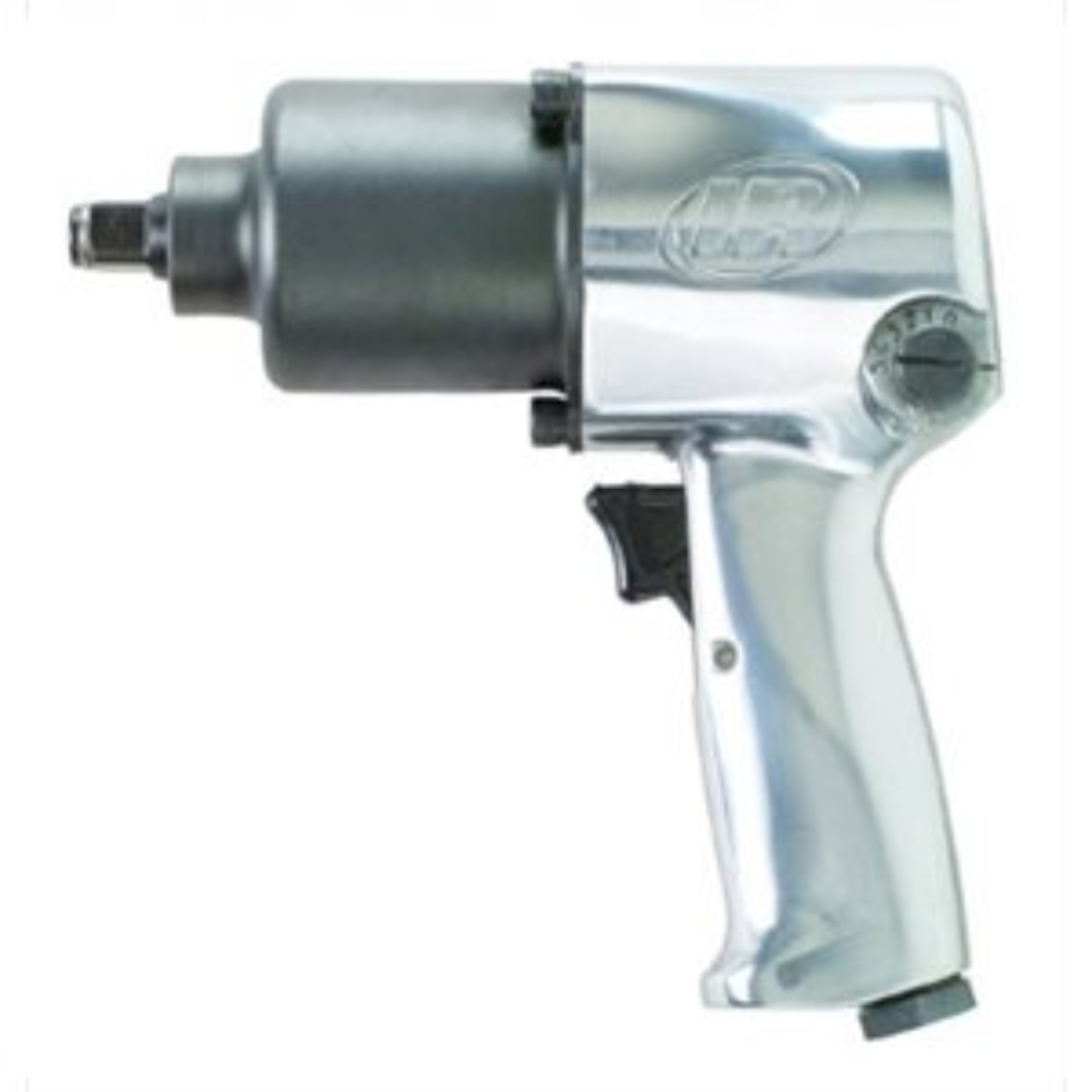

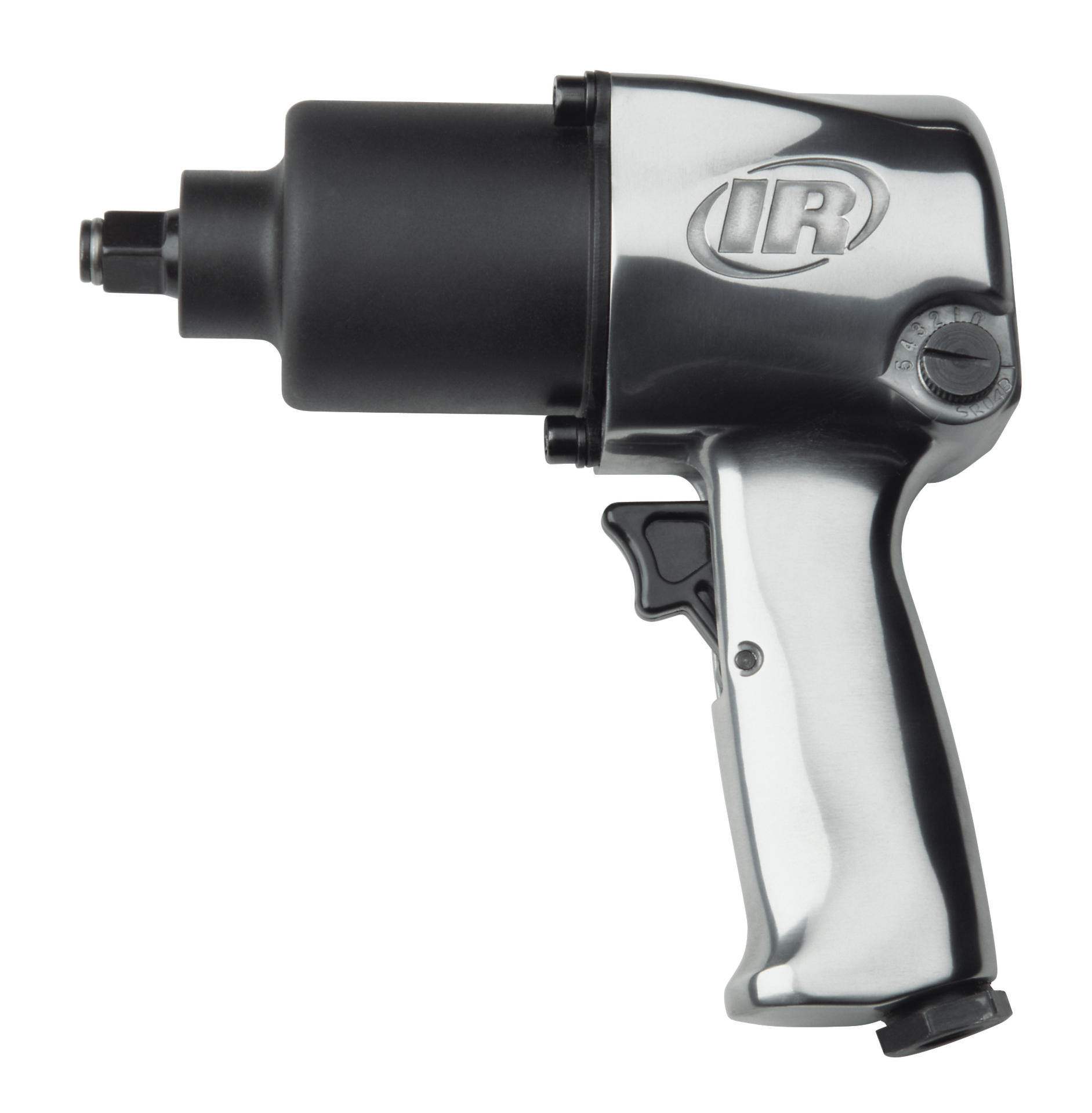

IR 231C
1/2" Air Impact Wrench, Super Duty, 600 ft-lb Torque, Friction Ring Retainer, Pistol
The heavy duty 231C impact wrench has the reliability and durability you’ve come to expect from the Ingersoll Rand name. The powerful tool provides an even impact and is durable enough to last through the toughest work environments.
Features And Benefits
- Performance: Delivers a max. torque of 600 ft.-lbs. and offers enough power to install and remove stubborn bolts, lug nuts, and other hardy fasteners.
- Reliable Choice: Lightweight and easy to maintain, this impact wrench is a reliable choice for auto hobbyists and professional mechanics alike. Built to withstand harsh environments and repeated drops, this impact wrench won’t let you down.
- Adjustable Power: Its adjustable power regulator lets you easily adjust power output needed for your task at hand; The twin hammer mechanism helps ensure efficient performance with impressive rotational speeds of up to 8,000 rpm.
- Comfort and Control: At 7.3 inches in length and weighing only 5.8 lbs, it's compact, ergonomic design minimizes stress on your wrists and hands; The contoured handle makes it easy to carry and control.
- Ready to Use: For added convenience, this impact wrench arrives fully lubricated, so it's ready to use out of the box. Exclusive impact mechanism Pressure-feed lubrication.
Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 22
Air Consumption @ Load (l/min): 623
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 4.2
Average Air Consumption (l/min): 119
Blows per Min: 1200
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Steel
Exhaust Location: Front
Free Speed Sound Pressure/Power Db(A): 99.0 / 110.0
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 8000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 600
Max Torque (in-lb): 7196
Max Torque (nm): 813
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 6
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 103.4
Product Length (in): 7.3
Product Width (in): 2.81
Product Height (in): 7.7
Product Weight (lb): 5.8
Recommended Forward Torque Range (ft-lb): 25-300
Recommended Forward Torque Range (in-lb): 301-3602
Recommended Forward Torque Range (nm): 34-407
Recommended Reverse Torque (ft-lb): 25-350
Recommended Reverse Torque (nm): 34-475
Retainer Type: Friction Ring
Side to Center Distance (in): 1.4
Side to Center Distance (mm): 36
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 6.5
Warranty: 1-year
