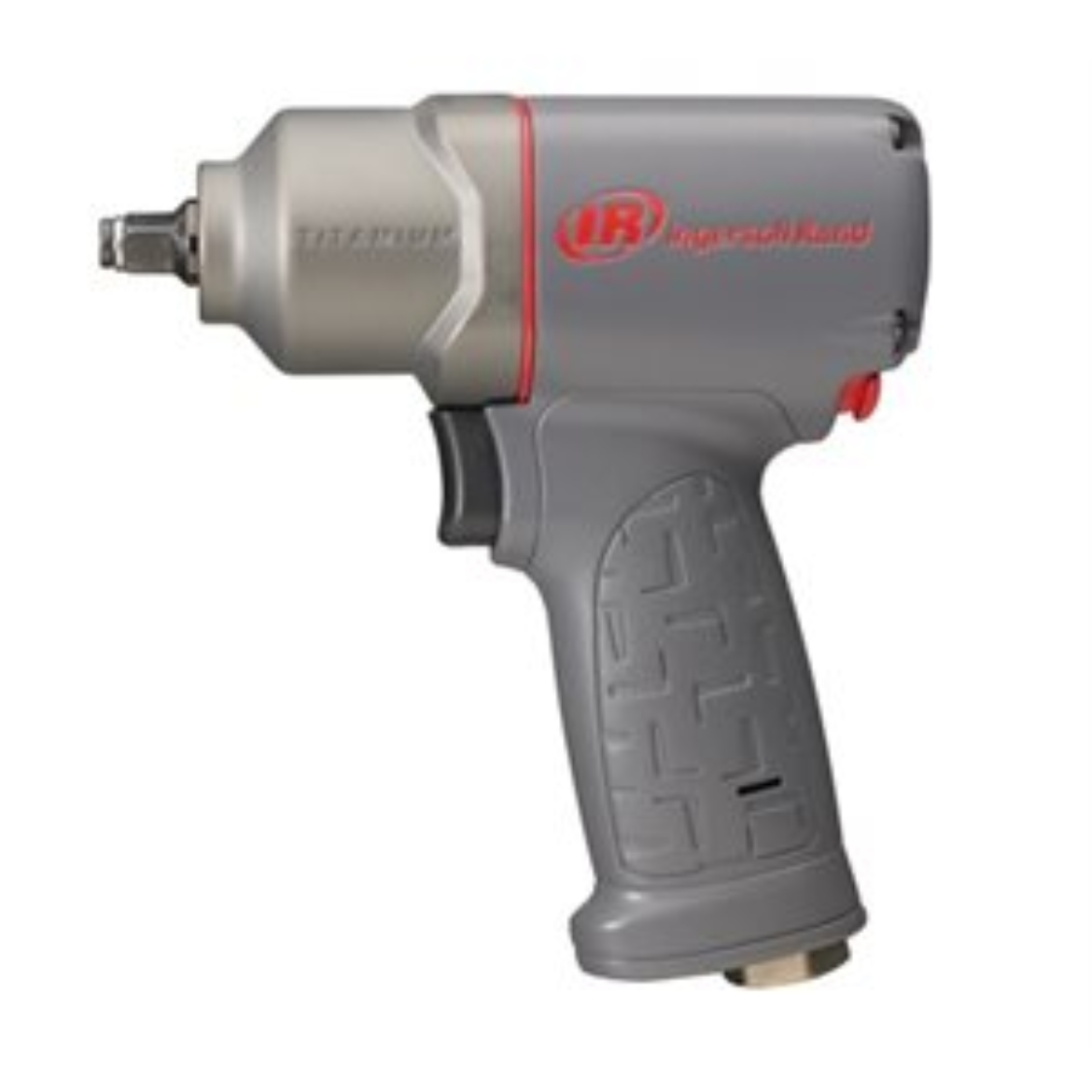

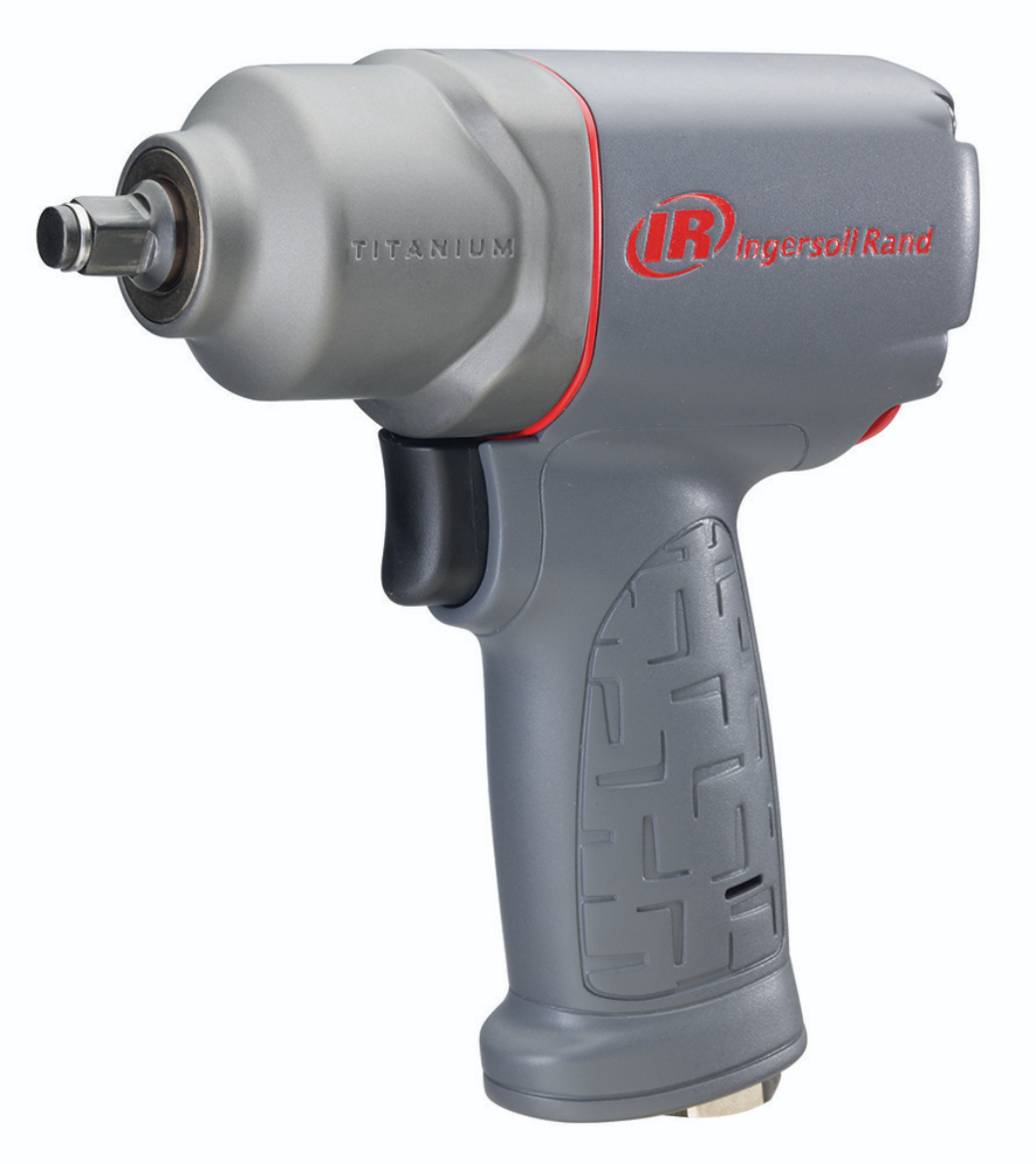

IR 2115TIMAX
3/8" Air Impact Wrench, 300 ft-lb Torque, Titanium Hammercase, Friction Ring Retainer, Pistol
The 2115TiMAX delivers best in class performance for a tool less than six inches long and weighing less than two and a half pounds. The minimal size of this tool will allow greater access to tight spaces, while the minimal weight will reduce operator fatigue...all while still delivering MAX performance.
Features And Benefits
- Durable: With a titanium hammer case and composite housing, this wrench can withstand anything, including repeated drops and harsh environments. In fact, we provide a 2-year warranty to prove it.
- Versatile: This tool is so versatile, it can be used in just about any market.
- Reliable This wrench has been tested and is guaranteed to last. It’ll deliver the same level of power every time.
- Easier access to grease fitting – for quicker maintenance and less downtime.
- Enhanced socket retention.
- 7-vane Motor delivers added power with less weight.
- Finely tuned twin hammer impact mechanism and motor deliver more torque, durability, and efficiency.
- Feather-touch trigger provides maximum control of this air impact wrench.
- Anodized end plate for enhanced durability.
- Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction.
- Patented one-hand forward/reverse control for easy operation.
- Optimized air flow for maximized performance when using this pneumatic impact wrench.
Includes: Bare Tool
Product Application and Uses: Automotive Repair
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 17
Air Consumption @ Load (l/min): 481
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Blows per Min: 1500
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 106.3 / 117.3
Hammer Case: Titanium
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 96.6 / 107.6
Max Bolt Diameter (in): 7/16
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 300
Max Torque (in-lb): 3602
Max Torque (nm): 407
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 4
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 120.9
Product Length (in): 6
Product Width (in): 2.2
Product Height (in): 6.7
Product Weight (lb): 2.48
Recommended Forward Torque Range (ft-lb): 250
Recommended Forward Torque Range (in-lb): 3000
Recommended Forward Torque Range (nm): 339
Retainer Type: Friction Ring
Side to Center Distance (in): 1.1
Side to Center Distance (mm): 28
Special Features: Titanium hammercase, 2-year Max warranty
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 7.8
Warranty: 2-year
