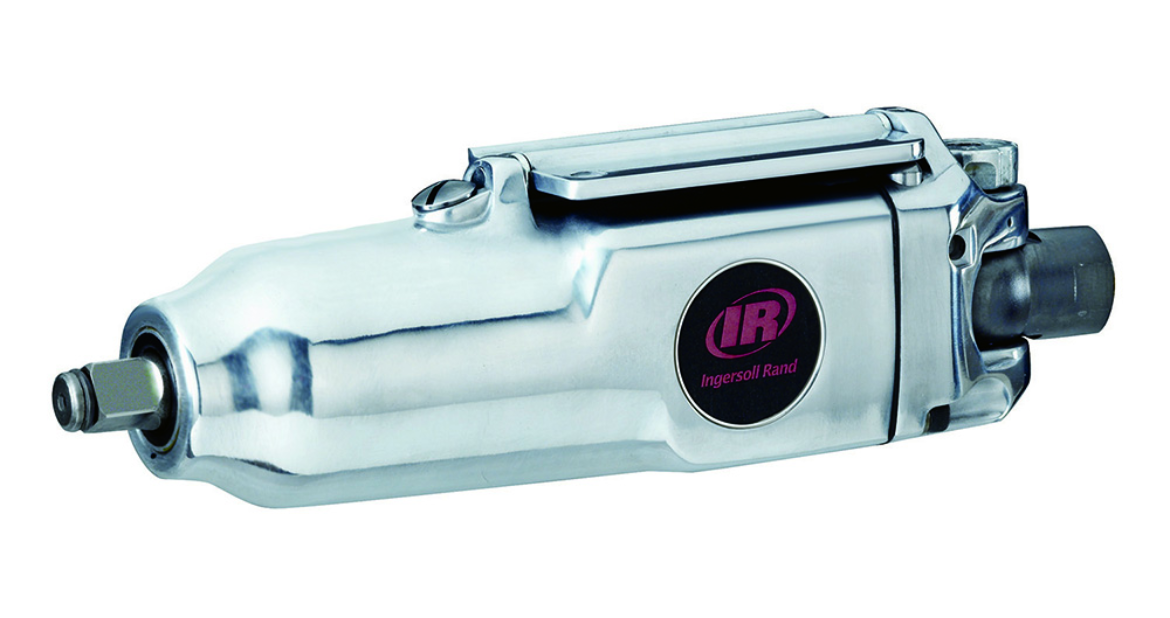

IR 216B
3/8" Air Impact Wrench, 200 ft-lb Torque, Friction Ring Retainer, Inline
Full of power with an easy to access design, the 216B Straight Impact Wrench ensures every job is a job well done.
Features And Benefits
- Durable: Combining an aluminum hammer case with metal housing ensures this wrench is both durable and lightweight.
- Power: The ball and cam mechanism delivers a high output of power without ever risking your tool stalling out.
- Access: Thanks to its straight grip and overall design, this impact wrench is great for use in hard-to-reach spaces.
Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Butteryfly Trigger
Air Consumption @ Load (cfm): 19
Air Consumption @ Load (l/min): 538
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 3
Average Air Consumption (l/min): 85
Blows per Min: 1600
Color: Silver
Configuration/Handle Type: Straight
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: General Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 94.8 / 105.8
Hammer Case: Aluminum
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Pin Clutch
Impacting Sound Pressure/Power Db(A): 90.0 / 101.0
Max Bolt Diameter (in): 7/16
Max Free Speed (rpm): 8500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 200
Max Torque (in-lb): 2400
Max Torque (nm): 271
Min Hose Size (in): 3/8
Motor: Non-Biased
Power Source: Air Powered
Product Length (in): 7.7
Product Width (in): 2.3
Product Height (in): 1.9
Product Weight (lb): 2.8
Recommended Forward Torque Range (ft-lb): 15-160
Recommended Forward Torque Range (in-lb): 177-1921
Recommended Forward Torque Range (nm): 20-217
Retainer Type: Friction Ring
Side to Center Distance (in): 1.2
Side to Center Distance (mm): 30
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 5.2
Warranty: 1-year
