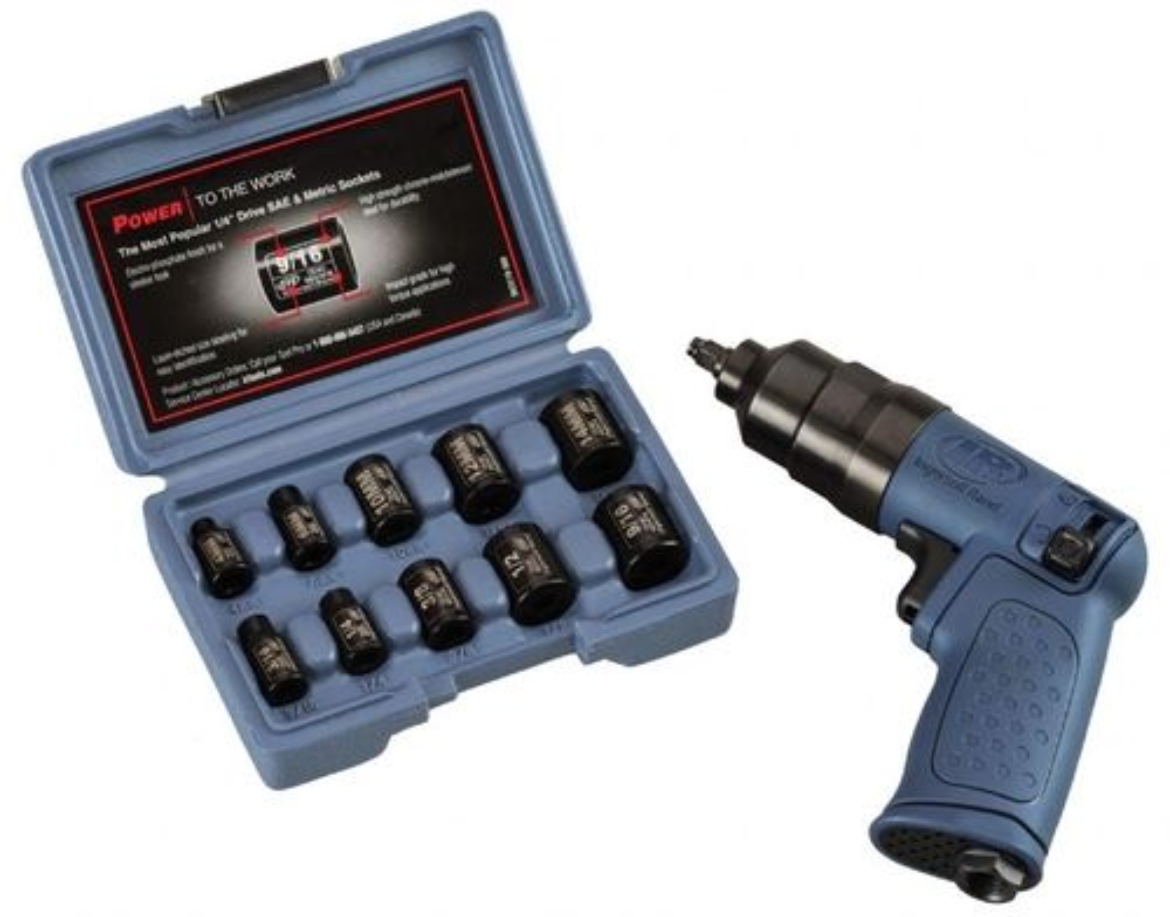

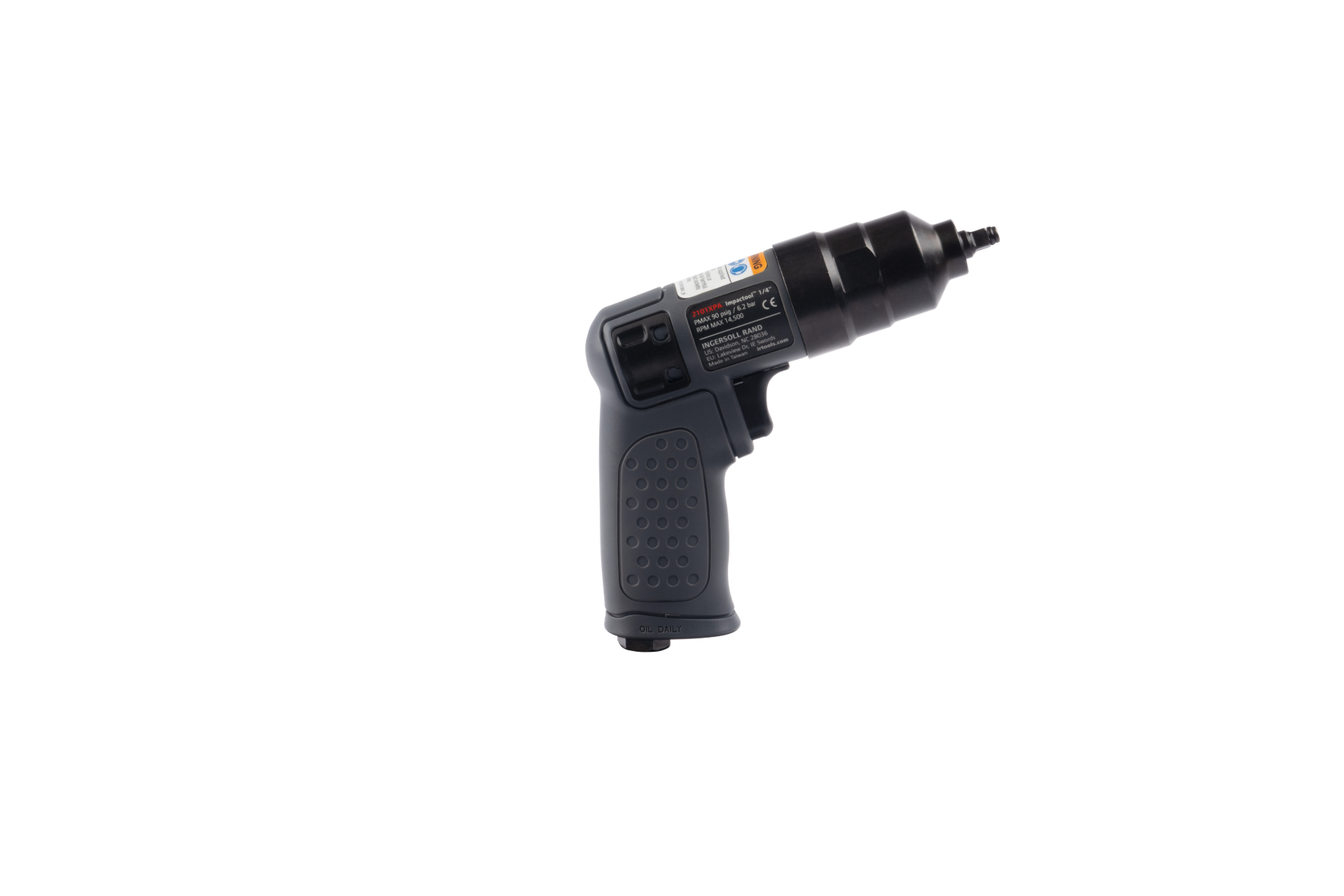

1/4 in Mini Impactool

IR 2101XPA

1/4" Mini Air Impact Wrench, 55 ft-lb Torque, Friction Ring Retainer, Pistol

Description: Despite its small size, this Mini Impact Wrench packs a punch. Thanks to its rocking dog impact mechanism and finely tuned vane motor, this wrench is as compact as it is powerful.

Features And Benefits:

• Access: Thanks to its small size, this wrench can fit in even the toughest to reach spaces.
• Reliability: These parts will stand the test of time. The rocking dog impact mechanism is easy to maintain, and delivers a powerful burst with low air needs.
• Increased Productivity: The less time you have to worry about changing parts, the more time you have to work.
• 1-year warranty

Product Application and Uses:

Designed to remove and install threaded fasteners. Optimized for the vehicle repair industry, body shops, and MRO

• Actuation/Throttle Type/Switch Type: Trigger
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 13.5
• Average Air Consumption (l/min): 382

• Blows per Min: 3650

• Color: Black
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/4
• Drive Type: Square
• Duty Rating: General Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 83.5 / 94.5

• Hammer Case: Steel
• Handle Material: Composite
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Rocking Dog
• Impacting Sound Pressure/Power Db(A): 84.9 / 95.9

• Max Bolt Diameter (in): M5
• Max Free Speed (rpm): 14500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 55
• Max Torque (in-lb): 664
• Max Torque (nm): 75
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 6.9

• Product Width (in): 1.7
• Product Height (in): 5.9
• Product Weight (lb): 1.5
• Recommended Forward Torque Range (ft-lb): 50
• Recommended Forward Torque Range (in-lb): 602
• Recommended Forward Torque Range (nm): 68
• Retainer Type: Friction Ring

• Side to Center Distance (in): 0.85
• Side to Center Distance (mm): 22

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Compact
• Vanes: 5
• Vibration Level (m/s2): 3
• Warranty: 1-year

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2101XPA-42-5
