GRACO INC. S10595

GRACO INC. S10595 branded products

View as Grid List

Sort by

RAC X LTX TIP, SPRAY, 631

GG LTX631

RAC X LTX TIP, SPRAY, 631

Graco LTX631 RAC X SwitchTip, 631

The Reverse-A-Clean (RAC) 631 RAC X SwitchTip produces a 12 to 14 inch fan and has a 0.031 inch orifice. Reverse the SwitchTip to easily clear clogs.

Application: Used for residential, commercial or industrial applications.

Best Tip on the Market
Longest lasting fan pattern
Highest quality finish with a consistent spray pattern
Easy to Identify Tip Size
Large raised tip size numbers are always legible – even when covered with paint
Superior Tip Design
Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents

Model: RAC X
Series: LTX SwitchTip

Compatible Material: Lacquer to Mastic, Latex Paint
For Use With: RAC X HandTite Tip Guard
Maximum Fan Width (cm): 30
Maximum Fan Width (in): 12
Maximum Fan Width (mm): 356
Maximum Flow Rate (GPM): 1.03
Maximum Flow Rate (L/min): 3.90
Maximum Working Pressure (bar): 280
Maximum Working Pressure (kPa): 28000
Maximum Working Pressure (psi): 4050
Minimum Fan Width (in): 12
Minimum Fan Width (mm): 305
Orifice Diameter (in): 0.031
Pattern Size (in): 12 to 14
Pattern Size (mm): 304.8 to 355.6

$65.25

RAC X LTX TIP, SPRAY, 627

GG LTX627

RAC X LTX TIP, SPRAY, 627

Graco LTX627 RAC X SwitchTip, 627

The Reverse-A-Clean (RAC) 627 RAC X SwitchTip produces a 12 to 14 inch fan and has a 0.027 inch orifice. Reverse the SwitchTip to easily clear clogs.

Application: Used for residential, commercial or industrial applications.

Best Tip on the Market
Longest lasting fan pattern
Highest quality finish with a consistent spray pattern
Easy to Identify Tip Size
Large raised tip size numbers are always legible – even when covered with paint
Superior Tip Design
Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents

Model: RAC X
Series: LTX SwitchTip

Compatible Material: Lacquer to Mastic, Latex Paint
For Use With: RAC X HandTite Tip Guard
Maximum Fan Width (cm): 30
Maximum Fan Width (in): 12
Maximum Fan Width (mm): 356
Maximum Flow Rate (GPM): 0.77
Maximum Flow Rate (L/min): 2.91
Maximum Working Pressure (bar): 280
Maximum Working Pressure (kPa): 28000
Maximum Working Pressure (psi): 4050
Minimum Fan Width (in): 12
Minimum Fan Width (mm): 305
Orifice Diameter (in): 0.027
Pattern Size (in): 12 to 14
Pattern Size (mm): 304.8 to 355.6

$65.25

$RAC X LTX TIP, SPRAY, (645)$

RAC X LTX TIP, SPRAY, (645)

GG LTX645

RAC X LTX TIP, SPRAY, (645)

RAC X SwitchTip, 645 The Reverse-A-Clean (RAC) 645 RAC X SwitchTip produces a 12 to 14 inch fan and has a 0.045 inch orifice. Reverse the SwitchTip to easily clear clogs. Used for residential, commercial or industrial applications. Best Tip on the Market

Longest lasting fan pattern
Highest quality finish with a consistent spray pattern

Easy to Identify Tip Size

Large raised tip size numbers are always legible – even when covered with paint

Superior Tip Design

Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents

$65.25

$RAC X LTX TIP, SPRAY, (641)$

RAC X LTX TIP, SPRAY, (641)

GG LTX641

RAC X LTX TIP, SPRAY, (641)

RAC X SwitchTip, 641 The Reverse-A-Clean (RAC) 641 RAC X SwitchTip produces a 12 to 14 inch fan and has a 0.041 inch orifice. Reverse the SwitchTip to easily clear clogs. Used for residential, commercial or industrial applications. Best Tip on the Market

Longest lasting fan pattern
Highest quality finish with a consistent spray pattern

Easy to Identify Tip Size

Large raised tip size numbers are always legible – even when covered with paint

Superior Tip Design

Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents

$65.25

RAC X LTX TIP, SPRAY, (651)

GG LTX651

RAC X LTX TIP, SPRAY, (651)

Graco LTX651 RAC X SwitchTip, 651

The Reverse-A-Clean (RAC) 651 RAC X SwitchTip produces a 12 to 14 inch fan and has a 0.051 inch orifice. Reverse the SwitchTip to easily clear clogs.

Application: Used for residential, commercial or industrial applications.

Best Tip on the Market
Longest lasting fan pattern
Highest quality finish with a consistent spray pattern
Easy to Identify Tip Size
Large raised tip size numbers are always legible – even when covered with paint
Superior Tip Design
Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents

Model: RAC X
Series: LTX SwitchTip

Compatible Material: Lacquer to Mastic, Latex Paint
For Use With: RAC X HandTite Tip Guard
Maximum Fan Width (cm): 30
Maximum Fan Width (in): 12
Maximum Fan Width (mm): 356
Maximum Flow Rate (GPM): 2.79
Maximum Flow Rate (L/min): 10.56
Maximum Working Pressure (bar): 280
Maximum Working Pressure (kPa): 28000
Maximum Working Pressure (psi): 4050
Minimum Fan Width (in): 12
Minimum Fan Width (mm): 305
Orifice Diameter (in): 0.051
Pattern Size (in): 12 to 14
Pattern Size (mm): 304.8 to 355.6

$65.25

$RAC X LTX TIP, SPRAY, (647)$

RAC X LTX TIP, SPRAY, (647)

GG LTX647

RAC X LTX TIP, SPRAY, (647)

Graco LTX647 RAC X SwitchTip, 647

The Reverse-A-Clean (RAC) 647 RAC X SwitchTip produces a 12 to 14 inch fan and has a 0.047 inch orifice. Reverse the SwitchTip to easily clear clogs.

Application: Used for residential, commercial or industrial applications.

Best Tip on the Market
Longest lasting fan pattern
Highest quality finish with a consistent spray pattern
Easy to Identify Tip Size
Large raised tip size numbers are always legible – even when covered with paint
Superior Tip Design
Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents

Model: RAC X
Series: LTX SwitchTip

Compatible Material: Lacquer to Mastic, Latex Paint
For Use With: Airless Spray Guns
Maximum Fan Width (cm): 30
Maximum Fan Width (in): 12
Maximum Fan Width (mm): 356
Maximum Flow Rate (GPM): 2.37
Maximum Flow Rate (L/min): 8.97
Maximum Working Pressure (bar): 279
Maximum Working Pressure (kPa): 27900
Maximum Working Pressure (psi): 4050
Minimum Fan Width (in): 12
Minimum Fan Width (mm): 305
Orifice Diameter (in): 0.047
Pattern Size (in): 12 to 14
Pattern Size (mm): 304.8 to 355.6

$65.25

$RAC X LTX TIP, SPRAY, (655)$

RAC X LTX TIP, SPRAY, (655)

GG LTX655

RAC X LTX TIP, SPRAY, (655)

RAC X SwitchTip, 655 The Reverse-A-Clean (RAC) 655 RAC X SwitchTip produces a 12 to 14 inch fan and has a 0.055 inch orifice. Reverse the SwitchTip to easily clear clogs. Used for residential, commercial or industrial applications. Best Tip on the Market

Longest lasting fan pattern
Highest quality finish with a consistent spray pattern

Easy to Identify Tip Size

Large raised tip size numbers are always legible – even when covered with paint

Superior Tip Design

Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents

$65.25

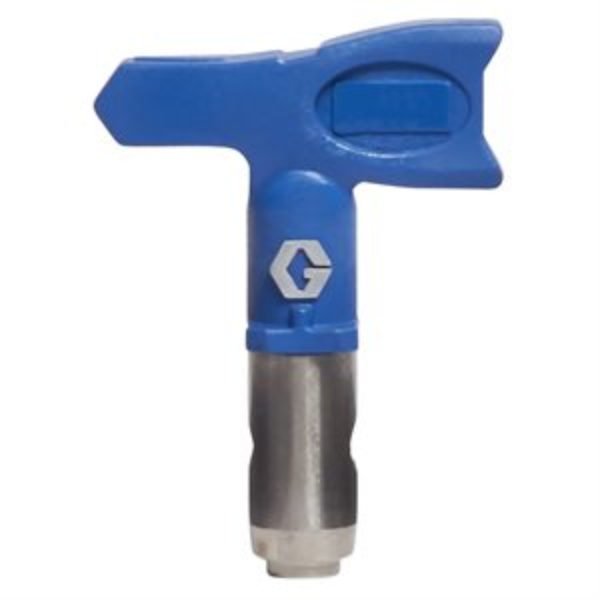

RAC X LTX TIP, SPRAY, 721

GG LTX721

RAC X LTX TIP, SPRAY, 721

Graco LTX721 RAC X SwitchTip, 721

The Reverse-A-Clean (RAC) 721 RAC X SwitchTip produces a 14 to 16 inch fan and has a 0.021 inch orifice. Reverse the SwitchTip to easily clear clogs.

Application: Used for residential, commercial or industrial applications.

Best Tip on the Market
Longest lasting fan pattern
Highest quality finish with a consistent spray pattern
Easy to Identify Tip Size
Large raised tip size numbers are always legible – even when covered with paint
Superior Tip Design
Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents

Model: RAC X
Series: LTX SwitchTip

Compatible Material: Lacquer to Mastic, Latex Paint
For Use With: RAC X HandTite Tip Guard
Maximum Fan Width (cm): 35
Maximum Fan Width (in): 14
Maximum Fan Width (mm): 406
Maximum Flow Rate (GPM): 0.47
Maximum Flow Rate (L/min): 1.78
Maximum Working Pressure (bar): 280
Maximum Working Pressure (kPa): 28000
Maximum Working Pressure (psi): 4050
Minimum Fan Width (in): 14
Minimum Fan Width (mm): 356
Orifice Diameter (in): 0.021
Pattern Size (in): 14 to 16
Pattern Size (mm): 355.6 to 406.4

$65.25

RAC X LTX TIP, SPRAY, (723)

GG LTX723

RAC X LTX TIP, SPRAY, (723)

Graco LTX723 RAC X SwitchTip, 723

The Reverse-A-Clean (RAC) 723 RAC X SwitchTip produces a 14 to 16 inch fan and has a 0.023 inch orifice. Reverse the SwitchTip to easily clear clogs.

Application: Used for residential, commercial or industrial applications.

Best Tip on the Market
Longest lasting fan pattern
Highest quality finish with a consistent spray pattern
Easy to Identify Tip Size
Large raised tip size numbers are always legible – even when covered with paint
Superior Tip Design
Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents

Model: RAC X
Series: LTX SwitchTip

Compatible Material: Lacquer to Mastic, Latex Paint
For Use With: RAC X HandTite Tip Guard
Maximum Fan Width (cm): 35
Maximum Fan Width (in): 14
Maximum Fan Width (mm): 406
Maximum Flow Rate (GPM): 0.57
Maximum Flow Rate (L/min): 2.16
Maximum Working Pressure (bar): 280
Maximum Working Pressure (kPa): 28000
Maximum Working Pressure (psi): 4050
Minimum Fan Width (in): 14
Minimum Fan Width (mm): 356
Orifice Diameter (in): 0.023
Pattern Size (in): 14 to 16
Pattern Size (mm): 355.6 to 406.4

$65.25

$RAC X LTX TIP, SPRAY, (817)$

RAC X LTX TIP, SPRAY, (817)

GG LTX817

RAC X LTX TIP, SPRAY, (817)

RAC X SwitchTip, 817 The Reverse-A-Clean (RAC) 817 RAC X SwitchTip produces a 16 to 18 inch fan and has a 0.017 inch orifice. Reverse the SwitchTip to easily clear clogs. Used for residential, commercial or industrial applications. Best Tip on the Market

Longest lasting fan pattern
Highest quality finish with a consistent spray pattern

Easy to Identify Tip Size

Large raised tip size numbers are always legible – even when covered with paint

Superior Tip Design

Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents

$65.25

RAC X LTX TIP, SPRAY, (819)

GG LTX819

RAC X LTX TIP, SPRAY, (819)

RAC X SwitchTip, 819 The Reverse-A-Clean (RAC) 819 RAC X SwitchTip produces a 16 to 18 inch fan and has a 0.019 inch orifice. Reverse the SwitchTip to easily clear clogs. Used for residential, commercial or industrial applications. Best Tip on the Market

Longest lasting fan pattern
Highest quality finish with a consistent spray pattern

Easy to Identify Tip Size

Large raised tip size numbers are always legible – even when covered with paint

Superior Tip Design

Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents

$65.25

$RAC X LTX TIP, SPRAY, (821)$

RAC X LTX TIP, SPRAY, (821)

GG LTX821

RAC X LTX TIP, SPRAY, (821)

RAC X SwitchTip, 821 The Reverse-A-Clean (RAC) 821 RAC X SwitchTip produces a 16 to 18 inch fan and has a 0.021 inch orifice. Reverse the SwitchTip to easily clear clogs. Used for residential, commercial or industrial applications. Best Tip on the Market

Longest lasting fan pattern
Highest quality finish with a consistent spray pattern

Easy to Identify Tip Size

Large raised tip size numbers are always legible – even when covered with paint

Superior Tip Design

Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents

$65.25

RAC X LTX TIP, SPRAY, (827)

GG LTX827

RAC X LTX TIP, SPRAY, (827)

Graco LTX827 RAC X SwitchTip, 827

The Reverse-A-Clean (RAC) 827 RAC X SwitchTip produces a 16 to 18 inch fan and has a 0.027 inch orifice. Reverse the SwitchTip to easily clear clogs.

Application: Used for residential, commercial or industrial applications.

Best Tip on the Market
Longest lasting fan pattern
Highest quality finish with a consistent spray pattern
Easy to Identify Tip Size
Large raised tip size numbers are always legible – even when covered with paint
Superior Tip Design
Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents

Model: RAC X
Series: LTX SwitchTip

Compatible Material: Lacquer to Mastic, Latex Paint
For Use With: RAC X HandTite Tip Guard
Maximum Fan Width (cm): 40
Maximum Fan Width (in): 16
Maximum Fan Width (mm): 457
Maximum Flow Rate (GPM): 0.77
Maximum Flow Rate (L/min): 2.91
Maximum Working Pressure (bar): 280
Maximum Working Pressure (kPa): 28000
Maximum Working Pressure (psi): 4050
Minimum Fan Width (in): 16
Minimum Fan Width (mm): 406
Orifice Diameter (in): 0.027
Pattern Size (in): 16 to 18
Pattern Size (mm): 406.4 to 457.2

$65.25

Kit, Lower, 75Cc Assy

GG LW075A

KIT, LOWER,75CC ASSY

Graco LW075A Merkur Wet-Cup Style Stainless Steel Displacement Pump, 75 cc, Chromex coated rod and 3 UHMWPE, 2 PTFE packings

$2,730.00

Kit, Lower, 100Cc Assy

GG LW100A

KIT, LOWER,100CC ASSY

Graco LW100A Merkur Wet-Cup Style Stainless Steel Displacement Pump, 100 cc, Chromex coated rod and 3 UHMWPE, 2 PTFE packings

$2,970.00

Kit, Lower, 125Cc Assy

GG LW125A

KIT, LOWER,125CC ASSY

Graco LW125A Merkur Wet-Cup Style Stainless Steel Displacement Pump, 125 cc, Chromex coated rod and 3 UHMWPE, 2 PTFE packings

$3,420.00

Seat, Hex Oring

GG M0450

Seat, Hex Oring

$350.00

Locknut

GG M0454-2

Locknut

$180.00

Nozzle, Body, Ballnose, .078, XSH

GG M0663001

Nozzle, Body, Ballnose, .078, XSH

$2,250.00

Jacket, Water, Super Short

GG M0663002

Jacket, Water, Super Short

$1,175.00

Needle, Nozzle Pin, 3.78 LG

GG M0663003

Needle, Nozzle Pin, 3.78 LG

$230.00

Cable, Sensor Cable Assembly

GG M24022

Cable, Sensor Cable Assembly

$865.00

Nozzle Grip, L

GG M1051-1

Nozzle Grip, L

$4,240.00

Gasket, 1 Qt. Cup

GG M70424

Gasket, 1 Qt. Cup

$7.65

Check Valve Assembly, Medical, 3/4" Nptf

GG M2-7M

Check Valve Assembly, Medical, 3/4" Nptf

$320.00

Screw, SS, Cup 1/4-28.19

GG M70430

Screw, SS, Cup 1/4-28.19

$4.35

PROMIX PD2K PROPORTIONER, SYS, PD1K, MANUAL, DP

GG MC0502

PROMIX PD2K PROPORTIONER, SYS, PD1K, MANUAL, DP

Graco MC0502 ProMix PD2K Manual Proportioner, Dual Panel, Control Module Only

100% Positive Displacement Technology for accurate mix ratios and consistent performance. Great for short pot life materials, the ProMix PD mixes the material close to the gun so the flush zone is significantly smaller. This allows for faster color changes, less material usage and disposal costs overall.

Up to 80% reduction in flushing waste over the most efficient traditional proportioning systems
Faster color changes and less material to flush mean less waste and less downtime
Stalls under pressure for consistent, on-ratio results (within 1% accuracy)
Field serviceable in less than 20 minutes - no need for costly factory rebuilds like gear pumps

Model: ProMix
Series: PD2K

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Applicator Type: Manual
Component Type: Single Component
Flush Type: Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Material Type: Single Component
Maximum Mix Ratio: 50:1
Maximum Number of Colors: Up to 16
Maximum Working Pressure (bar): 7
Maximum Working Pressure (kPa): 700
Maximum Working Pressure (MPa): 0.7
Maximum Working Pressure (psi): 100
Measuring Type: Meter
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: Up to 4
Number of Color Valves: N/A
Number of Resin Colors: Up to 30
Power Source: Electric
Pressure Type: Low or High Pressure
Proportioner Type: Manual
Proportioning Type: Manual Electronic

$27,630.00

Mbl Lubricator, Gbl

GG MBC2EA

Mbl Lubricator, Gbl

$4,300.00

PROMIX PD2K PROPORTIONER, SYS, DP, MANUAL, LP

GG MC1002

PROMIX PD2K PROPORTIONER, SYS, DP, MANUAL, LP

ProMix PD2K Manual Proportioner, Dual Panel, Low Pressure, 70 cc Resin Pump, 35 cc Catalyst Pump, 2 Solvent Valves 100% Positive Displacement Technology for accurate mix ratios and consistent performance. Great for short pot life materials, the ProMix PD mixes the material close to the gun so the flush zone is significantly smaller. This allows for faster color changes, less material usage and disposal costs overall. Up to 80% reduction in flushing waste over the most efficient traditional proportioning systems Faster color changes and less material to flush mean less waste and less downtime Stalls under pressure for consistent, on-ratio results (within 1% accuracy) Proportion both epoxy and urethane with ONE system Field serviceable in less than 20 minutes - no need for costly factory rebuilds like gear pumps

$61,420.00

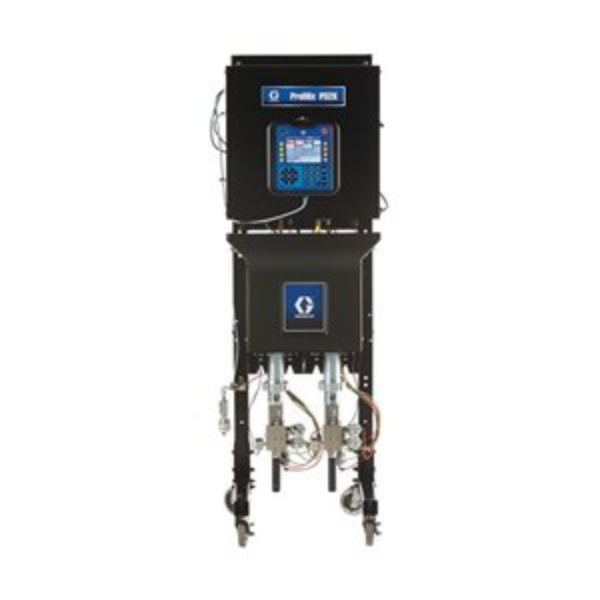

PROMIX PD2K PROPORTIONER, SYSTEM, PD, MANUAL, HP

GG MC2000

PROMIX PD2K PROPORTIONER, SYSTEM, PD, MANUAL, HP

ProMix PD2K Manual Proportioner, Standard, High Pressure, 70 cc Resin Pump, 35 cc Catalyst Pump, 1 Solvent Valve 100% Positive Displacement Technology for accurate mix ratios and consistent performance. Great for short pot life materials, the ProMix PD mixes the material close to the gun so the flush zone is significantly smaller. This allows for faster color changes, less material usage and disposal costs overall. Up to 80% reduction in flushing waste over the most efficient traditional proportioning systems Faster color changes and less material to flush mean less waste and less downtime Stalls under pressure for consistent, on-ratio results (within 1% accuracy) Proportion both epoxy and urethane with ONE system Field serviceable in less than 20 minutes - no need for costly factory rebuilds like gear pumps

$58,880.00

PROMIX 2KS PROPORTIONER, MANUAL SYSTEM

GG MD1001

PROMIX 2KS PROPORTIONER, MANUAL SYSTEM

ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 1 color, 1 catalyst, and 1 Air Flow Switch Easy to use electronic proportioner for a broad range of solventborne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material. Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth. Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing Intrinsically safe fluid panels easily integrate into hazardous areas Accurate ratio assurance for superior finish quality Advanced web interface provides consolidated system management and reporting

$46,580.00

PROMIX 2KS PROPORTIONER MANUAL

GG MD1002

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1002 ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 1 color, 1 catalyst, and 2 Air Flow Switches

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
Intrinsically safe fluid panels easily integrate into hazardous areas
Advanced web interface provides consolidated system management and reporting

Model: ProMix
Series: 2KS

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual
Component Type: Two Component
Fluid Inlet Size (cm): 0.635
Fluid Inlet Size (in): 1/4
Fluid Inlet Size (mm): 6.35
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 1/4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Air/Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Material Type: Two Component
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 3000
Maximum Fluid Viscosity (cP): 3000
Maximum Mix Ratio: 50:1
Maximum Number of Colors: Up to 3
Maximum Working Pressure (bar): 275.8
Maximum Working Pressure (kPa): 27580
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000
Measuring Type: Meter
Meter Type: G3000
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 1
Number of Color Valves: 1 Valve
Number of Colors: 1
Number of Resin Colors: 1
Power Source: Electric
Proportioner Type: Manual
Proportioning Type: Manual Electronic

$48,220.00

PROMIX 2KS PROPORTIONER MANUAL

GG MD1003

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1003 ProMix 2KS Manual Wall Panel System, EasyKey, G3000 A & B Meter, Single Color, Single Catalyst, 1 Air Flow Switch with 1 Gun Flush Box

Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
Intrinsically safe fluid panels easily integrate into hazardous areas
Advanced web interface provides consolidated system management and reporting

Model: ProMix
Series: 2KS

$55,530.00

PROMIX 2KS PROPORTIONER MANUAL

GG MD1004

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1004 ProMix 2KS Manual Wall Panel, EasyKey, G3000 A & B Meter, 1 Color, 1 Catalyst, 2 Air Flow Switches, 2 Gun Flush Boxes

Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
Intrinsically safe fluid panels easily integrate into hazardous areas
Advanced web interface provides consolidated system management and reporting

Model: ProMix
Series: 2KS

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual
Component Type: Two Component
Fluid Inlet Size (cm): 0.635
Fluid Inlet Size (in): 1/4
Fluid Inlet Size (mm): 6.35
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 0.635
Fluid Outlet Size (in): 1/4
Fluid Outlet Size (mm): 6.35
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Air/Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Material Type: Two Component
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 3000
Maximum Fluid Viscosity (cP): 3000
Maximum Mix Ratio: 50:1
Maximum Number of Colors: Up to 3
Maximum Working Pressure (bar): 275.8
Maximum Working Pressure (kPa): 27580
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000
Measuring Type: Meter
Meter Type: G3000
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 1
Number of Color Valves: 1 Valve
Number of Colors: 1
Number of Resin Colors: 1
Power Source: Electric
Proportioner Type: Manual
Proportioning Type: Manual Electronic

$61,010.00

PROMIX 2KS PROPORTIONER, MANUAL

GG MD1101

PROMIX 2KS PROPORTIONER, MANUAL

ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 2 colors LP, 1 catalyst, and 1 Air Flow Switch Easy to use electronic proportioner for a broad range of solventborne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material. Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth. Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing Intrinsically safe fluid panels easily integrate into hazardous areas Accurate ratio assurance for superior finish quality Advanced web interface provides consolidated system management and reporting

$55,920.00

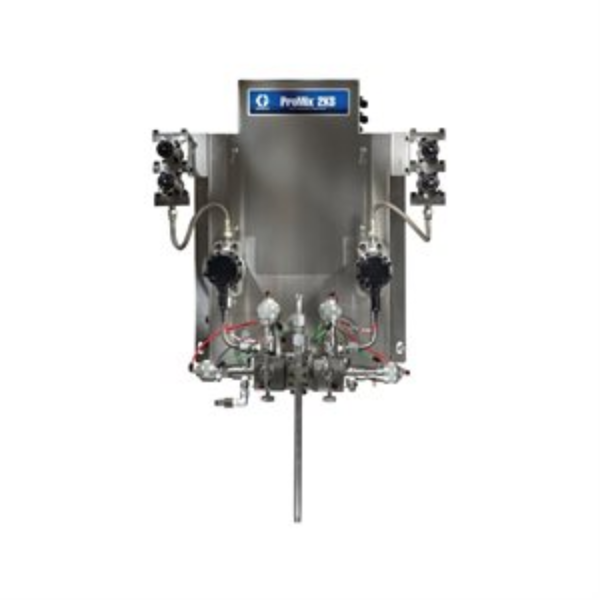

PROMIX 2KS PROPORTIONER MANUAL

GG MD1102

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1102 ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 2 colors LP, 1 catalyst, and 2 Air Flow Switches

Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
Intrinsically safe fluid panels easily integrate into hazardous areas
Advanced web interface provides consolidated system management and reporting

Model: ProMix
Series: 2KS

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual
Component Type: Two Component
Fluid Inlet Size (cm): 0.635
Fluid Inlet Size (in): 1/4
Fluid Inlet Size (mm): 6.35
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 0.635
Fluid Outlet Size (in): 1/4
Fluid Outlet Size (mm): 6.35
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Air/Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Material Type: Two Component
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 3000
Maximum Fluid Viscosity (cP): 3000
Maximum Mix Ratio: 50:1
Maximum Number of Colors: Up to 3
Maximum Working Pressure (bar): 275.8
Maximum Working Pressure (kPa): 27580
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000
Measuring Type: Meter
Meter Type: G3000
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 1
Number of Color Valves: 2 Valves
Number of Colors: 2
Number of Resin Colors: 2
Power Source: Electric
Proportioner Type: Manual
Proportioning Type: Manual Electronic

$56,770.00

PROMIX 2KS PROPORTIONER MANUAL

GG MD1104

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1104 ProMix 2KS Manual Wall Panel, EasyKey, G3000 A & B Meter, 2 Colors LP, 1 Catalyst, 2 Air Flow Switches, 2 Gun Flush Boxes

Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
Intrinsically safe fluid panels easily integrate into hazardous areas
Advanced web interface provides consolidated system management and reporting

Model: ProMix
Series: 2KS

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual
Component Type: Two Component
Fluid Inlet Size (cm): 0.635
Fluid Inlet Size (in): 1/4
Fluid Inlet Size (mm): 6.35
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 1/4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Air/Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Material Type: Two Component
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 3000
Maximum Fluid Viscosity (cP): 3000
Maximum Mix Ratio: 50:1
Maximum Number of Colors: Up to 3
Maximum Working Pressure (bar): 275.8
Maximum Working Pressure (kPa): 27580
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000
Measuring Type: Meter
Meter Type: G3000
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 1
Number of Color Valves: 2 Valves
Number of Colors: 2
Number of Resin Colors: 2
Power Source: Electric
Proportioner Type: Manual
Proportioning Type: Manual Electronic

$69,420.00

PROMIX 2KS PROPORTIONER, MANUAL

GG MD1111

PROMIX 2KS PROPORTIONER, MANUAL

Graco MD1111 ProMix 2KS Manual Wall Panel System, EasyKey with LCD display, G3000 A & B Meter, 2 colors LP, 2 catalysts LP, and 1 Air Flow Switch

Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
Intrinsically safe fluid panels easily integrate into hazardous areas
Advanced web interface provides consolidated system management and reporting

Model: ProMix
Series: 2KS

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual
Component Type: Two Component
Fluid Inlet Size (cm): 0.635
Fluid Inlet Size (in): 1/4
Fluid Inlet Size (mm): 6.35
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 1/4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Air/Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Material Type: Two Component
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 3000
Maximum Fluid Viscosity (cP): 3000
Maximum Mix Ratio: 50:1
Maximum Number of Colors: Up to 3
Maximum Working Pressure (bar): 275.8
Maximum Working Pressure (kPa): 27580
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000
Measuring Type: Meter
Meter Type: G3000
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 2
Number of Color Valves: 2 Valves
Number of Colors: 2
Number of Resin Colors: 2
Power Source: Electric
Proportioner Type: Manual
Proportioning Type: Manual Electronic

$66,370.00

PROMIX 2KS PROPORTIONER, MANUAL

GG MD1113

PROMIX 2KS PROPORTIONER, MANUAL

ProMix 2KS Manual Wall Panel System, EasyKey, G3000 A & B Meter, 2 Colors LP, 2 Catalysts LP, 1 Air Flow Switch with 1 Gun Flush Box Easy to use electronic proportioner for a broad range of solventborne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material. Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth. Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing Intrinsically safe fluid panels easily integrate into hazardous areas Accurate ratio assurance for superior finish quality Advanced web interface provides consolidated system management and reporting

$74,670.00

PROMIX 2KS PROPORTIONER MANUAL

GG MD1114

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1114 ProMix 2KS Manual Wall Panel, EasyKey, G3000 A & B Meter, 2 Colors LP, 2 Catalysts LP, 2 Air Flow Switches, 2 Gun Flush Boxes

Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
Intrinsically safe fluid panels easily integrate into hazardous areas
Advanced web interface provides consolidated system management and reporting

Model: ProMix
Series: 2KS

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual
Component Type: Two Component
Fluid Inlet Size (cm): 0.635
Fluid Inlet Size (in): 1/4
Fluid Inlet Size (mm): 6.35
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 1/4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Air/Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Material Type: Two Component
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 3000
Maximum Fluid Viscosity (cP): 3000
Maximum Mix Ratio: 50:1
Maximum Number of Colors: Up to 3
Maximum Working Pressure (bar): 275.8
Maximum Working Pressure (kPa): 27580
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000
Measuring Type: Meter
Meter Type: G3000
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 2
Number of Color Valves: 2 Valves
Number of Colors: 2
Number of Resin Colors: 2
Power Source: Electric
Proportioner Type: Manual
Proportioning Type: Manual Electronic

$81,790.00

PROMIX 2KS PROPORTIONER, MANUAL

GG MD1201

PROMIX 2KS PROPORTIONER, MANUAL

Graco MD1201 ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 4 colors LP, 1 catalyst, and 1 Air Flow Switch

Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
Intrinsically safe fluid panels easily integrate into hazardous areas
Advanced web interface provides consolidated system management and reporting

Model: ProMix
Series: 2KS

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual
Component Type: Two Component
Fluid Inlet Size (cm): 0.635
Fluid Inlet Size (in): 1/4
Fluid Inlet Size (mm): 6.35
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 1/4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Air/Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Material Type: Two Component
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 3000
Maximum Fluid Viscosity (cP): 3000
Maximum Mix Ratio: 50:1
Maximum Number of Colors: Up to 12
Maximum Working Pressure (bar): 275.8
Maximum Working Pressure (kPa): 27580
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000
Measuring Type: Meter
Meter Type: G3000
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 1
Number of Color Valves: 4 Valves
Number of Colors: 4
Number of Resin Colors: 4
Power Source: Electric
Proportioner Type: Manual
Proportioning Type: Manual Electronic

$61,020.00

PROMIX 2KS PROPORTIONER, MANUAL

GG MD1203

PROMIX 2KS PROPORTIONER, MANUAL

Graco MD1203 ProMix 2KS Manual Wall Panel System, EasyKey, G3000 A & B Meter, 4 Colors LP, Single Catalyst, 1 Air Flow Switch with 1 Gun Flush Box

Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
Intrinsically safe fluid panels easily integrate into hazardous areas
Advanced web interface provides consolidated system management and reporting

Model: ProMix
Series: 2KS

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual
Component Type: Two Component
Fluid Inlet Size (cm): 0.635
Fluid Inlet Size (in): 1/4
Fluid Inlet Size (mm): 6.35
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 1/4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Air/Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Material Type: Two Component
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 3000
Maximum Fluid Viscosity (cP): 3000
Maximum Mix Ratio: 50:1
Maximum Number of Colors: Up to 12
Maximum Working Pressure (bar): 275.8
Maximum Working Pressure (kPa): 27580
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000
Measuring Type: Meter
Meter Type: G3000
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 1
Number of Color Valves: 4 Valves
Number of Colors: 4
Number of Resin Colors: 4
Power Source: Electric
Proportioner Type: Manual
Proportioning Type: Manual Electronic

$68,930.00

PROMIX 2KS PROPORTIONER, MANUAL

GG MD1204

PROMIX 2KS PROPORTIONER, MANUAL

Graco MD1204 ProMix 2KS Manual Wall Panel, EasyKey, G3000 A & B Meter, 4 Colors LP, 1 Catalyst, 2 Air Flow Switches, 2 Gun Flush Boxes

Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
Intrinsically safe fluid panels easily integrate into hazardous areas
Advanced web interface provides consolidated system management and reporting

Model: ProMix
Series: 2KS

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual
Component Type: Two Component
Fluid Inlet Size (cm): 0.635
Fluid Inlet Size (in): 1/4
Fluid Inlet Size (mm): 6.35
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 1/4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Air/Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Material Type: Two Component
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 3000
Maximum Fluid Viscosity (cP): 3000
Maximum Mix Ratio: 50:1
Maximum Number of Colors: Up to 12
Maximum Working Pressure (bar): 275.8
Maximum Working Pressure (kPa): 27580
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000
Measuring Type: Meter
Meter Type: G3000
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 1
Number of Color Valves: 4 Valves
Number of Colors: 4
Number of Resin Colors: 4
Power Source: Electric
Proportioner Type: Manual
Proportioning Type: Manual Electronic

$75,670.00

PROMIX 2KS PROPORTIONER MANUAL

GG MD1212

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1212 ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 4 colors LP, 2 catalysts LP, and 2 Air Flow Switches

Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
Intrinsically safe fluid panels easily integrate into hazardous areas
Advanced web interface provides consolidated system management and reporting

Model: ProMix
Series: 2KS

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual
Component Type: Two Component
Fluid Inlet Size (cm): 0.635
Fluid Inlet Size (in): 1/4
Fluid Inlet Size (mm): 6.35
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 0.635
Fluid Outlet Size (in): 1/4
Fluid Outlet Size (mm): 6.35
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Air/Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Material Type: Two Component
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 3000
Maximum Fluid Viscosity (cP): 3000
Maximum Mix Ratio: 50:1
Maximum Number of Colors: Up to 12
Maximum Working Pressure (bar): 275.8
Maximum Working Pressure (kPa): 27580
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000
Measuring Type: Meter
Meter Type: G3000
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 2
Number of Color Valves: 4 Valves
Number of Colors: 4
Number of Resin Colors: 4
Power Source: Electric
Proportioner Type: Manual
Proportioning Type: Manual Electronic

$73,280.00

PROMIX 2KS PROPORTIONER MANUAL

GG MD1504

PROMIX 2KS PROPORTIONER MANUAL

ProMix 2KS Manual Wall Panel, EasyKey, G3000 A & B Meter, 2 Colors HP, 1 Catalyst, 2 Air Flow Switches, 2 Gun Flush Boxes Easy to use electronic proportioner for a broad range of solventborne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material. Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth. Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing Intrinsically safe fluid panels easily integrate into hazardous areas Accurate ratio assurance for superior finish quality Advanced web interface provides consolidated system management and reporting

$72,550.00

PROMIX 2KS PROPORTIONER MANUAL

GG MD1214

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1214 ProMix 2KS Manual Wall Panel, EasyKey, G3000 A & B Meter, 4 Colors LP, 2 Catalysts LP, 2 Air Flow Switches, 2 Gun Flush Boxes

Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
Intrinsically safe fluid panels easily integrate into hazardous areas
Advanced web interface provides consolidated system management and reporting

Model: ProMix
Series: 2KS

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual
Component Type: Two Component
Fluid Inlet Size (cm): 0.635
Fluid Inlet Size (in): 1/4
Fluid Inlet Size (mm): 6.35
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 1/4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Air/Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Material Type: Two Component
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 3000
Maximum Fluid Viscosity (cP): 3000
Maximum Mix Ratio: 50:1
Maximum Number of Colors: Up to 12
Maximum Working Pressure (bar): 275.8
Maximum Working Pressure (kPa): 27580
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000
Measuring Type: Meter
Meter Type: G3000
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 2
Number of Color Valves: 4 Valves
Number of Colors: 4
Number of Resin Colors: 4
Power Source: Electric
Proportioner Type: Manual
Proportioning Type: Manual Electronic

$83,300.00

PROMIX 2KS PROPORTIONER, MANUAL

GG MD1633

PROMIX 2KS PROPORTIONER, MANUAL

Graco MD1633 ProMix 2KS Manual Wall Panel System, EasyKey, G3000 A & B Meter, 4 Colors HP, 2 Catalysts HP, 1 Air Flow Switch with 1 Gun Flush Box

Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
Intrinsically safe fluid panels easily integrate into hazardous areas
Advanced web interface provides consolidated system management and reporting

Model: ProMix
Series: 2KS

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual
Component Type: Two Component
Fluid Inlet Size (cm): 0.635
Fluid Inlet Size (in): 1/4
Fluid Inlet Size (mm): 6.35
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 1/4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Air/Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Material Type: Two Component
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 3000
Maximum Fluid Viscosity (cP): 3000
Maximum Mix Ratio: 50:1
Maximum Number of Colors: Up to 12
Maximum Working Pressure (bar): 275.8
Maximum Working Pressure (kPa): 27580
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000
Measuring Type: Meter
Meter Type: G3000
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 2
Number of Color Valves: 4 Valves
Number of Colors: 4
Number of Resin Colors: 4
Power Source: Electric
Proportioner Type: Manual
Proportioning Type: Manual Electronic

$78,720.00

PROMIX 2KS PROPORTIONER MANUAL SYSTEM

GG MD1424

PROMIX 2KS PROPORTIONER MANUAL SYSTEM

Graco MD1424 ProMix 2KS Manual Wall Panel, EasyKey, G3000 A & B Meter, 12 Colors LP, 4 Catalysts LP, 2 Air Flow Switches, 2 Gun Flush Boxes

Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
Intrinsically safe fluid panels easily integrate into hazardous areas
Advanced web interface provides consolidated system management and reporting

Model: ProMix
Series: 2KS

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual
Component Type: Two Component
Fluid Inlet Size (cm): 0.635
Fluid Inlet Size (in): 1/4
Fluid Inlet Size (mm): 6.35
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 1/4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Air/Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Material Type: Two Component
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 3000
Maximum Fluid Viscosity (cP): 3000
Maximum Mix Ratio: 50:1
Maximum Number of Colors: Up to 12
Maximum Working Pressure (bar): 275.8
Maximum Working Pressure (kPa): 27580
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000
Measuring Type: Meter
Meter Type: G3000
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 4
Number of Color Valves: 12 Valves
Number of Colors: 12
Number of Resin Colors: 12
Power Source: Electric
Proportioner Type: Manual
Proportioning Type: Manual Electronic

$109,860.00

PROMIX 2KS PROPORTIONER MANUAL SYSTEM

GG ME1001

PROMIX 2KS PROPORTIONER MANUAL SYSTEM

Graco ME1001 ProMix 2KS Manual System for Acid Cat with G3000A Meter, 1 Airflow Switch, EasyKey Smart Control and Display

The ProMix 2KS meter-based dosing system for acid catalyzed materials can track the performance of one or two painters and manage a wide range of mix ratios. It’s also easy to set up and manage without touchy adjustments to fluid pressure.

The G3000A meter accurately measures fluid and withstands strong acid due to durable, high grade, stainless steel components, including gears with ceramic bearings.
Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
Intrinsically safe fluid panels easily integrate into hazardous areas
Advanced web interface provides consolidated system management and reporting

Model: ProMix
Series: 2KS

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual
Component Type: Two Component
Fluid Inlet Size (cm): 0.635
Fluid Inlet Size (in): 1/4
Fluid Inlet Size (mm): 6.35
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 1/4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Air/Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Material Type: Two Component
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 3000
Maximum Fluid Viscosity (cP): 3000
Maximum Mix Ratio: 50:1
Maximum Number of Colors: Up to 3
Maximum Working Pressure (bar): 275.8
Maximum Working Pressure (kPa): 27580
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000
Measuring Type: Meter
Meter Type: G3000
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 1
Number of Color Valves: No Valves
Number of Colors: 1
Number of Resin Colors: 0
Power Source: Electric
Proportioner Type: Manual
Proportioning Type: Manual Electronic

$52,950.00

PROMIX 2KS PROPORTIONER MANUAL

GG ME1004

PROMIX 2KS PROPORTIONER MANUAL

Graco ME1004 ProMix 2KS Manual System for Acid Cat with G3000A Meter, 2 Gun Flush Boxes, EasyKey Smart Control and Display

The G3000A meter accurately measures fluid and withstands strong acid due to durable, high grade, stainless steel components, including gears with ceramic bearings.
Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
Intrinsically safe fluid panels easily integrate into hazardous areas
Advanced web interface provides consolidated system management and reporting

Model: ProMix
Series: 2KS

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual
Component Type: Two Component
Fluid Inlet Size (cm): 0.635
Fluid Inlet Size (in): 1/4
Fluid Inlet Size (mm): 6.35
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 1/4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Air/Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Material Type: Two Component
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 3000
Maximum Fluid Viscosity (cP): 3000
Maximum Mix Ratio: 50:1
Maximum Number of Colors: Up to 3
Maximum Working Pressure (bar): 275.8
Maximum Working Pressure (kPa): 27580
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000
Measuring Type: Meter
Meter Type: G3000
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 1
Number of Color Valves: No Valves
Number of Colors: 1
Number of Resin Colors: 0
Power Source: Electric
Proportioner Type: Manual
Proportioning Type: Manual Electronic

$72,780.00

Seat Valve Rebuild Kit

GG MK30077

Seat Valve Rebuild Kit

$280.00

Proximity Switch

GG MS4086

Proximity Switch

$5,190.00

PROMIX 2KS PROPORTIONER, MANUAL

GG MD1501

PROMIX 2KS PROPORTIONER, MANUAL

Graco MD1501 ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 2 colors HP, 1 catalyst, and 1 Air Flow Switch

Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
Intrinsically safe fluid panels easily integrate into hazardous areas
Advanced web interface provides consolidated system management and reporting

Model: ProMix
Series: 2KS

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual
Component Type: Two Component
Fluid Inlet Size (cm): 0.635
Fluid Inlet Size (in): 1/4
Fluid Inlet Size (mm): 6.35
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 1/4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Air/Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Material Type: Two Component
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 3000
Maximum Fluid Viscosity (cP): 3000
Maximum Mix Ratio: 50:1
Maximum Number of Colors: Up to 3
Maximum Working Pressure (bar): 275.8
Maximum Working Pressure (kPa): 27580
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000
Measuring Type: Meter
Meter Type: G3000
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 1
Number of Color Valves: 2 Valves
Number of Colors: 2
Number of Resin Colors: 2
Power Source: Electric
Proportioner Type: Manual
Proportioning Type: Manual Electronic

$61,160.00

PROMIX 2KS PROPORTIONER MANUAL

GG MD1631

PROMIX 2KS PROPORTIONER MANUAL

ProMix 2KS Manual Wall Panel System, EasyKey with LCD display, G3000 A & B Meter, 4 colors HP, 2 catalysts HP, and 1 Air Flow Switch Easy to use electronic proportioner for a broad range of solventborne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material. Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth. Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing Intrinsically safe fluid panels easily integrate into hazardous areas Accurate ratio assurance for superior finish quality Advanced web interface provides consolidated system management and reporting

$71,380.00

Motor, Air, 6500, Low Noise Std

GG N65LN0

Motor, Air, 6500, Low Noise Std

$8,730.00

Motor, 6500, Low-Noise, Remote

GG N65LR0

Motor, 6500, Low-Noise, Remote

$9,030.00

Kit Nozzle

GG NK-32-125

KIT,NOZZLE,6ST,125,WC,SB

Graco NK-32-125 Advanjet Nozzle Kit with 125 small ball carbide 6 mm nozzle

Compatible Material: Waterborne, Solventborne

$750.00

Kit Nozzle

GG NK-32-200

KIT,NOZZLE,6ST,200,WC,SB

Graco NK-32-200 Advanjet Nozzle Kit with 200 small ball carbide 6 mm nozzle

$750.00

Kit, O-Ring, Plt, Sil, 10/Pk

GG NP09-2820

Kit, O-Ring, Plt, Sil, 10/Pk

$75.00

PROMIX 2KS PROPORTIONER MANUAL

GG MD1422

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1422 ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 12 colors LP, 4 catalysts LP, and 2 Air Flow Switches

Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
Intrinsically safe fluid panels easily integrate into hazardous areas
Advanced web interface provides consolidated system management and reporting

Model: ProMix
Series: 2KS

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual
Component Type: Two Component
Fluid Inlet Size (cm): 0.635
Fluid Inlet Size (in): 1/4
Fluid Inlet Size (mm): 6.35
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 0.635
Fluid Outlet Size (in): 1/4
Fluid Outlet Size (mm): 6.35
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Air/Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Material Type: Two Component
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 3000
Maximum Fluid Viscosity (cP): 3000
Maximum Mix Ratio: 50:1
Maximum Number of Colors: Up to 12
Maximum Working Pressure (bar): 275.8
Maximum Working Pressure (kPa): 27580
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000
Measuring Type: Meter
Meter Type: G3000
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 4
Number of Color Valves: 12 Valves
Number of Colors: 12
Number of Resin Colors: 12
Power Source: Electric
Proportioner Type: Manual
Proportioning Type: Manual Electronic

$95,630.00

PROMIX 2KS PROPORTIONER MANUAL

GG MD1304

PROMIX 2KS PROPORTIONER MANUAL

ProMix 2KS Manual Wall Panel, EasyKey, G3000 A & B Meter, 7 Colors LP, 1 Catalyst, 2 Air Flow Switches, 2 Gun Flush Boxes Easy to use electronic proportioner for a broad range of solventborne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material. Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth. Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing Intrinsically safe fluid panels easily integrate into hazardous areas Accurate ratio assurance for superior finish quality Advanced web interface provides consolidated system management and reporting

$82,430.00

PROMIX 2KS PROPORTIONER MANUAL

GG MD1403

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1403 ProMix 2KS Manual Wall Panel System, EasyKey, G3000 A & B Meter, 12 Colors LP, Single Catalyst, 1 Air Flow Switch with 1 Gun Flush Box

Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
Intrinsically safe fluid panels easily integrate into hazardous areas
Advanced web interface provides consolidated system management and reporting

Model: ProMix
Series: 2KS

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual
Component Type: Two Component
Fluid Inlet Size (cm): 0.635
Fluid Inlet Size (in): 1/4
Fluid Inlet Size (mm): 6.35
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 1/4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Air/Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Material Type: Two Component
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 3000
Maximum Fluid Viscosity (cP): 3000
Maximum Mix Ratio: 50:1
Maximum Number of Colors: Up to 12
Maximum Working Pressure (bar): 275.8
Maximum Working Pressure (kPa): 27580
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000
Measuring Type: Meter
Meter Type: G3000
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 1
Number of Color Valves: 12 Valves
Number of Colors: 12
Number of Resin Colors: 12
Power Source: Electric
Proportioner Type: Manual
Proportioning Type: Manual Electronic

$89,440.00

Kit, O-Ring, Ins, Sil, 10/Pk

GG NP09-2830

Kit, O-Ring, Ins, Sil, 10/Pk

$75.00

MINI METER-FLO PUMP

GG MM1112

MINI METER-FLO PUMP

$3,340.00

Kit, Nozzzle Plate 32, 125, AA

GG NPK-32-125-AA

KIT,NOZPLT,32,125,AA

Graco NPK-32-125-AA Advanjet Nozzle Plate Kit with 125 small ball carbide 6mm nozzle with flat 1/16in barb top plate and flat countersink bottom plate

$1,260.00

CHECK-MATE PUMP, 61:1 1800/060 CS SD

GG P61LCS

CHECK-MATE PUMP, 61:1 1800/060 CS SD

Graco P61LCS 61:1 - 60cc Check-Mate Pump with NXT 1800 Air Motor, Severe Duty Carbon Steel Construction

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.

Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer

NXT 1800 Air Motor
Low Noise
Modular design for easier maintenance
Highest technology air motor on the market
60cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
Standard Threaded Coupler -
Replaceable Seat
Minimizes service costs
Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
  - Replaceable Outlet Fitting
    - Piston Valve with Floating Piston Seal
      - Replaceable Seat
        Minimizes service costs
        Floating Priming Plate
        Provides uniform flow
        Cast Outlet and Inlet Housing
        Improves structural integrity
        NEW Cartridge Throat Packings
        Allows for easy servicing without removing from ram
        Modular Air Valve
        De-icing controls
        Up to 50% quieter than previous models
        Modular air valve - eliminates stalling, easy-to-repair
        Hard Part Coatings
        Standard Severe Duty™ coating on rods and cylinder maximizes wear life

        Model: Check-Mate
        Ambient/Warm Melt/Hot Melt: Ambient
        Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
        Fluid Outlet Size (in): 3/4
        Fluid Outlet Thread Gender: Male
        Fluid Outlet Thread Type: NPT
        Includes: Motor, Displacement Pump, Washer Lock (6), Screw
        Material: Carbon Steel
        Maximum Working Pressure (bar): 421
        Maximum Working Pressure (kPa): 42100
        Maximum Working Pressure (MPa): 42.1
        Maximum Working Pressure (psi): 6100
        Power Type: Pneumatic
        Pump Ratio: 61:1

$8,510.00

CHECK-MATE PUMP, 63:1 3400/100 CS SD

GG P63LCS

CHECK-MATE PUMP, 63:1 3400/100 CS SD

Graco P63LCS 63:1 - 100cc Check-Mate Pump with NXT 3400 Air Motor, Severe Duty Carbon Steel Construction

Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer

NXT 3400 Air Motor
Low Noise
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
100cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
Xtreme Coupler - No tool connection
Quick-disconnect coupler for easy maintenance
Replaceable Seat
Minimizes service costs
Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
  - Replaceable Outlet Fitting
    - Piston Valve with Floating Piston Seal
      - Replaceable Seat
        Minimizes service costs
        Floating Priming Plate
        Provides uniform flow
        Cast Outlet and Inlet Housing
        Improves structural integrity
        NEW Cartridge Throat Packings
        Allows for easy servicing without removing from ram
        Modular Air Valve
        De-icing controls
        Up to 50% quieter than previous models
        Modular air valve - eliminates stalling, easy-to-repair
        Hard Part Coatings
        Standard Severe Duty™ coating on rods and cylinder maximizes wear life

        Model: Check-Mate
        Ambient/Warm Melt/Hot Melt: Ambient
        Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
        Fluid Outlet Size (in): 3/4
        Fluid Outlet Thread Gender: Male
        Fluid Outlet Thread Type: NPT
        Includes: Motor, Displacement Pump
        Material: Carbon Steel
        Maximum Working Pressure (bar): 441
        Maximum Working Pressure (kPa): 44100
        Maximum Working Pressure (MPa): 44.1
        Maximum Working Pressure (psi): 6300
        Power Type: Pneumatic
        Pump Ratio: 63:1

$12,850.00

CHECK-MATE PUMP, 68:1 6500/200 CS SD

GG P68LCS

CHECK-MATE PUMP, 68:1 6500/200 CS SD

Graco P68LCS 68:1 - 200cc Check-Mate Pump with NXT 6500 Air Motor, Severe Duty Carbon Steel Construction

Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer

NXT 6500 Air Motor
Low Noise
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
200cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
Xtreme Coupler - No tool connection
Quick-disconnect coupler for easy maintenance
Replaceable Seat
Minimizes service costs
Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
  - Replaceable Outlet Fitting
    - Piston Valve with Floating Piston Seal
      - Replaceable Seat
        Minimizes service costs
        Floating Priming Plate
        Provides uniform flow
        Cast Outlet and Inlet Housing
        Improves structural integrity
        NEW Cartridge Throat Packings
        Allows for easy servicing without removing from ram
        Modular Air Valve
        De-icing controls
        Up to 50% quieter than previous models
        Modular air valve - eliminates stalling, easy-to-repair
        Hard Part Coatings
        Standard Severe Duty™ coating on rods and cylinder maximizes wear life

        Model: Check-Mate
        Ambient/Warm Melt/Hot Melt: Ambient
        Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
        Fluid Outlet Size (in): 1
        Fluid Outlet Size (mm): 25.4000
        Fluid Outlet Thread Gender: Female
        Fluid Outlet Thread Type: NPT
        Includes: Motor, Displacement Pump, Rod Tie, Adaptor Rod, Coupling Assembly, Cover Coupler, Clip Hairpin With Lanyard
        Material: Carbon Steel
        Maximum Working Pressure (bar): 434
        Maximum Working Pressure (kPa): 43400
        Maximum Working Pressure (MPa): 43.4
        Maximum Working Pressure (psi): 6200
        Power Type: Pneumatic
        Pump Ratio: 68:1

$16,380.00

CHECK-MATE PUMP, 68:1 6500/200 SS SD

GG P68LSS

CHECK-MATE PUMP, 68:1 6500/200 SS SD

Graco P68LSS 68:1 - 200cc Check-Mate Pump with NXT 6500 Air Motor, Severe Duty Stainless Steel Construction

Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer

NXT 6500 Air Motor
Low Noise
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
200cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
Xtreme Coupler - No tool connection
Quick-disconnect coupler for easy maintenance
Replaceable Seat
Minimizes service costs
Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
  - Replaceable Outlet Fitting
    - Piston Valve with Floating Piston Seal
      - Replaceable Seat
        Minimizes service costs
        Floating Priming Plate
        Provides uniform flow
        Cast Outlet and Inlet Housing
        Improves structural integrity
        NEW Cartridge Throat Packings
        Allows for easy servicing without removing from ram
        Modular Air Valve
        De-icing controls
        Up to 50% quieter than previous models
        Modular air valve - eliminates stalling, easy-to-repair
        Hard Part Coatings
        Standard Severe Duty™ coating on rods and cylinder maximizes wear life

        Model: Check-Mate
        Ambient/Warm Melt/Hot Melt: Ambient
        Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
        Fluid Outlet Size (in): 1
        Fluid Outlet Size (mm): 25.4000
        Fluid Outlet Thread Gender: Female
        Fluid Outlet Thread Type: NPT
        Includes: Motor, Displacement Pump, Rod Tie, Adaptor Rod, Coupling Assembly, Cover Coupler, Clip Hairpin With Lanyard
        Material: Stainless Steel
        Maximum Working Pressure (bar): 434
        Maximum Working Pressure (kPa): 43400
        Maximum Working Pressure (MPa): 43.4
        Maximum Working Pressure (psi): 6200
        Power Type: Pneumatic
        Pump Ratio: 68:1

$25,540.00

KIT, PC CHAMBER, RND, 000

GG PC20RD

KIT, PC CHAMBER, RND, 000

Fusion ProConnect Round 000 Mix Chamber with 0.020 in (0.51 mm) Orifice Size The Fusion ProConnect Round 000 Mix Chamber is designed for sprayers that prefer a round spray pattern. All Fusion PC Mix Chambers are protected by an ultra-durable Chromex coating and have been engineered to smoothly slide into position without damaging the side seals. In addition, these mix chambers incorporate an alignment groove specifically designed to ensure proper assembly. Designed for durability and smooth assembly Ultra durable Chromex coating Ramp design for quick assembly and proper sealing Alignment groove ensures proper assembly Available in a variety of sizes and spray patterns

$295.00

KIT, PC CHAMBER, FL, 00

GG PC29FL

KIT, PC CHAMBER, FL, 00

Graco PC29FL Fusion ProConnect Flat 00 Mix Chamber with 0.029 in (0.74 mm) Orifice Size

The Fusion ProConnect Flat 00 Mix Chamber is designed for sprayers that prefer a flat spray pattern. All Fusion PC Mix Chambers are protected by an ultra-durable Chromex coating and have been engineered to smoothly slide into position without damaging the side seals. In addition, these mix chambers incorporate an alignment groove specifically designed to ensure proper assembly.

Application: Designed for durability and smooth assembly

Ultra durable Chromex coating
Ramp design for quick assembly and proper sealing
Alignment groove ensures proper assembly

Model: Fusion PC

Mix Chamber: 00 (.029)

$295.00

Kit, PC Chamber, Rnd, 00

GG PC29RD

Kit, PC Chamber, Rnd, 00

Graco PC29RD Fusion ProConnect Round 00 Mix Chamber with 0.029 in (0.74 mm) Orifice Size

The Fusion ProConnect Round 00 Mix Chamber is designed for sprayers that prefer a round spray pattern. All Fusion PC Mix Chambers are protected by an ultra-durable Chromex coating and have been engineered to smoothly slide into position without damaging the side seals. In addition, these mix chambers incorporate an alignment groove specifically designed to ensure proper assembly.

Application: Designed for durability and smooth assembly

Ultra durable Chromex coating
Ramp design for quick assembly and proper sealing
Alignment groove ensures proper assembly

Model: Fusion PC

Mix Chamber: 00 (.029)

$295.00

KIT, PC CHAMBER, FL, 01

GG PC42FL

KIT, PC CHAMBER, FL, 01

Fusion ProConnect Flat 01 Mix Chamber with 0.042 in (1.1 mm) Orifice Size The Fusion ProConnect Flat 01 Mix Chamber is designed for sprayers that prefer a flat spray pattern. All Fusion PC Mix Chambers are protected by an ultra-durable Chromex coating and have been engineered to smoothly slide into position without damaging the side seals. In addition, these mix chambers incorporate an alignment groove specifically designed to ensure proper assembly. Designed for durability and smooth assembly Ultra durable Chromex coating Ramp design for quick assembly and proper sealing Alignment groove ensures proper assembly Available in a variety of sizes and spray patterns

$295.00

KIT, PC CHAMBER, RND, 02

GG PC52RD

KIT, PC CHAMBER, RND, 02

Fusion ProConnect Round 02 Mix Chamber with 0.052 in (1.3 mm) Orifice Size The Fusion ProConnect Round 02 Mix Chamber is designed for sprayers that prefer a round spray pattern. All Fusion PC Mix Chambers are protected by an ultra-durable Chromex coating and have been engineered to smoothly slide into position without damaging the side seals. In addition, these mix chambers incorporate an alignment groove specifically designed to ensure proper assembly. Designed for durability and smooth assembly Ultra durable Chromex coating Ramp design for quick assembly and proper sealing Alignment groove ensures proper assembly Available in a variety of sizes and spray patterns

$295.00

KIT, PC CHAMBER, RND, 03

GG PC60RD

KIT, PC CHAMBER, RND, 03

Fusion ProConnect Round 03 Mix Chamber with 0.060 in (1.5 mm) Orifice Size The Fusion ProConnect Round 03 Mix Chamber is designed for sprayers that prefer a round spray pattern. All Fusion PC Mix Chambers are protected by an ultra-durable Chromex coating and have been engineered to smoothly slide into position without damaging the side seals. In addition, these mix chambers incorporate an alignment groove specifically designed to ensure proper assembly. Designed for durability and smooth assembly Ultra durable Chromex coating Ramp design for quick assembly and proper sealing Alignment groove ensures proper assembly Available in a variety of sizes and spray patterns

$295.00

PCF SYSTEM, 016, CART, HR METER, IO

GG PF2300

PCF SYSTEM, 016, CART, HR METER, IO

16 Styles 100-240 VAC Precision Flow System with Cartridge Regulator, High Resolution Meter and Discrete User Interface

Reduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds – providing your operation with a highly precise, continuous dispense.

Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.

The next generation of precision metering

Closed-loop "real-time" control ensures a precise, continuous dispense – improves part quality and reduces material waste
Intuitive user interface simplifies setup, reduces training time
Integrated USB interface for easy data downloads - allows for further analysis of process data
Multiple gun capabilities for additional productivity - lets you program up to four guns
Compact modular design - easy to install, integrate and maintain
Low cost of ownership - fewer wear parts compared to shot meters

$35,260.00

PCF SYSTEM, 016, CART, HR METER, EP

GG PF2320

PCF SYSTEM, 016, CART, HR METER, EP

Graco PF2320 16 Styles 100-240 VAC Precision Flow System with Cartridge Regulator, High Resolution Meter and EtherNet/IP User Interface

Application: Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.

The next generation of precision metering
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Air Outlet Size (in): 5/32
Ambient/Warm Melt/Hot Melt: Ambient
Amperage (A): 1.4
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
Applicator Type: Automatic
Compatible Material: Sealants, Adhesives
Component Type: Single Component
Flow Control Type: Regulation, Control
Fluid Inlet Size (in): 3/4
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 17256.6929133858
Fluid Outlet Size (in): 1/2
Fluid Outlet Size (mm): 1725.6692913386
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Frequency (Hz): 50/60
Gateway: EtherNet/IP User Interface
Gun Activation: Automatic
Includes: Regulator, Flow Meter, FCM Key Token
Maximum Air Inlet Pressure (bar): 8.27
Maximum Air Inlet Pressure (kPa): 827
Maximum Air Inlet Pressure (MPa): 0.83
Maximum Air Inlet Pressure (psi): 120
Maximum Ambient Temperature (°C): 49
Maximum Ambient Temperature (°F): 120
Maximum Flow Rate (cc/min): 7500
Maximum Flow Rate (GPM): 1.98
Maximum Flow Rate (L/min): 7.5
Maximum Fluid Temperature (°C): 49
Maximum Fluid Temperature (°F): 120
Maximum Fluid Viscosity (cP): 1000000
Maximum Fluid Temperature (°C): 49
Maximum Fluid Temperature (°F): 120
Maximum Fluid Viscosity (cP): 1000000
Maximum Fluid Working Pressure (bar): 414
Maximum Fluid Working Pressure (MPa): 41
Maximum Fluid Working Pressur

$34,840.00

PCF SYSTEM, 016, MAST, HR METER, EP

GG PF2420

PCF SYSTEM, 016, MAST, HR METER, EP

Graco PF2420 16 Styles 100-240 VAC Precision Flow System with Mastic Regulator, High Resolution Meter and EtherNet/IP User Interface

Application: Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.

The next generation of precision metering
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Air Outlet Size (in): 5/32
Ambient/Warm Melt/Hot Melt: Ambient
Amperage (A): 1.4
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
Applicator Type: Automatic
Compatible Material: Sealants, Adhesives
Component Type: Single Component
Flow Control Type: Regulation, Control
Fluid Inlet Size (in): 3/4
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 17281.1023622047
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 1728.1102362205
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Frequency (Hz): 50/60
Gateway: EtherNet/IP User Interface
Gun Activation: Automatic
Includes: Regulator, Flow Meter, FCM Key Token
Maximum Air Inlet Pressure (bar): 8.27
Maximum Air Inlet Pressure (kPa): 827
Maximum Air Inlet Pressure (MPa): 0.83
Maximum Air Inlet Pressure (psi): 120
Maximum Ambient Temperature (°C): 49
Maximum Ambient Temperature (°F): 120
Maximum Flow Rate (cc/min): 7500
Maximum Flow Rate (GPM): 1.98
Maximum Flow Rate (L/min): 7.5
Maximum Fluid Temperature (°C): 49
Maximum Fluid Temperature (°F): 120
Maximum Fluid Viscosity (cP): 1000000
Maximum Fluid Temperature (°C): 49
Maximum Fluid Temperature (°F): 120
Maximum Fluid Viscosity (cP): 1000000
Maximum Fluid Working Pressure (bar): 345
Maximum Fluid Working Pressure (MPa): 35
Maximum Fluid Working Pressure (

$39,480.00

PCF SYSTEM, 016, CART, HR METER, PN

GG PF2340

PCF SYSTEM, 016, CART, HR METER, PN

Graco PF2340 16 Styles 100-240 VAC Precision Flow System with Cartridge Regulator, High Resolution Meter and PROFINET User Interface

Application: Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.

The next generation of precision metering
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Air Outlet Size (in): 5/32
Ambient/Warm Melt/Hot Melt: Ambient
Amperage (A): 1.4
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
Applicator Type: Automatic
Compatible Material: Sealants, Adhesives
Component Type: Single Component
Flow Control Type: Regulation, Control
Fluid Inlet Size (in): 3/4
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 17256.6929133858
Fluid Outlet Size (in): 1/2
Fluid Outlet Size (mm): 1725.6692913386
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Frequency (Hz): 50/60
Gateway: PROFINET User Interface
Gun Activation: Automatic
Includes: Regulator, Flow Meter, FCM Key Token
Maximum Air Inlet Pressure (bar): 8.27
Maximum Air Inlet Pressure (kPa): 827
Maximum Air Inlet Pressure (MPa): 0.83
Maximum Air Inlet Pressure (psi): 120
Maximum Ambient Temperature (°C): 49
Maximum Ambient Temperature (°F): 120
Maximum Flow Rate (cc/min): 7500
Maximum Flow Rate (GPM): 1.98
Maximum Flow Rate (L/min): 7.5
Maximum Fluid Temperature (°C): 49
Maximum Fluid Temperature (°F): 120
Maximum Fluid Viscosity (cP): 1000000
Maximum Fluid Temperature (°C): 49
Maximum Fluid Temperature (°F): 120
Maximum Fluid Viscosity (cP): 1000000
Maximum Fluid Working Pressure (bar): 241
Maximum Fluid Working Pressure (MPa): 24
Maximum Fluid Working Pressure (psi

$39,970.00

PCF SYSTEM, 016, MAST, HR METER, PN

GG PF2440

PCF SYSTEM, 016, MAST, HR METER, PN

16 Styles 100-240 VAC Precision Flow System with Mastic Regulator, High Resolution Meter and PROFINET User Interface

Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.

The next generation of precision metering

Closed-loop "real-time" control ensures a precise, continuous dispense – improves part quality and reduces material waste
Intuitive user interface simplifies setup, reduces training time
Integrated USB interface for easy data downloads - allows for further analysis of process data
Multiple gun capabilities for additional productivity - lets you program up to four guns
Compact modular design - easy to install, integrate and maintain
Low cost of ownership - fewer wear parts compared to shot meters

$39,970.00

PCF SYSTEM, 016, MAST, HR METER, EP

GG PF2421

PCF SYSTEM, 016, MAST, HR METER, EP

Graco PF2421 16 Styles 24 VDC Precision Flow System with Mastic Regulator, High Resolution Meter and EtherNet/IP User Interface

Application: Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.

The next generation of precision metering
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Air Outlet Size (in): 5/32
Ambient/Warm Melt/Hot Melt: Ambient
Amperage (A): 4
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
Applicator Type: Automatic
Compatible Material: Sealants, Adhesives
Component Type: Single Component
Flow Control Type: Regulation, Control
Fluid Inlet Size (in): 3/4
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 17281.1023622047
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 1728.1102362205
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Frequency (Hz): 50/60
Gateway: EtherNet/IP User Interface
Gun Activation: Automatic
Includes: Regulator, Flow Meter, FCM Key Token
Maximum Air Inlet Pressure (bar): 8.27
Maximum Air Inlet Pressure (kPa): 827
Maximum Air Inlet Pressure (MPa): 0.83
Maximum Air Inlet Pressure (psi): 120
Maximum Ambient Temperature (°C): 49
Maximum Ambient Temperature (°F): 120
Maximum Flow Rate (cc/min): 7500
Maximum Flow Rate (GPM): 1.98
Maximum Flow Rate (L/min): 7.5
Maximum Fluid Temperature (°C): 49
Maximum Fluid Temperature (°F): 120
Maximum Fluid Viscosity (cP): 1000000
Maximum Fluid Temperature (°C): 49
Maximum Fluid Temperature (°F): 120
Maximum Fluid Viscosity (cP): 1000000
Maximum Fluid Working Pressure (bar): 345
Maximum Fluid Working Pressure (MPa): 35
Maximum Fluid Working Pressure (psi): <

$39,480.00

PCF SYSTEM, 016, HTD REG/METER, IO

GG PF2500

PCF SYSTEM, 016, HTD REG/METER, IO

Graco PF2500 16 Styles 100-240 VAC Precision Flow System with Heated Mastic Regulator, Heated Standard Resolution Meter and Discrete User Interface

Application: Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.

The next generation of precision metering
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Air Outlet Size (in): 5/32
Ambient/Warm Melt/Hot Melt: Warm-Melt, Hot-Melt
Amperage (A): 1.4
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
Applicator Type: Automatic
Compatible Material: Sealants, Adhesives
Component Type: Single Component
Flow Control Type: Regulation, Control
Fluid Inlet Size (in): 3/4
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 17281.1023622047
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 1728.1102362205
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Frequency (Hz): 50/60
Gateway: Discrete User Interface
Gun Activation: Automatic
Includes: Regulator, Flow Meter, FCM Key Token
Maximum Air Inlet Pressure (bar): 8.27
Maximum Air Inlet Pressure (kPa): 827
Maximum Air Inlet Pressure (MPa): 0.83
Maximum Air Inlet Pressure (psi): 120
Maximum Ambient Temperature (°C): 49
Maximum Ambient Temperature (°F): 120
Maximum Flow Rate (cc/min): 22500
Maximum Flow Rate (GPM): 5.94
Maximum Flow Rate (L/min): 22.5
Maximum Fluid Temperature (°C): 204
Maximum Fluid Temperature (°F): 400
Maximum Fluid Viscosity (cP): 1000000
Maximum Fluid Temperature (°C): 204
Maximum Fluid Temperature (°F): 400
Maximum Fluid Viscosity (cP): 1000000
Maximum Fluid Working Pressure (bar): 241
Maximum Fluid Working Pressure (MPa): 24
Maxim

$42,600.00

PCF SYSTEM, 016, HTD REG/METER, EP

GG PF2520

PCF SYSTEM, 016, HTD REG/METER, EP

Graco PF2520 16 Styles 100-240 VAC Precision Flow System with Heated Mastic Regulator, Heated Standard Resolution Meter and EtherNet/IP User Interface

Application: Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.

The next generation of precision metering
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Air Outlet Size (in): 5/32
Ambient/Warm Melt/Hot Melt: Warm-Melt, Hot-Melt
Amperage (A): 1.4
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
Applicator Type: Automatic
Compatible Material: Sealants, Adhesives
Component Type: Single Component
Flow Control Type: Regulation, Control
Fluid Inlet Size (in): 3/4
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 17281.1023622047
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 1728.1102362205
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Frequency (Hz): 50/60
Gateway: EtherNet/IP User Interface
Gun Activation: Automatic
Includes: Regulator, FCM Key Token
Maximum Air Inlet Pressure (bar): 8.27
Maximum Air Inlet Pressure (kPa): 827
Maximum Air Inlet Pressure (MPa): 0.83
Maximum Air Inlet Pressure (psi): 120
Maximum Ambient Temperature (°C): 49
Maximum Ambient Temperature (°F): 120
Maximum Flow Rate (cc/min): 22500
Maximum Fluid Temperature (°C): 204
Maximum Fluid Temperature (°F): 400
Maximum Fluid Viscosity (cP): 1000000
Maximum Fluid Temperature (°C): 204
Maximum Fluid Temperature (°F): 400
Maximum Fluid Viscosity (cP): 1000000
Maximum Fluid Working Pressure (bar): 241
Maximum Fluid Working Pressure (MPa): 24
Maximum Fluid Working Pressure (psi): 3500
Maximum Operating Temperature (°C): 204

$42,100.00

PCF SYSTEM, 256, HTD REG/METER, EP

GG PF3520

PCF SYSTEM, 256, HTD REG/METER, EP

Graco PF3520 256 100-240 VAC Precision Flow System with Heated Mastic Regulator, Heated Standard Resolution Meter and EtherNet/IP User Interface

Application: Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.

The next generation of precision metering
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Air Outlet Size (in): 5/32
Ambient/Warm Melt/Hot Melt: Warm-Melt, Hot-Melt
Amperage (A): 1.4
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
Applicator Type: Automatic
Compatible Material: Sealants, Adhesives
Component Type: Single Component
Flow Control Type: Regulation, Control
Fluid Inlet Size (in): 3/4
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 17281.1023622047
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 1728.1102362205
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Frequency (Hz): 50/60
Gateway: EtherNet/IP User Interface
Gun Activation: Automatic
Includes: Regulator, Flow Meter, FCM Key Token
Maximum Air Inlet Pressure (bar): 8.27
Maximum Air Inlet Pressure (kPa): 827
Maximum Air Inlet Pressure (MPa): 0.83
Maximum Air Inlet Pressure (psi): 120
Maximum Ambient Temperature (°C): 49
Maximum Ambient Temperature (°F): 120
Maximum Flow Rate (cc/min): 22500
Maximum Flow Rate (GPM): 5.94
Maximum Flow Rate (L/min): 22.5
Maximum Fluid Temperature (°C): 204
Maximum Fluid Temperature (°F): 400
Maximum Fluid Viscosity (cP): 1000000
Maximum Fluid Temperature (°C): 204
Maximum Fluid Temperature (°F): 400
Maximum Fluid Viscosity (cP): 1000000
Maximum Fluid Working Pressure (bar): 241
Maximum Fluid Working Pressure (MPa): 24
Maxim

Call for pricing

ProBell Applicator, Standard, Non-Electrostatic, 50 MM Bell Cup, 1.0 MM Nozzle

GG R5A141

ProBell Applicator, Standard, Non-Electrostatic, 50 MM Bell Cup, 1.0 MM Nozzle

$26,010.00

Screw

GG SA920007

Screw

$45.00

Ball Valve - Rh

GG SA937017

Ball Valve - Rh

Call for pricing

Kit, Fusion Cs, 2929 Round Mc

GG RD0000

Kit, Fusion Cs, 2929 Round Mc

$391.00

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

GG SDU.A01AAA1AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

SaniForce Ram Unit, Stainless Steel Frame, 5:1 DB, Inflatable Seal, Exposed Controls SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications. High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps Reduce material waste with up to 99% material evacuation Improve worker ergonomics by eliminating hazards associated with scooping and dumping options Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates Self-priming and run dry pump capabilities ideal for container unloading applications Configurable systems to meet requirements of almost any ingredient unloading application

$54,560.00

SDX SERIES 10 REEL, HOSE

GG SDL25C

SDX SERIES 10 REEL, HOSE

Graco SDL25C SDX™ 10, Air/Water/Antifreeze/WWS, 1/2 in (13 mm) Inlet, 3/8 in X 50 ft (10 mm X 15 m) Hose, NPT, Overhead Mount, Red

Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors

Application: With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.

Includes a stainless-steel swivel shaft for extended service life when transporting air, water, antifreeze, windshield wash solvent and other fluids.
Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
Durable Finish - Baked-on enamel finish protects reel from corrosion

Model: SDX
Series: 10

Application: Air, Water, Antifreeze, WWS
Color: Red
Frame Type: Single Pedestal
Hose Inside Diameter (in): 3/8
Hose Inside Diameter (mm): 9.525
Hose Length (ft): 50
Hose Length (m): 15
Hose Reel Type: Reel with Hose
Includes Hose: Yes
Inlet Size (in): 1/2
Inlet Size (mm): 12.7
Inlet Thread Gender: Male
Inlet Thread Type: NPSM
Maximum Temperature (°C): 87
Maximum Temperature (°F): 190
Maximum Working Pressure (psi): 300
Minimum Temperature (°C): -28
Minimum Temperature (°F): -20
Mount Location: Overhead Mount
Outlet Size (in): 3/8
Outlet Size (mm): 9.525
Outlet Thread Gender: Male
Outlet Thread Type: NPT
Overall Height (in): 19.5
Overall Height (mm): 498
Overall Length (in): 17.1
Overall Length (mm): 435
Overall Width (in): 7
Overall Width (mm): 177
Recommended Environment: Indoor, Limited Outdoor
Recommended Fluid Type: Air, Water, Antifreeze, WWS

$918.00

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

GG SDU.A02AAA1AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

Graco SDU.A02AAA1AA0C21 SaniForce Ram Unit, SST Frame, 5:1 PP, Inflatable Seal, Exposed Controls

SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications.

Application: High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps

Reduce material waste with up to 99% material evacuation
Improve worker ergonomics by eliminating hazards associated with scooping and dumping options
Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates
Electronic controls for system automation of container evacuation and precise batch control with use of scale or flow meter
Configurable systems to meet requirements of almost any ingredient unloading application

Model: SaniForce 2.0 Drum Unloader
Series: A

Ambient/Warm Melt/Hot Melt: 90
Application: Food, Personal Care
Compatible Drum Height (cm): 101.6
Compatible Drum Height (in): 40
Compatible Drum Height (mm): 1016
Compatible Drum Inside Diameter (cm): 54.6-59.0
Compatible Drum Inside Diameter (in): 21.5-23.25
Compatible Drum Inside Diameter (mm): 546-590
Container Type: Drum
Control Panel Material: Aluminum, Plastic
Control Panel Type: Exposed
Finish/Coating: Bead Blast
Frame Material: Stainless Steel
Material Container Volume (gal): 55
Material Container Volume (l): 208
Maximum Air Inlet Pressure (bar): 6.89
Maximum Air Inlet Pressure (kg/cm²): 7.03
Maximum Air Inlet Pressure (kPa): 690
Maximum Air Inlet Pressure (psi): 100
Maximum Flow Rate (GPM): 13
Maximum Flow Rate (L/min): 49.2
Maximum Fluid Pressure (bar): 28.7
Maximum Fluid Pressure (kPa): 2870
Maximum Fluid Pressure (psi): 410
Maximum Fluid Pressure (bar): 28.7
Maximum Fluid Pressure (kPa): 2870
Maximum Fluid Pressure (psi): 410
Maximum Height (cm): 295
Maximum Height (ft): 9.7
Maximum Height (in): 116
Maximum Height (m): 2.95
Maximum Height (mm): 2946
Maximum Operating Temperature (°C): 32
Maximum Operating Temperature (°F): 90
Maximum Working Pressure (bar): 28.7
Maximum Working Pressure (kPa): 2870
Maximum Working Pressure (MPa): 2.9
Maximum Working Pressure (psi): 410
Minimum Height (cm): 194

$56,230.00

5-Gallon Follower Plate Seal , Flat

GG SA908003

5-Gallon Follower Plate Seal , Flat

$49.50

Seal, Nitrile White

GG SA906002

Seal, Nitrile White

$205.00

Kit, Seal, Diaphragm

GG SA920K

Kit, Seal, Diaphragm

$76.50

Kit, Seal, Screen, 80-100-200

GG SA925K

Kit, Seal, Screen, 80-100-200

$33.00

Adapter, 3/4Nptf, 1-1/4-18Thrdm, 1/4

GG SA914004

Adapter, 3/4Nptf, 1-1/4-18Thrdm, 1/4

$325.00

5-Gallon Follower Plate Seal

GG SA908005

5-Gallon Follower Plate Seal

$60.00

Plug, Spring, Cap, CS

GG SA920002

Plug, Spring, Cap, CS

$105.00

SDX SERIES 10 REEL, HOSE

GG SDL2DB

SDX SERIES 10 REEL, HOSE

Graco SDL2DB SDX™ 10, Air/Water/Antifreeze/WWS, 3/8 in (10 mm) Inlet, Bare Reel (3/8 in X 50 ft (10 mm X 15 m) Capacity), NPT, Overhead Mount, Metallic Blue

Includes a stainless-steel swivel shaft for extended service life when transporting air, water, antifreeze, windshield wash solvent and other fluids.
Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
Durable Finish - Baked-on enamel finish protects reel from corrosion

Model: SDX
Series: 10

Application: Air, Water
Bare Reel: 1
Color: Metallic Blue
Frame Type: Single Pedestal
Hose Inside Diameter (in): 3/8
Hose Inside Diameter (mm): 9.525
Hose Length (ft): 50
Hose Length (m): 15
Hose Reel Type: Bare Reel
Includes Hose: No
Inlet Size (in): 1/2
Inlet Size (mm): 12.7
Inlet Thread Gender: Female
Inlet Thread Type: NPSM
Maximum Temperature (°C): 87
Maximum Temperature (°F): 190
Maximum Working Pressure (psi): 300
Minimum Temperature (°C): -28
Minimum Temperature (°F): -20
Mount Location: Overhead Mount
Outlet Size (in): 3/8
Outlet Size (mm): 9.525
Outlet Thread Gender: Male
Outlet Thread Type: NPT
Overall Height (in): 19.5
Overall Height (mm): 498
Overall Length (in): 17.1
Overall Length (mm): 435
Overall Width (in): 7
Overall Width (mm): 177
Recommended Environment: Indoor, Limited Outdoor
Recommended Fluid Type: Air, Water, Antifreeze, WWS

Call for pricing

SDX SERIES 10 REEL, HOSE

GG SDM33B

SDX SERIES 10 REEL, HOSE

SDX™ 10, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 35 ft (13 mm X 11 m) Hose, NPT, Overhead Mount, Metallic Blue Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks. Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs. Increased Spring Power - Every SDX oil hose reel recoils to the exact same assigned length for a clean, uniform look. Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Adjustable Arm - Easily change the arm position for your application Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications Durable Finish - Baked-on enamel finish protects reel from corrosion

$923.00
