ProMix PD2K, Air Assist (non acid)

GG MC2000

PROMIX PD2K PROPORTIONER, SYSTEM, PD, MANUAL, HP

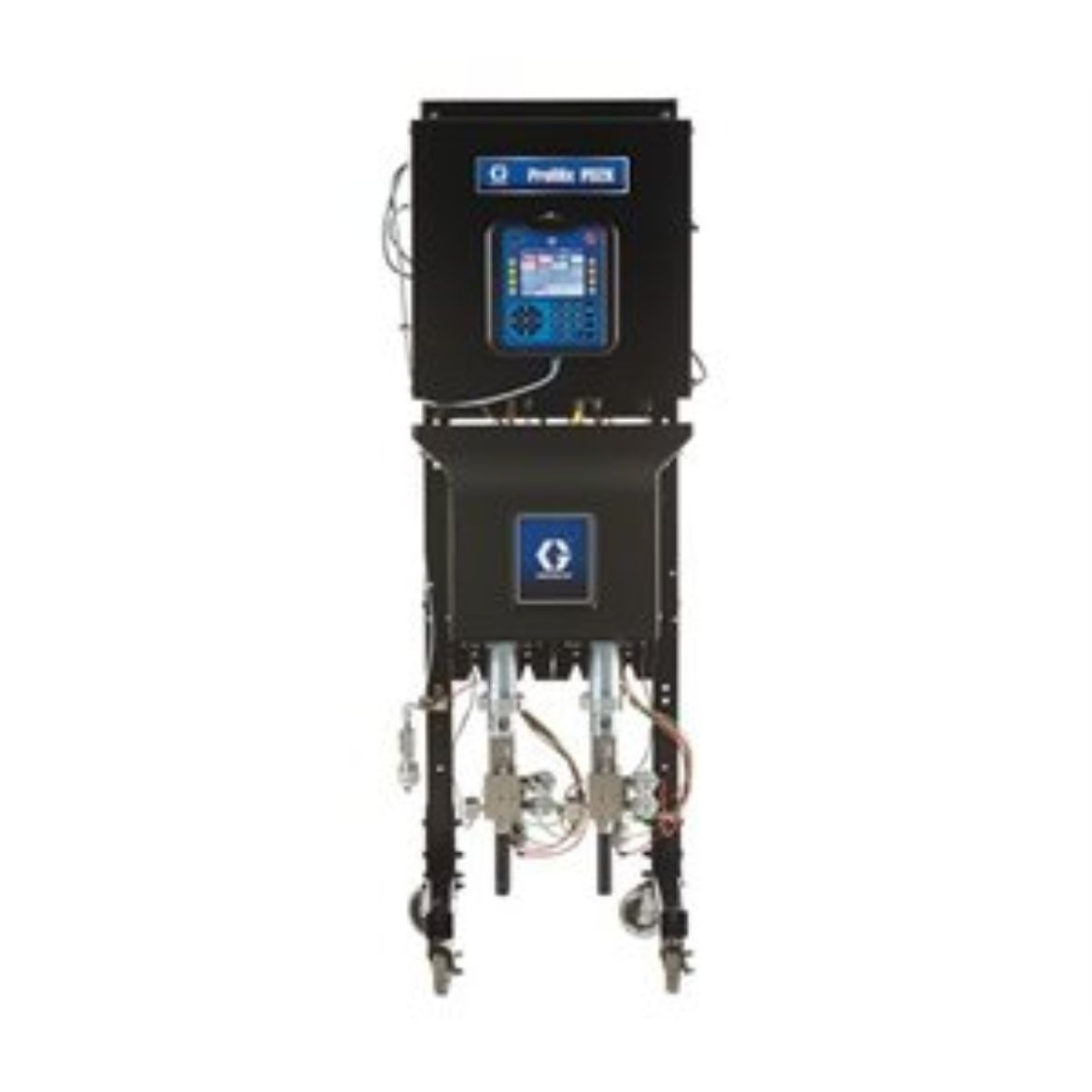

Graco MC2000 ProMix PD2K Manual Proportioner, Standard, High Pressure, 70 cc Resin Pump, 35 cc Catalyst Pump, 1 Solvent Valve

100% Positive Displacement Technology for accurate mix ratios and consistent performance. Great for short pot life materials, the ProMix PD mixes the material close to the gun so the flush zone is significantly smaller. This allows for faster color changes, less material usage and disposal costs overall.

• Up to 80% reduction in flushing waste over the most efficient traditional proportioning systems
• Faster color changes and less material to flush mean less waste and less downtime
• Stalls under pressure for consistent, on-ratio results (within 1% accuracy)
• Field serviceable in less than 20 minutes - no need for costly factory rebuilds like gear pumps

• Model: ProMix
• Series: PD2K

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Applicator Type: Manual

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Plural Component

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 30

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (MPa): 0.7
• Maximum Working Pressure (psi): 100
• Measuring Type: Meter

• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: Up to 4
• Number of Color Valves: N/A

• Number of Resin Colors: Up to 30

• Power Source: Electric

• Pressure Type: High Pressure
• Proportioner Type: Manual
• Proportioning Type: Manual Electronic
