GG PF2421
PCF SYSTEM, 016, MAST, HR METER, EP

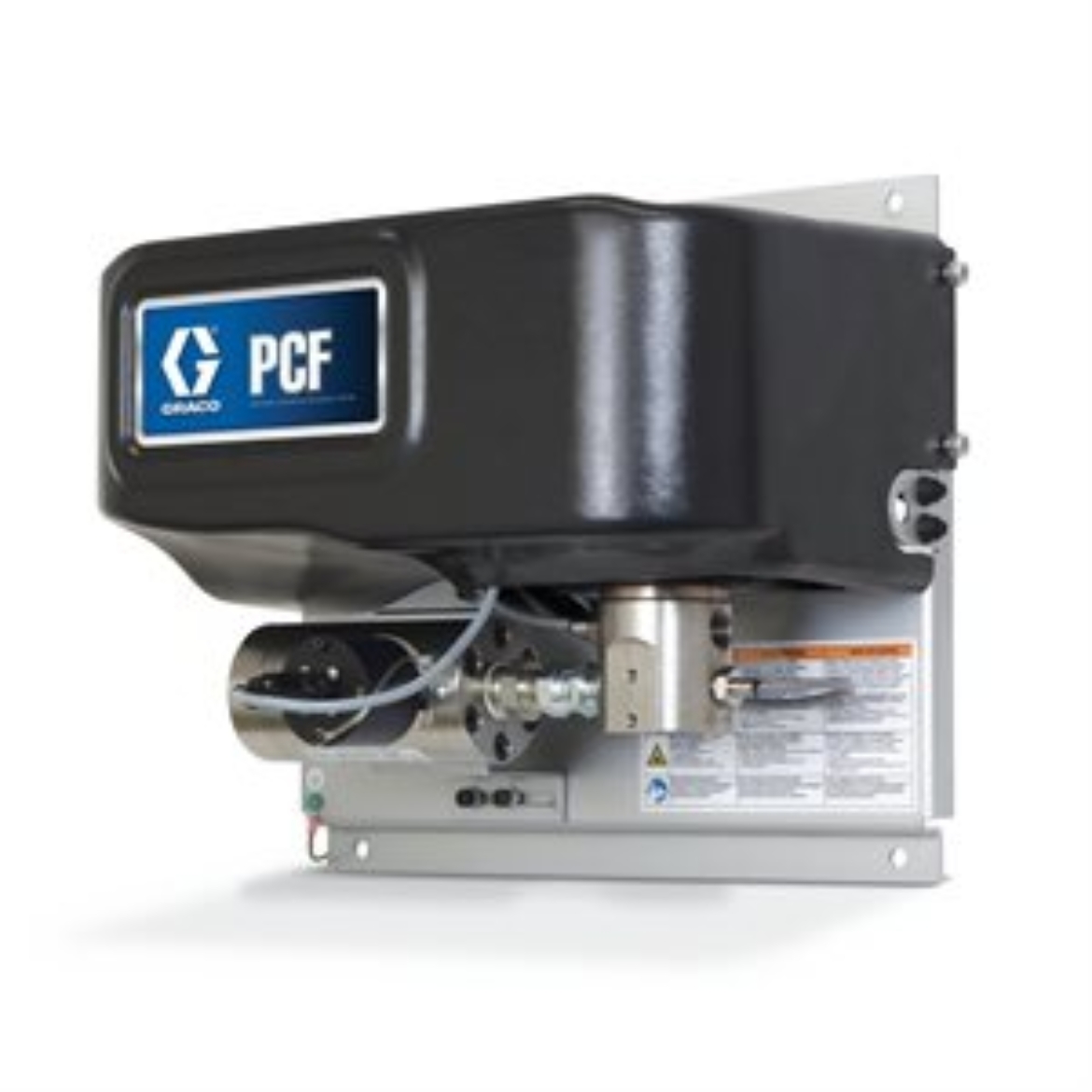

Graco PF2421 16 Styles 24 VDC Precision Flow System with Mastic Regulator, High Resolution Meter and EtherNet/IP User Interface
Reduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds – providing your operation with a highly precise, continuous dispense.
Application: Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.
- The next generation of precision metering
Closed-loop &Prime, real-time&Prime, control ensures a precise, continuous dispense – improves part quality and reduces material waste
Intuitive user interface simplifies setup, reduces training time
Integrated USB interface for easy data downloads - allows for further analysis of process data
Multiple gun capabilities for additional productivity - lets you program up to four guns
Compact modular design - easy to install, integrate and maintain
Low cost of ownership - fewer wear parts compared to shot meters
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Air Outlet Size (in): 5/32
- Ambient/Warm Melt/Hot Melt: Ambient
- Amperage (A): 4
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
- Applicator Type: Automatic
- Compatible Material: Sealants, Adhesives
- Component Type: Single Component
- Flow Control Type: Regulation, Control
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 17281.1023622047
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 1728.1102362205
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Frequency (Hz): 50/60
- Gateway: EtherNet/IP User Interface
- Gun Activation: Automatic
- Includes: Regulator, Flow Meter, FCM Key Token
- Maximum Air Inlet Pressure (bar): 8.27
- Maximum Air Inlet Pressure (kPa): 827
- Maximum Air Inlet Pressure (MPa): 0.83
- Maximum Air Inlet Pressure (psi): 120
- Maximum Ambient Temperature (°C): 49
- Maximum Ambient Temperature (°F): 120
- Maximum Flow Rate (cc/min): 7500
- Maximum Flow Rate (GPM): 1.98
- Maximum Flow Rate (L/min): 7.5
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Viscosity (cP): 1000000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Viscosity (cP): 1000000
- Maximum Fluid Working Pressure (bar): 345
- Maximum Fluid Working Pressure (MPa): 35
- Maximum Fluid Working Pressure (psi): <
