Check-Mate Pump,68:1 6500/200 Cs Sd

GG P68LCS

CHECK-MATE PUMP, 68:1 6500/200 CS SD

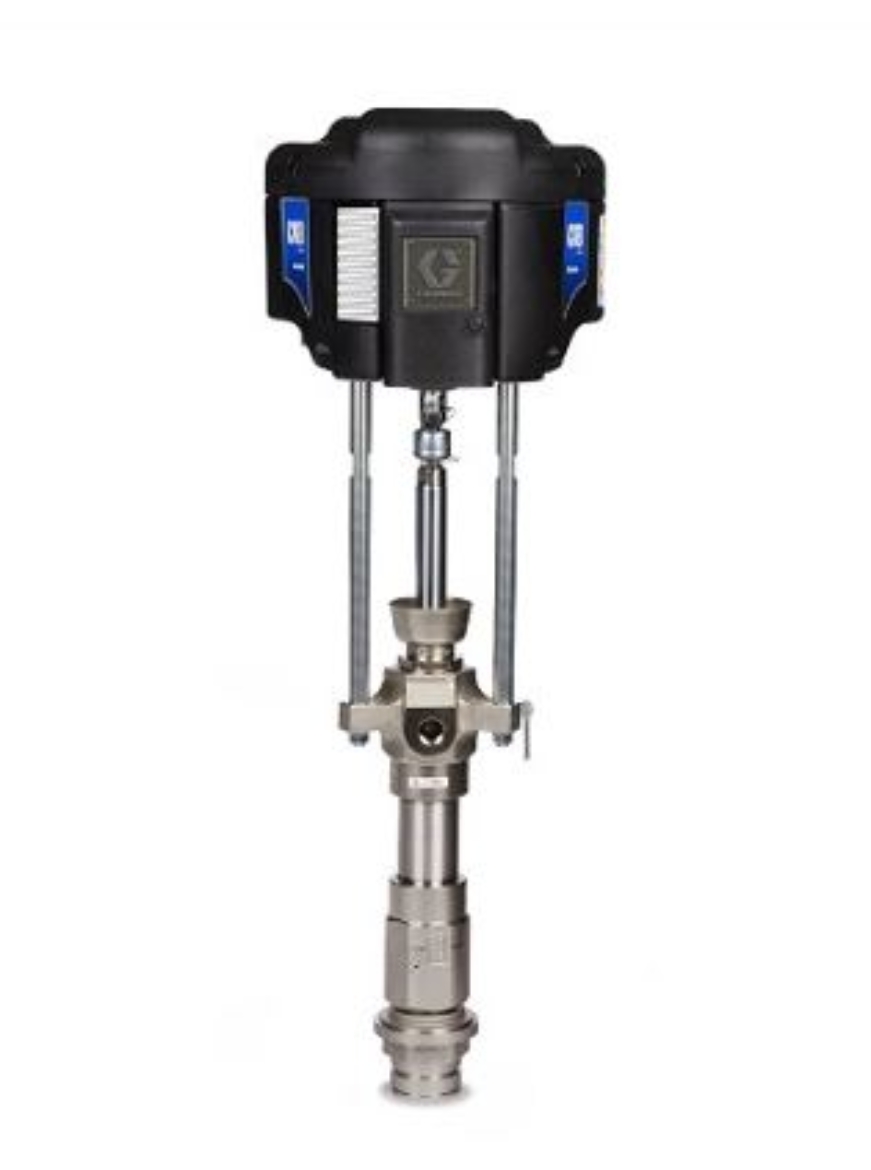

Graco P68LCS 68:1 - 200cc Check-Mate Pump with NXT 6500 Air Motor, Severe Duty Carbon Steel Construction

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plants production capacity.

• NXT 6500 Air Motor


  Low Noise

  Modular design for easier maintenance

  Rugged body armor wont rust or dent

  Highest technology air motor on the market

• 200cc Check-Mate Lower


  Severe Duty coatings on rods and cylinder Extends production time

• Xtreme Coupler - No tool connection

  Quick-disconnect coupler for easy maintenance

• Replaceable Seat

  Minimizes service costs

• Cast Outlet and Inlet Housing

  Improves structural integrity

  • NEW Xtreme Coupler

    Quick-disconnect coupler for easy maintenance

    • Replaceable Outlet Fitting

      Reduces repair costs

      • Piston Valve with Floating Piston Seal

        For maximum pressure balance over a range of material viscosities

        • Replaceable Seat

          Minimizes service costs

          • Floating Priming Plate

            Provides uniform flow

            • Cast Outlet and Inlet Housing

              Improves structural integrity

              • NEW Cartridge Throat Packings

                Allows for easy servicing without removing from ram

                • Modular Air Valve

                  De-icing controls

                  Up to 50% quieter than previous models

                  Modular air valve - eliminates stalling, easy-to-repair

                  • Hard Part Coatings

                    Standard Severe Duty coating on rods and cylinder maximizes wear life




                    • Model: Check-Mate
                    • Ambient/Warm Melt/Hot Melt: Ambient
                    • Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
                    • Fluid Outlet Size (in): 1
                    • Fluid Outlet Size (mm): 25.4000
                    • Fluid Outlet Thread Gender: Female
                    • Fluid Outlet Thread Type: NPT
                    • Includes: Motor, Displacement Pump, Rod Tie, Adaptor Rod, Coupling Assembly, Cover Coupler, Clip Hairpin With Lanyard
                    • Material: Carbon Steel
                    • Maximum Working Pressure (bar): 434
                    • Maximum Working Pressure (kPa): 43400
                    • Maximum Working Pressure (MPa): 43.4
                    • Maximum Working Pressure (psi): 6200
                    • Power Type: Pneumatic
                    • Pump Ratio: 68:1
