SANIFORCE RAM UNIT SST FRAME 5:1 PP INFLATABLE SEAL EXPOSED CONTROLS

GG SDU.A01AAA1AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

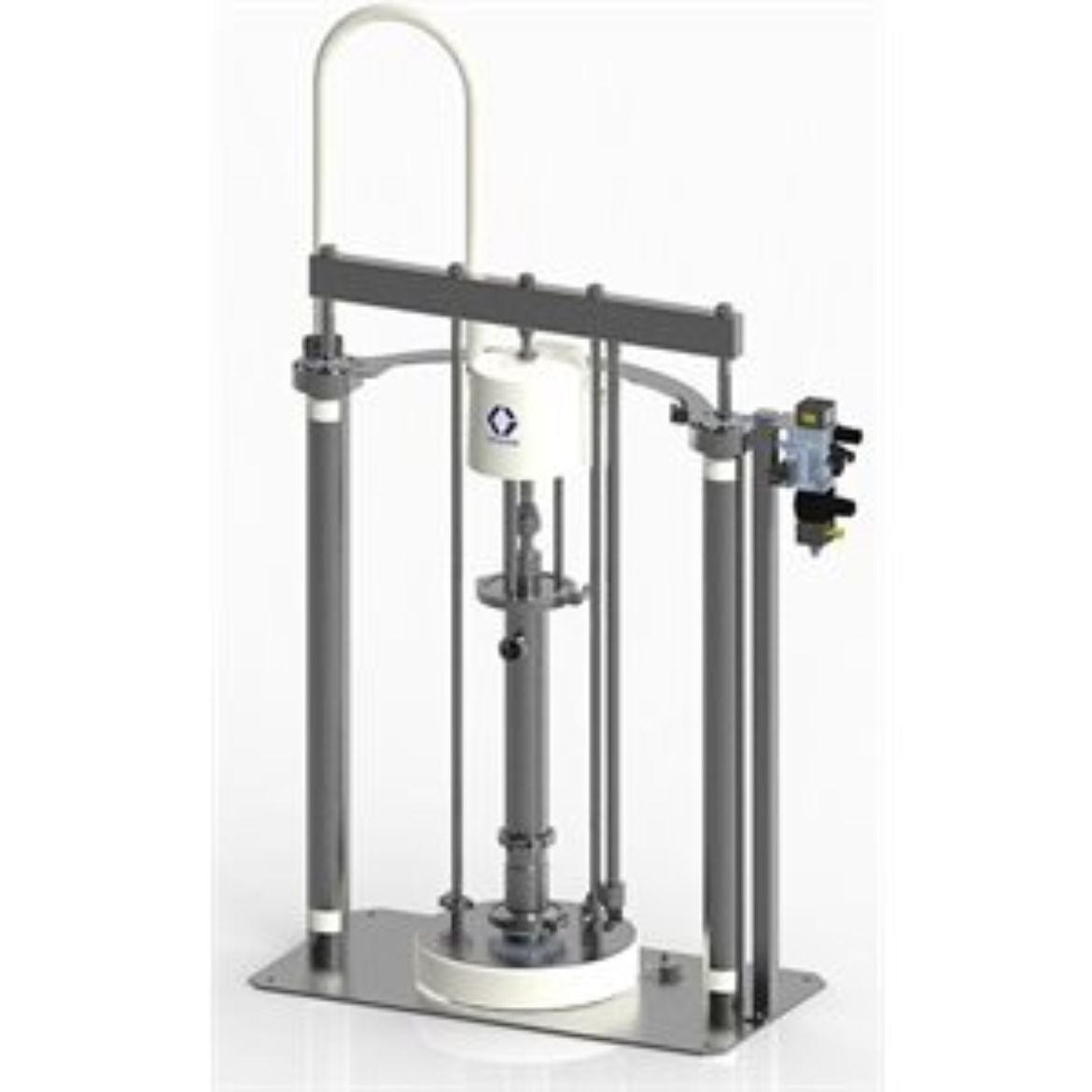

Graco SDU.A01AAA1AA0C21 SaniForce Ram Unit, SST Frame, 5:1 DB, Inflatable Seal, Exposed Controls

SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications.

• Reduce material waste with up to 99% material evacuation
• Improve worker ergonomics by eliminating hazards associated with scooping and dumping options
• Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates
• Electronic controls for system automation of container evacuation and precise batch control with use of scale or flow meter
• Configurable systems to meet requirements of almost any ingredient unloading application

• Model: SaniForce 2.0 Drum Unloader
• Series: A

• Ambient/Warm Melt/Hot Melt: 90
• Application: Food, Personal Care

• Compatible Drum Height (cm): 101.6
• Compatible Drum Height (in): 40
• Compatible Drum Height (mm): 1016
• Compatible Drum Inside Diameter (cm): 54.6-59.0
• Compatible Drum Inside Diameter (in): 21.5-23.25
• Compatible Drum Inside Diameter (mm): 546-590

• Container Type: Drum
• Control Panel Material: Aluminum, Plastic
• Control Panel Type: Exposed

• Finish/Coating: Bead Blast

• Frame Material: Stainless Steel

• Material Container Volume (gal): 55
• Material Container Volume (l): 208

• Maximum Air Inlet Pressure (bar): 6.89
• Maximum Air Inlet Pressure (kg/cm²): 7.03
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 13
• Maximum Flow Rate (L/min): 49.2

• Maximum Fluid Pressure (bar): 28.7
• Maximum Fluid Pressure (kPa): 2870
• Maximum Fluid Pressure (psi): 410

• Maximum Fluid Pressure (bar): 28.7
• Maximum Fluid Pressure (kPa): 2870
• Maximum Fluid Pressure (psi): 410

• Maximum Height (cm): 295
• Maximum Height (ft): 9.7
• Maximum Height (in): 116
• Maximum Height (m): 2.95
• Maximum Height (mm): 2946

• Maximum Operating Temperature (°C): 32
• Maximum Operating Temperature (°F): 90

• Maximum Working Pressure (bar): 28.7
• Maximum Working Pressure (kPa): 2870
• Maximum Working Pressure (MPa): 2.9
• Maximum Working Pressure (psi): 410

• Minimum Height (cm): 194
• Minimum Height (ft): 6.4
• Minimum Height (in): 76.2
• Minimum Height (m): 1.94
• Minimum Height (mm): 1935

• Overall Depth (cm): 69.8
