GG LTX827
RAC X LTX TIP, SPRAY, (827)

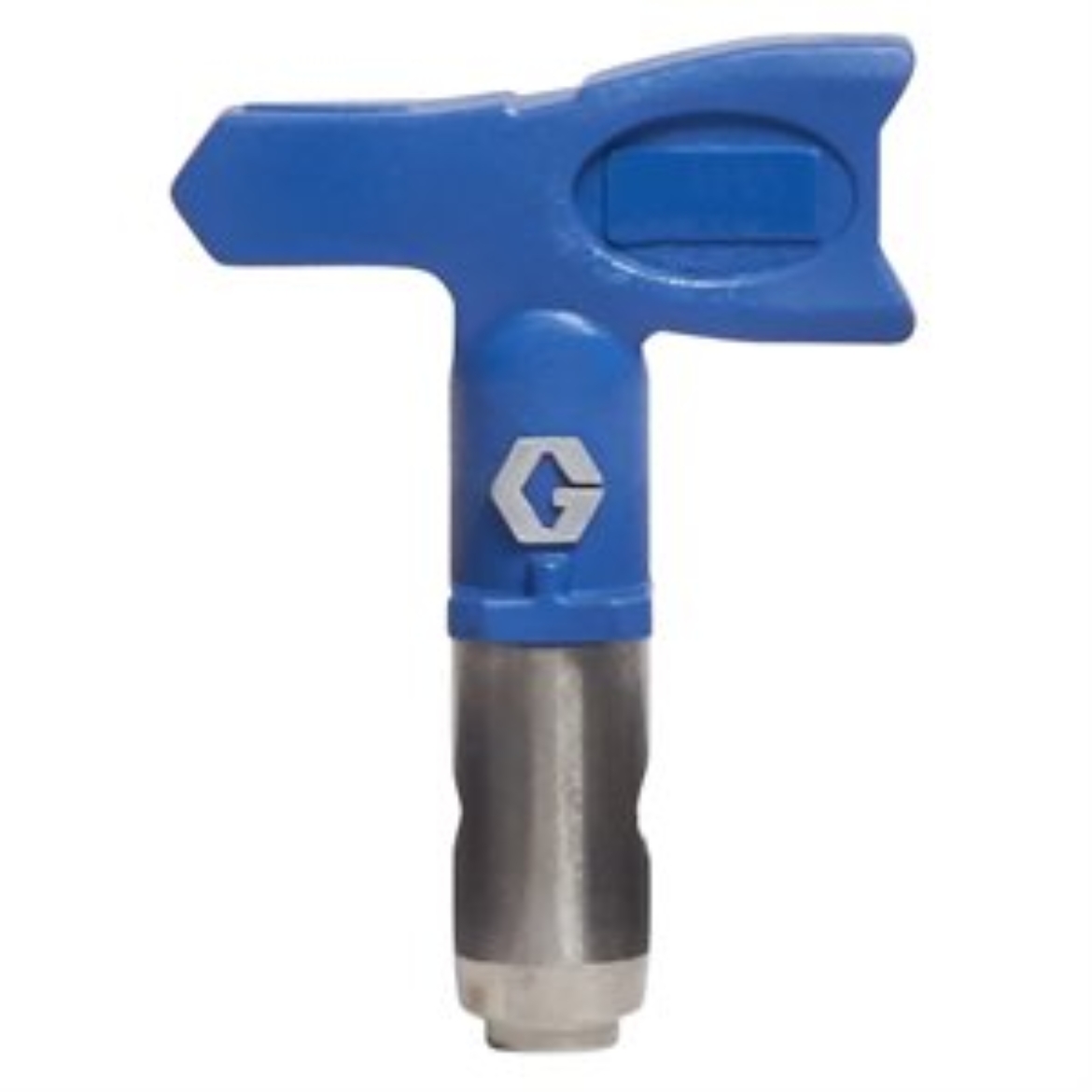

Graco LTX827 RAC X SwitchTip, 827
The Reverse-A-Clean (RAC) 827 RAC X SwitchTip produces a 16 to 18 inch fan and has a 0.027 inch orifice. Reverse the SwitchTip to easily clear clogs.
Application: Used for residential, commercial or industrial applications.
- Best Tip on the Market
Longest lasting fan pattern
Highest quality finish with a consistent spray pattern
- Easy to Identify Tip Size
Large raised tip size numbers are always legible - even when covered with paint
- Superior Tip Design
Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents
- Model: RAC X
- Series: LTX SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC X HandTite Tip Guard
- Maximum Fan Width (cm): 40
- Maximum Fan Width (in): 16
- Maximum Fan Width (mm): 457
- Maximum Flow Rate (GPM): 0.77
- Maximum Flow Rate (L/min): 2.91
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 16
- Minimum Fan Width (mm): 406
- Orifice Diameter (in): 0.027
- Pattern Size (in): 16 to 18
- Pattern Size (mm): 406.4 to 457.2
