PROMIX 2KS PROPORTIONER MANUAL SYSTEM

Manufacturer: GRACO INC. S10595

GG ME1001

PROMIX 2KS PROPORTIONER MANUAL SYSTEM

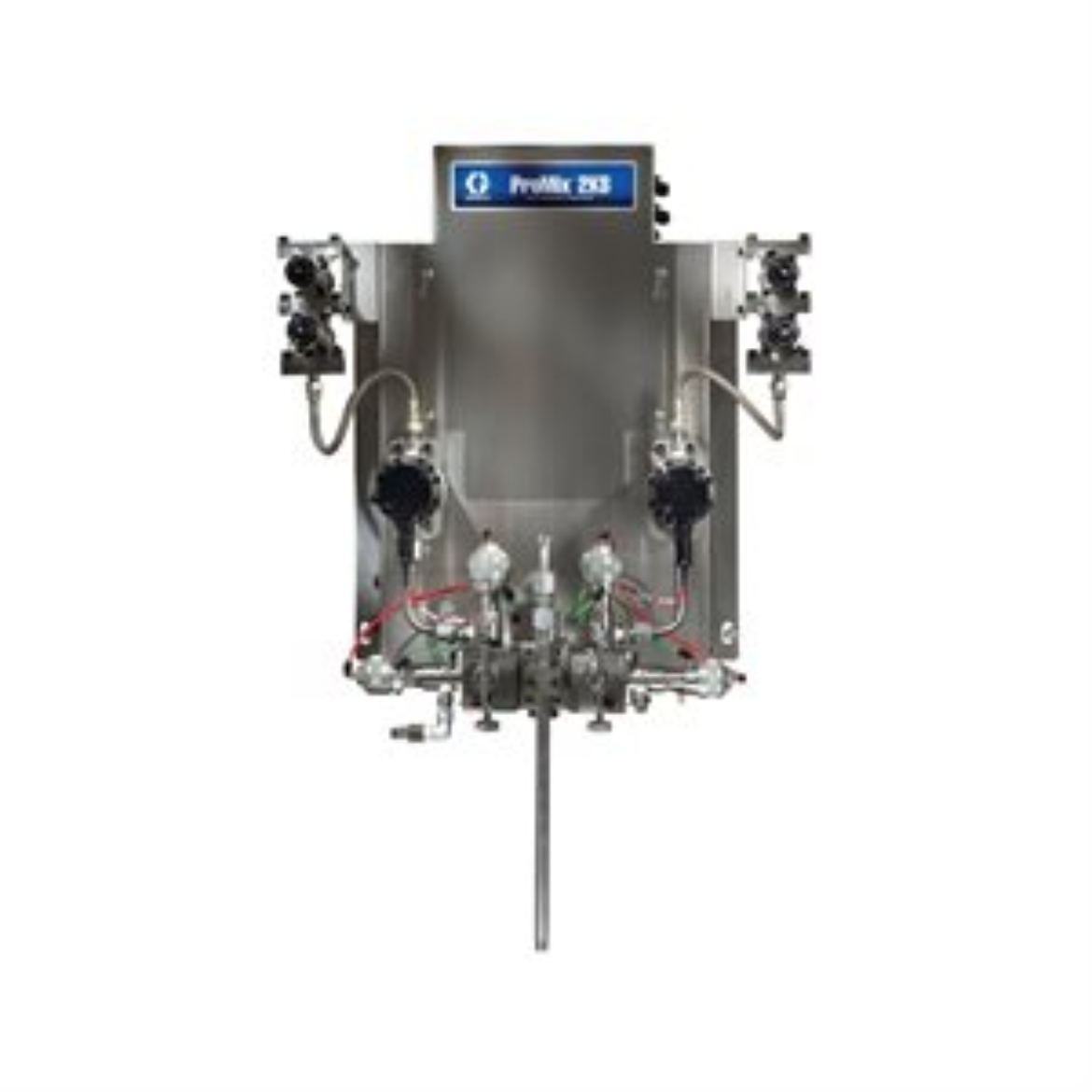

Graco ME1001 ProMix 2KS Manual System for Acid Cat with G3000A Meter, 1 Airflow Switch, EasyKey Smart Control and Display

The ProMix 2KS meter-based dosing system for acid catalyzed materials can track the performance of one or two painters and manage a wide range of mix ratios. It’s also easy to set up and manage without touchy adjustments to fluid pressure.

  • The G3000A meter accurately measures fluid and withstands strong acid due to durable, high grade, stainless steel components, including gears with ceramic bearings.
  • Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
  • Intrinsically safe fluid panels easily integrate into hazardous areas
  • Advanced web interface provides consolidated system management and reporting


  • Model: ProMix
  • Series: 2KS
  • Air Inlet Size (cm): 0.9525
  • Air Inlet Size (in): 3/8
  • Air Inlet Size (mm): 9.525
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Amperage (A): 2
  • Applicator Type: Manual
  • Component Type: Two Component
  • Fluid Inlet Size (cm): 0.635
  • Fluid Inlet Size (in): 1/4
  • Fluid Inlet Size (mm): 6.35
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (in): 1/4
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT
  • Flush Type: Air/Solvent
  • Frequency (Hz): 50/60
  • Gun Activation: Manual
  • Material Type: Two Component
  • Maximum Flow Rate (cc/min): 3790
  • Maximum Flow Rate (GPM): 1
  • Maximum Flow Rate (L/min): 3.79
  • Maximum Fluid Viscosity (cP): 3000
  • Maximum Fluid Viscosity (cP): 3000
  • Maximum Mix Ratio: 50:1
  • Maximum Number of Colors: Up to 3
  • Maximum Working Pressure (bar): 275.8
  • Maximum Working Pressure (kPa): 27580
  • Maximum Working Pressure (MPa): 27.6
  • Maximum Working Pressure (psi): 4000
  • Measuring Type: Meter
  • Meter Type: G3000
  • Minimum Flow Rate (cc/min): 75
  • Minimum Flow Rate (GPM): 0.02
  • Minimum Flow Rate (L/min): 0.075
  • Minimum Fluid Viscosity (cP): 20
  • Minimum Mix Ratio: 0.1:1
  • Mix Accuracy (%): 1
  • Number of Catalysts: 1
  • Number of Color Valves: No Valves
  • Number of Colors: 1
  • Number of Resin Colors: 0
  • Power Source: Electric
  • Proportioner Type: Manual
  • Proportioning Type: Manual Electronic
SKU: GG ME1001
Availability:
Price: $52,950.00
