PROMIX 2KS PROPORTIONER MANUAL

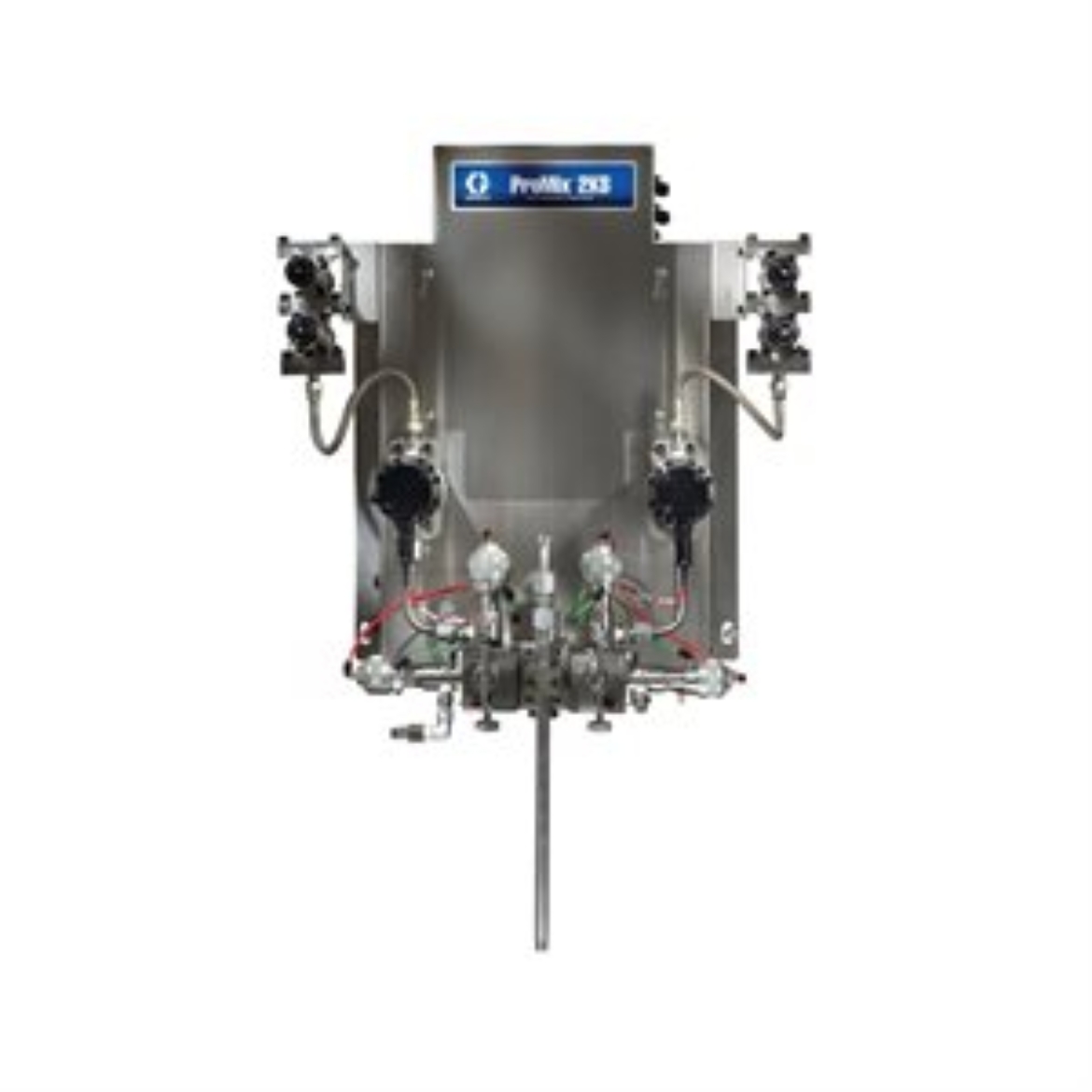

Graco ME1004 ProMix 2KS Manual System for Acid Cat with G3000A Meter, 2 Gun Flush Boxes, EasyKey Smart Control and Display

The ProMix 2KS meter-based dosing system for acid catalyzed materials can track the performance of one or two painters and manage a wide range of mix ratios. It's also easy to set up and manage without touchy adjustments to fluid pressure.

• The G3000A meter accurately measures fluid and withstands strong acid due to durable, high grade, stainless steel components, including gears with ceramic bearings.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 3

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: No Valves
• Number of Colors: 1

• Number of Resin Colors: 0

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic
