PROMIX 2KS MANUAL WALL PANEL SYS G 3000 A & B METER 4 COLOR

GG MD1633

PROMIX 2KS PROPORTIONER, MANUAL

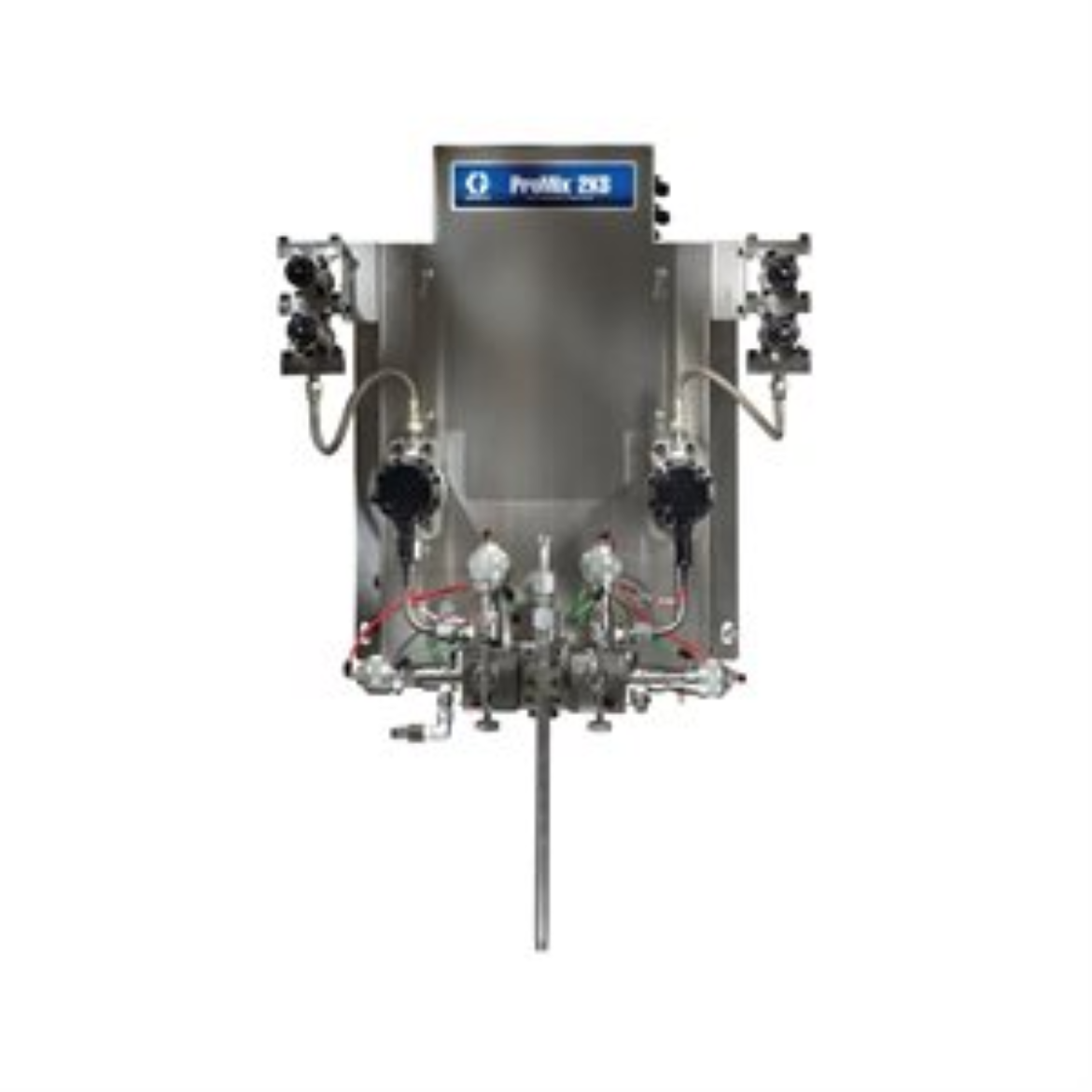

Graco MD1633 ProMix 2KS Manual Wall Panel System, EasyKey, G3000 A & B Meter, 4 Colors HP, 2 Catalysts HP, 1 Air Flow Switch with 1 Gun Flush Box

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 12

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 2
• Number of Color Valves: 4 Valves
• Number of Colors: 4

• Number of Resin Colors: 4

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic
