GRACO INC. S10595

GRACO INC. S10595 branded products

View as Grid List

Sort by

HUSKY PUMP, 1590A-PA01AA1TPACTP

GG DB3525

HUSKY PUMP, 1590A-PA01AA1TPACTP

Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, TPE Seats, AC Balls & TPE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump Offered in ATEX configuration. 1-1/2 in. (38.1 mm) ANSI end-porting High flow - 100 gpm (378 lpm) in a compact, portable size Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Available in polypropylene, aluminum and stainless steel Epoxy-coated air section for tough environmental conditions

$1,980.00

HUSKY PUMP, 1590P-PA01AP2PPPTPTPT

GG DB2911

HUSKY PUMP, 1590P-PA01AP2PPPTPTPT

Graco DB2911 Husky 1590 PP Air Operated Double Diaphragm Plastic Pump, PP/PT

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: PTFE
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Gender: Female
Fluid Section Material: Polypropylene
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Polypropylene
Maximum Air Consumption (SCFM): 125
Maximum Air Pressure (bar): 8.27
Maximum Air Pressure (kPa): 827
Maximum Air Pressure (MPa): 0.827
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 200
Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379
Maximum Fluid Pressure (bar): 8.27
Maximum Fluid Pressure (kPa): 827
Maximum Fluid Pressure (MPa): 0.827
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8.27
Maximum Fluid Pressure (kPa): 827
Maximum Fluid Pressure (MPa): 0.827
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.4763
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.763
Power Source: Air

$5,160.00

HUSKY PUMP, 1590A-PA01AA1SSPTPTPT

GG DB3311

HUSKY PUMP, 1590A-PA01AA1SSPTPTPT

Graco DB3311 Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SS Seats, PTFE Balls & PTFE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: PTFE
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 125
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 200
Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 82
Maximum Operating Temperature (°F): 180
Maximum Solid Size (cm): 0.4763
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.763
Overall Height (in): 19.6
Power Source:

$3,110.00

HUSKY PUMP, 1590P-PA01AP2PPSPSPPT

GG DB2966

HUSKY PUMP, 1590P-PA01AP2PPSPSPPT

Husky 1590 PP 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, PP Seats, SP Balls & SP Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

$4,740.00

HUSKY PUMP, 515P-PP01AP4PPSPSPPT0

GG D5B966

HUSKY PUMP, 515P-PP01AP4PPSPSPPT0

Husky 515 PP 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, PP Seats, SP Balls & SP Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Center and end porting options. No mechanical seals to cause fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Delivery up to 15 gpm (56.7 lpm) Easy-to-service air valve and ball checks Reliable air valve for years of dependable performance

$922.00

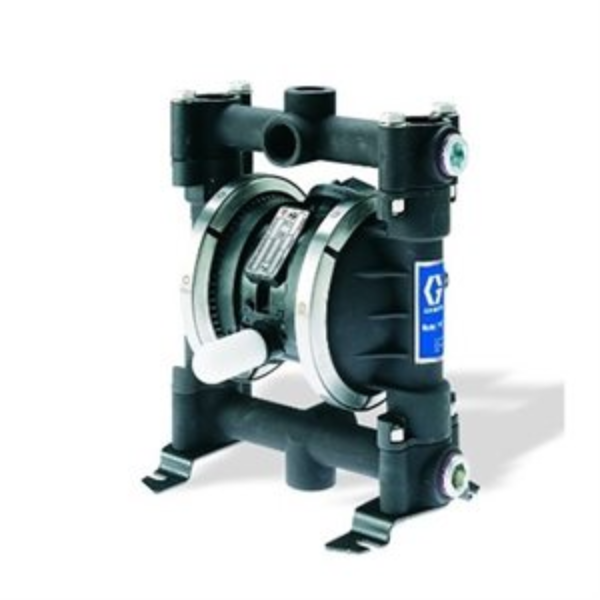

HUSKY PUMP, 716A-PP01AA2SSPTPTPT0

GG D5C311

HUSKY PUMP, 716A-PP01AA2SSPTPTPT0

Graco D5C311 Husky 716 AL Air Operated Double Diaphragm Metal Pump with BSP Standard Air Valve, SS Seat, PTFE Ball, & PTFE Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting
No mechanical seals which causes fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Model: Husky
Series: 716

Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: PTFE
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Type: BSPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Type: BSPT
Fluid Section Material: Aluminum
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 6.9
Maximum Air Pressure (kPa): 690
Maximum Air Pressure (MPa): 0.69
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 16
Maximum Flow Rate (L/min): 60.6
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 107
Maximum Operating Temperature (°F): 225
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40
Power Source: Air

$1,775.00

HUSKY PUMP, 1590P-PA01AP2SPSPSPPT

GG DB2666

HUSKY PUMP, 1590P-PA01AP2SPSPSPPT

Husky 1590 PP 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

$4,740.00

HUSKY PUMP, 515P-PP01AP4PPPTPTPT0

GG D5B911

HUSKY PUMP, 515P-PP01AP4PPPTPTPT0

Husky 515 PP 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

$1,240.00

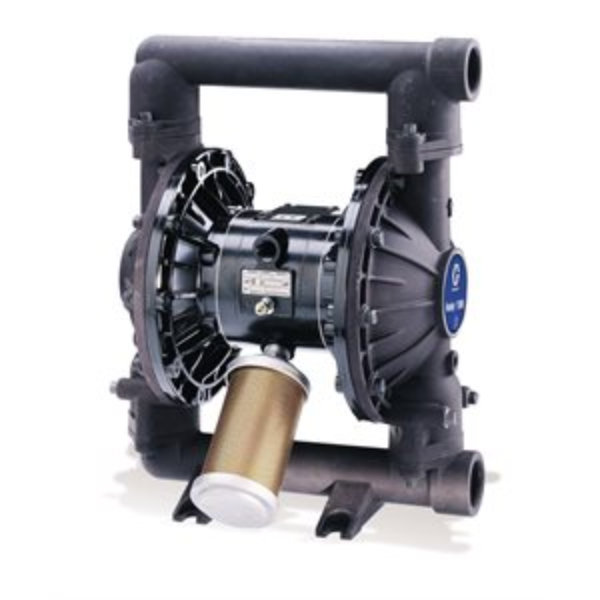

HUSKY PUMP, 1590P-PA01AP2SSBNBNPT

GG DB2377

HUSKY PUMP, 1590P-PA01AP2SSBNBNPT

Husky 1590 PP Air Operated Double Diaphragm Plastic Pump, SS/BN/PT

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

$4,620.00

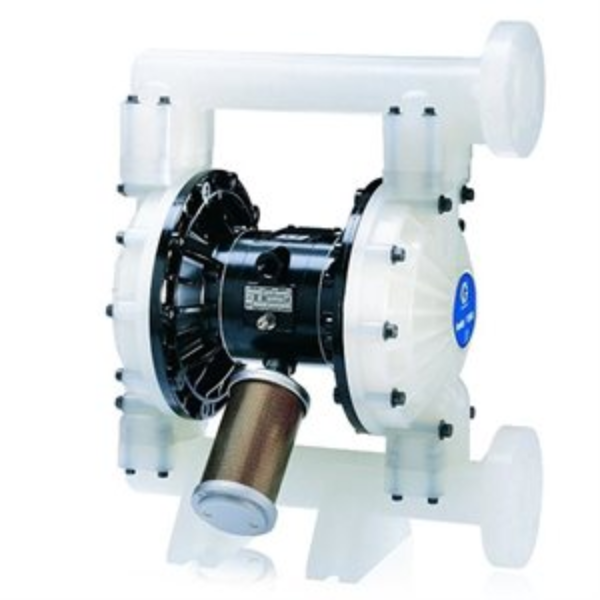

HUSKY PUMP, 1590P-PA01AP2SSPTPTPT

GG DB2311

HUSKY PUMP, 1590P-PA01AP2SSPTPTPT

Graco DB2311 Husky 1590 PP Air Operated Double Diaphragm Plastic Pump, SS/PT

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Call for pricing

HUSKY PUMP, 1590A- PA01AA1PPPTPTPT

GG DB3911

HUSKY PUMP, 1590A- PA01AA1PPPTPTPT

Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

$3,150.00

Husky Pump, 1040A-Pa01Aa1Sssdpt0

GG D73811

Husky Pump, 1040A-Pa01Aa1Sssdpt0

Call for pricing

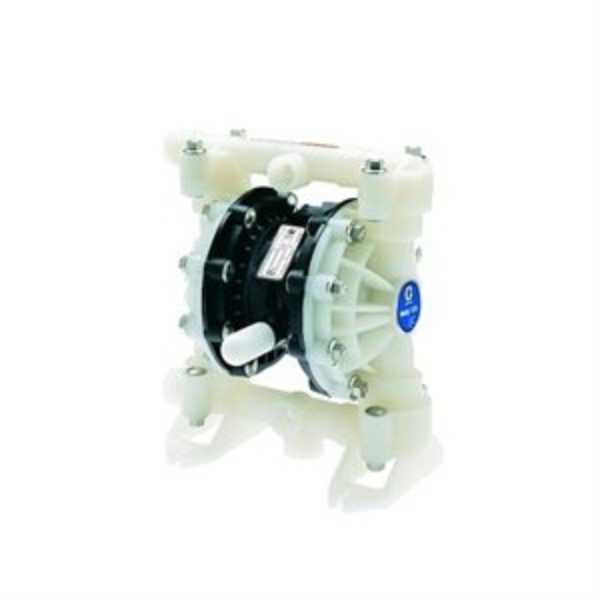

HUSKY PUMP, 515F-PP01AF4PVPTPTPT0

GG D5EA11

HUSKY PUMP, 515F-PP01AF4PVPTPTPT0

Graco D5EA11 Husky 515 PVDF 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, PVDF Seats, PTFE Balls & PTFE Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Center and end porting options.
No mechanical seals to cause fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
Split manifold option to pump multiple fluids without mixing
Delivery up to 15 gpm (56.7 lpm)
Easy-to-service air valve and ball checks
Reliable air valve for years of dependable performance

Model: Husky
Series: 515

Air Exhaust Port Size (in): 3/8
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: PTFE
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 1.27
Fluid Inlet Size (in): 1/2
Fluid Inlet Size (mm): 12.7
Fluid Inlet Thread Type: BSPT
Fluid Outlet Size (cm): 1.27
Fluid Outlet Size (in): 1/2
Fluid Outlet Size (mm): 12.7
Fluid Outlet Thread Type: BSPT
Fluid Section Material: PVDF (Kynar)
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: PVDF
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (MPa): 0.7
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 15
Maximum Flow Rate (L/min): 56.8
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 104
Maximum Operating Temperature (°F): 220
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40
Overall Height (in): 10.63
Power Source: Air

$2,120.00

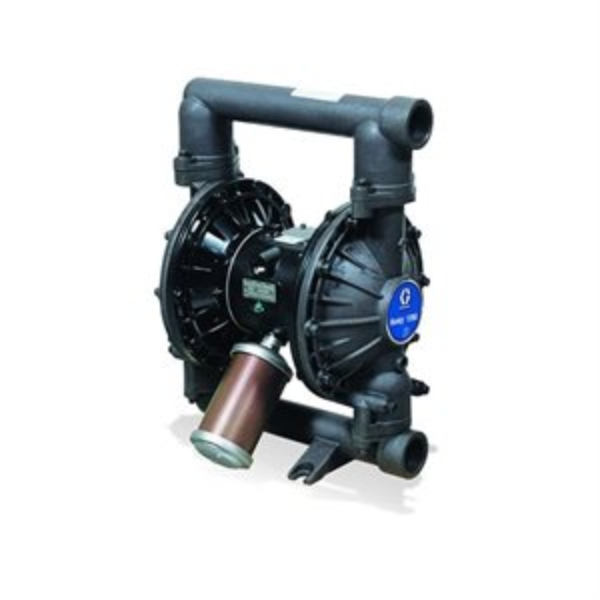

HUSKY PUMP, 1590A-PA01AA1BNBNBN

GG DB3777

HUSKY PUMP, 1590A-PA01AA1BNBNBN

Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, BN Seats, BN Balls & BN Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

$1,975.00

HUSKY PUMP, 1590A-PA01AA1FKFKFK

GG DB3888

HUSKY PUMP, 1590A-PA01AA1FKFKFK

Graco DB3888 Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, FKM Seats, FKM Balls & FKM Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Fluoroelastomer
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: FKM
Diaphragm Material: Fluoroelastomer
Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: End Port
Material: Aluminum
Maximum Air Consumption (SCFM): 125
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 200
Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.4763
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.763
Power Source: Air

$3,100.00

Husky Pump, 1040A-Pa01Aa1Sssdpt0

GG D73331

Husky Pump, 1040A-Pa01Aa1Sssdpt0

$2,400.00

1In Dia Pump, Alu, Sst/tef/tef

GG D73311

1In Dia Pump, Alu, Sst/tef/tef

$2,400.00

HUSKY PUMP, 716S-PP01AS2SSPTPTPT0

GG D5D311

HUSKY PUMP, 716S-PP01AS2SSPTPTPT0

Graco D5D311 Husky 716 SS Air Operated Double Diaphragm Metal Pump with BSP Standard Air Valve, SS Seat, PTFE Ball, & PTFE Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting
No mechanical seals which causes fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Model: Husky
Series: 716

Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: PTFE
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Type: BSPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Type: BSPT
Fluid Section Material: Stainless Steel
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: Stainless Steel
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 6.9
Maximum Air Pressure (kPa): 690
Maximum Air Pressure (MPa): 0.69
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 16
Maximum Flow Rate (L/min): 60.6
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 107
Maximum Operating Temperature (°F): 225
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40
Power Source: Air

$2,760.00

Husky Pump, 1590A-PA01AA1SPSPSPPT

GG DB3666

Husky Pump, 1590A-PA01AA1SPSPSPPT

Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

$2,090.00

HUSKY PUMP, 1590A-PA01AA1PPSPSPPT

GG DB3966

HUSKY PUMP, 1590A-PA01AA1PPSPSPPT

Graco DB3966 Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, PP Seats, SP Balls & SP Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Santoprene
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: Santoprene
Diaphragm Material: Santoprene
Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 125
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 200
Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.4763
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.763
Power Source: Air

Call for pricing

HUSKY PUMP, 1590S-PA01AS1SSPTPTPT

GG DB4311

HUSKY PUMP, 1590S-PA01AS1SSPTPTPT

Graco DB4311 Husky 1590 SS Air Operated Double Diaphragm Metal Pump, SS/PT

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: PTFE
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Stainless Steel
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Stainless Steel
Maximum Air Consumption (SCFM): 125
Maximum Air Pressure (bar): 8.27
Maximum Air Pressure (kPa): 827
Maximum Air Pressure (MPa): 0.827
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 200
Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379
Maximum Fluid Pressure (bar): 8.27
Maximum Fluid Pressure (kPa): 827
Maximum Fluid Pressure (MPa): 0.827
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8.27
Maximum Fluid Pressure (kPa): 827
Maximum Fluid Pressure (MPa): 0.827
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.4763
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.763
Power Source: Air

$7,130.00

HUSKY PUMP, 1590A, SS/PT/PT/PT

GG DBC311

HUSKY PUMP, 1590A, SS/PT/PT/PT

Graco DBC311 Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, SP with FKM Seal Seats, SS Seats, PTFE Balls & PTFE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: PTFE
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Type: BSPT
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Type: BSPT
Fluid Section Material: Aluminum
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 125
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 200
Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 82
Maximum Operating Temperature (°F): 180
Maximum Solid Size (cm): 0.4763
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.763
Overall Height (in): 19.6
Power Source: Air

$3,310.00

HUSKY PUMP, 1590S-PA01AS1SPSPSPPT

GG DB4666

HUSKY PUMP, 1590S-PA01AS1SPSPSPPT

Husky 1590 SS 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

$6,260.00

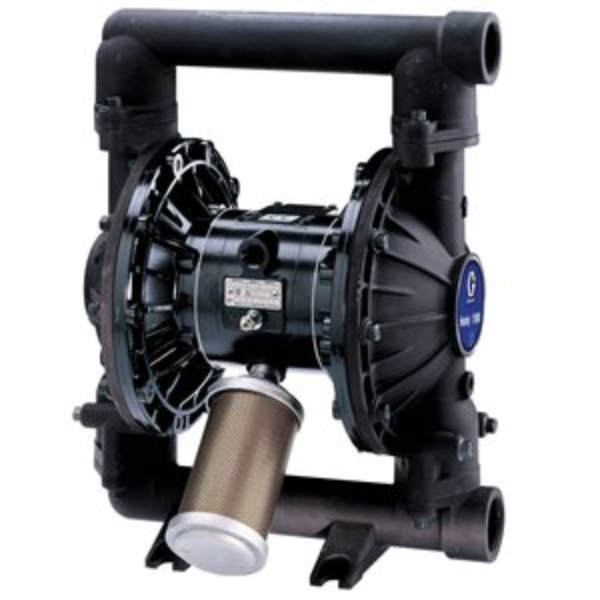

HUSKY PUMP, 1590A-PA01AA2GEGEGEPT

GG DBCGGG

HUSKY PUMP, 1590A-PA01AA2GEGEGEPT

Graco DBCGGG Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Geolast
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: Geolast
Diaphragm Material: Geolast
Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Type: BSPT
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Type: BSPT
Fluid Section Material: Aluminum
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 125
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 200
Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.4763
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.763
Overall Height (in): 19.6
Power Source: Air

$2,090.00

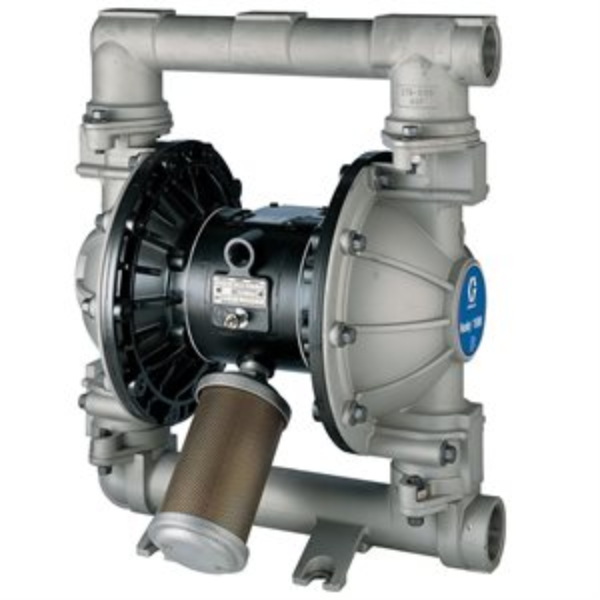

HUSKY PUMP, 1590S-PA01AS5-1SSPTPTPT

GG DBR311

HUSKY PUMP, 1590S-PA01AS5-1SSPTPTPT

Husky 1590 SS AODD Metal Pump with AL Air Motor, Standard Air Valve, 316 SS Seat

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

$7,770.00

HUSKY PUMP, 2150P-PA01AP2SPSPSPPT

GG DF2666

HUSKY PUMP, 2150P-PA01AP2SPSPSPPT

Husky 2150 PP 2 in. (51 mm) NPT Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

$7,050.00

HUSKY PUMP, 1590A-PA01AA1GEGEGEPT

GG DB3GGG

HUSKY PUMP, 1590A-PA01AA1GEGEGEPT

Graco DB3GGG Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Geolast
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: Geolast
Diaphragm Material: Geolast
Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 125
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 200
Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.4763
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.763
Power Source: Air

$1,980.00

HUSKY PUMP, 2150P-PA01AP2PPPTPTPT

GG DF2911

HUSKY PUMP, 2150P-PA01AP2PPPTPTPT

Graco DF2911 Husky 2150 PP 2 in. (51 mm) NPT Standard Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient)
Highest fluid flow rate in its class
Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
2 in. (51 mm) ANSI end-porting
Fluid flow up to 150 gpm (568 lpm)
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Epoxy-coated air section for tough environmental conditions
Available in aluminum, 316 stainless steel, ductile iron and polypropylene

Model: Husky
Series: 2150

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: PTFE
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 5.08
Fluid Inlet Size (in): 2
Fluid Inlet Size (mm): 50.8
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 5.08
Fluid Outlet Size (in): 2
Fluid Outlet Size (mm): 50.8
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Polypropylene
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Polypropylene
Maximum Air Consumption (SCFM): 175
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 145
Maximum Flow Rate (GPM): 150
Maximum Flow Rate (L/min): 568
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.635
Maximum Solid Size (in): 0.25
Maximum Solid Size (mm): 6.35
Overall Height (in): 25.7
Power Source: Air

$7,440.00

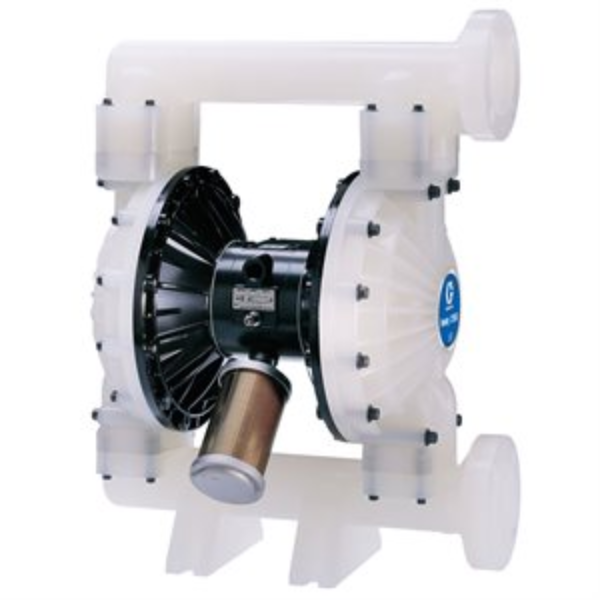

HUSKY PUMP, 2150P-PA01AP2PPSPSPPT

GG DF2966

HUSKY PUMP, 2150P-PA01AP2PPSPSPPT

Graco DF2966 Husky 2150 PP 2 in. (51 mm) NPT Standard Pump, AL Center Section, PP Seats, SP Balls & SP Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient)
Highest fluid flow rate in its class
Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
2 in. (51 mm) ANSI end-porting
Fluid flow up to 150 gpm (568 lpm)
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Epoxy-coated air section for tough environmental conditions
Available in aluminum, 316 stainless steel, ductile iron and polypropylene

Model: Husky
Series: 2150

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Santoprene
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: Santoprene
Diaphragm Material: Santoprene
Fluid Inlet Size (cm): 5.08
Fluid Inlet Size (in): 2
Fluid Inlet Size (mm): 50.8
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 5.08
Fluid Outlet Size (in): 2
Fluid Outlet Size (mm): 50.8
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Polypropylene
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Polypropylene
Maximum Air Consumption (SCFM): 175
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 145
Maximum Flow Rate (GPM): 150
Maximum Flow Rate (L/min): 568
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.635
Maximum Solid Size (in): 0.25
Maximum Solid Size (mm): 6.35
Power Source: Air

$6,910.00

HUSKY PUMP, 1590S-PA01AS1SSSDPTPT

GG DB4341

HUSKY PUMP, 1590S-PA01AS1SSSDPTPT

Graco DB4341 Husky 1590 SS 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SS Seats, Hardened SS Balls & PTFE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: 440C Stainless Steel
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Stainless Steel
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Stainless Steel
Maximum Air Consumption (SCFM): 125
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 200
Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.4763
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.763
Power Source: Air

$7,480.00

HUSKY PUMP, 1590A-PA01AA2SPSPSPPT

GG DBC666

HUSKY PUMP, 1590A-PA01AA2SPSPSPPT

Graco DBC666 Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Santoprene
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: Santoprene
Diaphragm Material: Santoprene
Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Type: BSPT
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Type: BSPT
Fluid Section Material: Aluminum
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 125
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 200
Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 82
Maximum Operating Temperature (°F): 180
Maximum Solid Size (cm): 0.4763
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.763
Overall Height (in): 19.6
Power Source: Air

$2,210.00

HUSKY PUMP, 2150A-PA01AA1SSPTPTPT

GG DF3311

HUSKY PUMP, 2150A-PA01AA1SSPTPTPT

Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, SS Seats, PTFE Balls & PTFE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

$4,240.00

HUSKY PUMP, 2150A-PA01AA1SSBNBNPT

GG DF3377

HUSKY PUMP, 2150A-PA01AA1SSBNBNPT

Graco DF3377 Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, SS Seats, BN Balls & BN Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient)
Highest fluid flow rate in its class
Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
2 in. (51 mm) ANSI end-porting
Fluid flow up to 150 gpm (568 lpm)
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Epoxy-coated air section for tough environmental conditions
Available in aluminum, 316 stainless steel, ductile iron and polypropylene

Model: Husky
Series: 2150

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Buna-N
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: Buna
Diaphragm Material: Buna-N
Fluid Inlet Size (cm): 5.08
Fluid Inlet Size (in): 2
Fluid Inlet Size (mm): 50.8
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 5.08
Fluid Outlet Size (in): 2
Fluid Outlet Size (mm): 50.8
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 175
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 145
Maximum Flow Rate (GPM): 150
Maximum Flow Rate (L/min): 568
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.635
Maximum Solid Size (in): 0.25
Maximum Solid Size (mm): 6.35
Power Source: Air

Call for pricing

HUSKY PUMP, 2150A-PA01AA1TPACTP

GG DF3525

HUSKY PUMP, 2150A-PA01AA1TPACTP

Graco DF3525 Husky 2150 AL Air Operated Double Diaphragm Metal Pump, TPE/AC

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient)
Highest fluid flow rate in its class
Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
2 in. (51 mm) ANSI end-porting
Fluid flow up to 150 gpm (568 lpm)
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Epoxy-coated air section for tough environmental conditions
Available in aluminum, 316 stainless steel, ductile iron and polypropylene

Model: Husky
Series: 2150

Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Acetal
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: TPE
Diaphragm Material: TPE (Hytrel)
Fluid Inlet Size (cm): 5.08
Fluid Inlet Size (in): 2
Fluid Inlet Size (mm): 50.8
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 5.08
Fluid Outlet Size (in): 2
Fluid Outlet Size (mm): 50.8
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: End Port
Material: Aluminum
Maximum Air Consumption (SCFM): 175
Maximum Air Pressure (bar): 8.27
Maximum Air Pressure (kPa): 827
Maximum Air Pressure (MPa): 0.827
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 145
Maximum Flow Rate (GPM): 150
Maximum Flow Rate (L/min): 568
Maximum Fluid Pressure (bar): 8.27
Maximum Fluid Pressure (kPa): 827
Maximum Fluid Pressure (MPa): 0.827
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8.27
Maximum Fluid Pressure (kPa): 827
Maximum Fluid Pressure (MPa): 0.827
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.635
Maximum Solid Size (in): 0.25
Maximum Solid Size (mm): 6.35
Power Source: Air

$2,530.00

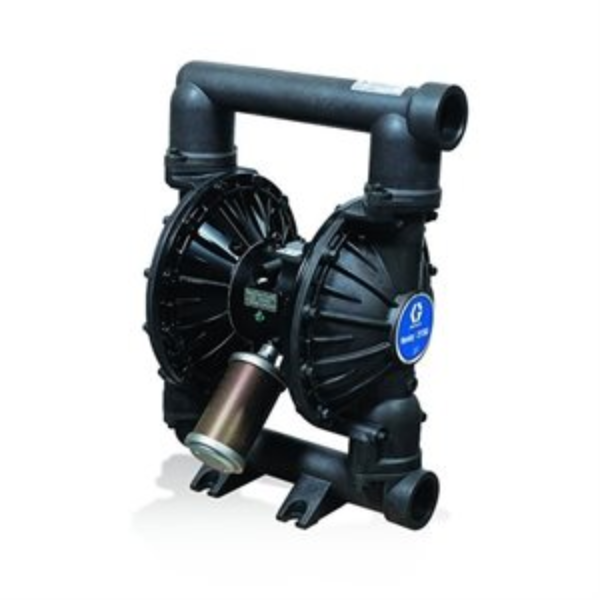

HUSKY PUMP, 2150A-PA01AA1TPTPTP

GG DF3555

HUSKY PUMP, 2150A-PA01AA1TPTPTP

Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, TPE Seats, TPE Balls & TPE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

$2,530.00

HUSKY PUMP, 2150A-PA01AA1SPPTSPPT

GG DF3616

HUSKY PUMP, 2150A-PA01AA1SPPTSPPT

Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, SP Seats, PTFE Balls & SP Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

$2,730.00

HUSKY PUMP, 2150A-PA01AA1SPSPSPPT

GG DF3666

HUSKY PUMP, 2150A-PA01AA1SPSPSPPT

Husky 2150 AL AODD Metal Pump with NPT Standard Air Valve, SP Seat, SP Ball, & SP Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

$2,530.00

HUSKY PUMP, 2150A-PA01AA1BNBNBN

GG DF3777

HUSKY PUMP, 2150A-PA01AA1BNBNBN

Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, BN Seats, BN Balls & BN Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

$2,530.00

HUSKY PUMP, 2150A-PA01AA1FKFKFK

GG DF3888

HUSKY PUMP, 2150A-PA01AA1FKFKFK

Husky 2150 Al 2 in. (51 mm) NPT Standard Pump, AL Center Section, FKM Seats, FKM Balls & FKM Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

$4,240.00

HUSKY PUMP, 2150A-PA01AA1PPPTPTPT

GG DF3911

HUSKY PUMP, 2150A-PA01AA1PPPTPTPT

Graco DF3911 Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient)
Highest fluid flow rate in its class
Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
2 in. (51 mm) ANSI end-porting
Fluid flow up to 150 gpm (568 lpm)
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Epoxy-coated air section for tough environmental conditions
Available in aluminum, 316 stainless steel, ductile iron and polypropylene

Model: Husky
Series: 2150

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: PTFE
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 5.08
Fluid Inlet Size (in): 2
Fluid Inlet Size (mm): 50.8
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 5.08
Fluid Outlet Size (in): 2
Fluid Outlet Size (mm): 50.8
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 175
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 145
Maximum Flow Rate (GPM): 150
Maximum Flow Rate (L/min): 568
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 93
Maximum Operating Temperature (°F): 200
Maximum Solid Size (cm): 0.635
Maximum Solid Size (in): 0.25
Maximum Solid Size (mm): 6.35
Power Source: Air

$3,580.00

HUSKY PUMP, 2150A-PA01AA1GEGEGEPT

GG DF3GGG

HUSKY PUMP, 2150A-PA01AA1GEGEGEPT

Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

$2,530.00

Husky Pump 2150S-PA01AS1SSPTPTPT

GG DF4311

Husky Pump 2150S-PA01AS1SSPTPTPT

Husky 2150 SS 2 in. (51 mm) NPT Standard Pump, AL Center Section, SS Seats, PTFE Balls & PTFE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

$10,260.00

HUSKY PUMP, 2150I-PA01AI1SSPTPTPT

GG DF6311

HUSKY PUMP, 2150I-PA01AI1SSPTPTPT

Husky 2150 Cast Iron Air Operated Double Diaphragm Metal Pump

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

$5,080.00

Husky Pump, 2150I-Pa01Ai1Ssspsppt

GG DF6366

Husky Pump, 2150I-Pa01Ai1Ssspsppt

Call for pricing

Kit, Diaphragm, Sb, Ffkm, Col

GG DK-131

Kit, Diaphragm, Sb, Ffkm, Col

Call for pricing

HUSKY PUMP, 2150A-PA01AA2PPPTPTPT

GG DFC911

HUSKY PUMP, 2150A-PA01AA2PPPTPTPT

Husky 2150 AL 2 in. (51 mm) BSP Standard Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

$3,590.00

HUSKY PUMP, 2150S-PS01AS1SSPTPTPT

GG DV4311

HUSKY PUMP, 2150S-PS01AS1SSPTPTPT

Husky 2150 SS 2 in. (51 mm) NPT Standard Pump, SS Center Section, SS Seats, PTFE Balls & PTFE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

$12,260.00

E-FLO PUMP, 1HP, 750, ADV, TRI, SLD, WALL

GG EC1B42

E-FLO PUMP, 1HP, 750, ADV, TRI, SLD, WALL

Graco EC1B42 E-Flo DC 4-Ball Electric Circulation Pump, 750cc, 1 HP, 480V, Advanced, ATEX/FM/IECEx, Sealed Lower, Ultralife Rod/Cylinder, Tri-Clamp, Wall

E-Flo DC (Dual Control) electric pumps are up to five times more efficient than pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation while increasing flow rates. Advanced control module improves performance with Intelligent Paint Kitchen (IPK) compatibility.

Advanced model lets you easily connect and manage multiple pumps with a single control module.
Quiet electric motor exceeds OSHA sound regulations, meaning happier operators and better results.
Sealed lower does not require throat seal liquid (TSL), reducing maintenance costs and unplanned downtime.
Meets requirements of these approval agencies: ATEX, FM, IECEx
Lower operates independently, allowing the pump to adjust to varying pressure and flow rate demands thousands of times per second.

Fluid Inlet Size (in): 1.5
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: Tri-Clamp
Fluid Inlet Type: Tri-Clamp

Fluid Outlet Size (in): 1.5
Fluid Outlet Size (mm): 3.81
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: Tri-Clamp
Fluid Section Type: 4-Ball, Sealed Bellows
Includes: Advanced Control Input, Wall Mount
Maximum Continuous Cycle Rate (CPM): 20
Maximum Operating Temperature (°C): 40
Maximum Operating Temperature (°F): 104
Maximum Voltage (V ac): 480
Maximum Working Pressure (bar): 26
Maximum Working Pressure (kPa): 2600
Maximum Working Pressure (MPa): 2.6
Maximum Working Pressure (psi): 377
Minimum Operating Temperature (°C): 0
Minimum Operating Temperature (°F): 32
Minimum Voltage (V ac): 380
Overall Depth (cm): 50.5
Overall Depth (in): 19.88
Overall Depth (mm): 505
Overall Height (cm): 138.5
Overall Height (in): 54.53
Overall Height (mm): 1385
Overall Width (cm): 43.2
Overall Width (in): 17
Overall Width (mm): 432

$21,710.00

E-FLO PUMP, 1HP, 1000, ADV, TRI, SLD, STND

GG EC2241

E-FLO PUMP, 1HP, 1000, ADV, TRI, SLD, STND

E-Flo DC 4-Ball Electric Circulation Pump, 1000cc, 1 HP, Advanced, ATEX/FM/IECEx, Sealed, Ultralife Rod/Cylinder, Tri-Clamp, Stand E-Flo DC (Dual Control) electric pumps are up to five times more efficient than pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation while increasing flow rates. Advanced control module improves performance with Intelligent Paint Kitchen (IPK) compatibility. Sealed lower has longer maintenance cycles, plus it can be used for every pumping application in your mix room, including catalyzed coatings Minimal pulsation at changeover provides a more consistent finish Electric motor eliminates icing – giving you smoother pump operation and better finished product Quiet electric motor improves your work environment allowing you to remain near the pump for longer periods of time

$20,370.00

HUSKY PUMP, 2150I-PA01AI1SPSPSPPT

GG DF6666

HUSKY PUMP, 2150I-PA01AI1SPSPSPPT

Graco DF6666 Husky 2150 Cast Iron Air Operated Double Diaphragm Metal Pump

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient)
Highest fluid flow rate in its class
Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
2 in. (51 mm) ANSI end-porting
Fluid flow up to 150 gpm (568 lpm)
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Epoxy-coated air section for tough environmental conditions
Available in aluminum, 316 stainless steel, ductile iron and polypropylene

Model: Husky
Series: 2150

Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Santoprene
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: Santoprene
Diaphragm Material: Santoprene
Fluid Inlet Size (cm): 5.08
Fluid Inlet Size (in): 2
Fluid Inlet Size (mm): 50.8
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 5.08
Fluid Outlet Size (in): 2
Fluid Outlet Size (mm): 50.8
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Ductile Iron
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Ductile Iron
Maximum Air Consumption (SCFM): 175
Maximum Air Pressure (bar): 8.27
Maximum Air Pressure (kPa): 827
Maximum Air Pressure (MPa): 0.827
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 145
Maximum Flow Rate (GPM): 150
Maximum Flow Rate (L/min): 568
Maximum Fluid Pressure (bar): 8.27
Maximum Fluid Pressure (kPa): 827
Maximum Fluid Pressure (MPa): 0.827
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8.27
Maximum Fluid Pressure (kPa): 827
Maximum Fluid Pressure (MPa): 0.827
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.635
Maximum Solid Size (in): 0.25
Maximum Solid Size (mm): 6.35
Power Source: Air

$4,030.00

HUSKY PUMP, 2150A-PA01AA2SSSDPTPT

GG DFC341

HUSKY PUMP, 2150A-PA01AA2SSSDPTPT

Graco DFC341 Husky 2150 AL 2 in. (51 mm) BSP Standard Pump, AL Center Section, SS Seats, Hardened SS Balls & PTFE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient)
Highest fluid flow rate in its class
Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
2 in. (51 mm) ANSI end-porting
Fluid flow up to 150 gpm (568 lpm)
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Epoxy-coated air section for tough environmental conditions
Available in aluminum, 316 stainless steel, ductile iron and polypropylene

Model: Husky
Series: 2150

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: 440C Stainless Steel
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 5.08
Fluid Inlet Size (in): 2
Fluid Inlet Size (mm): 50.8
Fluid Inlet Thread Type: BSPT
Fluid Outlet Size (cm): 5.08
Fluid Outlet Size (in): 2
Fluid Outlet Size (mm): 50.8
Fluid Outlet Thread Type: BSPT
Fluid Section Material: Aluminum
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 175
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 145
Maximum Flow Rate (GPM): 150
Maximum Flow Rate (L/min): 568
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 93
Maximum Operating Temperature (°F): 200
Maximum Solid Size (cm): 0.635
Maximum Solid Size (in): 0.25
Maximum Solid Size (mm): 6.35
Power Source: Air

$4,720.00

E-FLO PUMP, 2HP, 1500, ADV, TRI, SLD, STND

GG EC3441

E-FLO PUMP, 2HP, 1500, ADV, TRI, SLD, STND

E-Flo DC 4-Ball Electric Circulation Pump, 1500cc, 2 HP, Advanced, ATEX/FM/IECEx, Sealed, Ultralife Rod/Cylinder, Tri-Clamp, Stand E-Flo DC (Dual Control) electric pumps are up to five times more efficient than pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation while increasing flow rates. Advanced control module improves performance with Intelligent Paint Kitchen (IPK) compatibility. Sealed lower has longer maintenance cycles, plus it can be used for every pumping application in your mix room, including catalyzed coatings Minimal pulsation at changeover provides a more consistent finish Electric motor eliminates icing – giving you smoother pump operation and better finished product Quiet electric motor improves your work environment allowing you to remain near the pump for longer periods of time

$30,570.00

Kit, Seal, Cylinder Part 030007

GG DM800K

Kit, Seal, Cylinder Part 030007

$185.00

HUSKY PUMP, 2150A-PA01AA2SSPTPTPT

GG DFC311

HUSKY PUMP, 2150A-PA01AA2SSPTPTPT

Husky 2150 AL Air Operated Double Diaphragm Metal Pump

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

$4,410.00

E-FLO PUMP, 1HP, 750, ADV, TRI, SLD, STD

GG EC1B41

E-FLO PUMP, 1HP, 750, ADV, TRI, SLD, STD

Graco EC1B41 E-Flo DC 4-Ball Electric Circulation Pump, 750cc, 1 HP, 480V, Advanced, ATEX/FM/IECEx, Sealed Lower, Ultralife Rod/Cylinder, Tri-Clamp, Stand

Advanced model lets you easily connect and manage multiple pumps with a single control module.
Minimal pulsation at changeover provides a more consistent finish.
Sealed lower does not require throat seal liquid (TSL), reducing maintenance costs and unplanned downtime.
Installation simply requires 220 volt single phase power. No VFD (variable frequency drive) needed.
Meets requirements of these approval agencies: ATEX, FM, IECEx

Fluid Inlet Size (in): 1.5
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: Tri-Clamp
Fluid Inlet Type: Tri-Clamp

Fluid Outlet Size (in): 1.5
Fluid Outlet Size (mm): 3.81
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: Tri-Clamp
Fluid Section Type: 4-Ball, Sealed Bellows
Includes: Advanced Control Input, Stand
Maximum Continuous Cycle Rate (CPM): 20
Maximum Operating Temperature (°C): 40
Maximum Operating Temperature (°F): 104
Maximum Voltage (V ac): 480
Maximum Working Pressure (bar): 26
Maximum Working Pressure (kPa): 2600
Maximum Working Pressure (MPa): 2.6
Maximum Working Pressure (psi): 377
Minimum Operating Temperature (°C): 0
Minimum Operating Temperature (°F): 32
Minimum Voltage (V ac): 380
Overall Depth (cm): 50.5
Overall Depth (in): 19.88
Overall Depth (mm): 505
Overall Height (cm): 147.3
Overall Height (in): 57.99
Overall Height (mm): 1473
Overall Width (cm): 43.2
Overall Width (in): 17
Overall Width (mm): 432

$20,860.00

Kit, Diaphragm, Sb, Fkm, Con

GG DK-122

KIT,DIAPHRAGM,SB,FKM,CON

$720.00

Kit, Diaphragm, Sb, Ffkm, Con

GG DK-132

Kit, Diaphragm, Sb, Ffkm, Con

$920.00

HUSKY PUMP, 2150C-PA01AC2PPPTPTPT

GG DFA911

HUSKY PUMP, 2150C-PA01AC2PPPTPTPT

Husky 2150 Conductive PP Air Operated Double Diaphragm Plastic Pump, PP/PT

$9,600.00

Husky Pump, 2150S-Pa01As5-1Ssptptpt

GG DFR311

Husky Pump, 2150S-Pa01As5-1Ssptptpt

$11,250.00

E-FLO PUMP, 1HP, 750, BSC, TRI, SLD, WALL

GG EC1142

E-FLO PUMP, 1HP, 750, BSC, TRI, SLD, WALL

Graco EC1142 E-Flo DC 4-Ball Electric Circulation Pump, 750cc, 1 HP, Basic, ATEX/FM/IECEx, Sealed, Ultralife Rod/Cylinder, Tri-Clamp, Wall

The E-Flo DC (Dual Control) electric circulating pump has been found to be up to five times more efficient than similar sized pneumatic pumps – lowering your energy bill and saving you money

Sealed lower has longer maintenance cycles, plus it can be used for every pumping application in your mix room, including catalyzed coatings
Minimal pulsation at changeover provides a more consistent finish
Electric motor eliminates icing – giving you smoother pump operation and better finished product

Model: E-Flo
Series: DC 4-Ball

Application: Circulation
Compatible Material: Solvent borne, High Solids, Xirallic, Metallics, Varnish, CARC
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Section Type: Sealed
Includes: Basic Control, Wall Mount
Input Voltage (V ac): 250
Material: Stainless Steel
Maximum Continuous Cycle Rate (CPM): 20
Maximum Flow Rate (GPM): 4
Maximum Flow Rate (L/min): 15.14
Maximum Input Amperage (A): 20
Maximum Operating Temperature (°C): 40
Maximum Operating Temperature (°F): 104
Maximum Working Pressure (bar): 20.7
Maximum Working Pressure (kPa): 2070
Maximum Working Pressure (MPa): 2.1
Maximum Working Pressure (psi): 300
Minimum Operating Temperature (°C): 0
Minimum Operating Temperature (°F): 32
Motor Type: AC
Portable: Non-Portable
Power Rating (HP): 1

Call for pricing

HUSKY PUMP, 21501-PA01A12GEGEGEPT

GG DFFGGG

HUSKY PUMP, 21501-PA01A12GEGEGEPT

$5,520.00

Husky Pump, 2150S-Ps01As5-1Ssptptpt

GG DVR311

Husky Pump, 2150S-Ps01As5-1Ssptptpt

$13,340.00

HUSKY PUMP, 2150A-PA01AA2SPSPSPPT

GG DFC666

HUSKY PUMP, 2150A-PA01AA2SPSPSPPT

Husky 2150 AL Air Operated Double Diaphragm Metal Pump, SP/PT

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

$2,710.00

HUSKY PUMP, 2150A-PA01AA2GEGEGEPT

GG DFCGGG

HUSKY PUMP, 2150A-PA01AA2GEGEGEPT

Husky 2150 AL Air Operated Double Diaphragm Metal Pump

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

$2,660.00

HUSKY PUMP, 1590S-PS01AS1SSPTPTPT

GG DT4311

HUSKY PUMP, 1590S-PS01AS1SSPTPTPT

Husky 1590 SS Air Operated Double Diaphragm Metal Pump, SS/PT

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

$10,280.00

E-FLO PUMP, 2HP, 1500, ADV, TRI, SLD, STND

GG EC3D41

E-FLO PUMP, 2HP, 1500, ADV, TRI, SLD, STND

E-Flo DC 4-Ball Electric Circulation Pump, 1500cc, 2 HP, 480V, Advanced, ATEX/FM/IECEx, Sealed Lower, Ultralife Rod/Cylinder, Tri-Clamp, Stand E-Flo DC (Dual Control) electric pumps are up to five times more efficient than pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation while increasing flow rates. Advanced control module improves performance with Intelligent Paint Kitchen (IPK) compatibility. Advanced model lets you easily connect and manage multiple pumps with a single control module. Quiet electric motor exceeds OSHA sound regulations, meaning happier operators and better results. Sealed lower does not require throat seal liquid (TSL), reducing maintenance costs and unplanned downtime. Ultralife ceramic coatings on rod and cylinder hold up to the harshest materials, including waterborne. Lower operates independently, allowing the pump to adjust to varying pressure and flow rate demands thousands of times per second. Installation simply requires 220 volt single phase power. No VFD (variable frequency drive) needed.

$30,230.00

E-FLO PUMP, 1HP, 750, ADV, TRI, SLD

GG EC1B40

E-FLO PUMP, 1HP, 750, ADV, TRI, SLD

Graco EC1B40 E-Flo DC 4-Ball Electric Circulation Pump, 750cc, 1 HP, 480V, Advanced, ATEX/FM/IECEx, Sealed Lower, Ultralife Rod/Cylinder, Tri-Clamp

Advanced model lets you easily connect and manage multiple pumps with a single control module.
Integrated runaway protection prevents pump from premature wear and costly material loss.
Sealed lower does not require throat seal liquid (TSL), reducing maintenance costs and unplanned downtime.
Meets requirements of these approval agencies: ATEX, FM, IECEx
Pump can run alone to keep production running, if lower maintenance is required.

Fluid Inlet Size (in): 1.5
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: Tri-Clamp
Fluid Inlet Type: Tri-Clamp

Fluid Outlet Size (in): 1.5
Fluid Outlet Size (mm): 3.81
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: Tri-Clamp
Fluid Section Type: 4-Ball, Sealed Bellows
Includes: Advanced Control Input, No Mounting
Maximum Continuous Cycle Rate (CPM): 20
Maximum Operating Temperature (°C): 40
Maximum Operating Temperature (°F): 104
Maximum Voltage (V ac): 480
Maximum Working Pressure (bar): 26
Maximum Working Pressure (kPa): 2600
Maximum Working Pressure (MPa): 2.6
Maximum Working Pressure (psi): 377
Minimum Operating Temperature (°C): 0
Minimum Operating Temperature (°F): 32
Minimum Voltage (V ac): 380
Overall Depth (cm): 50.5
Overall Depth (in): 19.88
Overall Depth (mm): 505
Overall Height (cm): 138.5
Overall Height (in): 54.53
Overall Height (mm): 1385
Overall Width (cm): 43.2
Overall Width (in): 17
Overall Width (mm): 432

$19,930.00

E-FLO PUMP, 2HP, 1500, ADV, TRI, SLD, WALL

GG EC3D42

E-FLO PUMP, 2HP, 1500, ADV, TRI, SLD, WALL

Graco EC3D42 E-Flo DC 4-Ball Electric Circulation Pump, 1500cc, 2 HP, 480V, Advanced, ATEX/FM/IECEx, Sealed Lower, Ultralife Rod/Cylinder, Tri-Clamp, Wall

Advanced model lets you easily connect and manage multiple pumps with a single control module.
Integrated runaway protection prevents pump from premature wear and costly material loss.
Sealed lower does not require throat seal liquid (TSL), reducing maintenance costs and unplanned downtime.
Lower operates independently, allowing the pump to adjust to varying pressure and flow rate demands thousands of times per second.
Installation simply requires 220 volt single phase power. No VFD (variable frequency drive) needed.

Fluid Inlet Size (in): 1.5
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: Tri-Clamp
Fluid Inlet Type: Tri-Clamp

$32,040.00

E-Flo DC 4-Ball Electric Circulation Pump, 2000cc, 2 x 2 HP, 480V, Advanced, ATEX/FM/IECEx

GG EC4J41

E-Flo DC 4-Ball Electric Circulation Pump, 2000cc, 2 x 2 HP, 480V, Advanced, ATEX/FM/IECEx

$48,280.00

E-FLO PUMP, DC, 3000CC, SEALED

GG EC5941

E-FLO PUMP, DC, 3000CC, SEALED

Graco EC5941 E-Flo DC 4-Ball Electric Circulation Pump, 3000cc, 2x2 HP, Advanced, ATEX/FM/IECEx, Sealed, Ultralife Rod/Cylinder, Tri-Clamp, Stand

Sealed lower has longer maintenance cycles, plus it can be used for every pumping application in your mix room, including catalyzed coatings
Minimal pulsation at changeover provides a more consistent finish
Electric motor eliminates icing – giving you smoother pump operation and better finished product

Model: E-Flo
Series: DC 4-Ball

Application: Circulation
Compatible Material: Solvent borne, High Solids, Xirallic, Metallics, Varnish, CARC
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Section Type: Sealed
Includes: Advanced Control Input, Stand
Input Voltage (V ac): 240
Material: Stainless Steel
Maximum Continuous Cycle Rate (CPM): 20
Maximum Flow Rate (GPM): 15.9
Maximum Flow Rate (L/min): 60.19
Maximum Input Amperage (A): 20
Maximum Operating Temperature (°C): 40
Maximum Operating Temperature (°F): 104
Maximum Working Pressure (bar): 27.6
Maximum Working Pressure (kPa): 2760
Maximum Working Pressure (MPa): 2.8
Maximum Working Pressure (psi): 400
Minimum Operating Temperature (°C): 0
Minimum Operating Temperature (°F): 32
Motor Type: AC
Portable: Non-Portable
Power Rating (HP): 4

$45,900.00

E-FLO PUMP, 2HP, 1500, ADV, NPT, OPN

GG EC3D50

E-FLO PUMP, 2HP, 1500, ADV, NPT, OPN

Graco EC3D50 E-Flo DC 4-Ball Electric Circulation Pump, 1500cc, 2 HP, 480V, Advanced, ATEX/FM/IECEx, Open Wet Cup Lower, Ultralife Rod/Cylinder, NPT

Advanced model lets you easily connect and manage multiple pumps with a single control module.
Minimal pulsation at changeover provides a more consistent finish.
Open wet cup lower includes Ultralife ceramic coating for improved durability.
Installation simply requires 220 volt single phase power. No VFD (variable frequency drive) needed.
Meets requirements of these approval agencies: ATEX, FM, IECEx

Fluid Inlet Size (in): 1.5
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Inlet Type: NPT

Fluid Outlet Size (in): 1
Fluid Outlet Size (mm): 2.54
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Type: 4-Ball, Open Wet Cup
Includes: Advanced Control Input, No Mounting
Maximum Continuous Cycle Rate (CPM): 12
Maximum Operating Temperature (°C): 40
Maximum Operating Temperature (°F): 104
Maximum Voltage (V ac): 480
Maximum Working Pressure (bar): 26
Maximum Working Pressure (kPa): 2600
Maximum Working Pressure (MPa): 2.6
Maximum Working Pressure (psi): 377
Minimum Operating Temperature (°C): 0
Minimum Operating Temperature (°F): 32
Minimum Voltage (V ac): 380
Overall Depth (cm): 50.5
Overall Depth (in): 19.88
Overall Depth (mm): 505
Overall Height (cm): 115.6
Overall Height (in): 45.51
Overall Height (mm): 1156
Overall Width (cm): 43.2
Overall Width (in): 17
Overall Width (mm): 432

$29,810.00

Kit, Efr, Fitting Conn, E5

GG EKE005

Kit, Efr, Fitting Conn, E5

$240.00

E-FLO PUMP, DC, X2, 4000CC, SEALED

GG EC6J41

E-FLO PUMP, DC, X2, 4000CC, SEALED

E-Flo DC 4-Ball Electric Circulation Pump, 4000cc, 2 x 2 HP, 480V, Advanced, ATEX/FM/IECEx, Sealed Lower, Ultralife Rod/Cylinder, Tri-Clamp, Stand E-Flo DC (Dual Control) electric pumps are up to five times more efficient than pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation while increasing flow rates. Advanced control module improves performance with Intelligent Paint Kitchen (IPK) compatibility. Advanced model lets you easily connect and manage multiple pumps with a single control module. Minimal pulsation at changeover provides a more consistent finish. Sealed lower does not require throat seal liquid (TSL), reducing maintenance costs and unplanned downtime. Ultralife ceramic coatings on rod and cylinder hold up to the harshest materials, including waterborne. Lower operates independently, allowing the pump to adjust to varying pressure and flow rate demands thousands of times per second. Pump can run alone to keep production running, if lower maintenance is required.

$47,060.00

Kit, EFR, Fitting Conn, H3

GG EKH003

Kit, EFR, Fitting Conn, H3

$240.00

EFR SYSTEM, 240V, ADM, 50, 100, CS

GG EFR2AJRC

EFR SYSTEM, 240V, ADM, 50, 100, CS

Graco EFR2AJRC 2:1 EFR Metering System 240 Volt with 50cc Low Volume and 100cc High Volume Z pumps Carbon Steel Manifold

The Graco Electric Fixed Ratio (EFR) system is a meter, mix and dispense system for two component sealant and adhesive delivery. Ideal for applications requiring precision dispense, the EFR provides superior control over material and dispensing of gaskets, beads, shots and potting applications. Trust in the EFR, which is accurate, versatile and easy to use.

Model: EFR

Call for pricing

Kit, Efr, Fitting Conn, H4

GG EKH004

Kit, Efr, Fitting Conn, H4

$240.00

Kit, EFR, Fitting Conn, N3

GG EKN003

Kit, EFR, Fitting Conn, N3

$510.00

Kit, Efr, Fitting Conn, H5

GG EKH005

Kit, Efr, Fitting Conn, H5

$240.00

Kit, Efr, Fitting Conn, N4

GG EKN004

Kit, Efr, Fitting Conn, N4

$515.00

Kit, Efr, Fitting Conn, N5

GG EKN005

Kit, Efr, Fitting Conn, N5

$510.00

Kit, Motor, 1Hp, Standard

GG EM0011

KIT, MOTOR,1HP, STANDARD

Graco EM0011 E-Flo DC Motor, 1 hp, Basic Controls, 220V, ATEX/FM/IECEX

$10,870.00

Kit, Motor, 1Hp, Advanced

GG EM0012

KIT, MOTOR,1HP, ADVANCED

Graco EM0012 E-Flo DC Motor, 1 hp, Advanced Controls, 220V, ATEX/FM/IECEX

$12,320.00

E-Flo DC Motor, 2 hp, Basic Controls, 340-480V, ATEX/FM/IECEX

GG EM1021

E-Flo DC Motor, 2 hp, Basic Controls, 340-480V, ATEX/FM/IECEX

$18,580.00

Kit, Motor, 2Hp, Advanced

GG EM1022

KIT,MOTOR,2HP,ADVANCED

Graco EM1022 E-Flo DC Motor, 2 hp, Advanced Controls, 340-480V, ATEX/FM/IECEX

$19,080.00

Kit, Motor, X2, 2Hp, Advanced

GG EM1025

KIT,MOTOR,X2,2HP,ADVANCED

$19,540.00

E-FLO SP 200L 6.5 IN 100 CC SEVERE DUTY CHECK-MATE CS ALUM PLATEN 480V

GG EMC1382

E-FLO SP 200L 6.5 IN 100 CC SEVERE DUTY CHECK-MATE CS ALUM PLATEN 480V

$50,280.00

E-FLO SP 200L 6.5 IN 100 CC SEVERE DUTY CHECK-MATE CS ALUM PLATEN 480V

GG EMC1384

E-FLO SP 200L 6.5 IN 100 CC SEVERE DUTY CHECK-MATE CS ALUM PLATEN 480V

$52,790.00

E-FLO SP SUPPLY UNIT, D60, CM100SM, SP, 240V, ADM

GG EMC4163

E-FLO SP SUPPLY UNIT, D60, CM100SM, SP, 240V, ADM

E-Flo SP 20L 3 in (7.6 cm) Supply, 100cc MaxLife® Check-Mate Stainless Steel, Flat Stainless Steel Platen, Single PTFE Wiper, 240V The E-Flo SP electric supply pump is designed for industrial and automotive sealant and adhesive application. This advanced pump will drastically increase efficiency, improve system control capabilities, optimize process performance, and provide critical performance data. Improve process and system performance Advanced material control Significant energy savings Eliminate compressed air usage Extremely quiet motor Prevent downtime Lower maintenance costs

$40,400.00

E-FLO SP SUPPLY UNIT, D60, CM200SM, SP, 240V, ADM

GG EMC8163

E-FLO SP SUPPLY UNIT, D60, CM200SM, SP, 240V, ADM

E-Flo SP 20L 3 in (7.6 cm) Supply, 200cc MaxLife® Check-Mate Stainless Steel, Flat Stainless Steel Platen, Single PTFE Wiper, 240V The E-Flo SP electric supply pump is designed for industrial and automotive sealant and adhesive application. This advanced pump will drastically increase efficiency, improve system control capabilities, optimize process performance, and provide critical performance data. Improve process and system performance Advanced material control Significant energy savings Eliminate compressed air usage Extremely quiet motor Prevent downtime Lower maintenance costs

$48,160.00

E-Flo Sp Supply Unit, D200, Cm200Ss, Pt, 240V, Adm

GG EMC7273

E-FLO SP SUPPLY UNIT,D200,CM200SS,PT,240V,ADM

Graco EMC7273 E-Flo SP 200L 3 in. Supply, 200cc Severe Duty Check-Mate Stainless Steel, PTFE Coated Platen, Dual EPDM Wiper, 240V

$32,520.00

E-FLO SP SUPPLY UNIT, D60, CM200SM, SP, 480V, ADM

GG EMC8164

E-FLO SP SUPPLY UNIT, D60, CM200SM, SP, 480V, ADM

Graco EMC8164 E-Flo SP 20L 3 in. Supply, 200cc MaxLife® Check-Mate Stainless Steel, Flat Stainless Steel Platen, Single PTFE Wiper, 480V

The E-Flo SP electric supply pump is designed for industrial and automotive sealant and adhesive application. This advanced pump will drastically increase efficiency, improve system control capabilities, optimize process performance, and provide critical performance data.

Improve process and system performance
Advanced material control
Significant energy savings
Extremely quiet motor
Prevent downtime
Lower maintenance costs

Display Type: ADM
Drum Size (Gal): 5
Drum Size (L): 20

Maximum Working Pressure (psi): 3900
Platen Material: Stainless Steel
Platen Size (Gal): 5
Platen Size (L): 20
Platen Style: Single Wiper
Pump Material: Stainless Steel Maxlife
Pump Size (cc): 200
Pump Type: Check-Mate
Ram Post Diameter (in): 3

$52,990.00

COUPLER, AIR 3/4 QD (F), 3/4 NPT (M), BR

GG EQ1846

COUPLER, AIR 3/4 QD (F), 3/4 NPT (M), BR

Connection Type: Quick-Disconnect, Threaded

$56.50

RELAY, AIR PILOT, DEADMAN

GG EQ5179

RELAY, AIR PILOT, DEADMAN

$682.00

Switch, Reed, 5-120VAC/DC. LED&MOV

GG F0200043

Switch, Reed, 5-120VAC/DC. LED&MOV

$245.00

E-Flo Pump, 145Cc, Adv, Duraflo, Stand

GG ES7D61

E-Flo Pump, 145Cc, Adv, Duraflo, Stand

$22,080.00

Clamp, Reed, Clamp, Tie-Rod

GG F0200104

Clamp, Reed, Clamp, Tie-Rod

$85.50

SANIFORCE AODD PUMP, 1040FG-PA01AS13SSPTPTPT21

GG FA1111

SANIFORCE AODD PUMP, 1040FG-PA01AS13SSPTPTPT21

Graco FA1111 SaniForce 1040 S/S AODD Pump with 316 S/S Seats & PTFE O-Rings, Balls & Diaphragms

Graco’s SaniForce 1040 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco’s dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.

1.5 in (38 mm) Tri-clamp connection
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
High volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 10,000 cps
Suitable to pump such products as: concentrated fruit juices, sauces, pastes, starches, wine, food-grade oil, jams and jellies

Model: SaniForce
Series: 1040

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Sanitary
Ball Material: PTFE
Center Section Material: Aluminum
Compatible Material: Edible Oil, Food and Personal Care
Connection Type: Tri-Clamp
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE
Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1
Fluid Inlet Size (mm): 38.1
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1
Fluid Outlet Size (mm): 38.1
Fluid Section Material: 316L Stainless Steel
For Use With: Food and Personal Care
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Stainless Steel
Maximum Air Consumption (SCFM): 50
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 256
Maximum Flow Rate (GPM): 41
Maximum Flow Rate (L/min): 151
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Solid Size (cm): 0.3175
Maximum Solid Size (in): 0.125
Maximum Solid Size (mm): 3.175
Power Source: Pneumatic
Pump Ratio: 1:1

$5,050.00

LOWER, CHEMICAL, 020, SST, UCUP

GG L020S4

LOWER, CHEMICAL, 020, SST, UCUP

Graco L020S4 Z-Pump, 20 cc, Severe Duty, S4

Z-Pumps are positive displacement pump components for use with the Graco and meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.

Severe Duty coatings and 1/2 inch (1.27 cm) checks easily manage material wear from silicones, sealants, epoxies, and structural adhesives.
Precision control eliminates pressure spikes and guarantees on ratio dispense.
Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

Model: Z-Pump
Series: S4

Ambient/Warm Melt/Hot Melt: Ambient
Application: Industrial
Ball Check Size (in): 1/2
Ball Material: Silicon Nitride
Coating Type: Severe Duty
Feed Type: Pressure Feed
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: SAE
For Use With: EFR, HFR
Maximum Flow Rate (GPM): 0.32
Maximum Operating Temperature (°F): 180
Maximum Output (cm³): 20
Maximum Pump Speed (CPM): 60
Maximum Viscosity (cP): 3000000

$11,740.00

KING SPRAYER, 70:1, H-P, BF, HD, BARE

GG K70FH0

KING SPRAYER, 70:1, H-P, BF, HD, BARE

Graco K70FH0 King 70:1 Sprayer, Integrated Filter, Heavy Duty Cart, Air Controls, Siphon Kit

High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.

Application: Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings

Simple Maintenance
- Improved Icing Performance
  - Less Pulsation
    With more than 145% higher exhaust capacity in the air valve, you&prime, ll achieve a faster, smoother changeover.
    Eliminating the &Prime, wink&Prime, in your pattern - it is a difference you will feel.
  - New Air Motor
    Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
  Air Inlet Size (in): 1
  Air Inlet Thread Gender: Female
  Air Inlet Thread Type: NPT
  Approved for Hazardous Locations: Yes
  Compatible Material: Protective Coating
  Control Type: Fixed Ratio
  Convertible: Non-Convertible
  Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
  Fluid Inlet Size (in): 1-1/4
  Fluid Inlet Size (mm): 31.75
  Fluid Inlet Thread Gender: Male
  Fluid Inlet Thread Type: NPT
  Fluid Outlet Size (in): 1/2
  Fluid Outlet Size (mm): 12.7
  Fluid Outlet Thread Gender: Female
  Fluid Outlet Thread Type: NPT
  Frame Configuration: Heavy-Duty Cart
  Gun Model: No Applicator
  Includes: Pump, Lower, Motor, Standard Filter, Heavy Duty Cart, Air Controls, Siphon Kit
  Lower Type: Integrated Filter
  Material Application: Paints, Primers
  Maximum Air Inlet Pressure (psi): 150
  Maximum Air Pressure (bar): 7
  Maximum Air Pressure (kPa): 700
  Maximum Air Pressure (psi): 100
  Maximum Fluid Working Pressure (psi): 7250
  Maximum Sound Pressure Level (dB(A)): 81.48
  Maximum Tip Siz

$13,340.00

LOWER, CHEMICAL, 15, SST, UCUP

GG L015S1

LOWER, CHEMICAL, 15, SST, UCUP

Z-Pump, 15 cc, Severe Duty, S1 Z-Pumps are positive displacement pump components for use with the Graco meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls. Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, foam, and structural adhesives. Precision control eliminates pressure spikes and guarantees on ratio dispense. Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

$11,740.00
