GG EC5941
E-FLO PUMP, DC, 3000CC, SEALED

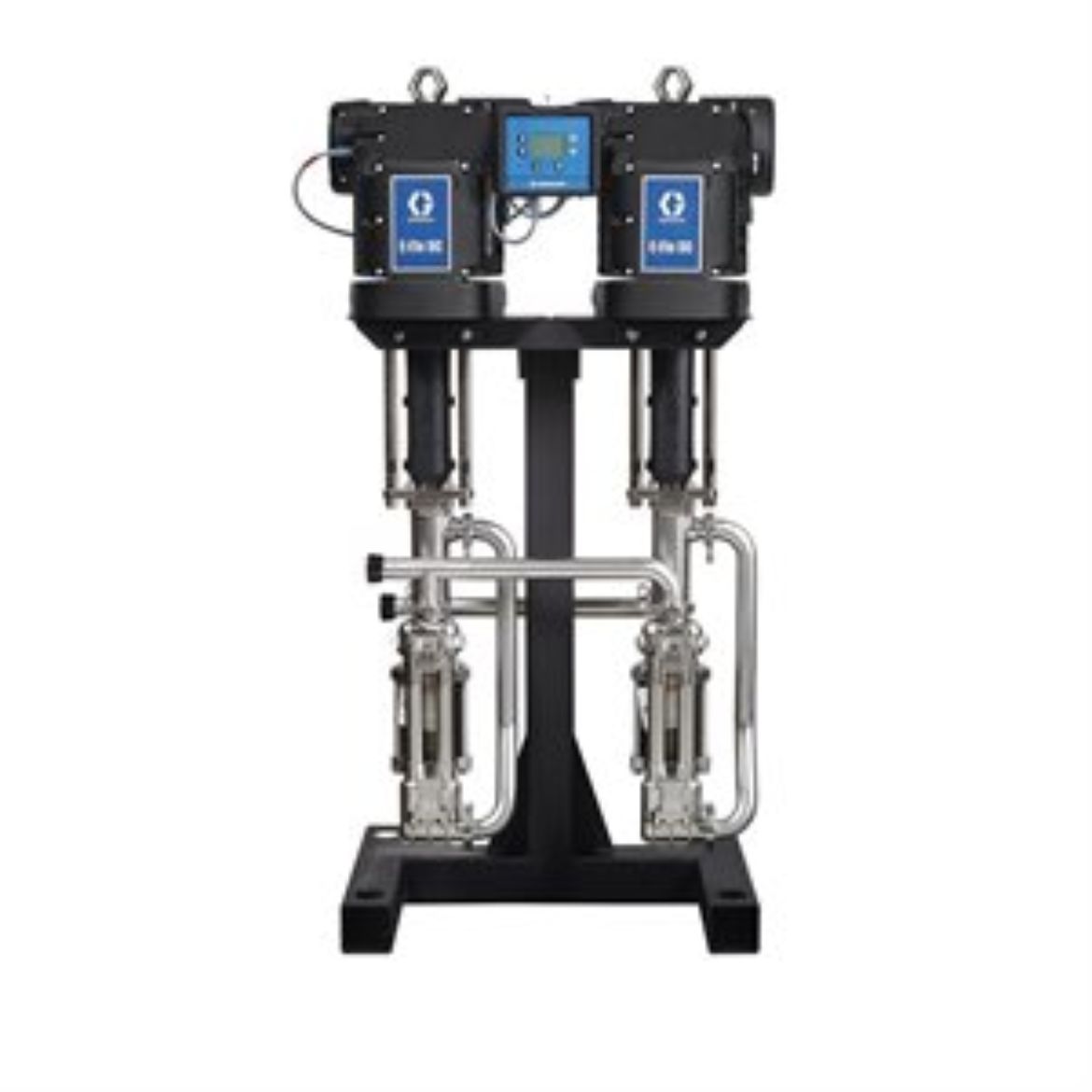

Graco EC5941 E-Flo DC 4-Ball Electric Circulation Pump, 3000cc, 2x2 HP, Advanced, ATEX/FM/IECEx, Sealed, Ultralife Rod/Cylinder, Tri-Clamp, Stand
E-Flo DC (Dual Control) electric pumps are up to five times more efficient than pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation while increasing flow rates. Advanced control module improves performance with Intelligent Paint Kitchen (IPK) compatibility.
- Sealed lower has longer maintenance cycles, plus it can be used for every pumping application in your mix room, including catalyzed coatings
- Minimal pulsation at changeover provides a more consistent finish
- Electric motor eliminates icing – giving you smoother pump operation and better finished product
- Model: E-Flo
- Series: DC 4-Ball
- Compatible Material: Solvent borne, High Solids, Xirallic, Metallics, Varnish, CARC
- Fluid Inlet Size (in): 1-1/2
- Fluid Inlet Size (mm): 38.1
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Section Type: Sealed
- Includes: Advanced Control Input, Stand
- Input Voltage (V ac): 240
- Material: Stainless Steel
- Maximum Continuous Cycle Rate (CPM): 20
- Maximum Flow Rate (GPM): 15.9
- Maximum Flow Rate (L/min): 60.19
- Maximum Input Amperage (A): 20
- Maximum Operating Temperature (°C): 40
- Maximum Operating Temperature (°F): 104
- Maximum Working Pressure (bar): 27.6
- Maximum Working Pressure (kPa): 2760
- Maximum Working Pressure (MPa): 2.8
- Maximum Working Pressure (psi): 400
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F): 32
