HUSKY PUMP, 2150A-PA01AA1TPACTP

Manufacturer: GRACO INC. S10595

GG DF3525

HUSKY PUMP, 2150A-PA01AA1TPACTP

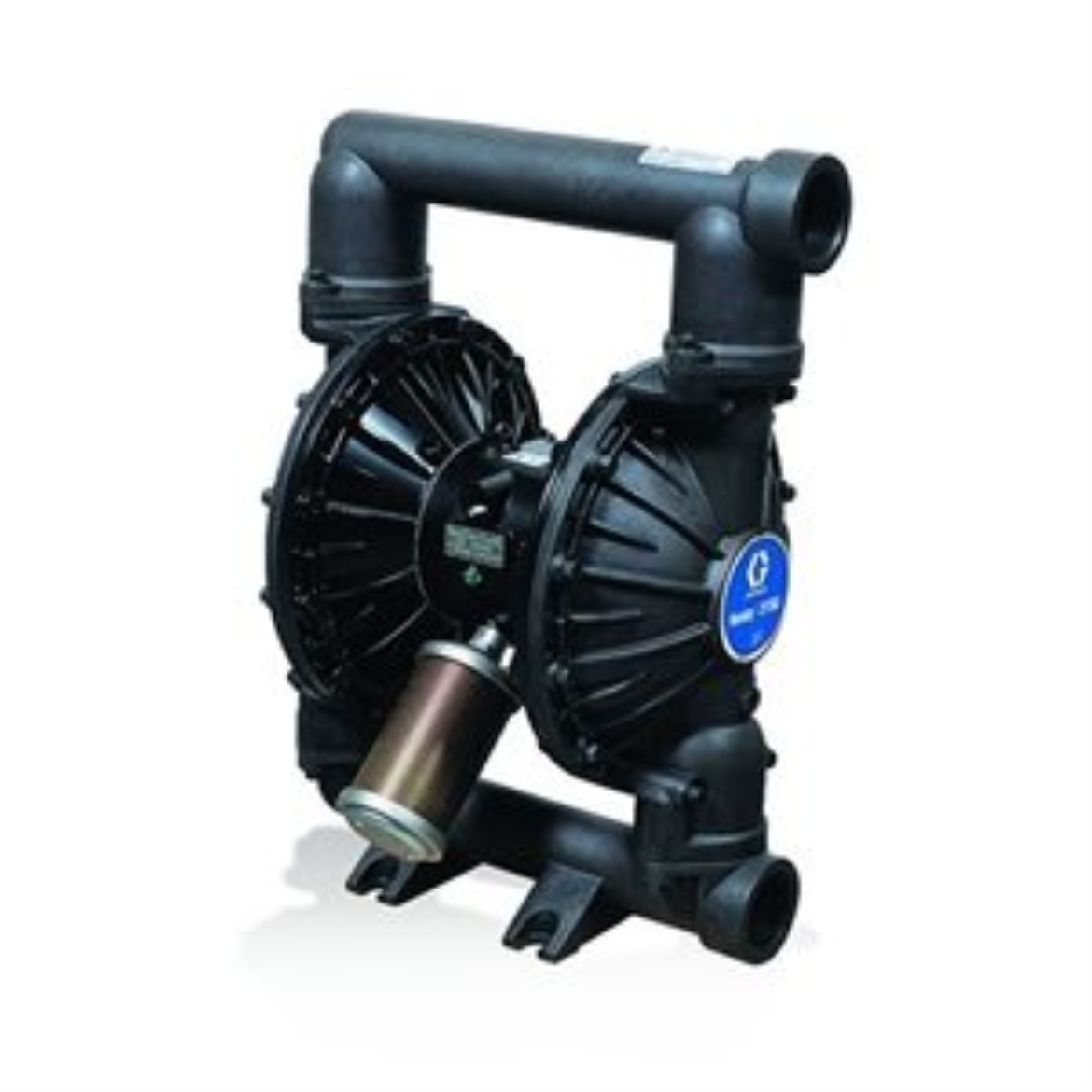

Graco DF3525 Husky 2150 AL Air Operated Double Diaphragm Metal Pump, TPE/AC

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

  • Overall improved efficiency (up to 40% more efficient)
  • Highest fluid flow rate in its class
  • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
  • Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
  • 2 in. (51 mm) ANSI end-porting
  • Fluid flow up to 150 gpm (568 lpm)
  • Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
  • Lube-free operation
  • Epoxy-coated air section for tough environmental conditions
  • Available in aluminum, 316 stainless steel, ductile iron and polypropylene


  • Model: Husky
  • Series: 2150
  • Air Inlet Size (in): 1/2
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Application: Industrial
  • Ball Material: Acetal
  • Center Section Material: Aluminum
  • Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer
  • Connection Type: Threaded
  • Diaphragm Compatible Material: TPE
  • Diaphragm Material: TPE (Hytrel)
  • Fluid Inlet Size (cm): 5.08
  • Fluid Inlet Size (in): 2
  • Fluid Inlet Size (mm): 50.8
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (cm): 5.08
  • Fluid Outlet Size (in): 2
  • Fluid Outlet Size (mm): 50.8
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT
  • Fluid Section Material: Aluminum
  • Manifold Configuration: End Port
  • Material: Aluminum
  • Maximum Air Consumption (SCFM): 175
  • Maximum Air Pressure (bar): 8.27
  • Maximum Air Pressure (kPa): 827
  • Maximum Air Pressure (MPa): 0.827
  • Maximum Air Pressure (psi): 120
  • Maximum Cycle Rate (CPM): 145
  • Maximum Flow Rate (GPM): 150
  • Maximum Flow Rate (L/min): 568
  • Maximum Fluid Pressure (bar): 8.27
  • Maximum Fluid Pressure (kPa): 827
  • Maximum Fluid Pressure (MPa): 0.827
  • Maximum Fluid Pressure (psi): 120
  • Maximum Fluid Pressure (bar): 8.27
  • Maximum Fluid Pressure (kPa): 827
  • Maximum Fluid Pressure (MPa): 0.827
  • Maximum Fluid Pressure (psi): 120
  • Maximum Operating Temperature (°C): 66
  • Maximum Operating Temperature (°F): 150
  • Maximum Solid Size (cm): 0.635
  • Maximum Solid Size (in): 0.25
  • Maximum Solid Size (mm): 6.35
  • Power Source: Air
SKU: GG DF3525
Availability:
Price: $2,530.00
