E-Flo Pump, 1Hp, 750, Bsc, Tri, Sld, Wall Obsolete

GG EC1142

E-FLO PUMP, 1HP, 750, BSC, TRI, SLD, WALL

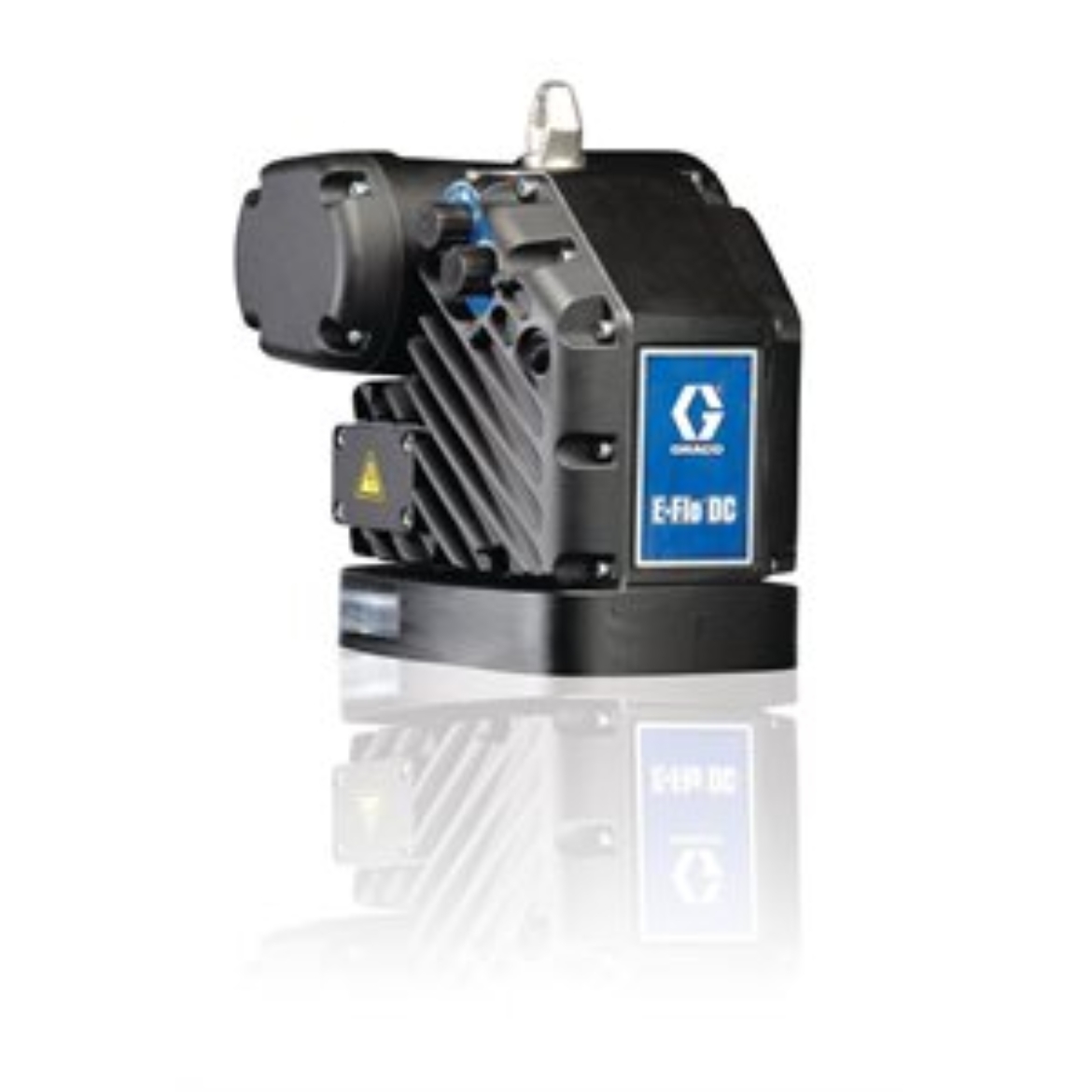

Graco EC1142 E-Flo DC 4-Ball Electric Circulation Pump, 750cc, 1 HP, Basic, ATEX/FM/IECEx, Sealed, Ultralife Rod/Cylinder, Tri-Clamp, Wall

The E-Flo DC (Dual Control) electric circulating pump has been found to be up to five times more efficient than similar sized pneumatic pumps - lowering your energy bill and saving you money

• Sealed lower has longer maintenance cycles, plus it can be used for every pumping application in your mix room, including catalyzed coatings
• Minimal pulsation at changeover provides a more consistent finish
• Electric motor eliminates icing - giving you smoother pump operation and better finished product

• Model: E-Flo
• Series: DC 4-Ball

• Application: Circulation

• Compatible Material: Solvent borne, High Solids, Xirallic, Metallics, Varnish, CARC

• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Section Type: Sealed

• Includes: Basic Control, Wall Mount

• Input Voltage (V ac): 250

• Material: Stainless Steel

• Maximum Continuous Cycle Rate (CPM): 20

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.14

• Maximum Input Amperage (A): 20

• Maximum Operating Temperature ( degree C): 40
• Maximum Operating Temperature ( degree F): 104

• Maximum Working Pressure (bar): 20.7
• Maximum Working Pressure (kPa): 2070
• Maximum Working Pressure (MPa): 2.1
• Maximum Working Pressure (psi): 300

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Motor Type: AC

• Portable: Non-Portable

• Power Rating (HP): 1
