GG EC3D50
E-FLO PUMP, 2HP, 1500, ADV, NPT, OPN

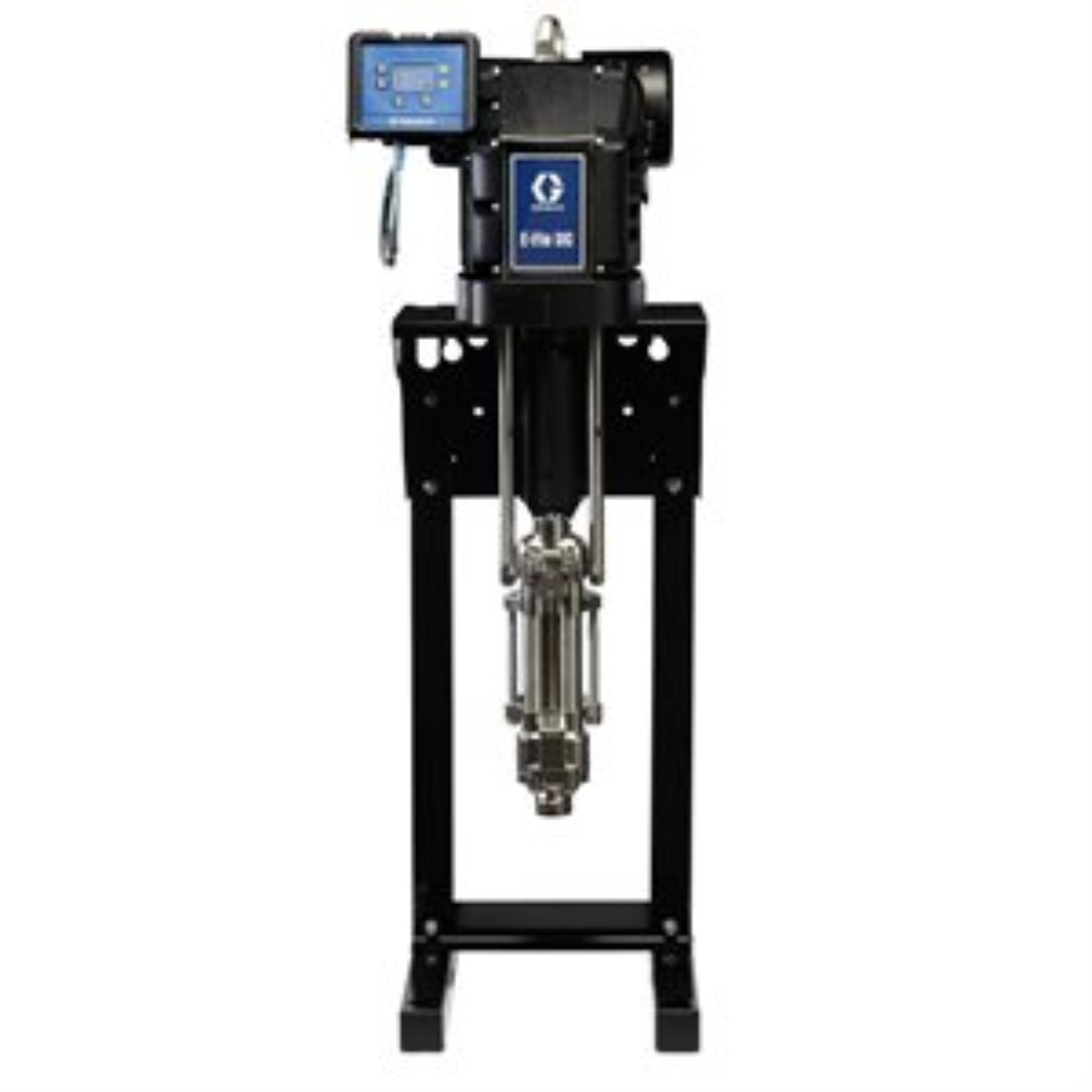

Graco EC3D50 E-Flo DC 4-Ball Electric Circulation Pump, 1500cc, 2 HP, 480V, Advanced, ATEX/FM/IECEx, Open Wet Cup Lower, Ultralife Rod/Cylinder, NPT
E-Flo DC (Dual Control) electric pumps are up to five times more efficient than pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation while increasing flow rates. Advanced control module improves performance with Intelligent Paint Kitchen (IPK) compatibility.
- Advanced model lets you easily connect and manage multiple pumps with a single control module.
- Minimal pulsation at changeover provides a more consistent finish.
- Open wet cup lower includes Ultralife ceramic coating for improved durability.
- Installation simply requires 220 volt single phase power. No VFD (variable frequency drive) needed.
- Meets requirements of these approval agencies: ATEX, FM, IECEx
- Fluid Inlet Size (in): 1.5
- Fluid Inlet Size (mm): 38.1
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Inlet Type: NPT
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 2.54
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 4-Ball, Open Wet Cup
- Includes: Advanced Control Input, No Mounting
- Maximum Continuous Cycle Rate (CPM): 12
- Maximum Operating Temperature ( degree C): 40
- Maximum Operating Temperature ( degree F): 104
- Maximum Voltage (V ac): 480
- Maximum Working Pressure (bar): 26
- Maximum Working Pressure (kPa): 2600
- Maximum Working Pressure (MPa): 2.6
- Maximum Working Pressure (psi): 377
- Minimum Operating Temperature ( degree C): 0
- Minimum Operating Temperature ( degree F): 32
- Minimum Voltage (V ac): 380
- Overall Depth (cm): 50.5
- Overall Depth (in): 19.88
- Overall Depth (mm): 505
- Overall Height (cm): 115.6
- Overall Height (in): 45.51
- Overall Height (mm): 1156
- Overall Width (cm): 43.2
- Overall Width (in): 17
- Overall Width (mm): 432
