GG EC6J41
E-FLO PUMP, DC, X2, 4000CC, SEALED

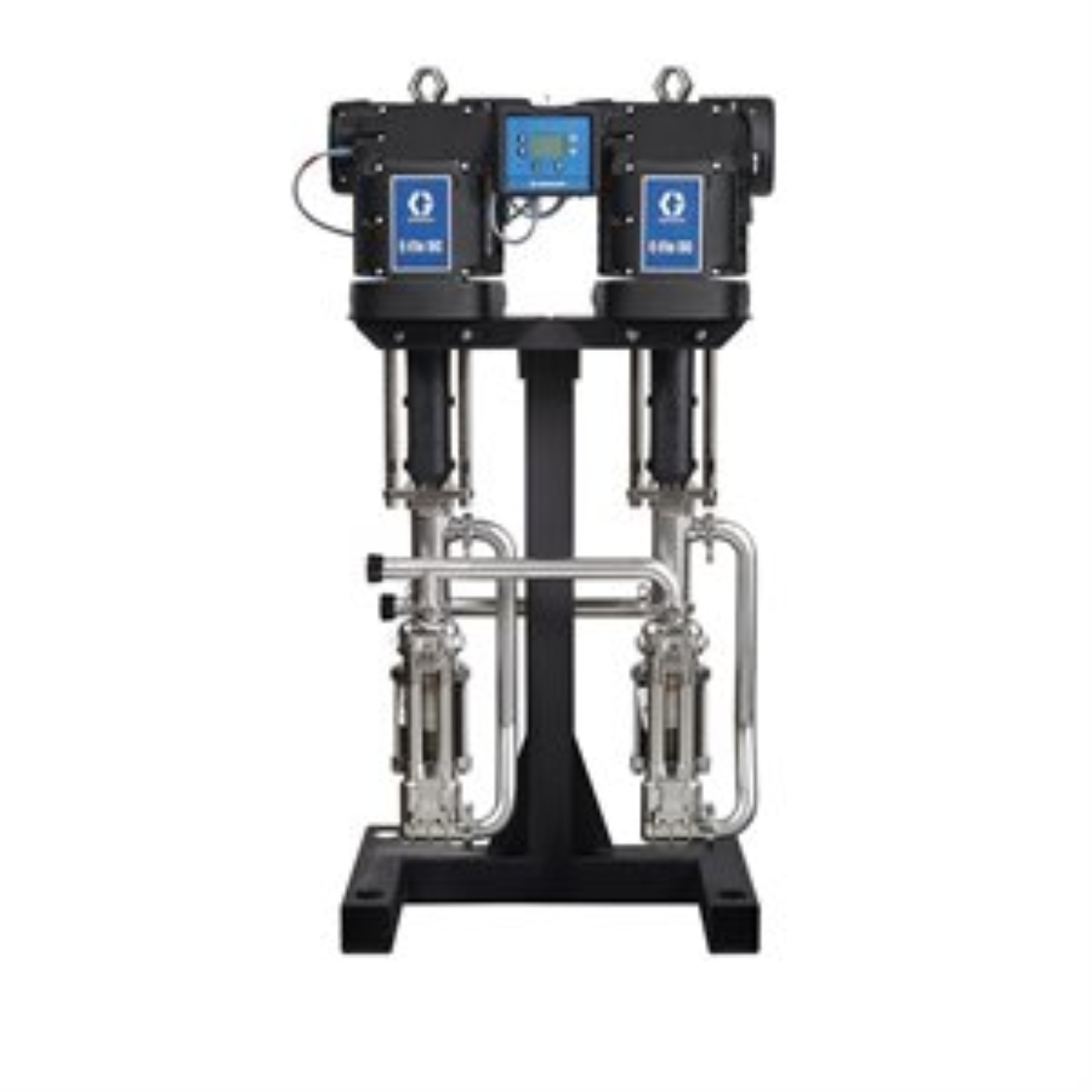

Graco EC6J41 E-Flo DC 4-Ball Electric Circulation Pump, 4000cc, 2 x 2 HP, 480V, Advanced, ATEX/FM/IECEx, Sealed Lower, Ultralife Rod/Cylinder, Tri-Clamp, Stand
E-Flo DC (Dual Control) electric pumps are up to five times more efficient than pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation while increasing flow rates. Advanced control module improves performance with Intelligent Paint Kitchen (IPK) compatibility.
- Advanced model lets you easily connect and manage multiple pumps with a single control module.
- Minimal pulsation at changeover provides a more consistent finish.
- Sealed lower does not require throat seal liquid (TSL), reducing maintenance costs and unplanned downtime.
- Lower operates independently, allowing the pump to adjust to varying pressure and flow rate demands thousands of times per second.
- Pump can run alone to keep production running, if lower maintenance is required.
- Fluid Inlet Size (in): 1.5
- Fluid Inlet Size (mm): 38.1
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: Tri-Clamp
- Fluid Inlet Type: Tri-Clamp
- Fluid Outlet Size (in): 1.5
- Fluid Outlet Size (mm): 3.81
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: Tri-Clamp
- Fluid Section Type: 4-Ball, Sealed Bellows
- Includes: Advanced Control Input, Stand
- Maximum Continuous Cycle Rate (CPM): 20
- Maximum Operating Temperature ( degree C): 40
- Maximum Operating Temperature ( degree F): 104
- Maximum Voltage (V ac): 480
- Maximum Working Pressure (bar): 19
- Maximum Working Pressure (kPa): 1900
- Maximum Working Pressure (MPa): 1.9
- Maximum Working Pressure (psi): 276
- Minimum Operating Temperature ( degree C): 0
- Minimum Operating Temperature ( degree F): 32
- Minimum Voltage (V ac): 380
- Overall Depth (cm): 46.7
- Overall Depth (in): 18.39
- Overall Depth (mm): 467
- Overall Height (cm): 151.6
- Overall Height (in): 59.69
- Overall Height (mm): 1516
- Overall Width (cm): 72.4
- Overall Width (in): 28.5
- Overall Width (mm): 724
