GG EC1B41
E-FLO PUMP, 1HP, 750, ADV, TRI, SLD, STD

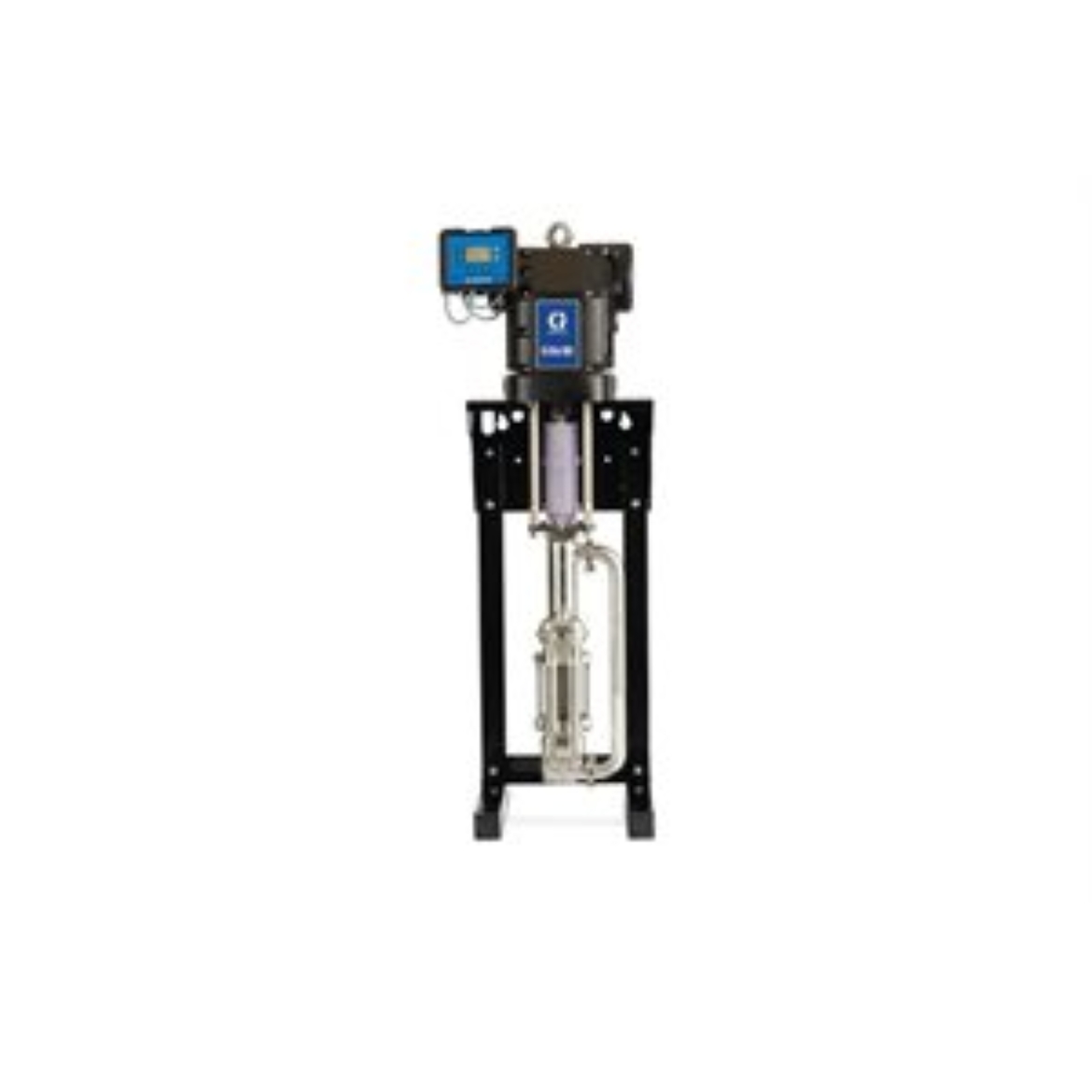

Graco EC1B41 E-Flo DC 4-Ball Electric Circulation Pump, 750cc, 1 HP, 480V, Advanced, ATEX/FM/IECEx, Sealed Lower, Ultralife Rod/Cylinder, Tri-Clamp, Stand
E-Flo DC (Dual Control) electric pumps are up to five times more efficient than pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation while increasing flow rates. Advanced control module improves performance with Intelligent Paint Kitchen (IPK) compatibility.
- Advanced model lets you easily connect and manage multiple pumps with a single control module.
- Minimal pulsation at changeover provides a more consistent finish.
- Sealed lower does not require throat seal liquid (TSL), reducing maintenance costs and unplanned downtime.
- Installation simply requires 220 volt single phase power. No VFD (variable frequency drive) needed.
- Meets requirements of these approval agencies: ATEX, FM, IECEx
- Fluid Inlet Size (in): 1.5
- Fluid Inlet Size (mm): 38.1
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: Tri-Clamp
- Fluid Inlet Type: Tri-Clamp
- Fluid Outlet Size (in): 1.5
- Fluid Outlet Size (mm): 3.81
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: Tri-Clamp
- Fluid Section Type: 4-Ball, Sealed Bellows
- Includes: Advanced Control Input, Stand
- Maximum Continuous Cycle Rate (CPM): 20
- Maximum Operating Temperature ( degree C): 40
- Maximum Operating Temperature ( degree F): 104
- Maximum Voltage (V ac): 480
- Maximum Working Pressure (bar): 26
- Maximum Working Pressure (kPa): 2600
- Maximum Working Pressure (MPa): 2.6
- Maximum Working Pressure (psi): 377
- Minimum Operating Temperature ( degree C): 0
- Minimum Operating Temperature ( degree F): 32
- Minimum Voltage (V ac): 380
- Overall Depth (cm): 50.5
- Overall Depth (in): 19.88
- Overall Depth (mm): 505
- Overall Height (cm): 147.3
- Overall Height (in): 57.99
- Overall Height (mm): 1473
- Overall Width (cm): 43.2
- Overall Width (in): 17
- Overall Width (mm): 432
