HUSKY PUMP, 1590A- PA01AA1PPPTPTPT

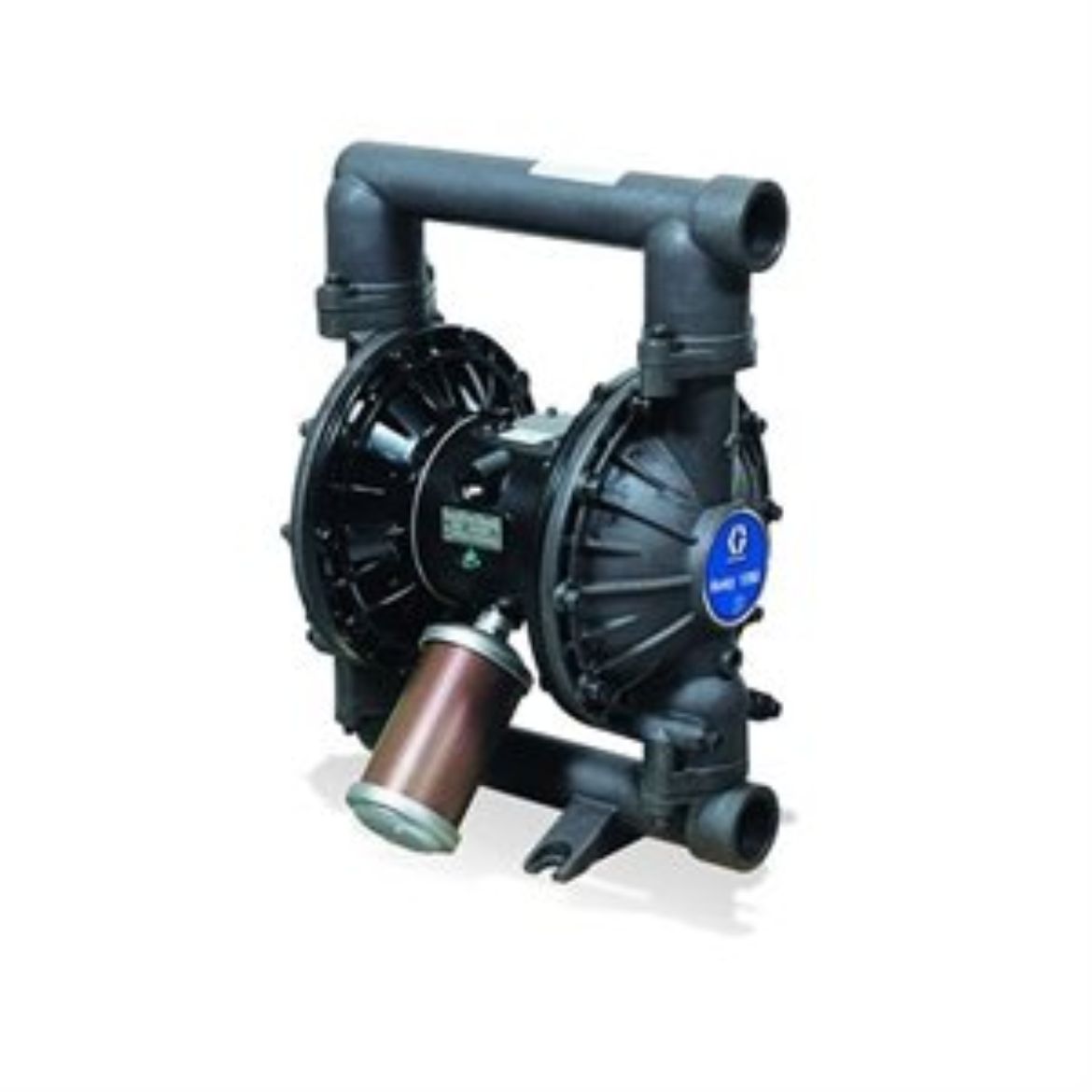

Graco DB3911 Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

• Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
• Expanded material offering to handle endless applications
• Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
• 1-1/2 in. (38.1 mm) ANSI end-porting
• High flow - 100 gpm (378 lpm) in a compact, portable size
• Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• Lube-free operation
• Available in polypropylene, aluminum and stainless steel
• Epoxy-coated air section for tough environmental conditions

• Model: Husky
• Series: 1590

• Air Exhaust Port Size (in): 3/4
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: PTFE

• Center Section Material: Aluminum

• Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer

• Connection Type: Threaded

• Diaphragm Compatible Material: PTFE
• Diaphragm Material: PTFE/EPDM 2-Piece

• Fluid Inlet Size (cm): 3.81
• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 3.81
• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Aluminum

• Manifold Configuration: End Port
• Manifold O-Ring Material: PTFE
• Material: Aluminum

• Maximum Air Consumption (SCFM): 125
• Maximum Air Pressure (bar): 8

• Maximum Air Pressure (kPa): 800
• Maximum Air Pressure (MPa): 0.8
• Maximum Air Pressure (psi): 120

• Maximum Cycle Rate (CPM): 200

• Maximum Flow Rate (GPM): 100
• Maximum Flow Rate (L/min): 379

• Maximum Fluid Pressure (bar): 8
• Maximum Fluid Pressure (kPa): 800
• Maximum Fluid Pressure (MPa): 0.8
• Maximum Fluid Pressure (psi): 120

• Maximum Fluid Pressure (bar): 8
• Maximum Fluid Pressure (kPa): 800
• Maximum Fluid Pressure (MPa): 0.8
• Maximum Fluid Pressure (psi): 120

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Solid Size (cm): 0.4763
• Maximum Solid Size (in): 0.1875
• Maximum Solid Size (mm): 4.763

• Overall Height (in): 19.6

• Power Source: Air
