Pump 1040FG

GG FA1111

SANIFORCE AODD PUMP, 1040FG-PA01AS13SSPTPTPT21

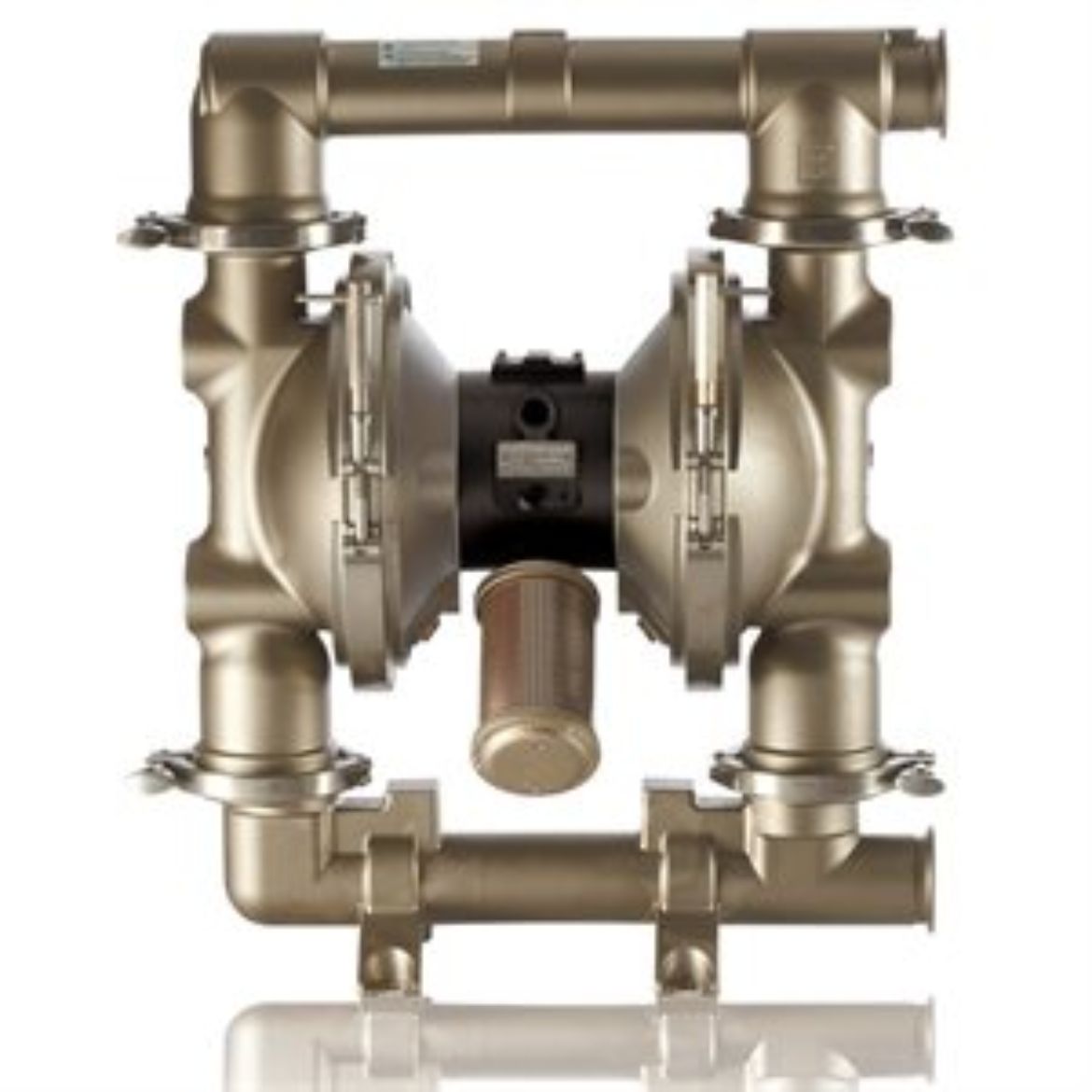

Graco FA1111 SaniForce 1040 S/S AODD Pump with 316 S/S Seats & PTFE O-Rings, Balls & Diaphragms

Graco's SaniForce 1040 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco's dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.

• 1.5 in (38 mm) Tri-clamp connection
• All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
• Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• High volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 10,000 cps
• Suitable to pump such products as: concentrated fruit juices, sauces, pastes, starches, wine, food-grade oil, jams and jellies

• Model: SaniForce
• Series: 1040

• Air Exhaust Port Size (in): 3/4
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Sanitary

• Ball Material: PTFE

• Center Section Material: Aluminum

• Compatible Material: Edible Oil, Food and Personal Care

• Connection Type: Tri-Clamp

• Diaphragm Compatible Material: PTFE
• Diaphragm Material: PTFE

• Fluid Inlet Size (cm): 3.81
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 38.1

• Fluid Outlet Size (cm): 3.81
• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 38.1
• Fluid Section Material: 316L Stainless Steel

• For Use With: Food and Personal Care

• Manifold Configuration: End Port
• Manifold O-Ring Material: PTFE
• Material: Stainless Steel

• Maximum Air Consumption (SCFM): 50
• Maximum Air Pressure (bar): 8

• Maximum Air Pressure (kPa): 800
• Maximum Air Pressure (MPa): 0.8
• Maximum Air Pressure (psi): 120

• Maximum Cycle Rate (CPM): 256

• Maximum Flow Rate (GPM): 41
• Maximum Flow Rate (L/min): 151

• Maximum Fluid Pressure (bar): 8
• Maximum Fluid Pressure (kPa): 800
• Maximum Fluid Pressure (MPa): 0.8
• Maximum Fluid Pressure (psi): 120

• Maximum Fluid Pressure (bar): 8
• Maximum Fluid Pressure (kPa): 800
• Maximum Fluid Pressure (MPa): 0.8
• Maximum Fluid Pressure (psi): 120

• Maximum Solid Size (cm): 0.3175
• Maximum Solid Size (in): 0.125
• Maximum Solid Size (mm): 3.175

• Power Source: Pneumatic

• Pump Ratio: 1:1
