GRACO INC. S10595
DURA-FLO PUMP, 3400/430
GG P15CSS
DURA-FLO PUMP, 3400/430
Graco P15CSS 15:1 - 430cc Dura-Flo Pump with NXT 34000 Air Motor, Severe Duty Carbon Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
- Model: Dura-Flo
XTREME PUMP, 3400/290, NF, AC
GG P25DC3
XTREME PUMP, 3400/290, NF, AC
Graco P25DC3 Xtreme NXT 2-Ball Piston Pump, 25:1, De-Icing Exhaust Motor, CS, Air Controls
Graco&prime, s Xtreme pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Xtreme
- Series: 2-Ball
- Air Inlet Size (in): 3/4
- Air Inlet Size (mm): 19.05
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Carbon Steel Pump, De-Icing Exhaust Motor, Air Controls
- Material: Carbon Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 4.6
- Maximum Flow Rate (L/min): 17.41
- Maximum Operating Temperature (°C): 82
- Maximum Operating Temperature (°F): 180
- Maximum Working Pressure (bar): 209
- Maximum Working Pressure (kPa): 20900
- Maximum Working Pressure (MPa): 20.9
- Maximum Working Pressure (psi): 3030
- Motor Type: De-Icing NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 25:1
DURA-FLO PUMP, 3400/580
GG P12LCD
DURA-FLO PUMP, 3400/580
Dura-Flo NXT 2-Ball Piston Pump, 12:1, Low Noise Exhaust Motor, CS, 3 PTFE / 2 Leather PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
REACTOR E-10HP SYSTEM, CMPLT, 230V(NA)
GG P2T900
REACTOR E-10HP SYSTEM, CMPLT, 230V(NA)
Graco P2T900 Reactor E-10 HP Proportioner Package, Probler P2 Gun, North American Cord Adapter, 230 V, 1PH
The Reactor E-10hp is an ideal entry-level system and is great for coating projects such as balconies, pools, waterproofing and bedliner applications. It&prime, s a smart, affordable investment that will help your business grow.
Application: Entry-level system for pure and hybrid polyurea coatings.- Digital heat controls
Allows you to enter the exact temperatures you need
Uses the same circuit boards as a standard Reactor
- Single knob motor operation
Intuitive, easy to use
- Insulated tanks
Double-wall insulated to retain heat
Smooth interior lining for easy cleaning
Improved seal design on lid for better moisture control
- Boost heat
Directs unused power from the motor circuit to additional heater rods
Additional heater power brings material to desired temperatures faster during recirculation mode
- Robust hybrid heater
More power, faster material heating means more uptime
- Motor
Offers 50% more power than the Reactor E-10
Provides improved spray performance with reduced pressure drop
- Quick knockdown lower pumps
Easy disassembly and maintenance
- Temperature gauges in Y-strainers
Provides accurate tank temperature readings
- Portable
Fits through standard doorways
Plugs into standard 120V or 230V outlets
Rugged wheels for extreme jobsites
No need for generator
- Wide tank opening
Easy material loading and easy to clean
- Model: Reactor
- Series: E-10hp
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: Quick-Disconnect Pin
- Air Outlet Size (cm): 0.635
- Air Outlet Size (in): 1/4
- Air Outlet Thread Type: NPSM
- Amperage (A): 15
- Application: Protective Coatings
- Applicator Type: Manual
- Compatible Material: Plural Components
- Component Type: Two Component
- Flush Type: Solvent
- Frequency (Hz): 50/60
- Gun Type: Probler P2
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: Proportioner, Probler P2 Gun, Unheated Hose, North American Cord Adapter
- Material Application: Polyurea
- Maximum Flow Rate (cc/min): 3790
- Maximum Flow Rate (GPM): 1
- Maximum Flow Rate (L/min): 3.79
- Maximum Fluid Temperature (°C): 77
- Maximum Fluid Temperature (°F): 170
- Maximum Fluid Temperature (°C): 77
- Maximum Fluid Temperature (°F): 170
- Maximum Mix Ratio: 1:1

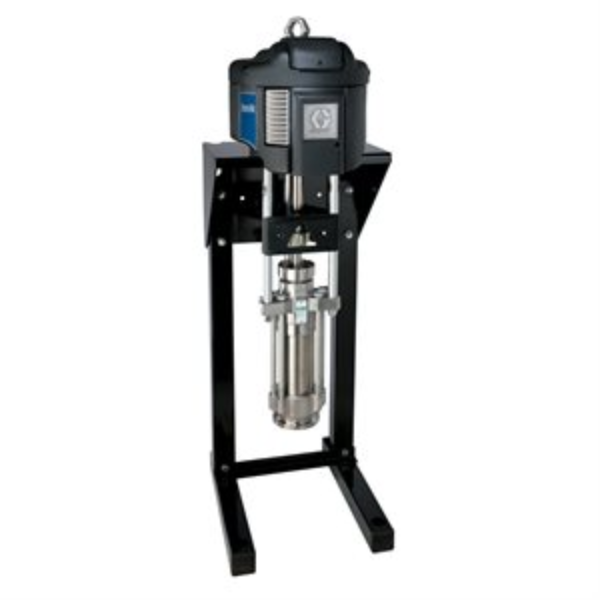

XTREME PUMP, 2200/290, NF
GG P16DC1
XTREME PUMP, 2200/290, NF
Graco P16DC1 Xtreme NXT 2-Ball Piston Pump, 16:1, De-Icing Exhaust Motor, CS
Graco&prime, s Xtreme pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Xtreme
- Series: 2-Ball
- Air Inlet Size (in): 3/4
- Air Inlet Size (mm): 19.05
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Carbon Steel Pump, De-Icing Exhaust Motor
- Material: Carbon Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 4.6
- Maximum Flow Rate (L/min): 17.41
- Maximum Operating Temperature (°C): 82
- Maximum Operating Temperature (°F): 180
- Maximum Working Pressure (bar): 105
- Maximum Working Pressure (kPa): 10500
- Maximum Working Pressure (MPa): 10.5
- Maximum Working Pressure (psi): 1520
- Motor Type: De-Icing NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 16:1
CHECK-MATE PUMP, 20:1 700/060 LW NS CS SD
GG P20LCS
CHECK-MATE PUMP, 20:1 700/060 LW NS CS SD
Graco P20LCS 20:1 - 60cc Check-Mate Pump with NXT 700 Air Motor, Severe Duty Carbon Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer- NXT 700 Air Motor
Low Noise
Modular design for easier maintenance
Highest technology air motor on the market
- 60cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
- Xtreme Coupler - No tool connection
Quick-disconnect coupler for easy maintenance
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
- Replaceable Outlet Fitting
- Piston Valve with Floating Piston Seal
- Replaceable Seat
- Floating Priming Plate
- Cast Outlet and Inlet Housing
- NEW Cartridge Throat Packings
- Modular Air Valve
- Hard Part Coatings
Standard Severe Duty™ coating on rods and cylinder maximizes wear life
- Model: Check-Mate
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Displacement Pump, Washer Lock (6), Screw
- Material: Carbon Steel
- Maximum Working Pressure (bar): 138
- Maximum Working Pressure (kPa): 13800
- Maximum Working Pressure (MPa): 13.8
- Maximum Working Pressure (psi): 2000
- Power Type: Pneumatic
- Pump Ratio: 20:1
De-icing controls
Up to 50% quieter than previous models
Modular air valve - eliminates stalling, easy-to-repair
- Hard Part Coatings
Allows for easy servicing without removing from ram
- Modular Air Valve
Improves structural integrity
- NEW Cartridge Throat Packings
Provides uniform flow
- Cast Outlet and Inlet Housing
Minimizes service costs
- Floating Priming Plate
For maximum pressure balance over a range of material viscosities
- Replaceable Seat
Reduces repair costs
- Piston Valve with Floating Piston Seal
Quick-disconnect coupler for easy maintenance
- Replaceable Outlet Fitting
Improves structural integrity
- NEW Xtreme® Coupler
DURA-FLO PUMP, 3400/220
GG P30DSE
DURA-FLO PUMP, 3400/220
Graco P30DSE Dura-Flo NXT 2-Ball Piston Pump, 30:1, De-Icing Exhaust Motor, SST, 4 Leather / 1 PTFE Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Air Inlet Size (in): 0.7506
- Air Inlet Size (mm): 19.05
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stainless Steel Pump, De-Icing Exhaust Motor, 4 Leather/1 PTFE Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 3.4
- Maximum Flow Rate (L/min): 12.87
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 105
- Maximum Working Pressure (kPa): 10500
- Maximum Working Pressure (MPa): 10.5
- Maximum Working Pressure (psi): 1520
- Motor Type: De-Icing NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 30:1
DURA-FLO PUMP, 3400/220
GG P30LSE
DURA-FLO PUMP, 3400/220
Dura-Flo NXT 2-Ball Piston Pump, 30:1, Low Noise Exhaust Motor, SST, 4 Leather / 1 PTFE PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
DURA-FLO PUMP, 3400/220
GG P30LSS
DURA-FLO PUMP, 3400/220
Graco P30LSS 30:1 - 220cc Dura-Flo Pump with NXT 3400 Air Motor, Severe Duty Stainless Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer- NXT 3400 Air Motor
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
- 220cc Dura-Flo Lower
Severe Duty coatings on rods and cylinder Extends production time
- Standard Threaded Coupler -
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- Optional DataTrak™ Control
Runaway protection
Pump diagnostics
Material usage
- Model: Dura-Flo
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Compatible Material: CARC, High Solids, Metallics, Solvent borne, Stains, Varnish, Xirallic
- Fluid Inlet Size (in): 2
- Fluid Inlet Size (mm): 50.8000
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4000
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
- Material: Stainless Steel
- Maximum Working Pressure (bar): 219
- Maximum Working Pressure (kPa): 21900
- Maximum Working Pressure (MPa): 21.9
- Maximum Working Pressure (psi): 3170
- Power Type: Pneumatic
- Pump Ratio: 30:1
Improves structural integrity
- Optional DataTrak™ Control
DURA-FLO PUMP, 6500/430
GG P32ESB
DURA-FLO PUMP, 6500/430
Dura-Flo NXT 2-Ball Piston Pump, 32:1, De-Icing Exhaust Motor, DataTrak, SST, 3 UHMW / 2 Tuffstack PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
DURA-FLO PUMP, 3400/220
GG P30MSE
DURA-FLO PUMP, 3400/220
Graco P30MSE Dura-Flo NXT 2-Ball Piston Pump, 30:1, Low Noise Exhaust Motor, DataTrak, SST, 4 Leather / 1 PTFE Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Air Inlet Size (in): 0.7506
- Air Inlet Size (mm): 19.05
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stainless Steel Pump, Low Noise Exhaust Motor, DataTrak Monitor, 4 Leather/1 PTFE Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 3.4
- Maximum Flow Rate (L/min): 12.87
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 105
- Maximum Working Pressure (kPa): 10500
- Maximum Working Pressure (MPa): 10.5
- Maximum Working Pressure (psi): 1520
- Motor Type: Low Noise NXT with DataTrak
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 30:1
DURA-FLO PUMP, 6500/430
GG P32LCD
DURA-FLO PUMP, 6500/430
Dura-Flo NXT 2-Ball Piston Pump, 32:1, Low Noise Exhaust Motor, CS, 3 PTFE / 2 Leather PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
DURA-FLO PUMP, 6500/430
GG P32LSB
DURA-FLO PUMP, 6500/430
Dura-Flo NXT 2-Ball Piston Pump, 32:1, Low Noise Exhaust Motor, SST, 3 UHMW / 2 Tuffstack PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
DURA-FLO PUMP, 6500/430
GG P32MSB
DURA-FLO PUMP, 6500/430
Graco P32MSB Dura-Flo NXT 2-Ball Piston Pump, 32:1, Low Noise Exhaust Motor, DataTrak, SST, 3 UHMW / 2 Tuffstack Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Air Inlet Size (in): 0.7506
- Air Inlet Size (mm): 19.05
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stainless Steel Pump, Low Noise Exhaust Motor, DataTrak Monitor, 3 UHMWPE/2 Tuff-Stack Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 6.9
- Maximum Flow Rate (L/min): 26.12
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 164
- Maximum Working Pressure (kPa): 16400
- Maximum Working Pressure (MPa): 16.4
- Maximum Working Pressure (psi): 2380
- Motor Type: Low Noise NXT with DataTrak
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 32:1
DURA-FLO PUMP, 6500/430
GG P32LSS
DURA-FLO PUMP, 6500/430
Graco P32LSS 32:1 - 430cc Dura-Flo Pump with NXT 6500 Air Motor, Severe Duty Stainless Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer- NXT 6500 Air Motor
Low Noise
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
- 430cc Dura-Flo Lower
Severe Duty coatings on rods and cylinder Extends production time
- Standard Threaded Coupler -
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- Optional DataTrak™ Control
Runaway protection
Pump diagnostics
Material usage
- Model: Dura-Flo
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Compatible Material: CARC, High Solids, Metallics, Solvent borne, Stains, Varnish, Xirallic
- Fluid Inlet Size (in): 2
- Fluid Inlet Size (mm): 50.8000
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
- Material: Stainless Steel
- Maximum Working Pressure (bar): 209
- Maximum Working Pressure (kPa): 20900
- Maximum Working Pressure (MPa): 20.9
- Maximum Working Pressure (psi): 3030
- Power Type: Pneumatic
- Pump Ratio: 32:1
Improves structural integrity
- Optional DataTrak™ Control
CHECK-MATE PUMP 36:1 3400/200 CS SD
GG P36LCS
CHECK-MATE PUMP 36:1 3400/200 CS SD
Graco P36LCS 36:1 - 200cc Check-Mate Pump with NXT 3400 Air Motor, Severe Duty Carbon Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer- NXT 3400 Air Motor
Low Noise
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
- 200cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
- Xtreme Coupler - No tool connection
Quick-disconnect coupler for easy maintenance
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
- Replaceable Outlet Fitting
- Piston Valve with Floating Piston Seal
- Replaceable Seat
- Floating Priming Plate
- Cast Outlet and Inlet Housing
- NEW Cartridge Throat Packings
- Modular Air Valve
- Hard Part Coatings
Standard Severe Duty™ coating on rods and cylinder maximizes wear life
- Model: Check-Mate
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4000
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Displacement Pump, Rod Tie, Adaptor Rod, Coupling Assembly, Cover, Clip, Coupler
- Material: Carbon Steel
- Maximum Working Pressure (bar): 248
- Maximum Working Pressure (kPa): 24800
- Maximum Working Pressure (MPa): 24.8
- Maximum Working Pressure (psi): 3600
- Power Type: Pneumatic
- Pump Ratio: 36:1
De-icing controls
Up to 50% quieter than previous models
Modular air valve - eliminates stalling, easy-to-repair
- Hard Part Coatings
Allows for easy servicing without removing from ram
- Modular Air Valve
Improves structural integrity
- NEW Cartridge Throat Packings
Provides uniform flow
- Cast Outlet and Inlet Housing
Minimizes service costs
- Floating Priming Plate
For maximum pressure balance over a range of material viscosities
- Replaceable Seat
Reduces repair costs
- Piston Valve with Floating Piston Seal
Quick-disconnect coupler for easy maintenance
- Replaceable Outlet Fitting
Improves structural integrity
- NEW Xtreme® Coupler
CHECK-MATE PUMP, 38:1 1200/060 CS SD
GG P38LCS
CHECK-MATE PUMP, 38:1 1200/060 CS SD
Graco P38LCS 38:1 - 60cc Check-Mate Pump with NXT 1200 Air Motor, Severe Duty Carbon Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer- NXT 1200 Air Motor
Low Noise
Modular design for easier maintenance
Highest technology air motor on the market
- 60cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
- Standard Threaded Coupler -
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
- Replaceable Outlet Fitting
- Piston Valve with Floating Piston Seal
- Replaceable Seat
- Floating Priming Plate
- Cast Outlet and Inlet Housing
- NEW Cartridge Throat Packings
- Modular Air Valve
- Hard Part Coatings
Standard Severe Duty™ coating on rods and cylinder maximizes wear life
- Model: Check-Mate
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Displacement Pump, Washer (6), Screw
- Material: Carbon Steel
- Maximum Working Pressure (bar): 262
- Maximum Working Pressure (kPa): 26200
- Maximum Working Pressure (MPa): 26.2
- Maximum Working Pressure (psi): 3800
- Power Type: Pneumatic
- Pump Ratio: 38:1
De-icing controls
Up to 50% quieter than previous models
Modular air valve - eliminates stalling, easy-to-repair
- Hard Part Coatings
Allows for easy servicing without removing from ram
- Modular Air Valve
Improves structural integrity
- NEW Cartridge Throat Packings
Provides uniform flow
- Cast Outlet and Inlet Housing
Minimizes service costs
- Floating Priming Plate
For maximum pressure balance over a range of material viscosities
- Replaceable Seat
Reduces repair costs
- Piston Valve with Floating Piston Seal
Quick-disconnect coupler for easy maintenance
- Replaceable Outlet Fitting
Improves structural integrity
- NEW Xtreme® Coupler
DURA-FLO PUMP, 3400/180
GG P40DSE
DURA-FLO PUMP, 3400/180
Graco P40DSE Dura-Flo NXT 2-Ball Piston Pump, 40:1, De-Icing Exhaust Motor, SST, 4 Leather / 1 PTFE Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Air Inlet Size (in): 0.7506
- Air Inlet Size (mm): 19.05
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stainless Steel Pump, De-Icing Exhaust Motor, 4 Leather/1 PTFE Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 2.9
- Maximum Flow Rate (L/min): 10.98
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 164
- Maximum Working Pressure (kPa): 16400
- Maximum Working Pressure (MPa): 16.4
- Maximum Working Pressure (psi): 2380
- Motor Type: De-Icing NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 40:1
CHECK-MATE PUMP, 40:1 2200/100 CS SD
GG P40LCS
CHECK-MATE PUMP, 40:1 2200/100 CS SD
Graco P40LCS 40:1 - 100cc Check-Mate Pump with NXT 2200 Air Motor, Severe Duty Carbon Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer- NXT 2200 Air Motor
Low Noise
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
- 100cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
- Xtreme Coupler - No tool connection
Quick-disconnect coupler for easy maintenance
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
- Replaceable Outlet Fitting
- Piston Valve with Floating Piston Seal
- Replaceable Seat
- Floating Priming Plate
- Cast Outlet and Inlet Housing
- NEW Cartridge Throat Packings
- Modular Air Valve
- Hard Part Coatings
Standard Severe Duty™ coating on rods and cylinder maximizes wear life
- Model: Check-Mate
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Displacement Pump
- Material: Carbon Steel
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (MPa): 28
- Maximum Working Pressure (psi): 4000
- Power Type: Pneumatic
- Pump Ratio: 40:1
De-icing controls
Up to 50% quieter than previous models
Modular air valve - eliminates stalling, easy-to-repair
- Hard Part Coatings
Allows for easy servicing without removing from ram
- Modular Air Valve
Improves structural integrity
- NEW Cartridge Throat Packings
Provides uniform flow
- Cast Outlet and Inlet Housing
Minimizes service costs
- Floating Priming Plate
For maximum pressure balance over a range of material viscosities
- Replaceable Seat
Reduces repair costs
- Piston Valve with Floating Piston Seal
Quick-disconnect coupler for easy maintenance
- Replaceable Outlet Fitting
Improves structural integrity
- NEW Xtreme® Coupler
45:1 - 290cc Dura-Flo Pump with NXT 6500 Air Motor, Severe Duty Carbon Steel Construction
GG P45CSS
45:1 - 290cc Dura-Flo Pump with NXT 6500 Air Motor, Severe Duty Carbon Steel Construction

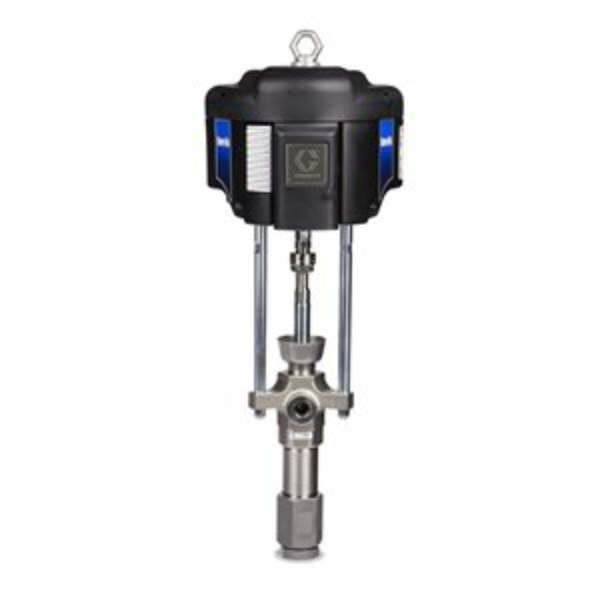

DURA-FLO PUMP, 6500/290
GG P45LSE
DURA-FLO PUMP, 6500/290
Graco P45LSE Dura-Flo NXT 2-Ball Piston Pump, 45:1, Low Noise Exhaust Motor, SST, 4 Leather / 1 PTFE Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Air Inlet Size (in): 0.7506
- Air Inlet Size (mm): 19.05
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stainless Steel Pump, Low Noise Exhaust Motor, 4 Leather/1 PTFE Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 4.6
- Maximum Flow Rate (L/min): 17.41
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 164
- Maximum Working Pressure (kPa): 16400
- Maximum Working Pressure (MPa): 16.4
- Maximum Working Pressure (psi): 2380
- Motor Type: Low Noise NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 45:1
DURA-FLO PUMP, 6500/290
GG P45LSS
DURA-FLO PUMP, 6500/290
Graco P45LSS 45:1 - 290cc Dura-Flo Pump with NXT 6500 Air Motor, Severe Duty Stainless Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer- NXT 6500 Air Motor
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
- 290cc Dura-Flo Lower
Severe Duty coatings on rods and cylinder Extends production time
- Standard Threaded Coupler -
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- Optional DataTrak™ Control
Runaway protection
Pump diagnostics
Material usage
- Model: Dura-Flo
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Compatible Material: CARC, High Solids, Metallics, Solvent borne, Stains, Varnish, Xirallic
- Fluid Inlet Size (in): 2
- Fluid Inlet Size (mm): 50.8000
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4000
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
- Material: Stainless Steel
- Maximum Working Pressure (bar): 314
- Maximum Working Pressure (kPa): 31400
- Maximum Working Pressure (MPa): 31.4
- Maximum Working Pressure (psi): 4550
- Power Type: Pneumatic
- Pump Ratio: 45:1
Improves structural integrity
- Optional DataTrak™ Control
DURA-FLO PUMP, 3400/145
GG P46DSH
DURA-FLO PUMP, 3400/145
Dura-Flo NXT 2-Ball Piston Pump, 46:1, De-Icing Exhaust Motor, SST, PTFE/Leather PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
47:1 - 430cc Dura-Flo Pump with XL 10000 Air Motor, Severe Duty Carbon Steel Construction
GG P47LCS
DURA-FLO PUMP,20650/430
Graco P47LCS 47:1 - 430cc Dura-Flo Pump with XL 10000 Air Motor, Severe Duty Carbon Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant's production capacity.
Application: Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer
- XL 1000 Air Motor
- Low Noise
- Modular design for easier maintenance
- Rugged body armor won't rust or dent
- Highest technology air motor on the market
- 430cc Dura-Flo Lower
- Severe Duty coatings on rods and cylinder Extends production time
Standard Threaded Coupler -
Replaceable 1 1/2" -11 1/2 NPT Male Outlet Fitting
- Reduces repair costs
Replaceable Seat
- Minimizes service costs
Cast Outlet and Inlet Housing
- Improves structural integrity
DURA-FLO PUMP, 20650/430
GG P47LSM
DURA-FLO PUMP, 20650/430
Graco P47LSM 47:1 - 430cc Dura-Flo Pump with XL 10000 Air Motor, MaxLife Stainless Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer- XL 1000 Air Motor
Low Noise
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
- 430cc Dura-Flo Lower
MaxLife coatings on rods and cylinder maximizes wear life
- Standard Threaded Coupler -
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- Optional DataTrak™ Control
Runaway protection
Pump diagnostics
Material usage
- Model: Dura-Flo
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Compatible Material: CARC, High Solids, Metallics, Solvent borne, Stains, Varnish, Xirallic
- Fluid Inlet Size (in): 2
- Fluid Inlet Size (mm): 50.8000
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
- Material: Stainless Steel
- Maximum Working Pressure (bar): 324
- Maximum Working Pressure (kPa): 32400
- Maximum Working Pressure (MPa): 32.4
- Maximum Working Pressure (psi): 4700
- Power Type: Pneumatic
- Pump Ratio: 47:1
Improves structural integrity
- Optional DataTrak™ Control
CHECK-MATE PUMP, 61:1 1800/060 CS SD
GG P61LCS
CHECK-MATE PUMP, 61:1 1800/060 CS SD
Graco P61LCS 61:1 - 60cc Check-Mate Pump with NXT 1800 Air Motor, Severe Duty Carbon Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer- NXT 1800 Air Motor
Low Noise
Modular design for easier maintenance
Highest technology air motor on the market
- 60cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
- Standard Threaded Coupler -
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
- Replaceable Outlet Fitting
- Piston Valve with Floating Piston Seal
- Replaceable Seat
- Floating Priming Plate
- Cast Outlet and Inlet Housing
- NEW Cartridge Throat Packings
- Modular Air Valve
- Hard Part Coatings
Standard Severe Duty™ coating on rods and cylinder maximizes wear life
- Model: Check-Mate
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Displacement Pump, Washer Lock (6), Screw
- Material: Carbon Steel
- Maximum Working Pressure (bar): 421
- Maximum Working Pressure (kPa): 42100
- Maximum Working Pressure (MPa): 42.1
- Maximum Working Pressure (psi): 6100
- Power Type: Pneumatic
- Pump Ratio: 61:1
De-icing controls
Up to 50% quieter than previous models
Modular air valve - eliminates stalling, easy-to-repair
- Hard Part Coatings
Allows for easy servicing without removing from ram
- Modular Air Valve
Improves structural integrity
- NEW Cartridge Throat Packings
Provides uniform flow
- Cast Outlet and Inlet Housing
Minimizes service costs
- Floating Priming Plate
For maximum pressure balance over a range of material viscosities
- Replaceable Seat
Reduces repair costs
- Piston Valve with Floating Piston Seal
Quick-disconnect coupler for easy maintenance
- Replaceable Outlet Fitting
Improves structural integrity
- NEW Xtreme® Coupler
CHECK-MATE PUMP, 63:1 3400/100 CS SD
GG P63LCS
CHECK-MATE PUMP, 63:1 3400/100 CS SD
Graco P63LCS 63:1 - 100cc Check-Mate Pump with NXT 3400 Air Motor, Severe Duty Carbon Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer- NXT 3400 Air Motor
Low Noise
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
- 100cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
- Xtreme Coupler - No tool connection
Quick-disconnect coupler for easy maintenance
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
- Replaceable Outlet Fitting
- Piston Valve with Floating Piston Seal
- Replaceable Seat
- Floating Priming Plate
- Cast Outlet and Inlet Housing
- NEW Cartridge Throat Packings
- Modular Air Valve
- Hard Part Coatings
Standard Severe Duty™ coating on rods and cylinder maximizes wear life
- Model: Check-Mate
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Displacement Pump
- Material: Carbon Steel
- Maximum Working Pressure (bar): 441
- Maximum Working Pressure (kPa): 44100
- Maximum Working Pressure (MPa): 44.1
- Maximum Working Pressure (psi): 6300
- Power Type: Pneumatic
- Pump Ratio: 63:1
De-icing controls
Up to 50% quieter than previous models
Modular air valve - eliminates stalling, easy-to-repair
- Hard Part Coatings
Allows for easy servicing without removing from ram
- Modular Air Valve
Improves structural integrity
- NEW Cartridge Throat Packings
Provides uniform flow
- Cast Outlet and Inlet Housing
Minimizes service costs
- Floating Priming Plate
For maximum pressure balance over a range of material viscosities
- Replaceable Seat
Reduces repair costs
- Piston Valve with Floating Piston Seal
Quick-disconnect coupler for easy maintenance
- Replaceable Outlet Fitting
Improves structural integrity
- NEW Xtreme® Coupler
CHECK-MATE PUMP, 68:1 6500/200 CS SD
GG P68LCS
CHECK-MATE PUMP, 68:1 6500/200 CS SD
Graco P68LCS 68:1 - 200cc Check-Mate Pump with NXT 6500 Air Motor, Severe Duty Carbon Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer- NXT 6500 Air Motor
Low Noise
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
- 200cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
- Xtreme Coupler - No tool connection
Quick-disconnect coupler for easy maintenance
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
- Replaceable Outlet Fitting
- Piston Valve with Floating Piston Seal
- Replaceable Seat
- Floating Priming Plate
- Cast Outlet and Inlet Housing
- NEW Cartridge Throat Packings
- Modular Air Valve
- Hard Part Coatings
Standard Severe Duty™ coating on rods and cylinder maximizes wear life
- Model: Check-Mate
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4000
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Displacement Pump, Rod Tie, Adaptor Rod, Coupling Assembly, Cover Coupler, Clip Hairpin With Lanyard
- Material: Carbon Steel
- Maximum Working Pressure (bar): 434
- Maximum Working Pressure (kPa): 43400
- Maximum Working Pressure (MPa): 43.4
- Maximum Working Pressure (psi): 6200
- Power Type: Pneumatic
- Pump Ratio: 68:1
De-icing controls
Up to 50% quieter than previous models
Modular air valve - eliminates stalling, easy-to-repair
- Hard Part Coatings
Allows for easy servicing without removing from ram
- Modular Air Valve
Improves structural integrity
- NEW Cartridge Throat Packings
Provides uniform flow
- Cast Outlet and Inlet Housing
Minimizes service costs
- Floating Priming Plate
For maximum pressure balance over a range of material viscosities
- Replaceable Seat
Reduces repair costs
- Piston Valve with Floating Piston Seal
Quick-disconnect coupler for easy maintenance
- Replaceable Outlet Fitting
Improves structural integrity
- NEW Xtreme® Coupler

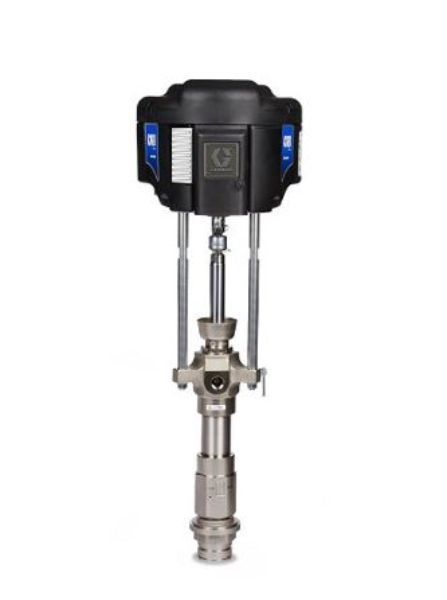

CHECK-MATE PUMP, 68:1 6500/200 SS SD
GG P68LSS
CHECK-MATE PUMP, 68:1 6500/200 SS SD
Graco P68LSS 68:1 - 200cc Check-Mate Pump with NXT 6500 Air Motor, Severe Duty Stainless Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.
Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer- NXT 6500 Air Motor
Low Noise
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
- 200cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
- Xtreme Coupler - No tool connection
Quick-disconnect coupler for easy maintenance
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
- Replaceable Outlet Fitting
- Piston Valve with Floating Piston Seal
- Replaceable Seat
- Floating Priming Plate
- Cast Outlet and Inlet Housing
- NEW Cartridge Throat Packings
- Modular Air Valve
- Hard Part Coatings
Standard Severe Duty™ coating on rods and cylinder maximizes wear life
- Model: Check-Mate
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4000
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Includes: Motor, Displacement Pump, Rod Tie, Adaptor Rod, Coupling Assembly, Cover Coupler, Clip Hairpin With Lanyard
- Material: Stainless Steel
- Maximum Working Pressure (bar): 434
- Maximum Working Pressure (kPa): 43400
- Maximum Working Pressure (MPa): 43.4
- Maximum Working Pressure (psi): 6200
- Power Type: Pneumatic
- Pump Ratio: 68:1
De-icing controls
Up to 50% quieter than previous models
Modular air valve - eliminates stalling, easy-to-repair
- Hard Part Coatings
Allows for easy servicing without removing from ram
- Modular Air Valve
Improves structural integrity
- NEW Cartridge Throat Packings
Provides uniform flow
- Cast Outlet and Inlet Housing
Minimizes service costs
- Floating Priming Plate
For maximum pressure balance over a range of material viscosities
- Replaceable Seat
Reduces repair costs
- Piston Valve with Floating Piston Seal
Quick-disconnect coupler for easy maintenance
- Replaceable Outlet Fitting
Improves structural integrity
- NEW Xtreme® Coupler

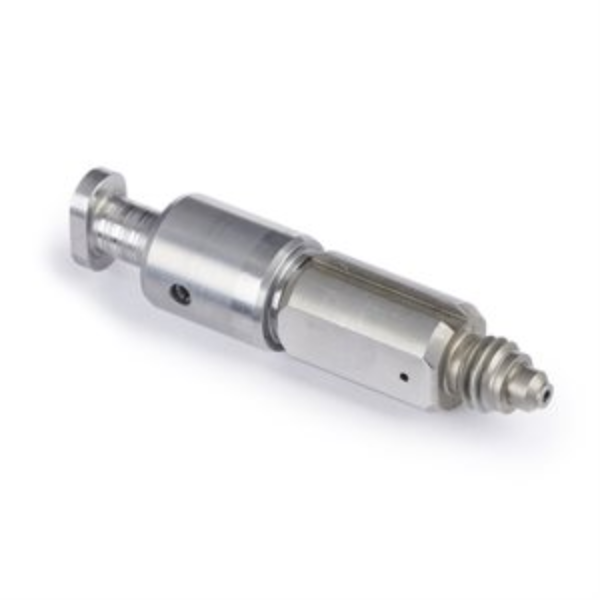

KIT, PC CHAMBER, RND, 000
GG PC20RD
KIT, PC CHAMBER, RND, 000
Fusion ProConnect Round 000 Mix Chamber with 0.020 in (0.51 mm) Orifice Size The Fusion ProConnect Round 000 Mix Chamber is designed for sprayers that prefer a round spray pattern. All Fusion PC Mix Chambers are protected by an ultra-durable Chromex coating and have been engineered to smoothly slide into position without damaging the side seals. In addition, these mix chambers incorporate an alignment groove specifically designed to ensure proper assembly. Designed for durability and smooth assembly Ultra durable Chromex coating Ramp design for quick assembly and proper sealing Alignment groove ensures proper assembly Available in a variety of sizes and spray patterns
KIT, PC CHAMBER, FL, 00
GG PC29FL
KIT, PC CHAMBER, FL, 00
Graco PC29FL Fusion ProConnect Flat 00 Mix Chamber with 0.029 in (0.74 mm) Orifice Size
The Fusion ProConnect Flat 00 Mix Chamber is designed for sprayers that prefer a flat spray pattern. All Fusion PC Mix Chambers are protected by an ultra-durable Chromex coating and have been engineered to smoothly slide into position without damaging the side seals. In addition, these mix chambers incorporate an alignment groove specifically designed to ensure proper assembly.
Application: Designed for durability and smooth assembly- Ultra durable Chromex coating
- Ramp design for quick assembly and proper sealing
- Alignment groove ensures proper assembly
- Model: Fusion PC
- Mix Chamber: 00 (.029)
Kit, PC Chamber, Rnd, 00
GG PC29RD
Kit, PC Chamber, Rnd, 00
Graco PC29RD Fusion ProConnect Round 00 Mix Chamber with 0.029 in (0.74 mm) Orifice Size
The Fusion ProConnect Round 00 Mix Chamber is designed for sprayers that prefer a round spray pattern. All Fusion PC Mix Chambers are protected by an ultra-durable Chromex coating and have been engineered to smoothly slide into position without damaging the side seals. In addition, these mix chambers incorporate an alignment groove specifically designed to ensure proper assembly.
Application: Designed for durability and smooth assembly- Ultra durable Chromex coating
- Ramp design for quick assembly and proper sealing
- Alignment groove ensures proper assembly
- Model: Fusion PC
- Mix Chamber: 00 (.029)
KIT, PC CHAMBER, RND, 00-01
GG PC37RD
KIT, PC CHAMBER, RND, 00-01
Fusion ProConnect Round 00-01 Mix Chamber with 0.037 in (0.94 mm) Orifice Size The Fusion ProConnect Round 00-01 Mix Chamber is designed for sprayers that prefer a round spray pattern. All Fusion PC Mix Chambers are protected by an ultra-durable Chromex coating and have been engineered to smoothly slide into position without damaging the side seals. In addition, these mix chambers incorporate an alignment groove specifically designed to ensure proper assembly. Designed for durability and smooth assembly Ultra durable Chromex coating Ramp design for quick assembly and proper sealing Alignment groove ensures proper assembly Available in a variety of sizes and spray patterns

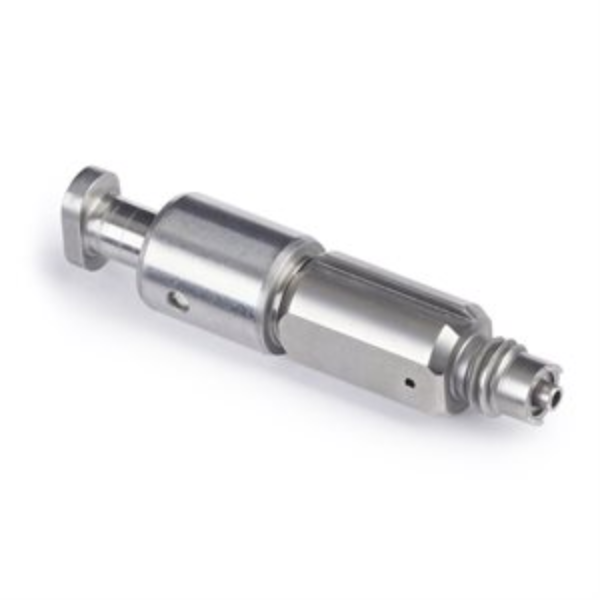

KIT, PC CHAMBER, FL, 01
GG PC42FL
KIT, PC CHAMBER, FL, 01
Fusion ProConnect Flat 01 Mix Chamber with 0.042 in (1.1 mm) Orifice Size The Fusion ProConnect Flat 01 Mix Chamber is designed for sprayers that prefer a flat spray pattern. All Fusion PC Mix Chambers are protected by an ultra-durable Chromex coating and have been engineered to smoothly slide into position without damaging the side seals. In addition, these mix chambers incorporate an alignment groove specifically designed to ensure proper assembly. Designed for durability and smooth assembly Ultra durable Chromex coating Ramp design for quick assembly and proper sealing Alignment groove ensures proper assembly Available in a variety of sizes and spray patterns
KIT, PC CHAMBER, RND, 02
GG PC52RD
KIT, PC CHAMBER, RND, 02
Fusion ProConnect Round 02 Mix Chamber with 0.052 in (1.3 mm) Orifice Size The Fusion ProConnect Round 02 Mix Chamber is designed for sprayers that prefer a round spray pattern. All Fusion PC Mix Chambers are protected by an ultra-durable Chromex coating and have been engineered to smoothly slide into position without damaging the side seals. In addition, these mix chambers incorporate an alignment groove specifically designed to ensure proper assembly. Designed for durability and smooth assembly Ultra durable Chromex coating Ramp design for quick assembly and proper sealing Alignment groove ensures proper assembly Available in a variety of sizes and spray patterns

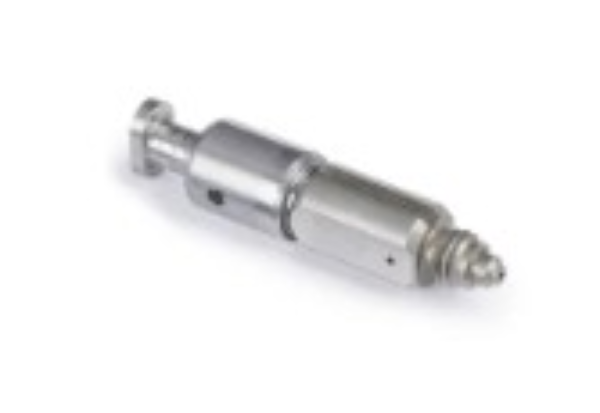

KIT, PC CHAMBER, RND, 03
GG PC60RD
KIT, PC CHAMBER, RND, 03
Fusion ProConnect Round 03 Mix Chamber with 0.060 in (1.5 mm) Orifice Size The Fusion ProConnect Round 03 Mix Chamber is designed for sprayers that prefer a round spray pattern. All Fusion PC Mix Chambers are protected by an ultra-durable Chromex coating and have been engineered to smoothly slide into position without damaging the side seals. In addition, these mix chambers incorporate an alignment groove specifically designed to ensure proper assembly. Designed for durability and smooth assembly Ultra durable Chromex coating Ramp design for quick assembly and proper sealing Alignment groove ensures proper assembly Available in a variety of sizes and spray patterns
PCF SYSTEM, 016, CART, HR METER, IO
GG PF2300
PCF SYSTEM, 016, CART, HR METER, IO
16 Styles 100-240 VAC Precision Flow System with Cartridge Regulator, High Resolution Meter and Discrete User InterfaceReduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds – providing your operation with a highly precise, continuous dispense.
Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.The next generation of precision metering
- Closed-loop "real-time" control ensures a precise, continuous dispense – improves part quality and reduces material waste
- Intuitive user interface simplifies setup, reduces training time
- Integrated USB interface for easy data downloads - allows for further analysis of process data
- Multiple gun capabilities for additional productivity - lets you program up to four guns
- Compact modular design - easy to install, integrate and maintain
- Low cost of ownership - fewer wear parts compared to shot meters
PCF SYSTEM, 016, CART, HR METER, EP
GG PF2320
PCF SYSTEM, 016, CART, HR METER, EP
Graco PF2320 16 Styles 100-240 VAC Precision Flow System with Cartridge Regulator, High Resolution Meter and EtherNet/IP User Interface
Reduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds – providing your operation with a highly precise, continuous dispense.
Application: Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.- The next generation of precision metering
Closed-loop &Prime, real-time&Prime, control ensures a precise, continuous dispense – improves part quality and reduces material waste
Intuitive user interface simplifies setup, reduces training time
Integrated USB interface for easy data downloads - allows for further analysis of process data
Multiple gun capabilities for additional productivity - lets you program up to four guns
Compact modular design - easy to install, integrate and maintain
Low cost of ownership - fewer wear parts compared to shot meters
- Model: PCF
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Air Outlet Size (in): 5/32
- Ambient/Warm Melt/Hot Melt: Ambient
- Amperage (A): 1.4
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
- Applicator Type: Automatic
- Compatible Material: Sealants, Adhesives
- Component Type: Single Component
- Flow Control Type: Regulation, Control
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 17256.6929133858
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 1725.6692913386
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Frequency (Hz): 50/60
- Gateway: EtherNet/IP User Interface
- Gun Activation: Automatic
- Includes: Regulator, Flow Meter, FCM Key Token
- Maximum Air Inlet Pressure (bar): 8.27
- Maximum Air Inlet Pressure (kPa): 827
- Maximum Air Inlet Pressure (MPa): 0.83
- Maximum Air Inlet Pressure (psi): 120
- Maximum Ambient Temperature (°C): 49
- Maximum Ambient Temperature (°F): 120
- Maximum Flow Rate (cc/min): 7500
- Maximum Flow Rate (GPM): 1.98
- Maximum Flow Rate (L/min): 7.5
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Viscosity (cP): 1000000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Viscosity (cP): 1000000
- Maximum Fluid Working Pressure (bar): 414
- Maximum Fluid Working Pressure (MPa): 41
- Maximum Fluid Working Pressur
PCF SYSTEM, 016, MAST, HR METER, EP
GG PF2420
PCF SYSTEM, 016, MAST, HR METER, EP
Graco PF2420 16 Styles 100-240 VAC Precision Flow System with Mastic Regulator, High Resolution Meter and EtherNet/IP User Interface
Reduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds – providing your operation with a highly precise, continuous dispense.
Application: Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.- The next generation of precision metering
Closed-loop &Prime, real-time&Prime, control ensures a precise, continuous dispense – improves part quality and reduces material waste
Intuitive user interface simplifies setup, reduces training time
Integrated USB interface for easy data downloads - allows for further analysis of process data
Multiple gun capabilities for additional productivity - lets you program up to four guns
Compact modular design - easy to install, integrate and maintain
Low cost of ownership - fewer wear parts compared to shot meters
- Model: PCF
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Air Outlet Size (in): 5/32
- Ambient/Warm Melt/Hot Melt: Ambient
- Amperage (A): 1.4
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
- Applicator Type: Automatic
- Compatible Material: Sealants, Adhesives
- Component Type: Single Component
- Flow Control Type: Regulation, Control
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 17281.1023622047
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 1728.1102362205
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Frequency (Hz): 50/60
- Gateway: EtherNet/IP User Interface
- Gun Activation: Automatic
- Includes: Regulator, Flow Meter, FCM Key Token
- Maximum Air Inlet Pressure (bar): 8.27
- Maximum Air Inlet Pressure (kPa): 827
- Maximum Air Inlet Pressure (MPa): 0.83
- Maximum Air Inlet Pressure (psi): 120
- Maximum Ambient Temperature (°C): 49
- Maximum Ambient Temperature (°F): 120
- Maximum Flow Rate (cc/min): 7500
- Maximum Flow Rate (GPM): 1.98
- Maximum Flow Rate (L/min): 7.5
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Viscosity (cP): 1000000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Viscosity (cP): 1000000
- Maximum Fluid Working Pressure (bar): 345
- Maximum Fluid Working Pressure (MPa): 35
- Maximum Fluid Working Pressure (
PCF SYSTEM, 016, CART, HR METER, PN
GG PF2340
PCF SYSTEM, 016, CART, HR METER, PN
Graco PF2340 16 Styles 100-240 VAC Precision Flow System with Cartridge Regulator, High Resolution Meter and PROFINET User Interface
Reduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds – providing your operation with a highly precise, continuous dispense.
Application: Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.- The next generation of precision metering
Closed-loop &Prime, real-time&Prime, control ensures a precise, continuous dispense – improves part quality and reduces material waste
Intuitive user interface simplifies setup, reduces training time
Integrated USB interface for easy data downloads - allows for further analysis of process data
Multiple gun capabilities for additional productivity - lets you program up to four guns
Compact modular design - easy to install, integrate and maintain
Low cost of ownership - fewer wear parts compared to shot meters
- Model: PCF
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Air Outlet Size (in): 5/32
- Ambient/Warm Melt/Hot Melt: Ambient
- Amperage (A): 1.4
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
- Applicator Type: Automatic
- Compatible Material: Sealants, Adhesives
- Component Type: Single Component
- Flow Control Type: Regulation, Control
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 17256.6929133858
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 1725.6692913386
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Frequency (Hz): 50/60
- Gateway: PROFINET User Interface
- Gun Activation: Automatic
- Includes: Regulator, Flow Meter, FCM Key Token
- Maximum Air Inlet Pressure (bar): 8.27
- Maximum Air Inlet Pressure (kPa): 827
- Maximum Air Inlet Pressure (MPa): 0.83
- Maximum Air Inlet Pressure (psi): 120
- Maximum Ambient Temperature (°C): 49
- Maximum Ambient Temperature (°F): 120
- Maximum Flow Rate (cc/min): 7500
- Maximum Flow Rate (GPM): 1.98
- Maximum Flow Rate (L/min): 7.5
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Viscosity (cP): 1000000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Viscosity (cP): 1000000
- Maximum Fluid Working Pressure (bar): 241
- Maximum Fluid Working Pressure (MPa): 24
- Maximum Fluid Working Pressure (psi
PCF SYSTEM, 016, MAST, HR METER, PN
GG PF2440
PCF SYSTEM, 016, MAST, HR METER, PN
16 Styles 100-240 VAC Precision Flow System with Mastic Regulator, High Resolution Meter and PROFINET User InterfaceReduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds – providing your operation with a highly precise, continuous dispense.
Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.The next generation of precision metering
- Closed-loop "real-time" control ensures a precise, continuous dispense – improves part quality and reduces material waste
- Intuitive user interface simplifies setup, reduces training time
- Integrated USB interface for easy data downloads - allows for further analysis of process data
- Multiple gun capabilities for additional productivity - lets you program up to four guns
- Compact modular design - easy to install, integrate and maintain
- Low cost of ownership - fewer wear parts compared to shot meters
PCF SYSTEM, 016, MAST, HR METER, EP
GG PF2421
PCF SYSTEM, 016, MAST, HR METER, EP
Graco PF2421 16 Styles 24 VDC Precision Flow System with Mastic Regulator, High Resolution Meter and EtherNet/IP User Interface
Reduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds – providing your operation with a highly precise, continuous dispense.
Application: Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.- The next generation of precision metering
Closed-loop &Prime, real-time&Prime, control ensures a precise, continuous dispense – improves part quality and reduces material waste
Intuitive user interface simplifies setup, reduces training time
Integrated USB interface for easy data downloads - allows for further analysis of process data
Multiple gun capabilities for additional productivity - lets you program up to four guns
Compact modular design - easy to install, integrate and maintain
Low cost of ownership - fewer wear parts compared to shot meters
- Model: PCF
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Air Outlet Size (in): 5/32
- Ambient/Warm Melt/Hot Melt: Ambient
- Amperage (A): 4
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
- Applicator Type: Automatic
- Compatible Material: Sealants, Adhesives
- Component Type: Single Component
- Flow Control Type: Regulation, Control
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 17281.1023622047
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 1728.1102362205
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Frequency (Hz): 50/60
- Gateway: EtherNet/IP User Interface
- Gun Activation: Automatic
- Includes: Regulator, Flow Meter, FCM Key Token
- Maximum Air Inlet Pressure (bar): 8.27
- Maximum Air Inlet Pressure (kPa): 827
- Maximum Air Inlet Pressure (MPa): 0.83
- Maximum Air Inlet Pressure (psi): 120
- Maximum Ambient Temperature (°C): 49
- Maximum Ambient Temperature (°F): 120
- Maximum Flow Rate (cc/min): 7500
- Maximum Flow Rate (GPM): 1.98
- Maximum Flow Rate (L/min): 7.5
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Viscosity (cP): 1000000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Viscosity (cP): 1000000
- Maximum Fluid Working Pressure (bar): 345
- Maximum Fluid Working Pressure (MPa): 35
- Maximum Fluid Working Pressure (psi): <
PCF SYSTEM, 016, HTD REG/METER, IO
GG PF2500
PCF SYSTEM, 016, HTD REG/METER, IO
Graco PF2500 16 Styles 100-240 VAC Precision Flow System with Heated Mastic Regulator, Heated Standard Resolution Meter and Discrete User Interface
Reduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds – providing your operation with a highly precise, continuous dispense.
Application: Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.- The next generation of precision metering
Closed-loop &Prime, real-time&Prime, control ensures a precise, continuous dispense – improves part quality and reduces material waste
Intuitive user interface simplifies setup, reduces training time
Integrated USB interface for easy data downloads - allows for further analysis of process data
Multiple gun capabilities for additional productivity - lets you program up to four guns
Compact modular design - easy to install, integrate and maintain
Low cost of ownership - fewer wear parts compared to shot meters
- Model: PCF
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Air Outlet Size (in): 5/32
- Ambient/Warm Melt/Hot Melt: Warm-Melt, Hot-Melt
- Amperage (A): 1.4
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
- Applicator Type: Automatic
- Compatible Material: Sealants, Adhesives
- Component Type: Single Component
- Flow Control Type: Regulation, Control
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 17281.1023622047
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 1728.1102362205
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Frequency (Hz): 50/60
- Gateway: Discrete User Interface
- Gun Activation: Automatic
- Includes: Regulator, Flow Meter, FCM Key Token
- Maximum Air Inlet Pressure (bar): 8.27
- Maximum Air Inlet Pressure (kPa): 827
- Maximum Air Inlet Pressure (MPa): 0.83
- Maximum Air Inlet Pressure (psi): 120
- Maximum Ambient Temperature (°C): 49
- Maximum Ambient Temperature (°F): 120
- Maximum Flow Rate (cc/min): 22500
- Maximum Flow Rate (GPM): 5.94
- Maximum Flow Rate (L/min): 22.5
- Maximum Fluid Temperature (°C): 204
- Maximum Fluid Temperature (°F): 400
- Maximum Fluid Viscosity (cP): 1000000
- Maximum Fluid Temperature (°C): 204
- Maximum Fluid Temperature (°F): 400
- Maximum Fluid Viscosity (cP): 1000000
- Maximum Fluid Working Pressure (bar): 241
- Maximum Fluid Working Pressure (MPa): 24
- Maxim
PCF SYSTEM, 016, HTD REG/METER, EP
GG PF2520
PCF SYSTEM, 016, HTD REG/METER, EP
Graco PF2520 16 Styles 100-240 VAC Precision Flow System with Heated Mastic Regulator, Heated Standard Resolution Meter and EtherNet/IP User Interface
Reduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds – providing your operation with a highly precise, continuous dispense.
Application: Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.- The next generation of precision metering
Closed-loop &Prime, real-time&Prime, control ensures a precise, continuous dispense – improves part quality and reduces material waste
Intuitive user interface simplifies setup, reduces training time
Integrated USB interface for easy data downloads - allows for further analysis of process data
Multiple gun capabilities for additional productivity - lets you program up to four guns
Compact modular design - easy to install, integrate and maintain
Low cost of ownership - fewer wear parts compared to shot meters
- Model: PCF
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Air Outlet Size (in): 5/32
- Ambient/Warm Melt/Hot Melt: Warm-Melt, Hot-Melt
- Amperage (A): 1.4
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
- Applicator Type: Automatic
- Compatible Material: Sealants, Adhesives
- Component Type: Single Component
- Flow Control Type: Regulation, Control
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 17281.1023622047
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 1728.1102362205
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Frequency (Hz): 50/60
- Gateway: EtherNet/IP User Interface
- Gun Activation: Automatic
- Includes: Regulator, FCM Key Token
- Maximum Air Inlet Pressure (bar): 8.27
- Maximum Air Inlet Pressure (kPa): 827
- Maximum Air Inlet Pressure (MPa): 0.83
- Maximum Air Inlet Pressure (psi): 120
- Maximum Ambient Temperature (°C): 49
- Maximum Ambient Temperature (°F): 120
- Maximum Flow Rate (cc/min): 22500
- Maximum Fluid Temperature (°C): 204
- Maximum Fluid Temperature (°F): 400
- Maximum Fluid Viscosity (cP): 1000000
- Maximum Fluid Temperature (°C): 204
- Maximum Fluid Temperature (°F): 400
- Maximum Fluid Viscosity (cP): 1000000
- Maximum Fluid Working Pressure (bar): 241
- Maximum Fluid Working Pressure (MPa): 24
- Maximum Fluid Working Pressure (psi): 3500
- Maximum Operating Temperature (°C): 204
PCF SYSTEM, 256, HTD REG/METER, EP
GG PF3520
PCF SYSTEM, 256, HTD REG/METER, EP
Graco PF3520 256 100-240 VAC Precision Flow System with Heated Mastic Regulator, Heated Standard Resolution Meter and EtherNet/IP User Interface
Reduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds – providing your operation with a highly precise, continuous dispense.
Application: Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.- The next generation of precision metering
Closed-loop &Prime, real-time&Prime, control ensures a precise, continuous dispense – improves part quality and reduces material waste
Intuitive user interface simplifies setup, reduces training time
Integrated USB interface for easy data downloads - allows for further analysis of process data
Multiple gun capabilities for additional productivity - lets you program up to four guns
Compact modular design - easy to install, integrate and maintain
Low cost of ownership - fewer wear parts compared to shot meters
- Model: PCF
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Air Outlet Size (in): 5/32
- Ambient/Warm Melt/Hot Melt: Warm-Melt, Hot-Melt
- Amperage (A): 1.4
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
- Applicator Type: Automatic
- Compatible Material: Sealants, Adhesives
- Component Type: Single Component
- Flow Control Type: Regulation, Control
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 17281.1023622047
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 1728.1102362205
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Frequency (Hz): 50/60
- Gateway: EtherNet/IP User Interface
- Gun Activation: Automatic
- Includes: Regulator, Flow Meter, FCM Key Token
- Maximum Air Inlet Pressure (bar): 8.27
- Maximum Air Inlet Pressure (kPa): 827
- Maximum Air Inlet Pressure (MPa): 0.83
- Maximum Air Inlet Pressure (psi): 120
- Maximum Ambient Temperature (°C): 49
- Maximum Ambient Temperature (°F): 120
- Maximum Flow Rate (cc/min): 22500
- Maximum Flow Rate (GPM): 5.94
- Maximum Flow Rate (L/min): 22.5
- Maximum Fluid Temperature (°C): 204
- Maximum Fluid Temperature (°F): 400
- Maximum Fluid Viscosity (cP): 1000000
- Maximum Fluid Temperature (°C): 204
- Maximum Fluid Temperature (°F): 400
- Maximum Fluid Viscosity (cP): 1000000
- Maximum Fluid Working Pressure (bar): 241
- Maximum Fluid Working Pressure (MPa): 24
- Maxim
ProBell Applicator, Standard, Non-Electrostatic, 50 MM Bell Cup, 1.0 MM Nozzle
GG R5A141
ProBell Applicator, Standard, Non-Electrostatic, 50 MM Bell Cup, 1.0 MM Nozzle
SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC
GG SDU.A01AAA1AA0C21
SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC
SaniForce Ram Unit, Stainless Steel Frame, 5:1 DB, Inflatable Seal, Exposed Controls SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications. High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps Reduce material waste with up to 99% material evacuation Improve worker ergonomics by eliminating hazards associated with scooping and dumping options Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates Self-priming and run dry pump capabilities ideal for container unloading applications Configurable systems to meet requirements of almost any ingredient unloading application
SDX SERIES 10 REEL, HOSE
GG SDL25C
SDX SERIES 10 REEL, HOSE
Graco SDL25C SDX™ 10, Air/Water/Antifreeze/WWS, 1/2 in (13 mm) Inlet, 3/8 in X 50 ft (10 mm X 15 m) Hose, NPT, Overhead Mount, Red
Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors
Application: With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.- Includes a stainless-steel swivel shaft for extended service life when transporting air, water, antifreeze, windshield wash solvent and other fluids.
- Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
- Durable Finish - Baked-on enamel finish protects reel from corrosion
- Model: SDX
- Series: 10
- Application: Air, Water, Antifreeze, WWS
- Color: Red
- Frame Type: Single Pedestal
- Hose Inside Diameter (in): 3/8
- Hose Inside Diameter (mm): 9.525
- Hose Length (ft): 50
- Hose Length (m): 15
- Hose Reel Type: Reel with Hose
- Includes Hose: Yes
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Gender: Male
- Inlet Thread Type: NPSM
- Maximum Temperature (°C): 87
- Maximum Temperature (°F): 190
- Maximum Working Pressure (psi): 300
- Minimum Temperature (°C): -28
- Minimum Temperature (°F): -20
- Mount Location: Overhead Mount
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
- Outlet Thread Gender: Male
- Outlet Thread Type: NPT
- Overall Height (in): 19.5
- Overall Height (mm): 498
- Overall Length (in): 17.1
- Overall Length (mm): 435
- Overall Width (in): 7
- Overall Width (mm): 177
- Recommended Environment: Indoor, Limited Outdoor
- Recommended Fluid Type: Air, Water, Antifreeze, WWS
SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC
GG SDU.A02AAA1AA0C21
SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC
Graco SDU.A02AAA1AA0C21 SaniForce Ram Unit, SST Frame, 5:1 PP, Inflatable Seal, Exposed Controls
SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications.
Application: High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps- Reduce material waste with up to 99% material evacuation
- Improve worker ergonomics by eliminating hazards associated with scooping and dumping options
- Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates
- Electronic controls for system automation of container evacuation and precise batch control with use of scale or flow meter
- Configurable systems to meet requirements of almost any ingredient unloading application
- Model: SaniForce 2.0 Drum Unloader
- Series: A
- Ambient/Warm Melt/Hot Melt: 90
- Application: Food, Personal Care
- Compatible Drum Height (cm): 101.6
- Compatible Drum Height (in): 40
- Compatible Drum Height (mm): 1016
- Compatible Drum Inside Diameter (cm): 54.6-59.0
- Compatible Drum Inside Diameter (in): 21.5-23.25
- Compatible Drum Inside Diameter (mm): 546-590
- Container Type: Drum
- Control Panel Material: Aluminum, Plastic
- Control Panel Type: Exposed
- Finish/Coating: Bead Blast
- Frame Material: Stainless Steel
- Material Container Volume (gal): 55
- Material Container Volume (l): 208
- Maximum Air Inlet Pressure (bar): 6.89
- Maximum Air Inlet Pressure (kg/cm²): 7.03
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 13
- Maximum Flow Rate (L/min): 49.2
- Maximum Fluid Pressure (bar): 28.7
- Maximum Fluid Pressure (kPa): 2870
- Maximum Fluid Pressure (psi): 410
- Maximum Fluid Pressure (bar): 28.7
- Maximum Fluid Pressure (kPa): 2870
- Maximum Fluid Pressure (psi): 410
- Maximum Height (cm): 295
- Maximum Height (ft): 9.7
- Maximum Height (in): 116
- Maximum Height (m): 2.95
- Maximum Height (mm): 2946
- Maximum Operating Temperature (°C): 32
- Maximum Operating Temperature (°F): 90
- Maximum Working Pressure (bar): 28.7
- Maximum Working Pressure (kPa): 2870
- Maximum Working Pressure (MPa): 2.9
- Maximum Working Pressure (psi): 410
- Minimum Height (cm): 194
5-Gallon Follower Plate Seal , Flat
GG SA908003
5-Gallon Follower Plate Seal , Flat
Adapter, 3/4Nptf, 1-1/4-18Thrdm, 1/4
GG SA914004
Adapter, 3/4Nptf, 1-1/4-18Thrdm, 1/4
SDX SERIES 10 REEL, HOSE
GG SDL2DB
SDX SERIES 10 REEL, HOSE
Graco SDL2DB SDX™ 10, Air/Water/Antifreeze/WWS, 3/8 in (10 mm) Inlet, Bare Reel (3/8 in X 50 ft (10 mm X 15 m) Capacity), NPT, Overhead Mount, Metallic Blue
Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors
Application: With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.- Includes a stainless-steel swivel shaft for extended service life when transporting air, water, antifreeze, windshield wash solvent and other fluids.
- Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
- Durable Finish - Baked-on enamel finish protects reel from corrosion
- Model: SDX
- Series: 10
- Application: Air, Water
- Bare Reel: 1
- Color: Metallic Blue
- Frame Type: Single Pedestal
- Hose Inside Diameter (in): 3/8
- Hose Inside Diameter (mm): 9.525
- Hose Length (ft): 50
- Hose Length (m): 15
- Hose Reel Type: Bare Reel
- Includes Hose: No
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Gender: Female
- Inlet Thread Type: NPSM
- Maximum Temperature (°C): 87
- Maximum Temperature (°F): 190
- Maximum Working Pressure (psi): 300
- Minimum Temperature (°C): -28
- Minimum Temperature (°F): -20
- Mount Location: Overhead Mount
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
- Outlet Thread Gender: Male
- Outlet Thread Type: NPT
- Overall Height (in): 19.5
- Overall Height (mm): 498
- Overall Length (in): 17.1
- Overall Length (mm): 435
- Overall Width (in): 7
- Overall Width (mm): 177
- Recommended Environment: Indoor, Limited Outdoor
- Recommended Fluid Type: Air, Water, Antifreeze, WWS
SDX SERIES 10 REEL, HOSE
GG SDM33B
SDX SERIES 10 REEL, HOSE
SDX™ 10, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 35 ft (13 mm X 11 m) Hose, NPT, Overhead Mount, Metallic Blue Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks. Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs. Increased Spring Power - Every SDX oil hose reel recoils to the exact same assigned length for a clean, uniform look. Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Adjustable Arm - Easily change the arm position for your application Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications Durable Finish - Baked-on enamel finish protects reel from corrosion
Filter, In-Line, 80-100-200, Mesh, 3
GG SA925-1A
Filter, In-Line, 80-100-200, Mesh, 3
APPLICATOR, BELL, 50MM, 1.5
GG R5A160
APPLICATOR, BELL, 50MM, 1.5
ProBell Applicator, Standard, Solventborne, 50 mm bell cup, 1.5 mm nozzle Combining rotary bell atomization with electrostatic technology is proven to provide up to 95 percent transfer efficiency. This ProBell rotary atomizer fits on a solid wrist robot, reciprocator or fixed mount. ProBell delivers the spray performance, pattern and finish quality needed to exceed in any industry. Applications for which the rotary bell atomizer has proven itself include Tier 1 automotive, architectural panels and extruded aluminum, wood products, and more. System integration uses existing PLC (programmable logic controller) or new installation. Coiled fluid tube controls electrostatic resistivity for a wide range of material. Aluminum bell cup with serrated edge has equally spaced axial grooves that act as channels for paint flow, producing uniform particles. This makes it ideal for atomizing difficult material like clear coats.
SDX SERIES 20 REEL, HOSE
GG SDM65B
SDX SERIES 20 REEL, HOSE
SDX™ 20, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, Overhead Mount, Metallic Blue Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks. Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs. Increased Spring Power - Every SDX oil hose reel recoils to the exact same assigned length for a clean, uniform look. Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Adjustable Arm - Easily change the arm position for your application Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications Durable Finish - Baked-on enamel finish protects reel from corrosion
SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC
GG SDU.A02AAA2AA0C21
SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC
Graco SDU.A02AAA2AA0C21 SaniForce Ram Unit, SST Frame, 5:1 PP, Inflatable Seal, Enclosed Pneumatic Controls
SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications.
Application: High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps- Reduce material waste with up to 99% material evacuation
- Improve worker ergonomics by eliminating hazards associated with scooping and dumping options
- Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates
- Electronic controls for system automation of container evacuation and precise batch control with use of scale or flow meter
- Configurable systems to meet requirements of almost any ingredient unloading application
- Model: SaniForce 2.0 Drum Unloader
- Series: A
- Ambient/Warm Melt/Hot Melt: 90
- Application: Food, Personal Care
- Compatible Drum Height (cm): 101.6
- Compatible Drum Height (in): 40
- Compatible Drum Height (mm): 1016
- Compatible Drum Inside Diameter (cm): 54.6-59.0
- Compatible Drum Inside Diameter (in): 21.5-23.25
- Compatible Drum Inside Diameter (mm): 546-590
- Container Type: Drum
- Control Panel Material: Stainless Steel
- Control Panel Type: Enclosed
- Finish/Coating: Bead Blast
- Frame Material: Stainless Steel
- Material Container Volume (gal): 55
- Material Container Volume (l): 208
- Maximum Air Inlet Pressure (bar): 6.89
- Maximum Air Inlet Pressure (kg/cm²): 7.03
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 13
- Maximum Flow Rate (L/min): 49.2
- Maximum Fluid Pressure (bar): 28.7
- Maximum Fluid Pressure (kPa): 2870
- Maximum Fluid Pressure (psi): 410
- Maximum Fluid Pressure (bar): 28.7
- Maximum Fluid Pressure (kPa): 2870
- Maximum Fluid Pressure (psi): 410
- Maximum Height (cm): 295
- Maximum Height (ft): 9.7
- Maximum Height (in): 116
- Maximum Height (m): 2.95
- Maximum Height (mm): 2946
- Maximum Operating Temperature (°C): 32
- Maximum Operating Temperature (°F): 90
- Maximum Working Pressure (bar): 28.7
- Maximum Working Pressure (kPa): 2870
- Maximum Working Pressure (MPa): 2.9
- Maximum Working Pressure (psi): 410
- Minimum Height (cm):
SDX SERIES 20 REEL, HOSE
GG SDL65F
SDX SERIES 20 REEL, HOSE
Graco SDL65F SDX™ 20, Air/Water/Antifreeze/WWS, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, Overhead Mount, Yellow
Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors
Application: With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.- Includes a stainless-steel swivel shaft for extended service life when transporting air, water, antifreeze, windshield wash solvent and other fluids.
- Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
- Durable Finish - Baked-on enamel finish protects reel from corrosion
- Model: SDX
- Series: 20
- Application: Air, Water, Antifreeze, WWS
- Color: Yellow
- Frame Type: Single Pedestal
- Hose Inside Diameter (in): 1/2
- Hose Inside Diameter (mm): 12.7
- Hose Length (ft): 50
- Hose Length (m): 15
- Hose Reel Type: Reel with Hose
- Includes Hose: Yes
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Gender: Male
- Inlet Thread Type: NPSM
- Maximum Temperature (°C): 87
- Maximum Temperature (°F): 190
- Maximum Working Pressure (psi): 300
- Minimum Temperature (°C): -28
- Minimum Temperature (°F): -20
- Mount Location: Overhead Mount
- Outlet Size (in): 1/2
- Outlet Size (mm): 12.7
- Outlet Thread Gender: Male
- Outlet Thread Type: NPT
- Overall Height (in): 21.8
- Overall Height (mm): 554
- Overall Length (in): 19.2
- Overall Length (mm): 487
- Overall Width (in): 7
- Overall Width (mm): 177
- Recommended Environment: Indoor, Limited Outdoor
- Recommended Fluid Type: Air, Water, Antifreeze, WWS
SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC
GG SDU.A02AAA2AE0C21
SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC
Graco SDU.A02AAA2AE0C21 SaniForce Ram Unit, SST Frame, 5:1 PP, Inflatable Seal, Enclosed Pneumatic Controls
SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications.
Application: High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps- Reduce material waste with up to 99% material evacuation
- Improve worker ergonomics by eliminating hazards associated with scooping and dumping options
- Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates
- Electronic controls for system automation of container evacuation and precise batch control with use of scale or flow meter
- Configurable systems to meet requirements of almost any ingredient unloading application
- Model: SaniForce 2.0 Drum Unloader
- Series: A
- Ambient/Warm Melt/Hot Melt: 90
- Application: Food, Personal Care
- Compatible Drum Height (cm): 101.6
- Compatible Drum Height (in): 40
- Compatible Drum Height (mm): 1016
- Compatible Drum Inside Diameter (cm): 54.6-59.0
- Compatible Drum Inside Diameter (in): 21.5-23.25
- Compatible Drum Inside Diameter (mm): 546-590
- Container Type: Drum
- Control Panel Material: Stainless Steel
- Control Panel Type: Enclosed
- Finish/Coating: Bead Blast
- Frame Material: Stainless Steel
- Includes: Stainless Steel Ram Piston Rods
- Material Container Volume (gal): 55
- Material Container Volume (l): 208
- Maximum Air Inlet Pressure (bar): 6.89
- Maximum Air Inlet Pressure (kg/cm²): 7.03
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 13
- Maximum Flow Rate (L/min): 49.2
- Maximum Fluid Pressure (bar): 28.7
- Maximum Fluid Pressure (kPa): 2870
- Maximum Fluid Pressure (psi): 410
- Maximum Fluid Pressure (bar): 28.7
- Maximum Fluid Pressure (kPa): 2870
- Maximum Fluid Pressure (psi): 410
- Maximum Height (cm): 295
- Maximum Height (ft): 9.7
- Maximum Height (in): 116
- Maximum Height (m): 2.95
- Maximum Height (mm): 2946
- Maximum Operating Temperature (°C): 32
- Maximum Operating Temperature (°F): 90
- Maximum Working Pressure (bar): 28.7
- Maximum Working Pressure (kPa): 2870
- Maximum Working Pressure (MPa): 2.9
- Maximum Workin
SDX SERIES 20 REEL, HOSE
GG SDM6HB
SDX SERIES 20 REEL, HOSE
Graco SDM6HB SDX™ 20, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, Tank/Bench Mount, Metallic Blue
Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors
Application: With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.- Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
- Increased Spring Power - Every SDX oil hose reel recoils to the exact same assigned length for a clean, uniform look.
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
- Durable Finish - Baked-on enamel finish protects reel from corrosion
- Model: SDX
- Series: 20
- Application: Oil
- Color: Metallic Blue
- Frame Type: Single Pedestal
- Hose Inside Diameter (in): 1/2
- Hose Inside Diameter (mm): 12.7
- Hose Length (ft): 50
- Hose Length (m): 15
- Hose Reel Type: Reel with Hose
- Includes Hose: Yes
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Gender: Male
- Inlet Thread Type: NPSM
- Maximum Temperature (°C): 87
- Maximum Temperature (°F): 190
- Maximum Working Pressure (psi): 2000
- Minimum Temperature (°C): -28
- Minimum Temperature (°F): -20
- Mount Location: Truck Mount, Bench Mount
- Outlet Size (in): 1/2
- Outlet Size (mm): 12.7
- Outlet Thread Gender: Male
- Outlet Thread Type: NPT
- Overall Height (in): 21.8
- Overall Height (mm): 554
- Overall Length (in): 19.2
- Overall Length (mm): 487
- Overall Width (in): 7
- Overall Width (mm): 177
- Recommended Environment: Indoor, Limited Outdoor
- Recommended Fluid Type: Oil
SDX SERIES 20 REEL, HOSE
GG SDL65D
SDX SERIES 20 REEL, HOSE
Graco SDL65D SDX™ 20, Air/Water/Antifreeze/WWS, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, Overhead Mount, Black
Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors
Application: With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.- Includes a stainless-steel swivel shaft for extended service life when transporting air, water, antifreeze, windshield wash solvent and other fluids.
- Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
- Durable Finish - Baked-on enamel finish protects reel from corrosion
- Model: SDX
- Series: 20
- Application: Air, Water, Antifreeze, WWS
- Color: Black
- Frame Type: Single Pedestal
- Hose Inside Diameter (in): 1/2
- Hose Inside Diameter (mm): 12.7
- Hose Length (ft): 50
- Hose Length (m): 15
- Hose Reel Type: Reel with Hose
- Includes Hose: Yes
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Gender: Male
- Inlet Thread Type: NPSM
- Maximum Temperature (°C): 87
- Maximum Temperature (°F): 190
- Maximum Working Pressure (psi): 300
- Minimum Temperature (°C): -28
- Minimum Temperature (°F): -20
- Mount Location: Overhead Mount
- Outlet Size (in): 1/2
- Outlet Size (mm): 12.7
- Outlet Thread Gender: Male
- Outlet Thread Type: NPT
- Overall Height (in): 21.8
- Overall Height (mm): 554
- Overall Length (in): 19.2
- Overall Length (mm): 487
- Overall Width (in): 7
- Overall Width (mm): 177
- Recommended Environment: Indoor, Limited Outdoor
- Recommended Fluid Type: Air, Water, Antifreeze, WWS
SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC
GG SDU.A02AAA3AE0C21
SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC
Graco SDU.A02AAA3AE0C21 SaniForce Ram Unit, SST Frame, 5:1 PP, Inflatable Seal, Electronic Controls
SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications.
Application: High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps- Reduce material waste with up to 99% material evacuation
- Improve worker ergonomics by eliminating hazards associated with scooping and dumping options
- Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates
- Electronic controls for system automation of container evacuation and precise batch control with use of scale or flow meter
- Configurable systems to meet requirements of almost any ingredient unloading application
- Model: SaniForce 2.0 Drum Unloader
- Series: A
- Ambient/Warm Melt/Hot Melt: 90
- Application: Food, Personal Care
- Compatible Drum Height (cm): 101.6
- Compatible Drum Height (in): 40
- Compatible Drum Height (mm): 1016
- Compatible Drum Inside Diameter (cm): 54.6-59.0
- Compatible Drum Inside Diameter (in): 21.5-23.25
- Compatible Drum Inside Diameter (mm): 546-590
- Container Type: Drum
- Control Panel Material: Stainless Steel
- Control Panel Type: Enclosed
- Finish/Coating: Bead Blast
- Frame Material: Stainless Steel
- Includes: Stainless Steel Ram Piston Rods
- Material Container Volume (gal): 55
- Material Container Volume (l): 208
- Maximum Air Inlet Pressure (bar): 6.89
- Maximum Air Inlet Pressure (kg/cm²): 7.03
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 13
- Maximum Flow Rate (L/min): 49.2
- Maximum Fluid Pressure (bar): 28.7
- Maximum Fluid Pressure (kPa): 2870
- Maximum Fluid Pressure (psi): 410
- Maximum Fluid Pressure (bar): 28.7
- Maximum Fluid Pressure (kPa): 2870
- Maximum Fluid Pressure (psi): 410
- Maximum Height (cm): 295
- Maximum Height (ft): 9.7
- Maximum Height (in): 116
- Maximum Height (m): 2.95
- Maximum Height (mm): 2946
- Maximum Operating Temperature (°C): 32
- Maximum Operating Temperature (°F): 90
- Maximum Working Pressure (bar): 28.7
- Maximum Working Pressure (kPa): 2870
- Maximum Working Pressure (MPa): 2.9
- Maximum Working Pressu
LSR (Liquid, Silicone, Rubber) Gun, Shut, Off, Single, Mat'L
GG SG263-1A
LSR (Liquid, Silicone, Rubber) Gun, Shut, Off, Single, Mat'L
Cover, Mixer, 1/2X24El, 10.88Lg, Wn
GG SM314001
Cover, Mixer, 1/2X24El, 10.88Lg, Wn
PERFORMAA GUN, AA, 1500, WL
GG 26B502
PERFORMAA GUN, AA, 1500, WL
Graco 26B502 PerformAA 1500 Air Assist Gun with Wood Lacquer air cap and light trigger pull
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
- High quality 1500 psi air assist spray gun
- Wood lacquer air cap for wood finishing top coats and lacquers
- Indexing air cap for accurate spray position
- Trigger pull force is ultra-light, reducing operator fatigue and muscle stress
- Model: PerformAA 15
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Manual
- Bleed Type: Non-Bleeder
- Compatible Material: Lacquer, Varnish, Latex, Plural Component Materials, Solvent borne, Solvent borne Paints, Topcoats
- Compatible Spray Tip: AXM, AXF
- Feed Type: Pressure Feed
- Fluid Adjustment Knob: Clicking
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 453
- Gun Weight (kg): 0.45
- Gun Weight (lb): 1
- Gun Weight (oz): 16
- Gun Weight with Tip and Guard (g): 480
- Gun Weight with Tip and Guard (oz): 17.1
- Gun Weight without Tip and Guard (g): 460
- Gun Weight without Tip and Guard (oz): 16.2
- Includes: Carbide Seat/Ball, Indexing Air Cap, Tip of Choice, Tool Kit
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 105
- Maximum Fluid Pressure (kPa): 10500
- Maximum Fluid Pressure (MPa): 10.5
- Maximum Fluid Pressure (psi): 1500
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Maximum Fluid Pressure (bar): 105
- Maximum Fluid Pressure (kPa): 10500
- Maximum Fluid Pressure (MPa): 10.5
- Maximum Fluid Pressure (psi): 1500
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Overall Height (cm): 20.8
- Overall Height (in): 8.2
- Overall Height (mm): 208
- Overall Length (cm): 15.25
- Overall Length (in): 6
- Overall Length (mm): 152
- Product Type: Spray Gun
PERFORMAA GUN, AA, 1500, WL, SWIVEL
GG 26B503
PERFORMAA GUN, AA, 1500, WL, SWIVEL
Graco 26B503 PerformAA 1500 Air Assist Gun with Wood Lacquer air cap, light trigger pull and fluid swivel
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
- High quality 1500 psi air assist spray gun
- Wood lacquer air cap for wood finishing top coats and lacquers
- Includes a low profile fluid swivel
- Trigger pull force is ultra-light, reducing operator fatigue and muscle stress
- Model: PerformAA 15
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Manual
- Bleed Type: Non-Bleeder
- Compatible Material: Lacquer, Varnish, Latex, Plural Component Materials, Solvent borne, Solvent borne Paints, Topcoats
- Compatible Spray Tip: AXM, AXF
- Feed Type: Pressure Feed
- Fluid Adjustment Knob: Clicking
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 453
- Gun Weight (kg): 0.45
- Gun Weight (lb): 1
- Gun Weight (oz): 16
- Gun Weight with Tip and Guard (g): 480
- Gun Weight with Tip and Guard (oz): 17.1
- Gun Weight without Tip and Guard (g): 460
- Gun Weight without Tip and Guard (oz): 16.2
- Includes: Carbide Seat/Ball, Indexing Air Cap, Tip of Choice, Tool Kit
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 105
- Maximum Fluid Pressure (kPa): 10500
- Maximum Fluid Pressure (MPa): 10.5
- Maximum Fluid Pressure (psi): 1500
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Maximum Fluid Pressure (bar): 105
- Maximum Fluid Pressure (kPa): 10500
- Maximum Fluid Pressure (MPa): 10.5
- Maximum Fluid Pressure (psi): 1500
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Overall Height (cm): 20.8
- Overall Height (in): 8.2
- Overall Height (mm): 208
- Overall Length (cm): 15.25
- Overall Length (in): 6
- Overall Length (mm): 152
- Product Type: Spray Gun
PERFORMAA GUN, AA, 1500, LV, SWIVEL
GG 26B505
PERFORMAA GUN, AA, 1500, LV, SWIVEL
Graco 26B505 PerformAA 1500 Air Assist Gun with Low Viscosity air cap, light trigger pull and fluid swivel
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
- High quality 1500 psi air assist spray gun
- Low viscosity air cap for even dispersion of light materials
- Includes a low profile fluid swivel
- Trigger pull force is ultra-light, reducing operator fatigue and muscle stress
- Model: PerformAA 15
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Manual
- Bleed Type: Non-Bleeder
- Compatible Material: Stains, Sealer, Solvent borne, Solvent borne Paints, Toner
- Compatible Spray Tip: AXM, AXF
- Feed Type: Pressure Feed
- Fluid Adjustment Knob: Clicking
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 453
- Gun Weight (kg): 0.45
- Gun Weight (lb): 1
- Gun Weight (oz): 16
- Gun Weight with Tip and Guard (g): 480
- Gun Weight with Tip and Guard (oz): 17.1
- Gun Weight without Tip and Guard (g): 460
- Gun Weight without Tip and Guard (oz): 16.2
- Includes: Carbide Seat/Ball, Indexing Air Cap, Tip of Choice, Tool Kit
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 105
- Maximum Fluid Pressure (kPa): 10500
- Maximum Fluid Pressure (MPa): 10.5
- Maximum Fluid Pressure (psi): 1500
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Maximum Fluid Pressure (bar): 105
- Maximum Fluid Pressure (kPa): 10500
- Maximum Fluid Pressure (MPa): 10.5
- Maximum Fluid Pressure (psi): 1500
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Overall Height (cm): 20.8
- Overall Height (in): 8.2
- Overall Height (mm): 208
- Overall Length (cm): 15.25
- Overall Length (in): 6
- Overall Length (mm): 152
- Product Type: Spray Gun
Performa AA 5000 Air Assist Gun
GG 26B509
PERFORMAA GUN, AA, 5000, GF, HIGH-FLOW
Graco 26B509 PerformAA 5000 Air Assist Gun with General Finishing air cap and no fluid filter
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
- High quality 5000 psi air assist spray gun
- General finishing air cap for a wide range of materials
- No fluid filter for high flow applications
- Clicking fan pattern adjustment knob for accurate adjustment
- Model: PerformAA 50
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Manual
- Bleed Type: Non-Bleeder
- Compatible Material: Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solventborne, Solventborne Paints, Urethane, UV Coating, Varnish
- Compatible Spray Tip: AXM, AXF
- Feed Type: Pressure Feed
- Fluid Adjustment Knob: Clicking
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 453
- Gun Weight (kg): 0.45
- Gun Weight (lb): 1
- Gun Weight (oz): 16
- Gun Weight with Tip and Guard (g): 490
- Gun Weight with Tip and Guard (oz): 17.4
- Gun Weight without Tip and Guard (g): 460
- Gun Weight without Tip and Guard (oz): 16.2
- Includes: Carbide Seat/Ball, Tip Guard, Tip of Choice, Tool Kit
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 345
- Maximum Fluid Pressure (kPa): 34500
- Maximum Fluid Pressure (MPa): 34.5
- Maximum Fluid Pressure (psi): 5000
- Maximum Fluid Temperature ( degree C): 43
- Maximum Fluid Temperature ( degree F): 110
- Maximum Fluid Pressure (bar): 345
- Maximum Fluid Pressure (kPa): 34500
- Maximum Fluid Pressure (MPa): 34.5
- Maximum Fluid Pressure (psi): 5000
- Maximum Fluid Temperature ( degree C): 43
- Maximum Fluid Temperature ( degree F): 110
- Overall Height (cm): 20.8
- Overall Height (in): 8.2
- Overall Height (mm): 208
- Overall Length (cm): 17.25
- Overall Length (in): 6.8
- Overall Length (mm): 173
- Product Type: Spray Gun
PERFORMAA GUN, AA, 5000, GF
GG 26B510
PERFORMAA GUN, AA, 5000, GF
Graco 26B510 PerformAA 5000 Air Assist Gun with General Finishing air cap
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
- High quality 5000 psi air assist spray gun
- General finishing air cap for a wide range of materials
- Carbide fluid seat and carbide ball for durability
- Clicking fan pattern adjustment knob for accurate adjustment
- Model: PerformAA 50
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Manual
- Bleed Type: Non-Bleeder
- Compatible Material: Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solvent borne, Solvent borne Paints, Urethane, UV Coating, Varnish
- Compatible Spray Tip: AXM, AXF
- Feed Type: Pressure Feed
- Fluid Adjustment Knob: Clicking
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 453
- Gun Weight (kg): 0.45
- Gun Weight (lb): 1
- Gun Weight (oz): 16
- Gun Weight with Tip and Guard (g): 490
- Gun Weight with Tip and Guard (oz): 17.4
- Gun Weight without Tip and Guard (g): 460
- Gun Weight without Tip and Guard (oz): 16.2
- Includes: Carbide Seat/Ball, Tip Guard, Tip of Choice, Tool Kit
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 345
- Maximum Fluid Pressure (kPa): 34500
- Maximum Fluid Pressure (MPa): 34.5
- Maximum Fluid Pressure (psi): 5000
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Maximum Fluid Pressure (bar): 345
- Maximum Fluid Pressure (kPa): 34500
- Maximum Fluid Pressure (MPa): 34.5
- Maximum Fluid Pressure (psi): 5000
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Overall Height (cm): 20.8
- Overall Height (in): 8.2
- Overall Height (mm): 208
- Overall Length (cm): 17.25
- Overall Length (in): 6.8
- Overall Length (mm): 173
- Product Type: Spray Gun
PerformAA 5000 Air Assist Gun
GG 26B512
PERFORMAA GUN,AA,5000,WL,SWIVEL
Graco 26B512 PerformAA 5000 Air Assist Gun with Wood Lacquer air cap and fluid swivel
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
- High quality 5000 psi air assist spray gun
- Wood lacquer air cap for wood finishing top coats and lacquers
- Includes a low profile fluid swivel Fine finish, AXM, or pre-orifice, AXF, spray tip included as tip of choice
- Clicking fan pattern adjustment knob for accurate adjustment
- Model: PerformAA 50
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Manual
- Bleed Type: Non-Bleeder
- Compatible Material: Waterborne, Latex, Plural Component Materials, Polyurethane, Urethane, UV Coating, Varnish
- Compatible Spray Tip: AXM, AXF
PERFORMAA GUN, AA, 5000, HV, SWIVEL
GG 26B513
PERFORMAA GUN, AA, 5000, HV, SWIVEL
Graco 26B513 PerformAA 5000 Air Assist Gun with High Viscosity air cap and fluid swivel
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
- High quality 5000 psi air assist spray gun
- High viscosity air cap for high solids and high viscosity spraying
- Includes a low profile fluid swivel
- Clicking fan pattern adjustment knob for accurate adjustment
- Model: PerformAA 50
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Manual
- Bleed Type: Non-Bleeder
- Compatible Material: High Solids, Acid Catalyzed, Epoxies, Plural Component Materials, Polyurethane, Solvent borne, Solvent borne Paints, Urethane, UV Coating, Waterborne
- Compatible Spray Tip: AXM, AXF
- Feed Type: Pressure Feed
- Fluid Adjustment Knob: Clicking
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 453
- Gun Weight (kg): 0.45
- Gun Weight (lb): 1
- Gun Weight (oz): 16
- Gun Weight with Tip and Guard (g): 490
- Gun Weight with Tip and Guard (oz): 17.4
- Gun Weight without Tip and Guard (g): 460
- Gun Weight without Tip and Guard (oz): 16.2
- Includes: Carbide Seat/Ball, Tip Guard, Tip of Choice, Tool Kit
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 345
- Maximum Fluid Pressure (kPa): 34500
- Maximum Fluid Pressure (MPa): 34.5
- Maximum Fluid Pressure (psi): 5000
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Maximum Fluid Pressure (bar): 345
- Maximum Fluid Pressure (kPa): 34500
- Maximum Fluid Pressure (MPa): 34.5
- Maximum Fluid Pressure (psi): 5000
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Overall Height (cm): 20.8
- Overall Height (in): 8.2
- Overall Height (mm): 208
- Overall Length (cm): 17.25
- Overall Length (in): 6.8
- Overall Length (mm): 173
- Product Type: Spray Gun
PERFORMAA GUN, AA, 5000, WB, SWIVEL
GG 26B514
PERFORMAA GUN, AA, 5000, WB, SWIVEL
Graco 26B514 PerformAA 5000 Air Assist Gun with Waterborne air cap and fluid swivel
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
- High quality 5000 psi air assist spray gun
- Waterborne air cap for breaking up waterborne materials
- Includes a low profile fluid swivel
- Clicking fan pattern adjustment knob for accurate adjustment
- Model: PerformAA 50
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Manual
- Bleed Type: Non-Bleeder
- Compatible Material: Waterborne, Latex, Plural Component Materials, Polyurethane, Urethane, UV Coating, Varnish
- Compatible Spray Tip: AXM, AXF
- Feed Type: Pressure Feed
- Fluid Adjustment Knob: Clicking
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 453
- Gun Weight (kg): 0.45
- Gun Weight (lb): 1
- Gun Weight (oz): 16
- Gun Weight with Tip and Guard (g): 490
- Gun Weight with Tip and Guard (oz): 17.4
- Gun Weight without Tip and Guard (g): 460
- Gun Weight without Tip and Guard (oz): 16.2
- Includes: Carbide Seat/Ball, Tip Guard, Tip of Choice, Tool Kit
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 345
- Maximum Fluid Pressure (kPa): 34500
- Maximum Fluid Pressure (MPa): 34.5
- Maximum Fluid Pressure (psi): 5000
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Maximum Fluid Pressure (bar): 345
- Maximum Fluid Pressure (kPa): 34500
- Maximum Fluid Pressure (MPa): 34.5
- Maximum Fluid Pressure (psi): 5000
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Overall Height (cm): 20.8
- Overall Height (in): 8.2
- Overall Height (mm): 208
- Overall Length (cm): 17.25
- Overall Length (in): 6.8
- Overall Length (mm): 173
- Product Type: Spray Gun
PERFORMAA GUN, AA, 5000, QD, SWIVEL
GG 26B515
PERFORMAA GUN, AA, 5000, QD, SWIVEL
Graco 26B515 PerformAA 5000 Air Assist Gun with Quick Drying air cap and fluid swivel
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
- High quality 5000 psi air assist spray gun
- Quick Drying air cap for minimizing air entrapment
- Includes a low profile fluid swivel
- Clicking fan pattern adjustment knob for accurate adjustment
- Model: PerformAA 50
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Manual
- Bleed Type: Non-Bleeder
- Compatible Material: Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solvent borne, Solvent borne Paints, Urethane, UV Coating, Varnish
- Compatible Spray Tip: AXM, AXF
- Feed Type: Pressure Feed
- Fluid Adjustment Knob: Clicking
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 453
- Gun Weight (kg): 0.45
- Gun Weight (lb): 1
- Gun Weight (oz): 16
- Gun Weight with Tip and Guard (g): 490
- Gun Weight with Tip and Guard (oz): 17.4
- Gun Weight without Tip and Guard (g): 460
- Gun Weight without Tip and Guard (oz): 16.2
- Includes: Carbide Seat/Ball, Tip Guard, Tip of Choice, Tool Kit
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 345
- Maximum Fluid Pressure (kPa): 34500
- Maximum Fluid Pressure (MPa): 34.5
- Maximum Fluid Pressure (psi): 5000
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Maximum Fluid Pressure (bar): 345
- Maximum Fluid Pressure (kPa): 34500
- Maximum Fluid Pressure (MPa): 34.5
- Maximum Fluid Pressure (psi): 5000
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Overall Height (cm): 20.8
- Overall Height (in): 8.2
- Overall Height (mm): 208
- Overall Length (cm): 17.25
- Overall Length (in): 6.8
- Overall Length (mm): 173
- Product Type: Spray Gun
PERFORMAA GUN, AA, 5000, LV, SWIVEL
GG 26B516
PERFORMAA GUN, AA, 5000, LV, SWIVEL
Graco 26B516 PerformAA 5000 Air Assist Gun with Low Viscosity air cap and fluid swivel
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
- High quality 5000 psi air assist spray gun
- Low viscosity air cap for even dispersion of light materials
- Includes a low profile fluid swivel
- Clicking fan pattern adjustment knob for accurate adjustment
- Model: PerformAA 50
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Manual
- Bleed Type: Non-Bleeder
- Compatible Material: Stains, Sealer, Solvent borne, Solvent borne Paints, Toner
- Compatible Spray Tip: AXM, AXF
- Feed Type: Pressure Feed
- Fluid Adjustment Knob: Clicking
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 453
- Gun Weight (kg): 0.45
- Gun Weight (lb): 1
- Gun Weight (oz): 16
- Gun Weight with Tip and Guard (g): 490
- Gun Weight with Tip and Guard (oz): 17.4
- Gun Weight without Tip and Guard (g): 460
- Gun Weight without Tip and Guard (oz): 16.2
- Includes: Carbide Seat/Ball, Tip Guard, Tip of Choice, Tool Kit
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 345
- Maximum Fluid Pressure (kPa): 34500
- Maximum Fluid Pressure (MPa): 34.5
- Maximum Fluid Pressure (psi): 5000
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Maximum Fluid Pressure (bar): 345
- Maximum Fluid Pressure (kPa): 34500
- Maximum Fluid Pressure (MPa): 34.5
- Maximum Fluid Pressure (psi): 5000
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Overall Height (cm): 20.8
- Overall Height (in): 8.2
- Overall Height (mm): 208
- Overall Length (cm): 17.25
- Overall Length (in): 6.8
- Overall Length (mm): 173
- Product Type: Spray Gun
PERFORMAA GUN, AL, 1500
GG 26B519
PERFORMAA GUN, AL, 1500
Graco 26B519 PerformAA 1500 Airless Gun
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
- High quality 1500 psi airless spray gun
- Airless air cap for fine finish airless spraying
- Carbide fluid seat and carbide ball for durability
- Model: PerformAA 15 Airless
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Manual
- Bleed Type: Non-Bleeder
- Compatible Material: Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solvent borne, Solvent borne Paints, Urethane, UV Coating, Varnish
- Compatible Spray Tip: AXM, AXF
- Feed Type: Pressure Feed
- Fluid Adjustment Knob: N/A
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Airless Gun
- Gun Weight (g): 453
- Gun Weight (kg): 0.45
- Gun Weight (lb): 1
- Gun Weight (oz): 16
- Gun Weight with Tip and Guard (g): 480
- Gun Weight with Tip and Guard (oz): 17.1
- Gun Weight without Tip and Guard (g): 460
- Gun Weight without Tip and Guard (oz): 16.2
- Includes: Carbide Seat/Ball, Tip of Choice, Tool Kit
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 105
- Maximum Fluid Pressure (kPa): 10500
- Maximum Fluid Pressure (MPa): 10.5
- Maximum Fluid Pressure (psi): 1500
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Maximum Fluid Pressure (bar): 105
- Maximum Fluid Pressure (kPa): 10500
- Maximum Fluid Pressure (MPa): 10.5
- Maximum Fluid Pressure (psi): 1500
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Overall Height (cm): 20.8
- Overall Height (in): 8.2
- Overall Height (mm): 208
- Overall Length (cm): 15.25
- Overall Length (in): 6
- Overall Length (mm): 152
- Product Type: Spray Gun
KIT, O-RING-C1, PT-8
GG 26B522
KIT, O-RING-C1 PT-8
Graco 26B522 3/4-inch PTFE Seal Kit
PerformAA 1500 Air Assist Gun with Gen Finish Air Cap, Plastic seat and St Steel Ball, w/Tip of Choice
GG 26B504
PERFORMAA GUN, AA, 1500, GF, ACID
Graco 26B504 PerformAA 1500 Air Assist Gun with Gen Finish air cap, plastic seat and St Steel ball
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
- High quality 1500 psi air assist spray gun
- General finishing air cap for a wide range of materials
- Plastic seat and stainless steel ball for acid material compatibility
- Trigger pull force is ultra-light, reducing operator fatigue and muscle stress
- Model: PerformAA 15
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Manual
- Bleed Type: Non-Bleeder
- Compatible Material: Acid Catalyzed, Lacquer, Latex, Plural Component Materials, Solventborne, Solventborne Paints, Topcoats, Varnish
- Compatible Spray Tip: AXM, AXF
- Feed Type: Pressure Feed
- Fluid Adjustment Knob: Clicking
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 453
- Gun Weight (kg): 0.45
- Gun Weight (lb): 1
- Gun Weight (oz): 16
- Gun Weight with Tip and Guard (g): 480
- Gun Weight with Tip and Guard (oz): 17.1
- Gun Weight without Tip and Guard (g): 460
- Gun Weight without Tip and Guard (oz): 16.2
- Includes: Plastic Seat, Indexing Air Cap, Tip of Choice, Tool Kit
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 105
- Maximum Fluid Pressure (kPa): 10500
- Maximum Fluid Pressure (MPa): 10.5
- Maximum Fluid Pressure (psi): 1500
- Maximum Fluid Temperature ( degree C): 43
- Maximum Fluid Temperature ( degree F): 110
- Maximum Fluid Pressure (bar): 105
- Maximum Fluid Pressure (kPa): 10500
- Maximum Fluid Pressure (MPa): 10.5
- Maximum Fluid Pressure (psi): 1500
- Maximum Fluid Temperature ( degree C): 43
- Maximum Fluid Temperature ( degree F): 110
- Overall Height (cm): 20.8
- Overall Height (in): 8.2
- Overall Height (mm): 208
- Overall Length (cm): 15.25
- Overall Length (in): 6
- Overall Length (mm): 152
- Product Type: Spray Gun
PERFORMAA GUN, AA, AUTO, GF
GG 26B570
PERFORMAA GUN, AA, AUTO, GF
Graco 26B570 PerformAA Auto Air Assist Spray Gun with General Finishing (GF) air cap
Automatic air-assisted spray gun delivers performance above all for all general finishing needs.
- Automatic air-assisted sprayer is easy to set up, use and service on flat lines, robots, reciprocators and other automated systems
- Air cap angle indicators help operators and maintenance technicians set and quickly repeat the exact angle needed to optimize spray. For greater accuracy and ease, especially with flat line finishing, add the Graco Gauge kit 26B736.
- Manifold options, including a rear port for robots or compact spaces, have the same tool center point as legacy Graco automatic air-assisted spray guns.
- Series: Auto
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic
- Bleed Type: Bleeder
- Body Material: Metal
- Compatible Material: Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solvent borne, Urethane, UV Coating, Varnish,
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Automatic
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 544
- Gun Weight (kg): 0.544
- Gun Weight (lb): 1.2
- Gun Weight (oz): 19.2
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Overall Height (cm): 7.6
- Overall Height (in): 3
- Overall Height (mm): 76.2
- Overall Length (cm): 13
- Overall Length (in): 5.3
- Overall Length (mm): 135
- Overall Width (cm): 5.1
- Overall Width (in): 2
- Overall Width (mm): 50.8
- Product Type: Spray Gun
- Purge Method: Air
PERFORMAA GUN, AA, 5000, RAC, SWIVEL
GG 26B518
PERFORMAA GUN, AA, 5000, RAC, SWIVEL
Graco 26B518 PerformAA 5000 RAC Air Assist Gun with Reverse A Clean air cap and spray tip and fluid swivel
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
- High quality 5000 psi RAC air assist spray gun
- Rerverse-A-Clean air cap and tip for quick cleaning
- Includes a low profile fluid swivel
- Model: PerformAA RAC
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Manual
- Bleed Type: Non-Bleeder
- Compatible Material: Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solvent borne, Solvent borne Paints, Urethane, UV Coating, Varnish
- Compatible Spray Tip: FFLP, LTX
- Feed Type: Pressure Feed
- Fluid Adjustment Knob: N/A
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 453
- Gun Weight (kg): 0.45
- Gun Weight (lb): 1
- Gun Weight (oz): 16
- Gun Weight with Tip and Guard (g): 490
- Gun Weight with Tip and Guard (oz): 17.4
- Gun Weight without Tip and Guard (g): 460
- Gun Weight without Tip and Guard (oz): 16.2
- Includes: Carbide Seat/Ball, Tip Guard, Tip of Choice, Tool Kit
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 345
- Maximum Fluid Pressure (kPa): 34500
- Maximum Fluid Pressure (MPa): 34.5
- Maximum Fluid Pressure (psi): 5000
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Maximum Fluid Pressure (bar): 345
- Maximum Fluid Pressure (kPa): 34500
- Maximum Fluid Pressure (MPa): 34.5
- Maximum Fluid Pressure (psi): 5000
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Overall Height (cm): 19.8
- Overall Height (in): 7.8
- Overall Height (mm): 198
- Overall Length (cm): 18.3
- Overall Length (in): 7.2
- Overall Length (mm): 183
- Product Type: Spray Gun
PERFORMAA GUN, AA, AUTO, WL
GG 26B571
PERFORMAA GUN, AA, AUTO, WL
Graco 26B571 PerformAA Auto Air Assist Spray Gun with Wood Lacquer (WL) air cap
Automatic air-assisted spray gun delivers performance above all when spraying wood lacquer.
- Automatic air-assisted sprayer is easy to set up, use and service on flat lines, robots, reciprocators and other automated systems
- Air cap is geometrically designed for the finest atomization with the least amount of guesswork when spraying lacquer on wood products.
- Air cap angle indicators help operators and maintenance technicians set and quickly repeat the exact angle needed to optimize spray. For greater accuracy and ease, especially with flat line finishing, add the Graco Gauge kit 26B736.
- Series: Auto
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic
- Bleed Type: Bleeder
- Body Material: Metal
- Compatible Material: Lacquer, Latex, Plural Component Materials, Solvent borne, Topcoats, Varnish
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Automatic
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 544
- Gun Weight (kg): 0.544
- Gun Weight (lb): 1.2
- Gun Weight (oz): 19.2
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Overall Height (cm): 7.6
- Overall Height (in): 3
- Overall Height (mm): 76.2
- Overall Length (cm): 13
- Overall Length (in): 5.3
- Overall Length (mm): 135
- Overall Width (cm): 5.1
- Overall Width (in): 2
- Overall Width (mm): 50.8
- Product Type: Spray Gun
- Purge Method: Air
PERFORMAA GUN, AA, AUTO, GF, ACID
GG 26B572
PERFORMAA GUN, AA, AUTO, GF, ACID
Graco 26B572 PerformAA Auto Air Assist Spray Gun with General Finishing (GF) air cap for acid-catalyzed material
Automatic air-assisted spray gun delivers performance above all when spraying acid-catalyzed material for general finishing applications.
- Automatic air-assisted sprayer is easy to set up, use and service on flat lines, robots, reciprocators and other automated systems
- Air cap angle indicators help operators and maintenance technicians set and quickly repeat the exact angle needed to optimize spray. For greater accuracy and ease, especially with flat line finishing, add the Graco Gauge kit 26B736.
- Manifold options, including a rear port for robots or compact spaces, have the same tool center point as legacy Graco automatic air-assisted spray guns.
- Series: Auto
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic
- Bleed Type: Bleeder
- Body Material: Metal
- Compatible Material: Acid Catalysts
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Automatic
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 544
- Gun Weight (kg): 0.544
- Gun Weight (lb): 1.2
- Gun Weight (oz): 19.2
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Overall Height (cm): 7.6
- Overall Height (in): 3
- Overall Height (mm): 76.2
- Overall Length (cm): 13
- Overall Length (in): 5.3
- Overall Length (mm): 135
- Overall Width (cm): 5.1
- Overall Width (in): 2
- Overall Width (mm): 50.8
- Product Type: Spray Gun
- Purge Method: Air
PERFORMAA GUN, AA, AUTO, RAC
GG 26B573
PERFORMAA GUN, AA, AUTO, RAC
Graco 26B573 PerformAA Auto Air Assist Spray Gun with Reverse-A-Clean (RAC) air cap
Automatic air-assisted spray gun delivers performance above all when spraying a wide variety of coatings. For quick cleaning with minimal downtime, simply turn the reversible tip to the clean position and spray.
- Automatic air-assisted sprayer is easy to set up, use and service on flat lines, robots, reciprocators and other automated systems
- Air cap angle indicators help operators and maintenance technicians set and quickly repeat the exact angle needed to optimize spray. For greater accuracy and ease, especially with flat line finishing, add the Graco Gauge kit 26B736.
- Manifold options, including a rear port for robots or compact spaces, have the same tool center point as legacy Graco automatic air-assisted spray guns.
- Series: Auto
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic
- Bleed Type: Bleeder
- Body Material: Metal
- Compatible Material: Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solvent borne, Urethane, UV Coating, Varnish,
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Automatic
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 544
- Gun Weight (kg): 0.544
- Gun Weight (lb): 1.2
- Gun Weight (oz): 19.2
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Overall Height (cm): 7.6
- Overall Height (in): 3
- Overall Height (mm): 76.2
- Overall Length (cm): 13
- Overall Length (in): 5.3
- Overall Length (mm): 135
- Overall Width (cm): 5.1
- Overall Width (in): 2
- Overall Width (mm): 50.8
- Product Type: Spray Gun
- Purge Method: Air
Kit, O-Ring-D2 Pt-4
GG 26B690
KIT, O-RING-D2 PT-4
Graco 26B690 1-inch PTFE Seal Kit for FG Pump Models
Gun, AA, Auto Gun wth Low Viscosity Air Cap, with tip of choice
GG 26B574
PERFORMAA GUN, AA, AUTO, LV
Graco 26B574 PerformAA Auto Air Assist Spray Gun with Low Viscosity (LV) air cap
Automatic air-assisted spray gun delivers performance above all when spraying low viscosity material.
- Automatic air-assisted sprayer is easy to set up, use and service on flat lines, robots, reciprocators and other automated systems
- Air cap is geometrically designed for the finest atomization with the least amount of guesswork when spraying coatings with low viscosity.
- Air cap angle indicators help operators and maintenance technicians set and quickly repeat the exact angle needed to optimize spray. For greater accuracy and ease, especially with flat line finishing, add the Graco Gauge kit 26B736.
- Series: Auto
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic
- Bleed Type: Bleeder
- Body Material: Metal
- Compatible Material: Stains, Sealer, Solventborne, Toner
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Automatic
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 544
- Gun Weight (kg): 0.544
- Gun Weight (lb): 1.2
- Gun Weight (oz): 19.2
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature ( degree C): 49
- Maximum Fluid Temperature ( degree F): 120
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature ( degree C): 49
- Maximum Fluid Temperature ( degree F): 120
- Overall Height (cm): 7.6
- Overall Height (in): 3
- Overall Height (mm): 76.2
- Overall Length (cm): 13
- Overall Length (in): 5.3
- Overall Length (mm): 135
- Overall Width (cm): 5.1
- Overall Width (in): 2
- Overall Width (mm): 50.8
- Product Type: Spray Gun
- Purge Method: Air
AGITATOR, 6:1
GG 26B630
AGITATOR, 6:1
Graco 26B630 Back-Geared Radial Piston Agitator, heavy duty
Speed up savings when agitating high viscosity material. The radial piston air motor that powers this back-geared agitator uses up to 85 percent less compressed air than a comparable rotary vane motor.
Application: For agitating 500 cP to 3000 cP viscosity materials- Installs quickly for immediate cost savings
- Needs no air line lubrication to keep running well
- Operates more quietly than comparable rotary vane agitator air motors
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- For Use With: 55 Gallon (208 Liter) Drum
- Maximum Air Inlet Pressure (bar): 5
- Maximum Air Inlet Pressure (kPa): 500
- Maximum Air Inlet Pressure (psi): 70
- Maximum Speed (RPM): 83
- Maximum Viscosity (cP): 3000
- Maximum Working Pressure (bar): 5
- Maximum Working Pressure (kPa): 500
- Maximum Working Pressure (psi): 70
- Motor Type: Pneumatic - Radial Piston
- Power Rating (HP): 0.16
