Gun, AA, Auto, RAC Air Cap with tip of choice

GG 26B573

PERFORMAA GUN, AA, AUTO, RAC

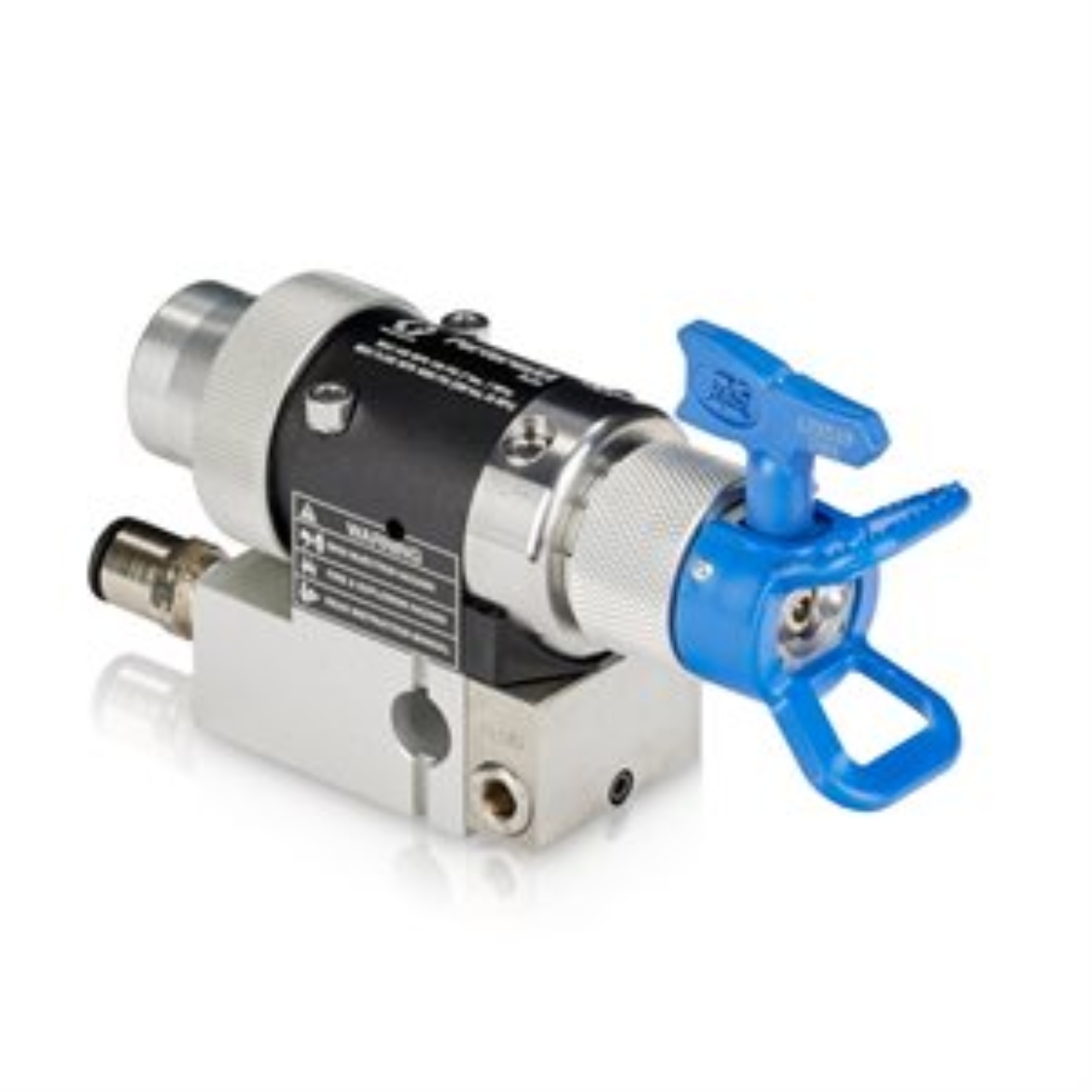

Graco 26B573 PerformAA Auto Air Assist Spray Gun with Reverse-A-Clean (RAC) air cap

Automatic air-assisted spray gun delivers performance above all when spraying a wide variety of coatings. For quick cleaning with minimal downtime, simply turn the reversible tip to the clean position and spray.

• Automatic air-assisted sprayer is easy to set up, use and service on flat lines, robots, reciprocators and other automated systems
• Air cap angle indicators help operators and maintenance technicians set and quickly repeat the exact angle needed to optimize spray. For greater accuracy and ease, especially with flat line finishing, add the Graco Gauge kit 26B736.
• Manifold options, including a rear port for robots or compact spaces, have the same tool center point as legacy Graco automatic air-assisted spray guns.

• Series: Auto

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Applicator Type: Automatic

• Bleed Type: Bleeder
• Body Material: Metal

• Compatible Material: Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solvent borne, Urethane, UV Coating, Varnish,

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Automatic
• Gun Type: Air-Assisted Gun
• Gun Weight (g): 544
• Gun Weight (kg): 0.544
• Gun Weight (lb): 1.2
• Gun Weight (oz): 19.2

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 280
• Maximum Fluid Pressure (kPa): 28000
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000
• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Pressure (bar): 280
• Maximum Fluid Pressure (kPa): 28000
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000
• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Overall Height (cm): 7.6
• Overall Height (in): 3
• Overall Height (mm): 76.2
• Overall Length (cm): 13
• Overall Length (in): 5.3
• Overall Length (mm): 135
• Overall Width (cm): 5.1
• Overall Width (in): 2
• Overall Width (mm): 50.8

• Product Type: Spray Gun

• Purge Method: Air
