    System,E-10HP,Complt, 230V

    Manufacturer: GRACO INC. S10595

    GG P2T900

    REACTOR E-10HP SYSTEM, CMPLT, 230V(NA)

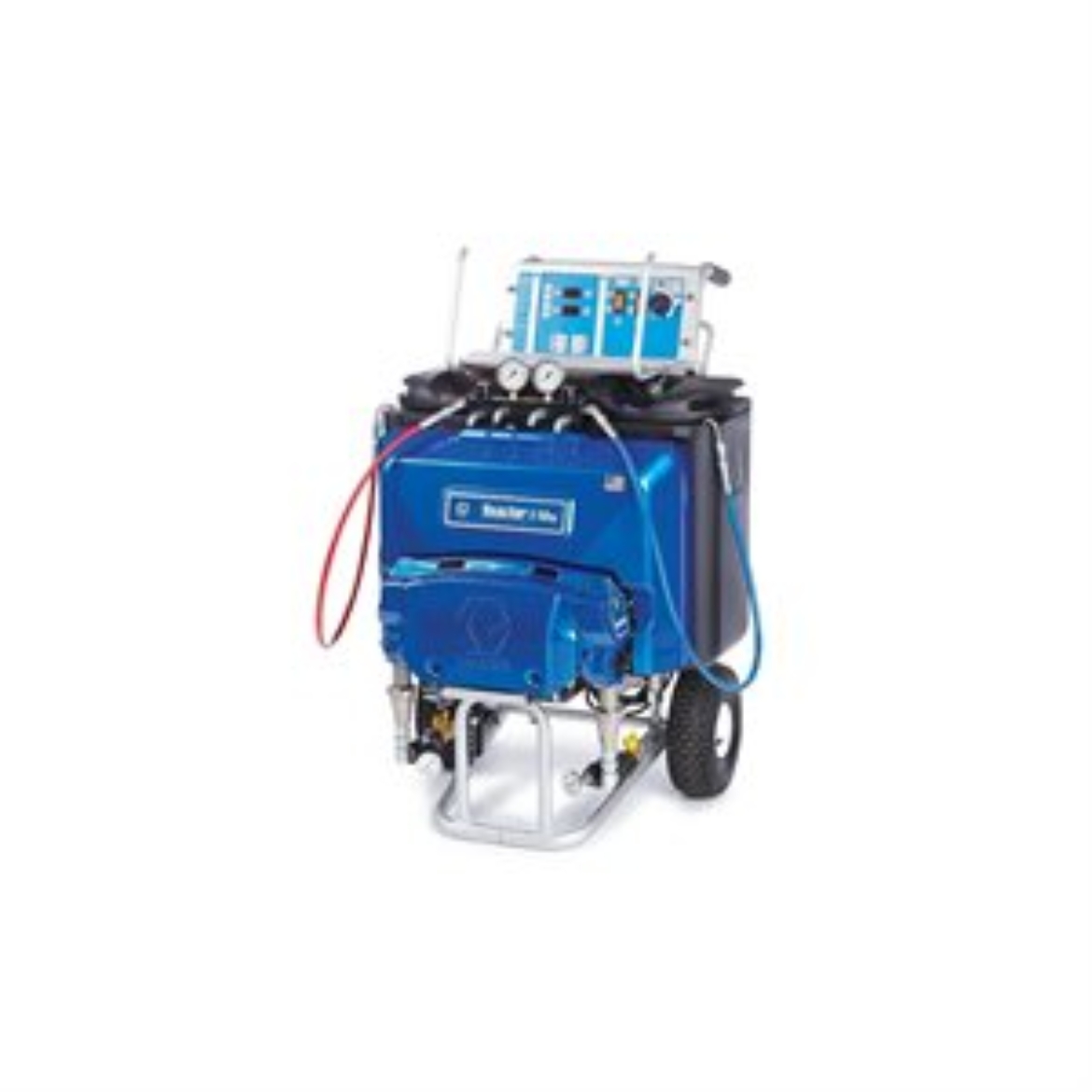

    Graco P2T900 Reactor E-10 HP Proportioner Package, Probler P2 Gun, North American Cord Adapter, 230 V, 1PH

    The Reactor E-10hp is an ideal entry-level system and is great for coating projects such as balconies, pools, waterproofing and bedliner applications. Its a smart, affordable investment that will help your business grow.

    Application: Entry-level system for pure and hybrid polyurea coatings.
    • Digital heat controls

      Allows you to enter the exact temperatures you need

      Uses the same circuit boards as a standard Reactor

    • Single knob motor operation

      Intuitive, easy to use

    • Insulated tanks

      Double-wall insulated to retain heat

      Smooth interior lining for easy cleaning

      Improved seal design on lid for better moisture control

    • Boost heat

      Directs unused power from the motor circuit to additional heater rods

      Additional heater power brings material to desired temperatures faster during recirculation mode

    • Robust hybrid heater

      More power, faster material heating means more uptime

    • Motor

      Offers 50% more power than the Reactor E-10

      Provides improved spray performance with reduced pressure drop

    • Quick knockdown lower pumps

      Easy disassembly and maintenance

    • Temperature gauges in Y-strainers

      Provides accurate tank temperature readings

    • Portable

      Fits through standard doorways

      Plugs into standard 120V or 230V outlets

      Rugged wheels for extreme jobsites

      No need for generator

    • Wide tank opening

      Easy material loading and easy to clean


    • Model: Reactor
    • Series: E-10hp
    • Air Inlet Size (cm): 0.635
    • Air Inlet Size (in): 1/4
    • Air Inlet Size (mm): 6.35
    • Air Inlet Thread Type: Quick-Disconnect Pin
    • Air Outlet Size (cm): 0.635
    • Air Outlet Size (in): 1/4
    • Air Outlet Thread Type: NPSM
    • Amperage (A): 15
    • Application: Protective Coatings
    • Applicator Type: Manual
    • Compatible Material: Plural Components
    • Component Type: Two Component
    • Flush Type: Solvent
    • Frequency (Hz): 50/60
    • Gun Type: Probler P2
    • Hose Length (ft): 35
    • Hose Length (m): 10.7
    • Includes: Proportioner, Probler P2 Gun, Unheated Hose, North American Cord Adapter
    • Material Application: Polyurea
    • Maximum Flow Rate (cc/min): 3790
    • Maximum Flow Rate (GPM): 1
    • Maximum Flow Rate (L/min): 3.79
    • Maximum Fluid Temperature ( degree C): 77
    • Maximum Fluid Temperature ( degree F): 170
    • Maximum Fluid Temperature ( degree C): 77
    • Maximum Fluid Temperature ( degree F): 170
    • Maximum Mix Ratio: 1:1
    • Maximum Spray Pressure (bar): 172.4
    • Maximum Spray Pressure (kPa): 17240
    • Maximum Spray Pressure (MPa): 17.2
    • Maximum Spray Pressure (psi): 2500
    • Overall Depth (cm): 91.4
    • Overall Depth (in): 36
    • Overall Depth (mm): 914
    • Overall Height (cm): 116.8
    • Overall Height (in): 46
    • Overall Height (mm): 1168
    • Overall Width (cm): 73.7
    • Overall Width (in): 29
    • O
    SKU: GG P2T900
    Availability:
    Price: $35,420.00
