GG R5A160
APPLICATOR, BELL, 50MM, 1.5

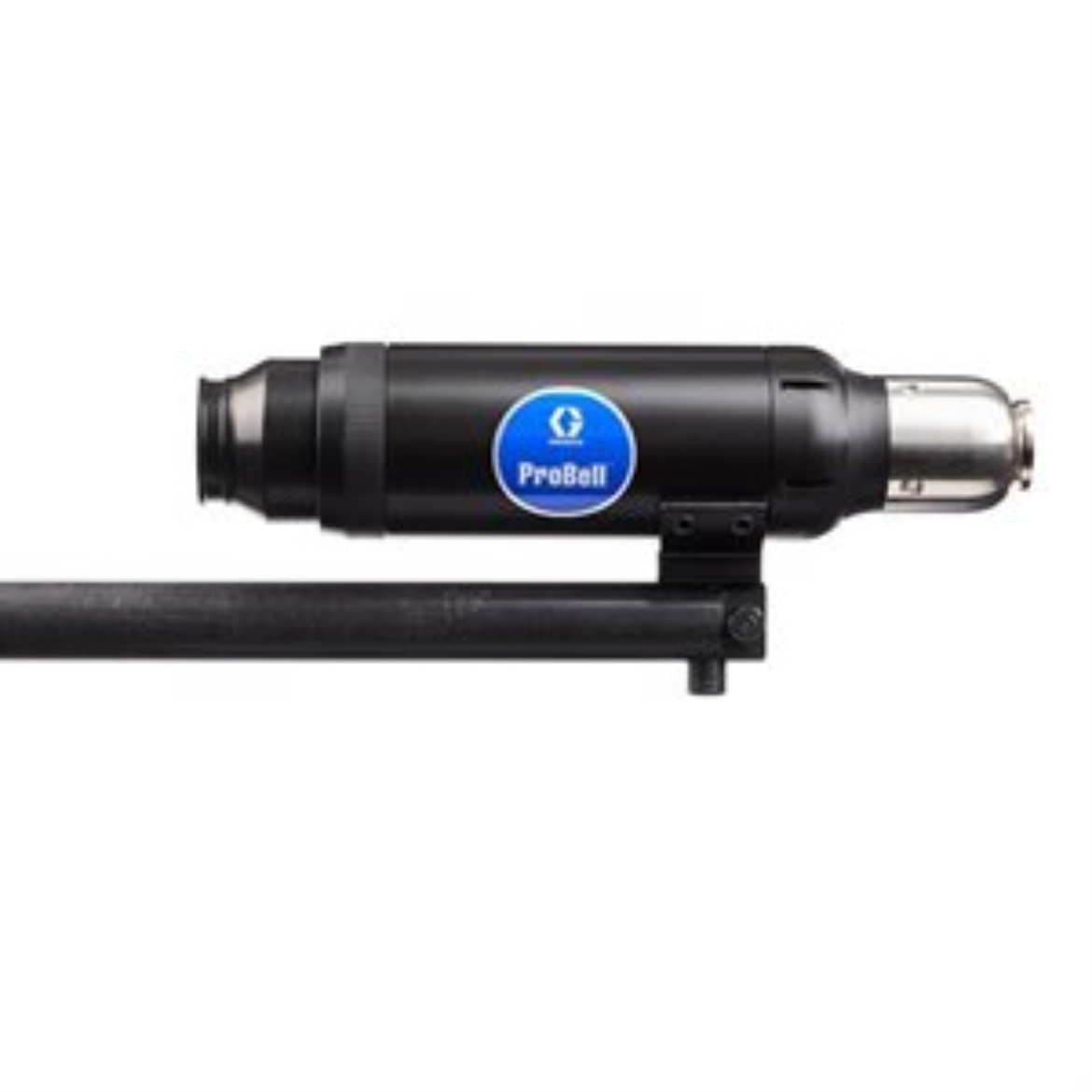

Graco R5A160 ProBell Applicator, Standard, Solvent borne, 50 mm bell cup, 1.5 mm nozzle
Combining rotary bell atomization with electrostatic technology is proven to provide up to 95 percent transfer efficiency. This ProBell rotary atomizer fits on a solid wrist robot, reciprocator or fixed mount.
Application: ProBell delivers the spray performance, pattern and finish quality needed to exceed in any industry. Applications for which the rotary bell atomizer has proven itself include Tier 1 automotive, architectural panels and extruded aluminum, wood products, and more.
- System integration uses existing PLC (programmable logic controller) or new installation.
- Coiled fluid tube controls electrostatic resistivity for a wide range of material.
- Aluminum bell cup with serrated edge has equally spaced axial grooves that act as channels for paint flow, producing uniform particles. This makes it ideal for atomizing difficult material like clear coats.
- Applicator Type: Automatic
- Bell Cup Edge Type: Serrated
- Bell Cup Material: Aluminum Standard
- Bell Cup Size (cm): 5
- Bell Cup Size (in): 2.0
- Bell Cup Size (mm): 50
- Compatible Paint Type: Solvent borne
- For Use With: Standard Bell Systems
- Gun Activation: Automatic
- Gun Model: Solvent borne
- Gun Mount: Standard
- Gun Type: Rotary Applicator
- Maximum Air Pressure (bar): 7.0
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Current Draw (µA): 150
- Maximum Fluid Pressure (bar): 10.3
- Maximum Fluid Pressure (kPa): 1030
- Maximum Fluid Pressure (MPa): 1.03
- Maximum Fluid Pressure (psi): 150
- Maximum Fluid Pressure (bar): 10.3
- Maximum Fluid Pressure (kPa): 1030
- Maximum Fluid Pressure (MPa): 1.03
- Maximum Fluid Pressure (psi): 150
- Maximum Turbine Speed (RPM): 60000
- Maximum Viscosity (cSt): 150
- Maximum Working Pressure (bar): 10.3
- Maximum Working Pressure (kPa): 1030
- Maximum Working Pressure (MPa): 1
- Maximum Working Pressure (psi): 150
- Minimum Bearing Air Pressure (bar): 5
- Minimum Bearing Air Pressure (MPa): 0.5
- Minimum Bearing Air Pressure (psi): 70
- Minimum Viscosity (cSt): 30
- Nozzle Size (cm): 0.15
- Nozzle Size (in): 0.059
- Nozzle Size (mm): 1.5
