GG SDM6HB
SDX SERIES 20 REEL, HOSE

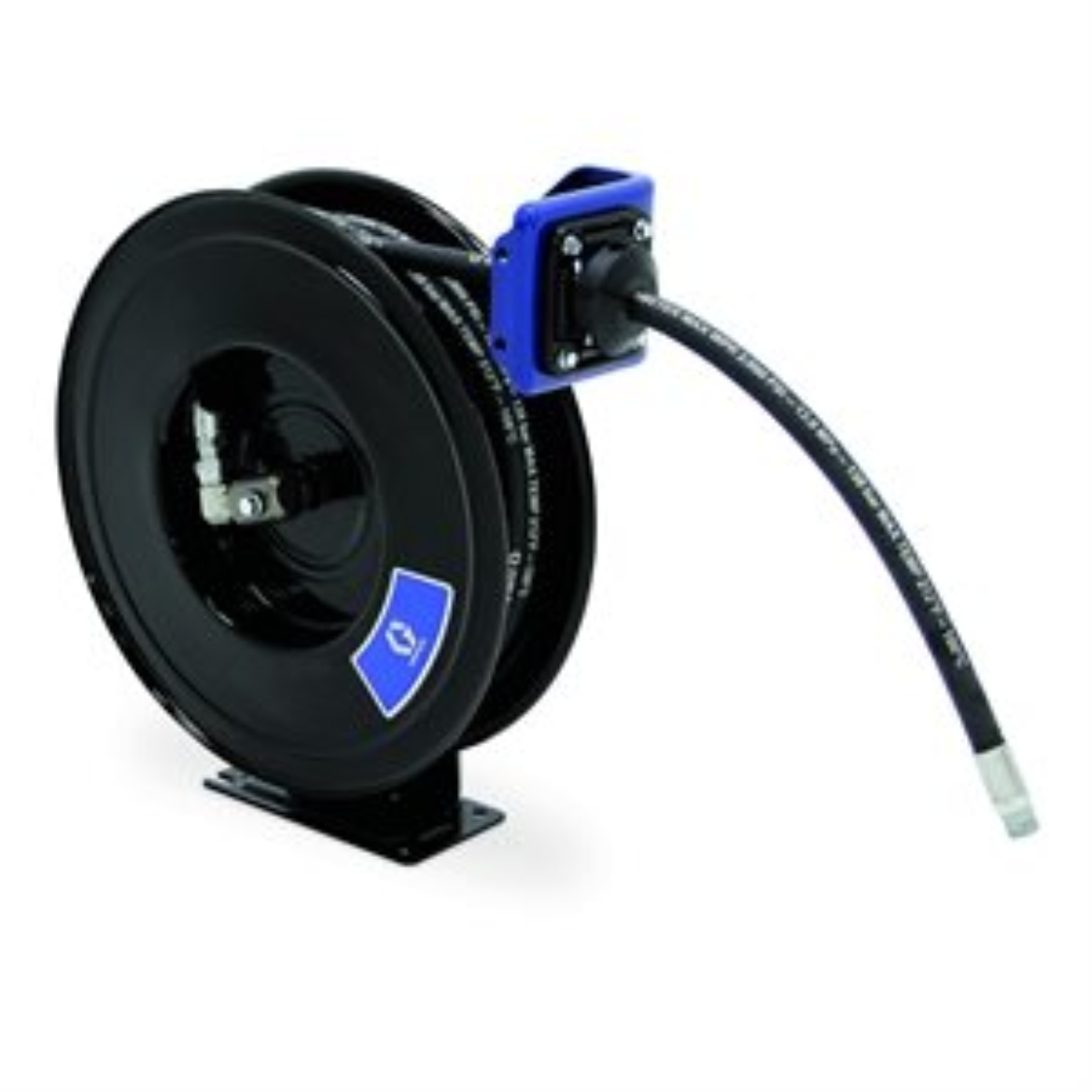

Graco SDM6HB SDX 20, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, Tank/Bench Mount, Metallic Blue
Choose Graco's flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it's available in five colors
Application: With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.
- Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
- Increased Spring Power - Every SDX oil hose reel recoils to the exact same assigned length for a clean, uniform look.
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
- Durable Finish - Baked-on enamel finish protects reel from corrosion
- Frame Type: Single Pedestal
- Hose Inside Diameter (in): 1/2
- Hose Inside Diameter (mm): 12.7
- Hose Length (ft): 50
- Hose Length (m): 15
- Hose Reel Type: Reel with Hose
- Includes Hose: Yes
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Gender: Male
- Inlet Thread Type: NPSM
- Maximum Temperature ( degree C): 87
- Maximum Temperature ( degree F): 190
- Maximum Working Pressure (psi): 2000
- Minimum Temperature ( degree C): -28
- Minimum Temperature ( degree F): -20
- Mount Location: Truck Mount, Bench Mount
- Outlet Size (in): 1/2
- Outlet Size (mm): 12.7
- Outlet Thread Gender: Male
- Outlet Thread Type: NPT
- Overall Height (in): 21.8
- Overall Height (mm): 554
- Overall Length (in): 19.2
- Overall Length (mm): 487
- Overall Width (in): 7
- Overall Width (mm): 177
- Recommended Environment: Indoor, Limited Outdoor
- Recommended Fluid Type: Oil
