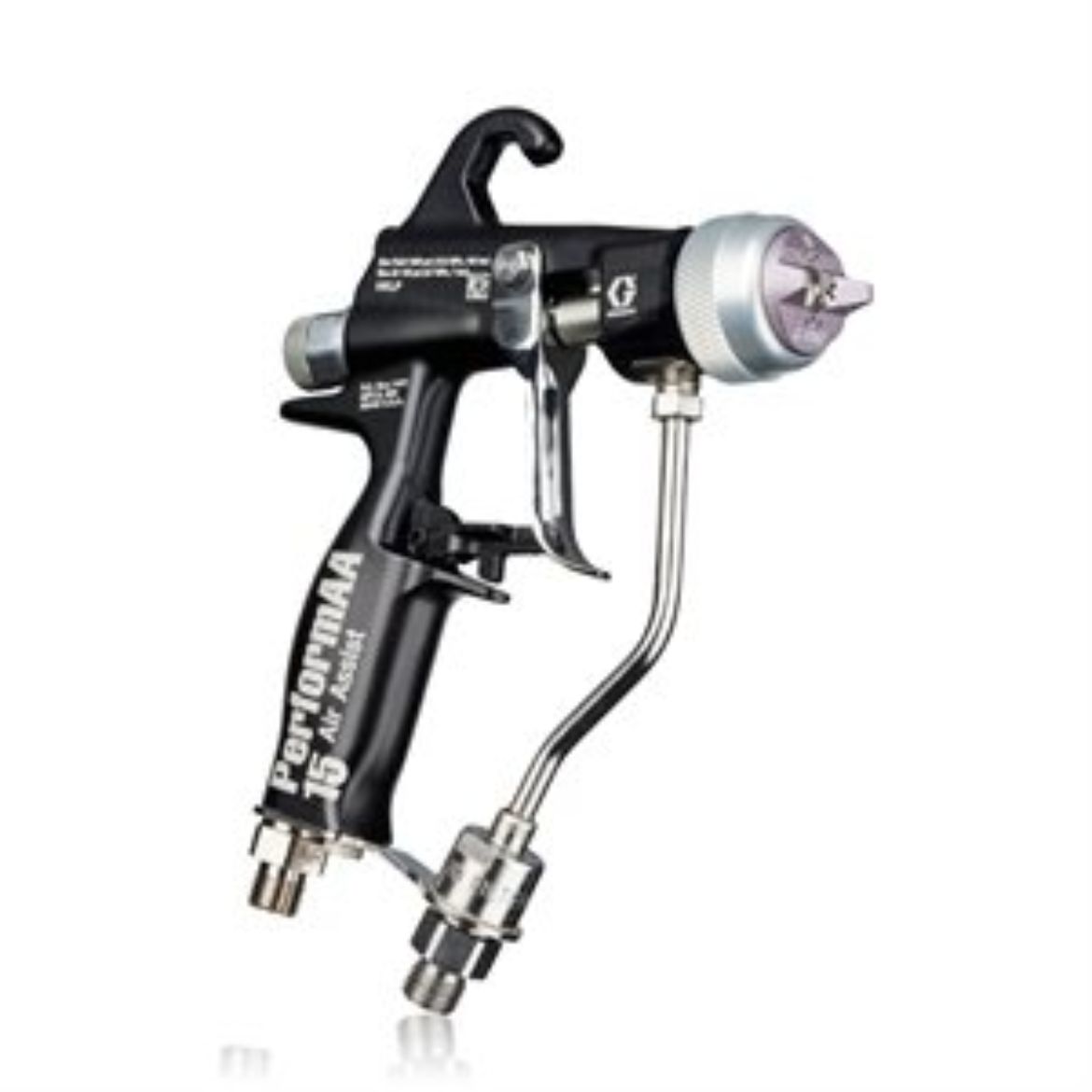

Performa AA 1500 Air Assist Gun

GG 26B505

PERFORMAA GUN, AA, 1500, LV, SWIVEL

Graco 26B505 PerformAA 1500 Air Assist Gun with Low Viscosity air cap, light trigger pull and fluid swivel

Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.

• High quality 1500 psi air assist spray gun
• Low viscosity air cap for even dispersion of light materials
• Includes a low profile fluid swivel
• Trigger pull force is ultra-light, reducing operator fatigue and muscle stress

• Model: PerformAA 15

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Bleed Type: Non-Bleeder

• Compatible Material: Stains, Sealer, Solvent borne, Solvent borne Paints, Toner
• Compatible Spray Tip: AXM, AXF

• Feed Type: Pressure Feed

• Fluid Adjustment Knob: Clicking
• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Air-Assisted Gun
• Gun Weight (g): 453
• Gun Weight (kg): 0.45
• Gun Weight (lb): 1
• Gun Weight (oz): 16
• Gun Weight with Tip and Guard (g): 480
• Gun Weight with Tip and Guard (oz): 17.1
• Gun Weight without Tip and Guard (g): 460

• Gun Weight without Tip and Guard (oz): 16.2

• Includes: Carbide Seat/Ball, Indexing Air Cap, Tip of Choice, Tool Kit

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 105
• Maximum Fluid Pressure (kPa): 10500
• Maximum Fluid Pressure (MPa): 10.5
• Maximum Fluid Pressure (psi): 1500
• Maximum Fluid Temperature (°C): 43
• Maximum Fluid Temperature (°F): 110

• Maximum Fluid Pressure (bar): 105
• Maximum Fluid Pressure (kPa): 10500
• Maximum Fluid Pressure (MPa): 10.5
• Maximum Fluid Pressure (psi): 1500
• Maximum Fluid Temperature (°C): 43
• Maximum Fluid Temperature (°F): 110

• Overall Height (cm): 20.8
• Overall Height (in): 8.2
• Overall Height (mm): 208
• Overall Length (cm): 15.25
• Overall Length (in): 6
• Overall Length (mm): 152

• Product Type: Spray Gun
