Finishing Packages

PC CX2017HC-B2M0S50

Century Gel Coat System

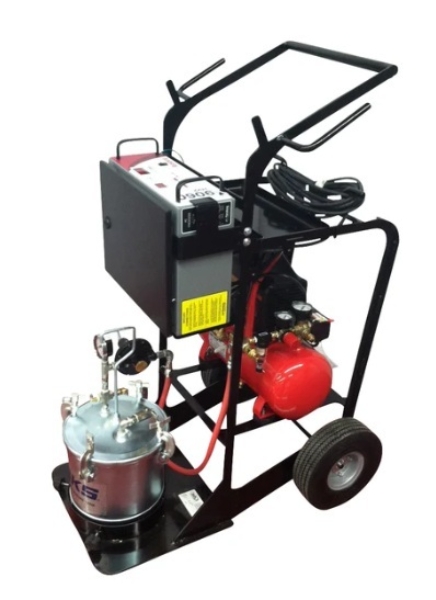

RR 79297-03

Deuce Cart Package, Lsx, 25ft Cable

BB CX2017HC-A0F0T35

Binks 17:1 External Mix Gel Coat System, Air Assist Gun, Wall Mount, Catalyst Flowmeter, 55 Gal Siphon Kit, 35ft Hoses

BB MX412UC-QDW0S25

MX 412 Pump System

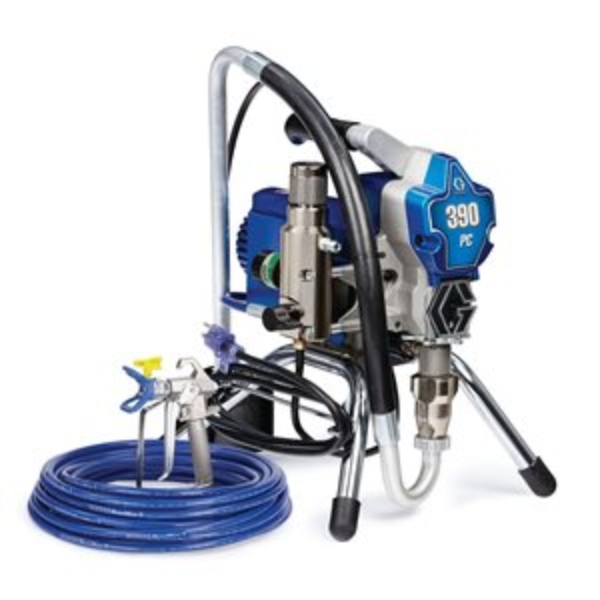

GG 17C310

GRACO SPRAYER, 390, PC, STAND

Graco 17C310 390 PC Electric Airless Sprayer, Stand

The 390 PC Stand is a solid workhorse built for the professional just starting out.Lightweight and portable, its easy to Lift and carry. The 390 PC is the ideal sprayer for residential jobs, and is the best value in small electric sprayers.

Application: The ideal sprayer for residential jobs and the best value in small electric sprayers.

• Durable Endurance Chromex Piston Pump


  Lasts 2X longer than the next leading brand

  Long Life V-Max Blue Packings, Chromex rod and hardened stainless steel cylinder

  Faster cleaning with the QuikAccess intake valve

• Advantage Drive


  The longest lasting drive

  Hardened steel gears provide extremely quiet operation and a Lifetime Warranty

• ProConnect One-Part Pump Replacement System


  Eliminate costly downtime

  Pump swaps in minutes - no tools, pins or parts to lose

• Rugged Steel Frame


  Thick chrome over steel withstands rugged environments

  4 leg stand provides greater stability

• Variable Pressure Control


  Position indicator allows repeatable setting

• Swivel Inlet Suction Hose


  Easily reaches paint buckets

• Contractor FTx Airless Spray Gun


  Standard features

  Economic choice for everyday use

• Series: 390 PC

• Amperage (A): 13

• Compatible Material: Acrylics, Enamel, Lacquer, Latex, Stains
• Compatible Replacement Pump: 17C487

• Cycles Per Gallon: 700

• Engine Size (HP): 0.625

• Features: Endurance Chromex Pump, Advantage Drive, ProConnect, Easy Out Filter

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Type: NPSM

• Frame Configuration: Stand

• Includes: FTx Gun, RAC X LP 515 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz

• Maximum Flow Rate (GPM): 0.47
• Maximum Flow Rate (L/min): 1.8

• Maximum Sound Pressure Level (dB(A)): 90

• Maximum Tip Size (in): 0.021

• Maximum Working Pressure (bar): 228
• Maximum Working Pressure (kPa): 22800
• Maximum Working Pressure (MPa): 22.8
• Maximum Working Pressure (psi): 3300

• Minimum Generator Power (W): 3000

• Motor Type: DC

• Number of Guns: 1

• Outlet Paint Filter: 60 Mesh Stainless Steel Screen

• Overall Height (cm): 47
• Overall Height (in): 18.5
• Overall Height (mm): 470
• Overall Length (cm): 40.6
• Overall Length (in): 16
• Overall Length (mm): 406
• Overall Width (cm): 35.6
• Overall Width (in): 14
• Overall Width (mm): 356

• Phase: 1

• Power Rating (HP): 0.625
• Power Rating (kW): 0.47
• Power Rating (W): 466
• Power Source: Electric

• Pump Mount Type: ProConnect

• Pump Rod Type: Chromex
• Pump Sleeve Material: Hardened Steel
• Pump Type: Endurance

• Recommended Annual Usage: Up to 50 gallons per week

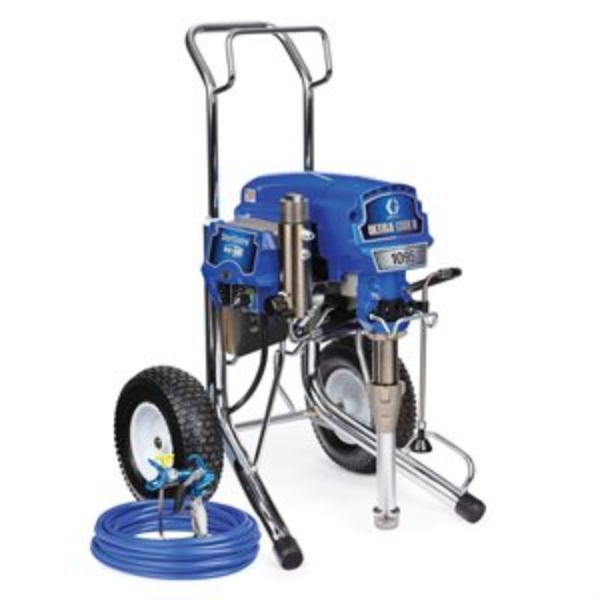

GG 17E583

ULTRAMAX SPRAYER, 1095, HI, STANDARD

Graco 17E583 Ultra Max II 1095 Standard Series Electric Airless Sprayer

The Ultra Max II 1095 Standard Series electric airless sprayer has a 2.4 hp brushless DC motor to spray up to 1.2 gallons per minute and includes the industry-proven Chromex pump with 2X life, SmartControl 4.0, BlueLink Job & Sprayer Management System, the lightweight Contractor PC gun and more.

Application: Everyday Reliability. Standard Series large electric airless sprayers are the industry standard for residential and commercial contractors looking for proven reliability to spray a wide variety of coatings with a variety of tip sizes on larger jobs.

• Endurance Chromex Piston Pump


  Lasts 2X Longer than competing pumps

  Repack the pump in minutes with the new QuikPak Cartridge System

  Faster cleaning with the QuikAccess intake foot valve

• SmartControl 4.0 with ProGuard Protection System


  Precision pressure control

  Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation

  ProGuard prevents electrical damage from extreme jobsite power conditions

  WatchDog Pump Protection System automatically prevents pump damage if material supply is too low

• BlueLink Job & Sprayer Management App


  Streamline Your Business

  Track every sprayer: Exact location & hourly productivity

  Know job progress: On demand productivity facts and reporting from anywhere

  Maximize uptime: Set maintenance schedules, alerts, & jobsite notes

  More info: graco.com/BlueLink

• Advantage Drive


  The longest lasting drive

  Hardened steel gears provide extremely quiet operation

  Lifetime Drive Train Warranty

• FastFlush 2 System


  Fast cleaning now even FASTER

  Clean the pump 6X faster using 1/2 the water

  High-velocity fluid flow delivered with 60% higher motor speed

• Easy Out Filter


  Easy maintenance & less clogging

  Exclusive inside-out filtering process ensures a quality finish

  Vertical design for less mess

• Heavy-Duty Prime Valve


  Maintenance-free high-pressure dumping capability

• Durable Cart Design with Kickstand


  Withstands rugged environments

  Design allows for easy, one-person bucket changes

  Retractable handle doubles as hose storage

  Kickstand for easy one person bucket changes

• Contractor PC Spray Gun


  All-day comfort & control

  Lightest weight gun in its class

  Up to 50% lighter trigger pull force

  E-Z Fit adjustable trigger length

  Complete gun rebuild in seconds with ProConnect cartridge

  More info: graco.com/ContractorPC

• Model: Ultra Max II
• Series: 1095
• Product Series: Standard

• Amperage (A): 15

• Compatible Material: Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler, Dry Fall, Elastomerics

• Engine Size (HP): 2.4

• Features: Endurance Chromex Pump, SmartControl 4.0, BlueLink System, MaxPower Brushless, Advantage Drive, FastFlush 2, Easy Out Filter, Heavy-Duty Prime Valve, WatchDog, Contractor PC Gun
• Filter Mesh Size: 60

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Type: NPSM

• Frame Configuration: Hi-Boy
• Frequency (Hz): 50/6

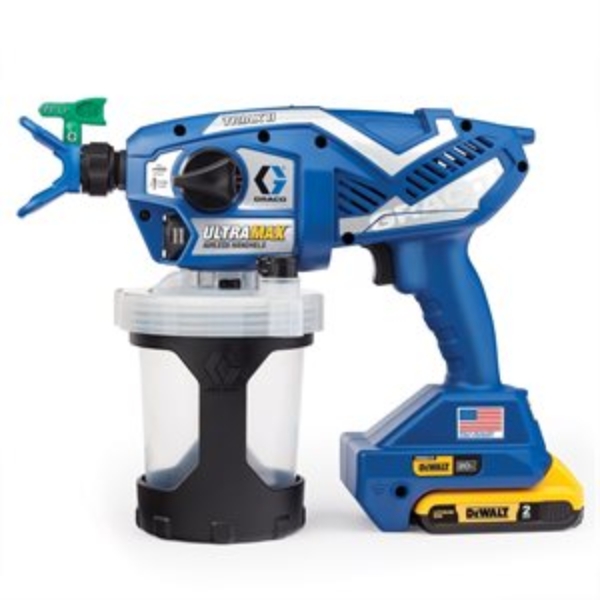

GG 17M367

ULTRAMAX DCHH SPRAYER, 120V

UltraMAX Cordless Handheld Airless SprayerTested by Pros, the UltraMAX Cordless is the ONLY Handheld sprayer capable of spraying water-based, solvent and flammable architectural coatings. SmartControl technology delivers a flawless finish with no thinning required.Triax II Triple Piston Pump

• Pump 3X more gallons before service
• Clean up in minutes
• No inlet check valve to get stuck - prime and spray in seconds
• Fast, on-the-job pump replacement with ProConnect

DEWALT® 20V MAX Lithium Ion Battery System

• Spray up to 1 gallon with each charge
• Compatible with any DEWALT 20V MAX Lithium Ion battery
• Comes standard with 2 batteries
• Lightweight design and 30% faster charge time (35 minutes)

ProConnect

• On-The-Job Pump Replacement System
• One Tool Replacement - Replace the pump in 3 steps using only a screwdriver

SmartControl

• Spray at any hand speed with professional finish every time
• Precision pressure control delivers a consistent spray fan without pressure fluctuations

ProControl II

• Adjust motor speed to spray at any speed the job demands
• More control to deliver a professional finish – every job, every time

Hot Solvent Compatible

• Sprays hot solvents such as solvent-based lacquer
• Sprays water, solvent and flammable based materials

RAC X FF LP Tips

• Provides superior finish at low pressure
• Reverse-A-Clean (RAC) SwitchTips make cleaning tip clogs simple
• Large range of sizes available to meet the job requirements
• Works on all Graco Airless Sprayers – handhelds to large airless

32 oz FlexLiner Paint Bags

• Fast cleanup with disposable liners and no suction tube to clean
• Easy Setup

FlexLiner QuickFill Funnel

• Click and fill design for faster refills
• Automatically strains paint while pouring

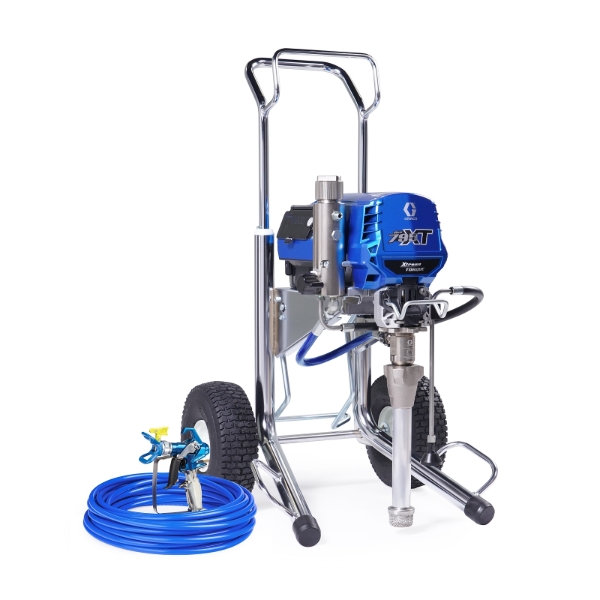

GG 19F710

ULTRA SPRAYER, 795 XT, STD, NA

Ultra 795 XT Standard Series Electric Airless Sprayer, Hi-BoyThe Ultra 795 XT Standard Series delivers an airless spray experience like no other. Featuring a 2.3 HP Xtreme Torque motor, Next Generation Rapid-Response Pressure Control, and the longest life pump in its class, the Ultra 795 XT Standard is sure to change the way you spray.Xtreme Production & Reliability. XT ProContractor Series electric airless sprayers are built specifically for professional contractors looking to increase production on the industry's most silent spraying platform. Complete with numerous time saving features and the industry's longest life pumps, an XT ProContractor will keep you out of the shop, and on the job.Xtreme Torque Motor Technology

• 15X more torque than traditional motors
• 8X more magnets provide unmatched power and performance
• 90% lower running speeds extend motors life
• Up to 10X quieter

Rapid-Response Pressure Control

• Instantly responds to deliver the best finish quality
• More performance across its full tip size range
• Industry's largest operating pressure range (50-3,300 psi)

Selectable Performance Modes

• Two selectable spray modes offer unique performance levels to boost efficiency on every job
• Bring on the savings and achieve Xtreme Control with Low Pressure Mode (50 - 2,000 psi)
• Use High Pressure Mode for Xtreme Performance (500 – 3,300 psi)

Easy-to-Read LED Digital Display

• Visible in even the toughest spraying conditions

Endurance Vortex Piston Pump with ProConnect

• Endurance Vortex Rod lasts 3X longer than the closest competitor
• ProConnect Pump Removal for fast on-the-job service
• 25% longer pump stroke for longer life before repacking

TurboClean Cleaning System

• Industry’s fastest pump cleaning system
• Delivers 3X faster cleaning with 1/2 the water
• Convenient location

WatchDog Pump Protection

• Prevents damage by shutting off pump when it's time to refill

Durable Filtration

• Easy Out Filter provides easy maintenance and less clogging

Upgrades with Modular Accessories

• QuickReel hose management
• SmartDisplay XT compatible with BlueLink
• Endurance Vortex MAXLIFE EXTREME Pump
• CrushProof Inlet Strainer
• Rugged FlatProof tires

Gun, Hose and Tip Included

• Contractor PC Gun & RAC X LP 517 SwitchTip

GG 205585

STANDARD SPRAYER,PAINT, 2-1,5 GL

Graco 205585 5 Gallon Duo Paint Sprayer with Agitator

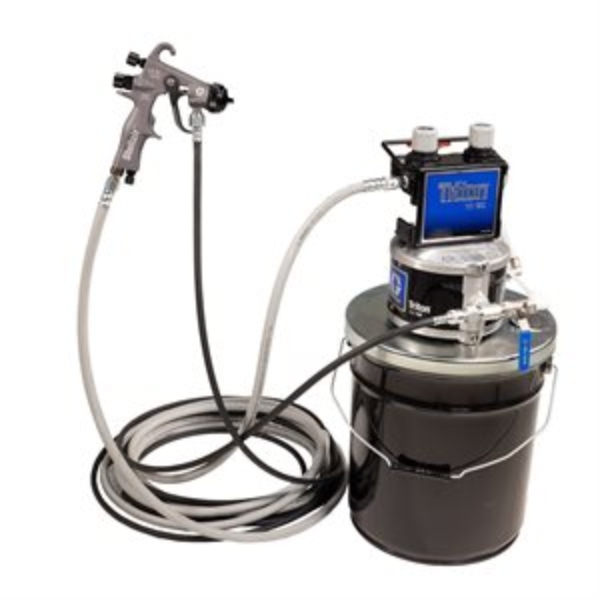

GG 233468

TRITON SPRAYER, AL PUMP PAIL MNT, STELLAIR

Triton Alum Spray Package, Pail, Suction, Air & Fluid Hoses, Stellair Conventional Gun .055 in (1.4 mm) Nozzle for Metal ApplicationsTriton air operated diaphragm pump with Stellair air spray gun brings affordable, fine finish spraying to wood and metal applications.Effective alternative to traditional pressure pots and standard diaphragm pumps saves material and time during flushing, priming and color changes.Triton® air operated pump produces 30 percent more pumping power and 50 percent less pressure pulsation than standard diaphragm pumps.Rugged, aluminum pump handles a wide variety of fluids.The Stellair air spray gun provides the ergonomics, performance and serviceability painters need to produce stellar results.Conventional is the traditional air spray method, producing Class A, automotive finish quality.

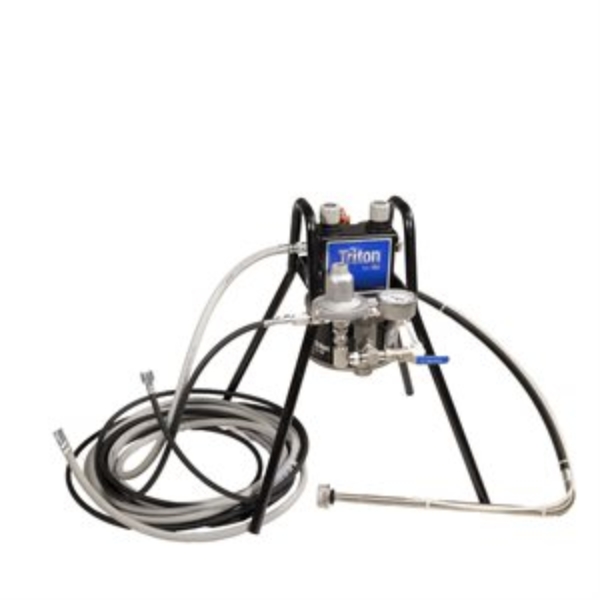

GG 233474

TRITON SPRAYER, SS PUMP, STAND MNT

Triton Stainless Steel Pump Package, stand mount with suction hose. Does not include applicator.Air operated diaphragm spray package brings affordable, fine finish spraying to wood and metal applications.Effective alternative to traditional pressure pots and standard diaphragm pumps saves material and time during flushing, priming and color changes.Triton® air operated pump produces 30 percent more pumping power and 50 percent less pressure pulsation than standard diaphragm pumps.Rugged, stainless steel pump handles a wide variety of fluids.Delivers a consistent spray pattern and uniform film thicknessRugged, stainless steel or aluminum construction pump handles a wide variety of fluids

GG 233484

TRITON SPRAYER, AL PUMP CART MNT, STELLAIR HVLP

Triton Alum Spray Package, Cart, 60 psi Regulator, Suction, Air & Fluid Hoses, Stellair HVLP Gun .055 in (1.4 mm) Nozzle, Metal ApplicationsTriton air operated diaphragm pump with Stellair air spray gun brings affordable, fine finish spraying to wood and metal applications.Effective alternative to traditional pressure pots and standard diaphragm pumps saves material and time during flushing, priming and color changes.Triton® air operated pump produces 30 percent more pumping power and 50 percent less pressure pulsation than standard diaphragm pumps.Rugged, aluminum pump handles a wide variety of fluids.Delivers a consistent spray pattern and uniform film thicknessHigh volume low pressure (HVLP) air spray produces a controlled, low velocity spray pattern that reduces bounce back and overspray, while meeting environmental regulations.

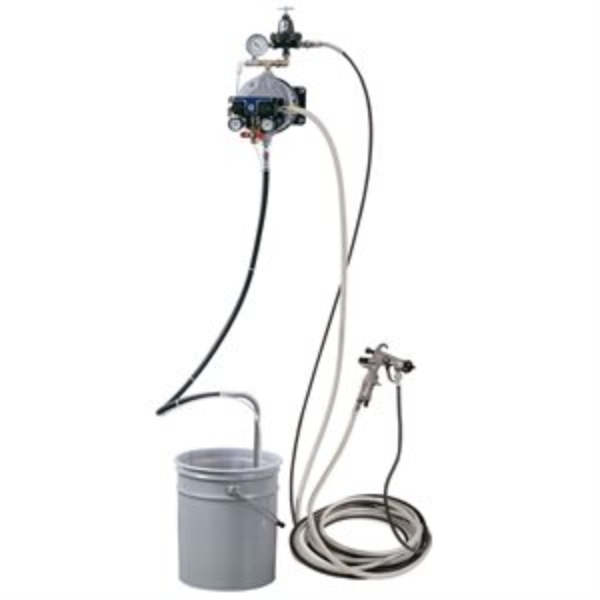

GG 233492

TRITON SPRAYER, SS PUMP WALL MNT, STELLAIR HVLP

Triton SST Spray Package, Wall, 100 psi Regulator, Air & Fluid Hoses, Stellair HVLP Gun .055 in (1.4 mm) Nozzle for Metal ApplicationsTriton air operated diaphragm pump with Stellair air spray gun brings affordable, fine finish spraying to wood and metal applications.Effective alternative to traditional pressure pots and standard diaphragm pumps saves material and time during flushing, priming and color changes.Triton® air operated pump produces 30 percent more pumping power and 50 percent less pressure pulsation than standard diaphragm pumps.Rugged, stainless steel pump handles a wide variety of fluids.Delivers a consistent spray pattern and uniform film thicknessHigh volume low pressure (HVLP) air spray produces a controlled, low velocity spray pattern that reduces bounce back and overspray, while meeting environmental regulations.

GG 233746

TRITON SPRAYER, AL PUMP, CART MNT, ELECTRO

Triton Alum Spray Package, Cart, 60 psi Fluid Regulator, Pro Xp40 Electrostatic Gun, Suction, Air & Fluid HosesTriton® air operated diaphragm pump with Pro XpTM electrostatic air spray gun brings affordable, fine finish spraying to wood and metal applications.Effective alternative to traditional pressure pots and standard diaphragm pumps saves material and time during flushing, priming and color changes.Triton® air operated pump produces 30 percent more pumping power and 50 percent less pressure pulsation than standard diaphragm pumps.Rugged, aluminum pump handles a wide variety of fluids.Pro Xp electrostatic air spray gun delivers high transfer efficiency when spraying standard or specialty coatings.With a maximum voltage output of 40 kV, the electrostatic applicator meets strict requirements for spray pattern, mechanical and electrical performance.

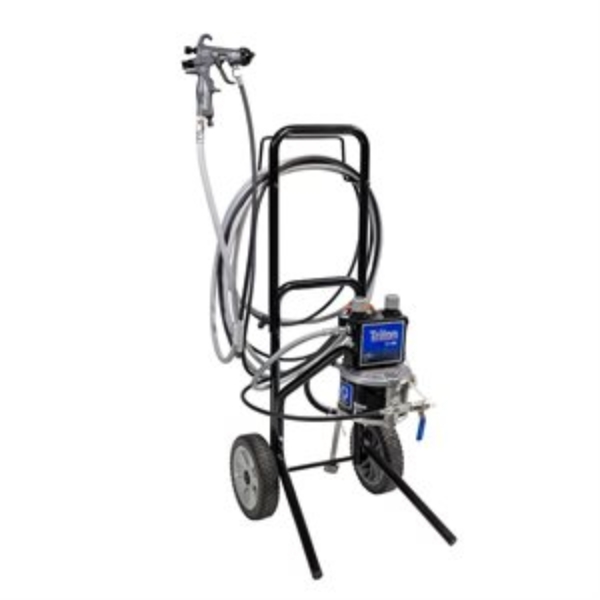

GG 234915

TRITON SPRAYER, AL, PUMP CART MNT, STELLAIR, COMP

Triton Alum Spray Package, Cart, 60 psi Regulator, Suction, Air & Fluid Hoses, Stellair Compliant Gun .055 in (1.4 mm) Nozzle for MetalTriton air operated diaphragm pump with Stellair air spray gun brings affordable, fine finish spraying to wood and metal applications.Effective alternative to traditional pressure pots and standard diaphragm pumps saves material and time during flushing, priming and color changes.Triton® air operated pump produces 30 percent more pumping power and 50 percent less pressure pulsation than standard diaphragm pumps.Rugged, aluminum pump handles a wide variety of fluids.Delivers a consistent spray pattern and uniform film thicknessCompliant air spray reduces bounce back and overspray, while delivering high finish quality and transfer efficiency.

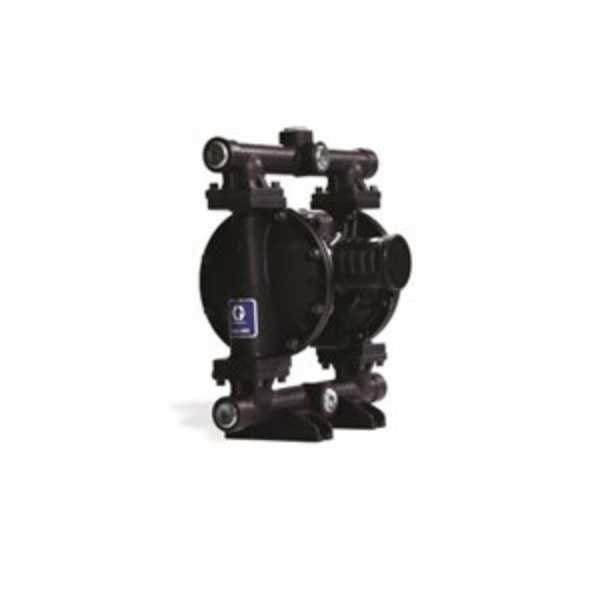

GG 246376

KIT, COMPL., H1050 (AIR/FLUID)

Complete Husky 1050 Supply Pump System

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

Benefits of the Husky 1050 Double Diaphragm Pump

• Up to 5 times longer diaphragm life compared to other air-operated diaphragm pumps in its class
• Expanded material offering to handle endless applications
• Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation.
• Offered in ATEX configuration.

30% more efficient than the market leader

20% increase in fluid flow compared to the Husky 1050

Up to 5 times longer diaphragm life compared to other double diaphragm pumps in its class

Expanded material offering to handle endless applications

GG 247549

HYDRA-CLEAN SYSTEM, 12:1 CART MT

Hydra-Clean® 12:1 Cart Mount Pneumatic Pressure Washer Package

Clean up your facility the quick, easy and efficient way with Graco Hydra-Clean pressure washers! Designed with Graco’s NXT air motor, it's ideal for industrial and sanitary applications including food processing facilities, heavy duty cleaning, maintenance, shipyards, oil rigs and more.

Ideal for heavy duty cleaning and maintenance for industrial and sanitary applicationsGreat for high pressure cleaning and sanitizingFits most pressure, flow and material requirementsUse with open-head universal drumsDesigned to use with cold or hot water up to 180°F (82°C)Spray down portability for use in sanitary applicationsSupports multiple gunsEfficient cleaning with water, detergent or chemical solutions

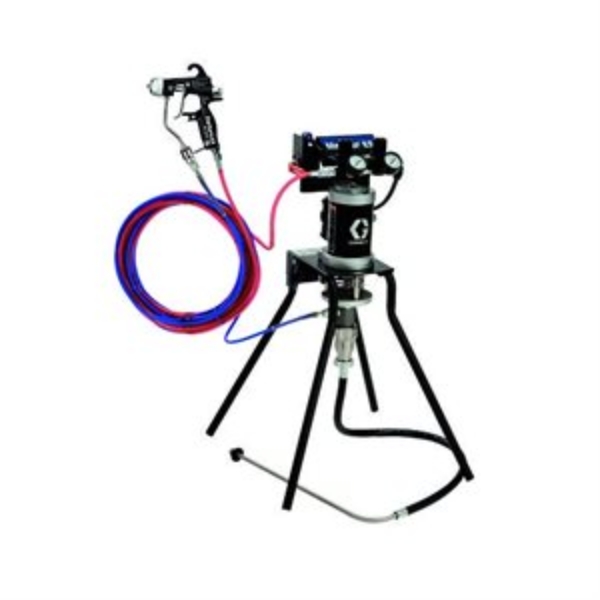

GG 24F151

MERKUR SPRAYER, ES, AA, 15:1, CS, STAND

15:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with PerformAA 15 gun, suction hose, and plated steelThe Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.Quick flush system requires less than 1 minute to flush45% less material to fill the system than the leading competitorsDelivers a superior, consistent spray finishLow profile spray package makes it easy to transportEasily set and monitor air control, plus an integrated carrying handle for transportAir motor provides consistent finishes with smooth, rapid changeoverSuction hose and strainer leaves less material in the supply containerLightweight, flexible 1/8 in fluid hose reduces material and solvent usage

GG 289623

TRITON SPRAYER, SS PUMP WALL MNT, COMP

Graco 289623 Triton SST Spray Package, Wall, 100 psi Regulator, Air & Fluid Hoses, AirPro Compliant Gun .055 in (1.4 mm) Nozzle, Waterborne Applications

Air-operated diaphragm spray package designed for the finishing market. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.

• Superior finish quality for conventional, HVLP and compliant or electrostatic applications
• Supplies up to 35% extra air flow to gun for superior atomization
• Saves material and time during flushing, priming and color changes
• Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids

• Model: Triton
• Series: 308

• Application: Waterborne

• Compatible Material: CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solvent borne Paints, Solvent borne, Varnish Primers, Waterborne

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: AirPro
• Gun Technology: Compliant
• Gun Type: Air Spray

• Includes: 25 ft Air Hose, 25 ft Fluid Hose, Regulator, Applicator

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 8.5
• Maximum Flow Rate (L/min): 32

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (psi): 100

• Mount Location: Wall Mount
• Mount Type: Wall Mount

• Power Source: Air

• Pressure Type: Low Pressure
• Product Type: Spray Package

• Pump Ratio: 1:1
• Pump Type: Pneumatic Diaphragm Pump

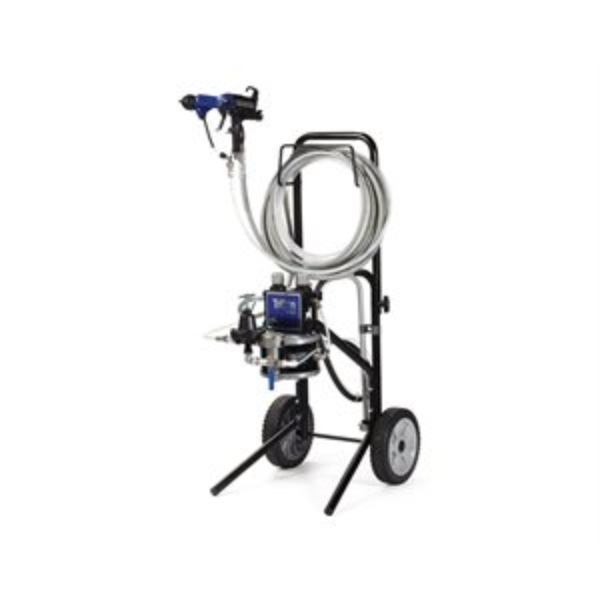

GG 289641

TRITON SPRAYER, AL PUMP CART MNT, ELECTRO

Triton Alum Spray Package, Cart, 60 psi Fluid Regulator, Pro Xp85 Electrostatic Gun, Suction, Air & Fluid HosesTriton® air operated diaphragm pump with Pro XpTM electrostatic air spray gun brings affordable, fine finish spraying to wood and metal applications.Effective alternative to traditional pressure pots and standard diaphragm pumps saves material and time during flushing, priming and color changes.Triton® air operated pump produces 30 percent more pumping power and 50 percent less pressure pulsation than standard diaphragm pumps.Rugged, aluminum pump handles a wide variety of fluids.Pro Xp electrostatic air spray gun delivers high transfer efficiency when spraying standard or specialty coatings.With a maximum voltage output of 85 kV, the electrostatic applicator meets strict requirements for spray pattern, mechanical and electrical performance.

GG 289649

TRITON SPRAYER, AL, PUMP STAND MNT, ELECTRO

Triton Alum Spray Package, Stand, 60 psi Fluid Regulator, Pro Xp85 Electrostatic Gun, Suction, Air & Fluid HosesTriton® air operated diaphragm pump with Pro XpTM electrostatic air spray gun brings affordable, fine finish spraying to wood and metal applications.Effective alternative to traditional pressure pots and standard diaphragm pumps saves material and time during flushing, priming and color changes.Triton® air operated pump produces 30 percent more pumping power and 50 percent less pressure pulsation than standard diaphragm pumps.Rugged, aluminum pump handles a wide variety of fluids.Pro Xp electrostatic air spray gun delivers high transfer efficiency when spraying standard or specialty coatings.With a maximum voltage output of 85 kV, the electrostatic applicator meets strict requirements for spray pattern, mechanical and electrical performance.

GG B05FA0

Merkur Bellows Pump, Assembly, 150Cc, Std

GG G05B02

MERKUR BELLOWS SYSTEM, PUMP, 150CC, SMT

Merkur Bellows 5:1 Ratio Pump Package with V-Packing Seal, Wall Mount, Fluid Filter, DataTrakGraco’s Merkur bellows piston pumps provide low maintenance with no seals exposed to the atmosphere. These pumps are designed to eliminate conventional throat seals, providing high reliability for moisture-sensitive materials.Highest technology air motor on the marketLow air consumption for increased efficiencySimple air motor design and minimal parts reduces repair timeEasy-to-flush design allows for fast color changes and reduced material waste300 series stainless steel pump construction provides long-lasting durability

GG G10W05

MERKUR SYSTEM PUMP 10:01 75CC WALL STD

Graco G10W05 10:1 Merkur AA Package, 1.2 gpm (4.5 lpm) fluid flow, Wall Mount, PerformAA 15 Gun, Pump Air Controls, Gun Air/Fluid Hose, Suction Hose

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: PerformAA 15 Air Assist
• Gun Technology: Air-Assisted
• Gun Type: Air-Assisted

• Hose Inlet Diameter (cm): 0.4763
• Hose Inlet Diameter (in): 0.1875
• Hose Inlet Diameter (mm): 5

• Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose

• Maximum Flow Rate (GPM): 1.2

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.6

• Maximum Working Pressure (bar): 69
• Maximum Working Pressure (kPa): 6900
• Maximum Working Pressure (MPa): 6.9
• Maximum Working Pressure (psi): 1000

• Motor Type: Pneumatic

• Mount Type: Wall Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 10:1
• Pump Type: Pneumatic Piston Pump

GG G15B04

MERKUR BELLOWS SYSTEM, PUMP, 50CC, SMT

Graco G15B04 Merkur Bellows 15:1 Ratio Air-Assisted Airless Package with V-Packing, Wall Mount, Fluid Filter, Hoses, PerformAA 15 Spray Gun, DataTrak

Graco's Merkur bellows piston pumps provide low maintenance with no seals exposed to the atmosphere. These pumps are designed to eliminate conventional throat seals, providing high reliability for moisture-sensitive materials.

• Highest technology air motor on the market
• Low air consumption for increased efficiency
• Simple air motor design and minimal parts reduces repair time
• 300 series stainless steel pump construction provides long-lasting durability

• Model: Merkur
• Series: Bellows

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish, UV Coating

• Convertible: Non-Convertible

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Frame Configuration: Wall

• Gun Included: 1
• Gun Model: G15
• Gun Technology: Air-Assisted
• Gun Type: Air-Assisted

• Includes: Pump and Gun Air Controls, Drain Valves, Fluid Filter, DataTrak, V-Packing

• Maximum Flow Rate (GPM): 0.8

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.6

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500

• Motor Type: Pneumatic

• Mount Type: Wall Mount

• Number of Guns: 1

• Outlet Paint Filter: 60 Mesh Stainless Steel Screen

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 15:1
• Pump Type: Pneumatic Piston Pump
