GRACO SPRAYER, 390, PC, STAND

Manufacturer: GRACO INC. S10595

GG 17C310

GRACO SPRAYER, 390, PC, STAND

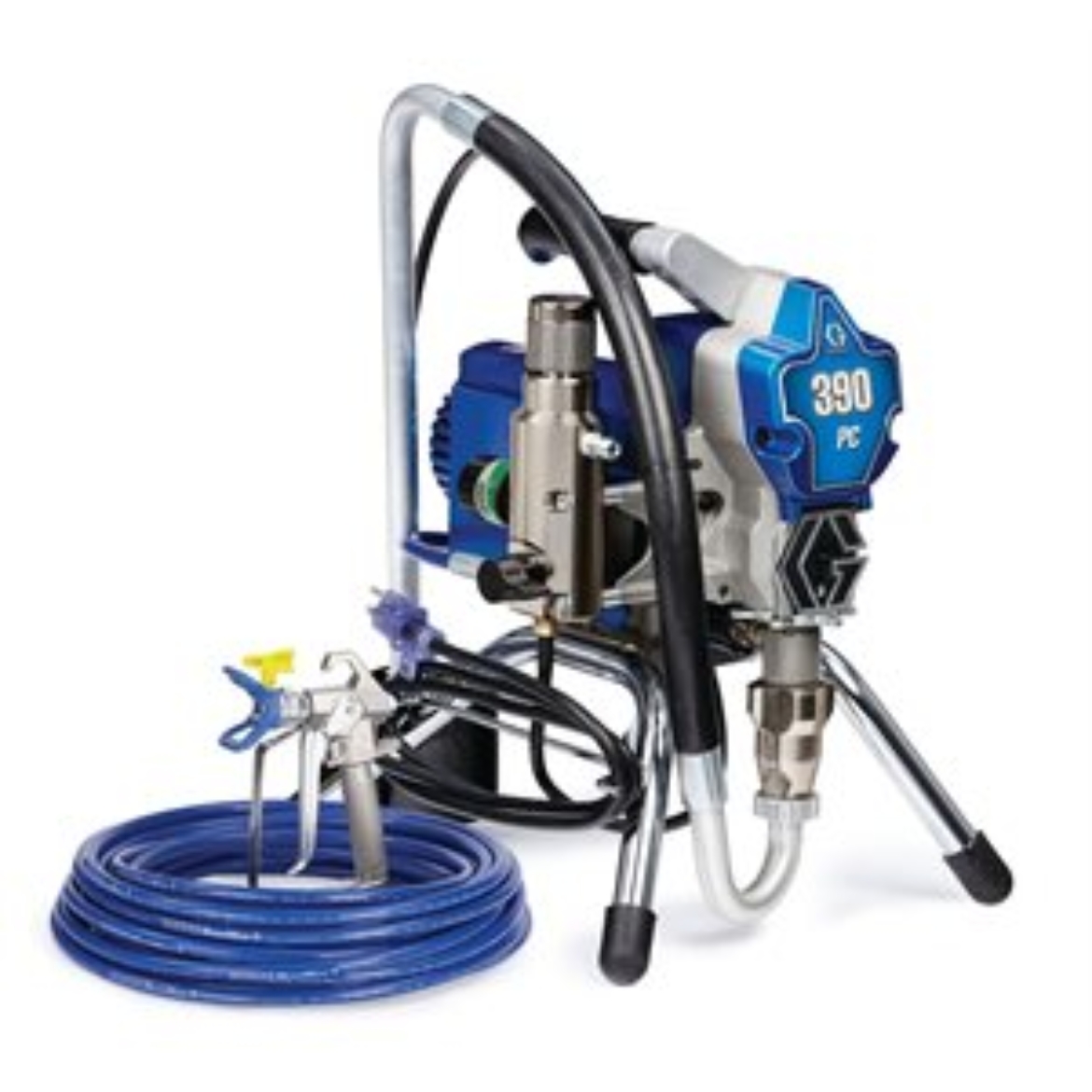

Graco 17C310 390 PC Electric Airless Sprayer, Stand

The 390 PC Stand is a solid workhorse built for the professional just &Prime, starting out.&Prime, Lightweight and portable, it&prime, s easy to lift and carry. The 390 PC is the ideal sprayer for residential jobs, and is the best value in small electric sprayers.

Application: The ideal sprayer for residential jobs and the best value in small electric sprayers.
  • Durable Endurance Chromex Piston Pump

    Lasts 2X longer than the next leading brand

    Long Life V-Max Blue Packings, Chromex rod and hardened stainless steel cylinder

    Faster cleaning with the QuikAccess intake valve

  • Advantage Drive

    The longest lasting drive

    Hardened steel gears provide extremely quiet operation and a Lifetime Warranty

  • ProConnect One-Part Pump Replacement System

    Eliminate costly downtime

    Pump swaps in minutes – no tools, pins or parts to lose

  • Rugged Steel Frame

    Thick chrome over steel withstands rugged environments

    4 leg stand provides greater stability

  • Variable Pressure Control

    Position indicator allows repeatable setting

  • Swivel Inlet Suction Hose

    Easily reaches paint buckets

  • Contractor FTx Airless Spray Gun

    Standard features

    Economic choice for everyday use


  • Series: 390 PC
  • Amperage (A): 13
  • Compatible Material: Acrylics, Enamel, Lacquer, Latex, Stains
  • Compatible Replacement Pump: 17C487
  • Cycles Per Gallon: 700
  • Engine Size (HP): 0.625
  • Features: Endurance Chromex Pump, Advantage Drive, ProConnect, Easy Out Filter
  • Fluid Outlet Size (in): 1/4
  • Fluid Outlet Size (mm): 6.35
  • Fluid Outlet Thread Type: NPSM
  • Frame Configuration: Stand
  • Includes: FTx Gun, RAC X LP 515 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz
  • Maximum Flow Rate (GPM): 0.47
  • Maximum Flow Rate (L/min): 1.8
  • Maximum Sound Pressure Level (dB(A)): 90
  • Maximum Tip Size (in): 0.021
  • Maximum Working Pressure (bar): 228
  • Maximum Working Pressure (kPa): 22800
  • Maximum Working Pressure (MPa): 22.8
  • Maximum Working Pressure (psi): 3300
  • Minimum Generator Power (W): 3000
  • Motor Type: DC
  • Number of Guns: 1
  • Outlet Paint Filter: 60 Mesh Stainless Steel Screen
  • Overall Height (cm): 47
  • Overall Height (in): 18.5
  • Overall Height (mm): 470
  • Overall Length (cm): 40.6
  • Overall Length (in): 16
