Merkur Bellows System,Pump,50Cc,Smt

GG G15B04

MERKUR BELLOWS SYSTEM, PUMP, 50CC, SMT

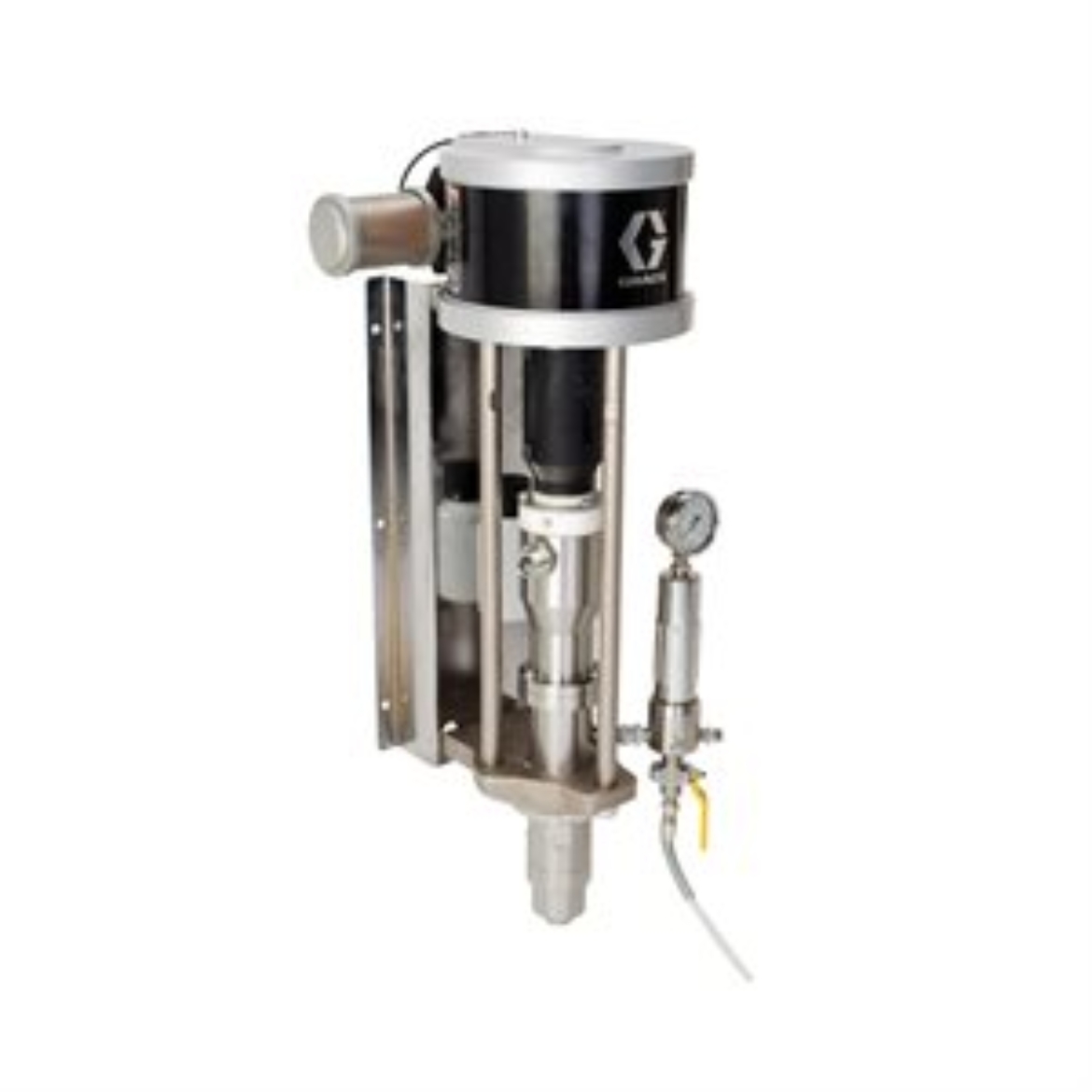

Graco G15B04 Merkur Bellows 15:1 Ratio Air-Assisted Airless Package with V-Packing, Wall Mount, Fluid Filter, Hoses, PerformAA 15 Spray Gun, DataTrak

Graco's Merkur bellows piston pumps provide low maintenance with no seals exposed to the atmosphere. These pumps are designed to eliminate conventional throat seals, providing high reliability for moisture-sensitive materials.

• Highest technology air motor on the market
• Low air consumption for increased efficiency
• Simple air motor design and minimal parts reduces repair time
• 300 series stainless steel pump construction provides long-lasting durability

• Model: Merkur
• Series: Bellows

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish, UV Coating

• Convertible: Non-Convertible

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Frame Configuration: Wall

• Gun Included: 1
• Gun Model: G15
• Gun Technology: Air-Assisted
• Gun Type: Air-Assisted

• Includes: Pump and Gun Air Controls, Drain Valves, Fluid Filter, DataTrak, V-Packing

• Maximum Flow Rate (GPM): 0.8

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.6

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500

• Motor Type: Pneumatic

• Mount Type: Wall Mount

• Number of Guns: 1

• Outlet Paint Filter: 60 Mesh Stainless Steel Screen

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 15:1
• Pump Type: Pneumatic Piston Pump
